Bonjour,

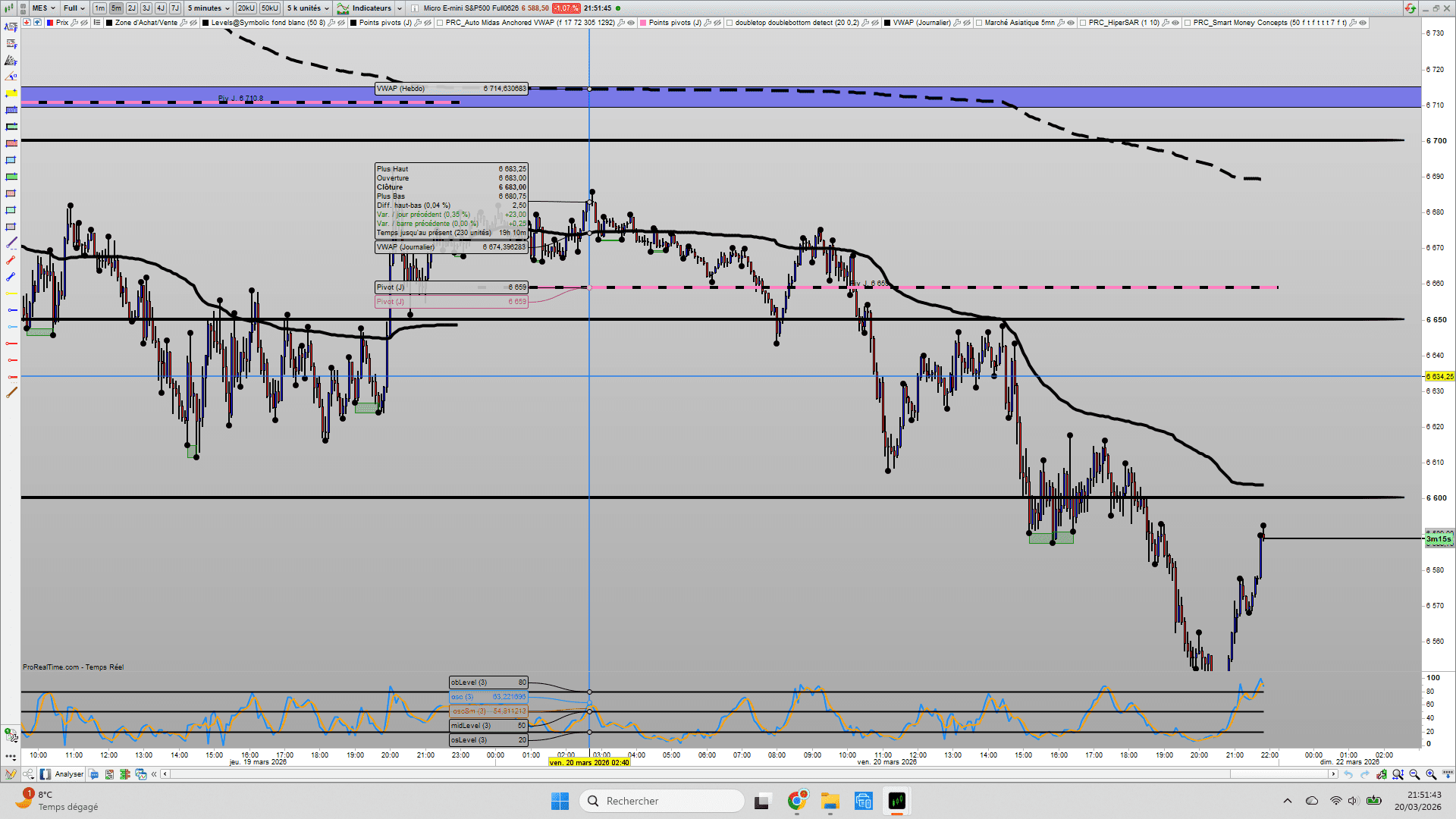

Ci-dessous le code double top et bottom sur lequel il doit y avoir un problême.En effet ,il ne dessine que les doubles bottoms, malgré que les deux options soit cochés.

//----------------------------------------------------------//
//PRC_Double Top and Bottom
//version = 0
//16.07.2024
//Iván González @ www.prorealcode.com
//Sharing ProRealTime knowledge
//----------------------------------------------------------//
//-----inputs
//prd = 5
//tol = 15
//showPivot=1
//Show2Bot=1
//Show2Top=1
//ShowShort=1
//ShowLong=1
src1 = low
src2 = high
//----------------------------------------------------------//
//-----Pivots High&Low--------------------------------------//
ph = high=highest[prd](high)
pl = low=lowest[prd](low)
//----------------------------------------------------------//
//-----Direction Calculation--------------------------------//
if ph and pl=0 then
dir=1
elsif pl and ph=0 then
dir=-1
else
dir=dir
endif


dirchanged=dir<>dir[1]
//----------------------------------------------------------//
//-----Calculate Arrays for each pivot----------------------//
if ph or pl then
if dirchanged then
if dir=1 then
$zigzag[t+1]=highest[prd](high)
$zigzagidx[t+1]=barindex
$dir[t+1]=1
t=t+1
elsif dir=-1 then
$zigzag[t+1]=lowest[prd](low)
$zigzagidx[t+1]=barindex
$dir[t+1]=-1
t=t+1
endif
else
if dir=1 and highest[prd](high)> $zigzag[t] then
$zigzag[t]=highest[prd](high)
$zigzagidx[t]=barindex
elsif dir=-1 and lowest[prd](low)< $zigzag[t] then
$zigzag[t]=lowest[prd](low)
$zigzagidx[t]=barindex
endif
endif
endif
//----------------------------------------------------------//
if t>4 then
//-----Double Top pattern----------------------------//
htop=($zigzag[t-3]+$zigzag[t-1])/2-$zigzag[t-2]
TopHigh=$zigzag[t-3]+htop*tol/100
BotHigh=$zigzag[t-3]-htop*tol/100
DoubleTop=($zigzag[t-1]>=BotHigh and $zigzag[t-1]<=TopHigh) and ($zigzag[t-3]>y1 and $zigzag[t-3]>$zigzag[t-2] and $zigzag[t-1]>$zigzag[t-2])


if DoubleTop and not DoubleTop[1] then
checkTop=1
short=0
x1=$zigzagidx[t-4]
y1=$zigzag[t-4]
x2=$zigzagidx[t-3]
y2=$zigzag[t-3]
x3=$zigzagidx[t-2]
y3=$zigzag[t-2]
x4=$zigzagidx[t-1]
y4=$zigzag[t-1]
x5=$zigzagidx[t]
y5=$zigzag[t]
dist=abs(y3-min(y2,y4))
if Show2Top then
drawrectangle(x2,y2,x4,y4)coloured("red")fillcolor("red",50)
endif
endif
if checkTop and ShowShort then


if not short and close crosses under y3 then
short=1
tpsh=(y3-dist)
slsh=max(y2,y4)
drawarrowdown(barindex,high)coloured("blue")
drawsegment(x3,y3,barindex,y3)coloured("blue")
endif


if short and low crosses under tpsh then
short=0
checkTop=0
Drawsegment(x3,tpsh,barindex,tpsh)coloured("blue")style(dottedline)
drawarrowup(barindex,low)coloured("orange")
endif


if short and close crosses over slsh then
checkTop=0
short=0
Drawsegment(x4,slsh,barindex,slsh)coloured("blue")style(dottedline)
drawarrowup(barindex,low)coloured("orange")
endif
endif
//-----Double Bottom pattern------------------------//


hbot=$zigzag[t-2]-($zigzag[t-3]+$zigzag[t-1])/2
topLow=$zigzag[t-3]+hbot*tol/100
botLow=$zigzag[t-3]-hbot*tol/100
DoubleBot=($zigzag[t-1]>=botLow and $zigzag[t-1]<=toplow) and ($zigzag[t-3]<$zigzag[t-4] and $zigzag[t-3]<$zigzag[t-2] and $zigzag[t-1]<$zigzag[t-2])
if DoubleBot and not DoubleBot[1] then
checkBot=1
xx1=$zigzagidx[t-4]
yy1=$zigzag[t-4]
xx2=$zigzagidx[t-3]
yy2=$zigzag[t-3]
xx3=$zigzagidx[t-2]
yy3=$zigzag[t-2]
xx4=$zigzagidx[t-1]
yy4=$zigzag[t-1]
xx5=$zigzagidx[t]
yy5=$zigzag[t]
dist1=abs(yy3-min(yy2,yy4))
if Show2Bot then
drawrectangle(xx2,yy2,xx4,yy4)coloured("green")fillcolor("green",50)
endif
endif
if checkbot and ShowLong then


if not long and close crosses over yy3 then
long=1
tp=yy3+dist1
sl=min(yy2,yy4)
drawarrowup(barindex,low)coloured("green")
drawsegment(xx3,yy3,barindex,yy3)coloured("blue")
endif


if long and high crosses over tp then
long=0
checkBot=0
Drawsegment(xx3,tp,barindex,tp)coloured("blue")style(dottedline)
drawarrowdown(barindex,high)coloured("red")
endif


if long and close crosses under sl then
checkBot=0
long=0
Drawsegment(xx4,sl,barindex,sl)coloured("blue")style(dottedline)
drawarrowdown(barindex,high)coloured("red")
endif
endif
endif
//-----Draw Pivots------------------------------------------//
if islastbarupdate  and showPivot then
for i=t downto 4 do
drawpoint($zigzagidx[i],$zigzag[i],2)coloured("BLACK")
next
endif
//----------------------------------------------------------//
return

merci
