PRC_ Variable Moving Average

• 04/03/2023 at 12:10 AM #212689
  Mary

  Hello,

  The indicator  PRC_Variable Moving Average,

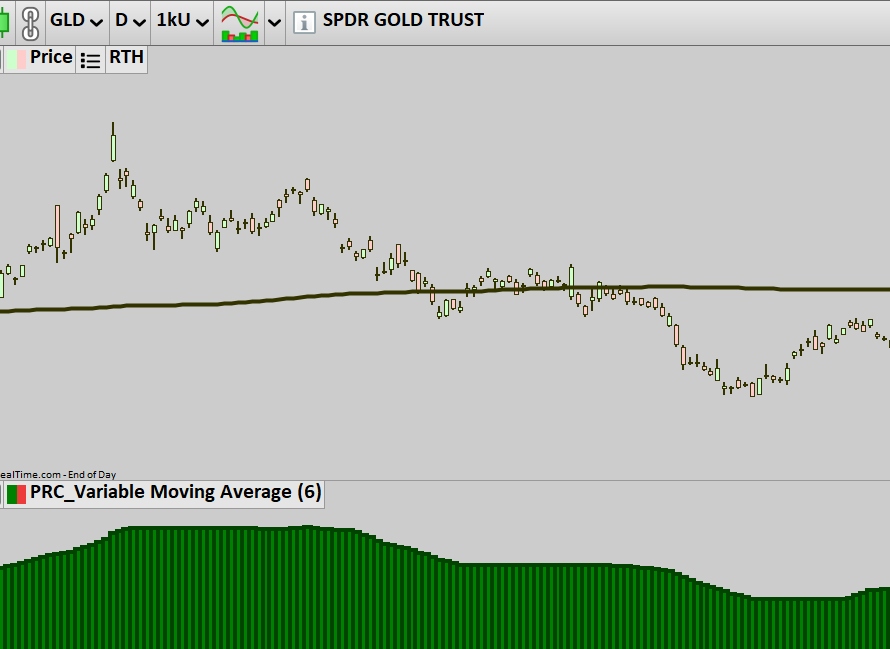

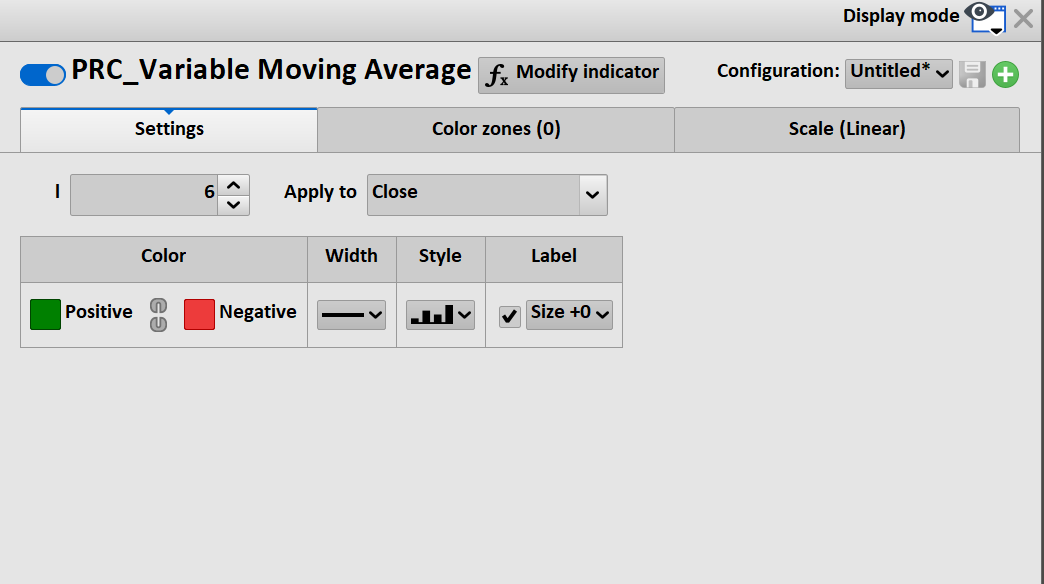

  I can plot as a line in two colors, Green for Positive, and Red for Negative but when I try to plot this indicator as a Histogram, it only appears in Green for both Positive and Negative although the Red option is available, its not working. Can you please help with code so that it can plot as both Green for Positive, and Red for Negative as a Histogram.

  Thank you in advance.

  See code and images below:

  //PRC_Variable Moving Average | indicator //14.12.2016 //Nicolas @ www.prorealcode.com //Sharing ProRealTime knowledge //converted and adapted from Pinescript version // --- parameters src=customclose //l = 6 if barindex>l then k = 1.0/l pdm = max((src - src[1]), 0) mdm = max((src[1] - src), 0) pdmS = ((1 - k)*(pdmS[1]) + k*pdm) mdmS = ((1 - k)*(mdmS[1]) + k*mdm) s = pdmS + mdmS pdi = pdmS/s mdi = mdmS/s pdiS = ((1 - k)*(pdiS[1]) + k*pdi) mdiS = ((1 - k)*(mdiS[1]) + k*mdi) d = abs(pdiS - mdiS) s1 = pdiS + mdiS iS = ((1 - k)*(iS[1]) + k*d/s1) hhv = highest[l](iS) llv = lowest[l](iS) d1 = hhv - llv vI = (iS - llv)/d1 vma = (1 - k*vI)*(vma[1]) + k*vI*src endif RETURN VMA

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

  //PRC_Variable Moving Average | indicator //14.12.2016 //Nicolas @ www.prorealcode.com //Sharing ProRealTime knowledge //converted and adapted from Pinescript version   // --- parameters src=customclose //l = 6   if barindex>l then k = 1.0/l pdm = max((src - src[1]), 0) mdm = max((src[1] - src), 0) pdmS = ((1 - k)*(pdmS[1]) + k*pdm) mdmS = ((1 - k)*(mdmS[1]) + k*mdm) s = pdmS + mdmS pdi = pdmS/s mdi = mdmS/s pdiS = ((1 - k)*(pdiS[1]) + k*pdi) mdiS = ((1 - k)*(mdiS[1]) + k*mdi) d = abs(pdiS - mdiS) s1 = pdiS + mdiS iS = ((1 - k)*(iS[1]) + k*d/s1) hhv = highest[l](iS) llv = lowest[l](iS) d1 = hhv - llv vI = (iS - llv)/d1 vma = (1 - k*vI)*(vma[1]) + k*vI*src endif   RETURN VMA







  Mary

  Participant

  Topics: 35

  Replies: 40

  Been thanked: 4 times
  04/03/2023 at 6:54 AM #212697
  JS

  Hi,

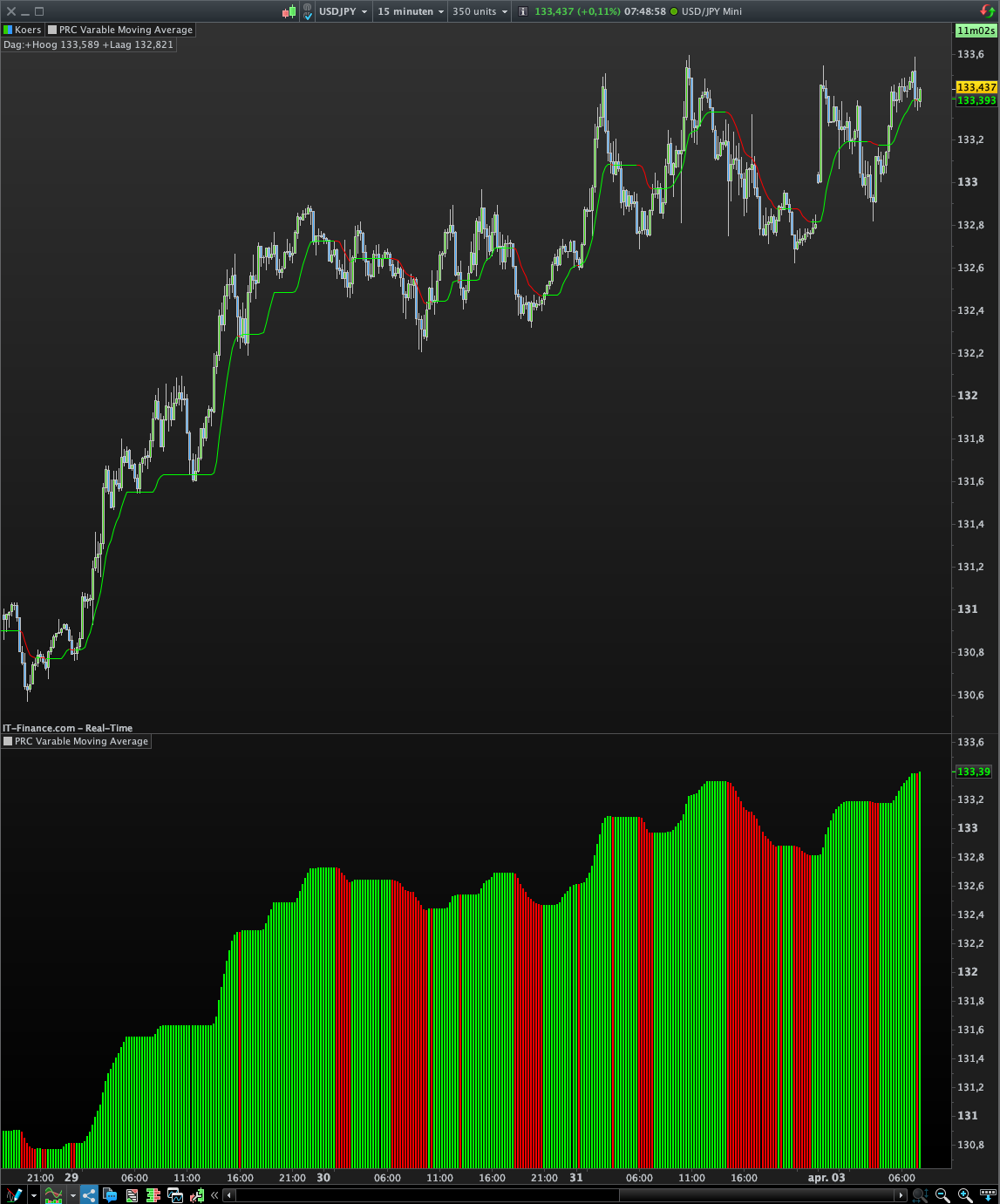

  I adjusted the code slightly and incorporated the colors into the indicator by default…

  PRC Variable Moving Average

  //PRC_Variable Moving Average | indicator //14.12.2016 //Nicolas @ http://www.prorealcode.com //Sharing ProRealTime knowledge //converted and adapted from Pinescript version // — parameters src=customclose l = 6 if barindex>l then k = 1.0/l pdm = max((src - src[1]), 0) mdm = max((src[1] - src), 0) pdmS = ((1 - k)*(pdmS[1]) + k*pdm) mdmS = ((1 - k)*(mdmS[1]) + k*mdm) s = pdmS + mdmS pdi = pdmS/s mdi = mdmS/s pdiS = ((1 - k)*(pdiS[1]) + k*pdi) mdiS = ((1 - k)*(mdiS[1]) + k*mdi) d = abs(pdiS - mdiS) s1 = pdiS + mdiS iS = ((1 - k)*(iS[1]) + k*d/s1) hhv = highest[l](iS) llv = lowest[l](iS) d1 = hhv - llv vI = (iS - llv)/d1 vma = (1 - k*vI)*(vma[1]) + k*vI*src endif If vma < vma[1] then R=255 G=0 B=0 Else R=0 G=255 B=0 EndIf RETURN VMA Coloured(R,G,B)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

  //PRC_Variable Moving Average | indicator //14.12.2016 //Nicolas @ http://www.prorealcode.com //Sharing ProRealTime knowledge //converted and adapted from Pinescript version   // — parameters src=customclose l = 6   if barindex>l then k = 1.0/l pdm = max((src - src[1]), 0) mdm = max((src[1] - src), 0) pdmS = ((1 - k)*(pdmS[1]) + k*pdm) mdmS = ((1 - k)*(mdmS[1]) + k*mdm) s = pdmS + mdmS pdi = pdmS/s mdi = mdmS/s pdiS = ((1 - k)*(pdiS[1]) + k*pdi) mdiS = ((1 - k)*(mdiS[1]) + k*mdi) d = abs(pdiS - mdiS) s1 = pdiS + mdiS iS = ((1 - k)*(iS[1]) + k*d/s1) hhv = highest[l](iS) llv = lowest[l](iS) d1 = hhv - llv vI = (iS - llv)/d1 vma = (1 - k*vI)*(vma[1]) + k*vI*src endif   If vma < vma[1] then R=255 G=0 B=0 Else R=0 G=255 B=0 EndIf   RETURN VMA Coloured(R,G,B)

  1 user thanked author for this post.

  Mary



  JS

  Participant

  Topics: 27

  Replies: 2104

  Been thanked: 1185 times
