10/05/2022 at 10:30 AM #201933 quote

Khaled

Participant

Veteran

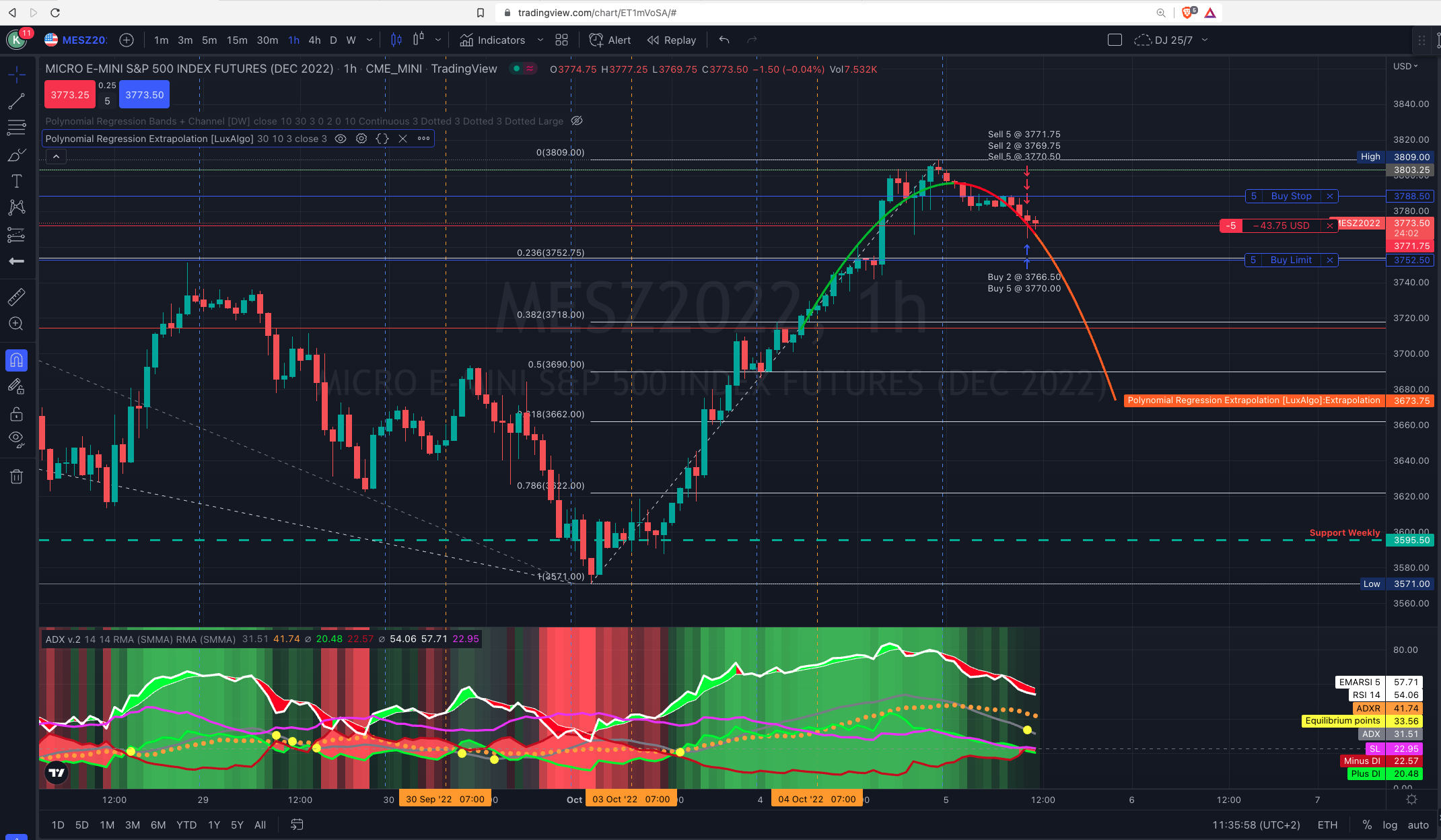

Hello, can someone please help converting this code?

I’m aware we don’t have multidimentional Arrays in PRT yet. I suspect, we can come over by splitting into multiple Arrays.

Thank you in advance

// This work is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0/
// © LuxAlgo

//@version=5
indicator("Polynomial Regression Extrapolation [LuxAlgo]"
  , overlay = true
  , max_lines_count = 500)
//------------------------------------------------------------------------------
//Settings
//-----------------------------------------------------------------------------{
length      = input.int(100
  , minval = 0)

extrapolate = input.int(10
  , minval = 0)

degree      = input.int(3, 'Polynomial Degree'
  , minval = 0
  , maxval = 8)

src         = input(close)

lock        = input(false, 'Lock Forecast')

//Style
up_css = input.color(#0cb51a, 'Upward Color'
  , group = 'Style')

dn_css = input.color(#ff1100, 'Downward Color'
  , group = 'Style')

ex_css = input.color(#ff5d00, 'Extrapolation Color'
  , group = 'Style')

width  = input(1, 'Width'
  , group = 'Style')

//-----------------------------------------------------------------------------}
//Fill lines array
//-----------------------------------------------------------------------------{
var lines = array.new_line(0)

if barstate.isfirst
    for i = -extrapolate to length-1
        array.push(lines, line.new(na, na, na, na))

//-----------------------------------------------------------------------------}
//Get design matrix & partially solve system
//-----------------------------------------------------------------------------{
n = bar_index

var design   = matrix.new<float>(0, 0)
var response = matrix.new<float>(0, 0)

if barstate.isfirst
    for i = 0 to degree
        column = array.new_float(0)

        for j = 0 to length-1
            array.push(column, math.pow(j,i))

        matrix.add_col(design, i, column)

var a = matrix.inv(matrix.mult(matrix.transpose(design), design))
var b = matrix.mult(a, matrix.transpose(design))

//-----------------------------------------------------------------------------}
//Get response matrix and compute roling polynomial regression
//-----------------------------------------------------------------------------{
var pass = 1
var matrix<float> coefficients = na
var x = -extrapolate
var float forecast = na

if barstate.islast
    if pass
        prices = array.new_float(0)

        for i = 0 to length-1
            array.push(prices, src[i])

        matrix.add_col(response, 0, prices)

        coefficients := matrix.mult(b, response)

        float y1 = na
        idx = 0

        for i = -extrapolate to length-1
            y2 = 0.

            for j = 0 to degree
                y2 += math.pow(i, j)*matrix.get(coefficients, j, 0)

            if idx == 0
                forecast := y2

            //------------------------------------------------------------------
            //Set lines
            //------------------------------------------------------------------
            css = y2 < y1 ? up_css : dn_css

            get_line = array.get(lines, idx)

            line.set_xy1(get_line, n - i + 1, y1)

            line.set_xy2(get_line, n - i, y2)

            line.set_color(get_line, i <= 0 ? ex_css : css)

            line.set_width(get_line, width)

            y1 := y2
            idx += 1

        if lock
            pass := 0
    else
        y2 = 0.
        x -= 1

        for j = 0 to degree
            y2 += math.pow(x, j)*matrix.get(coefficients, j, 0)

        forecast := y2

plot(pass == 0 ? forecast : na, 'Extrapolation'
  , color     = ex_css
  , offset    = extrapolate
  , linewidth = width)

//-----------------------------------------------------------------------------}


08/27/2023 at 10:09 AM #219832 quote

LucasBest

Participant

Average

If you want to come over multidimentional Arrays in PRT, the solution is not to split it into multiple Arrays, because this would mean changing the code of the script each time one or both size of the multidimentional Arrays will change… which is not possible!

In reality, coming over 2 dimensions arrays (in PRT) with only 1 dimension array is not a big deal. It has ben done for years since early stage of computer science. What you see on your screen can be compared to a 2 dimentional array (rows and columns of the screen) and it is simply stored in the memory of the computer in a one dimention array… It is possible as far as you know how much rows and columns you need to store in your 1 dimension array.

I did the conversion of the begining of Polynomial Regression Extrapolation by LuxAlgo. You can find it below.

The biggest deal here is to come over those built-in function for multidimentional Arrays that come with pine script.

For example “matrix.inv” calculate the inverse of a square matrix, which is not easy to code and will require several lines of code and take long time to calculate if it is not done in a built-in function…

defparam drawonlastbaronly = true
Maxlength = 500
long = Min(barindex,Min(Maxlength,length))
// degree = 0-8 Polynomial Degree
src = customclose
// lock = Lock Forecast
once init = 1

n = barindex

If init = 1 then
For k = 0 to degree*long-1 do
$design[k]=0
Next
For i = 0 to degree do
For j = 0 to long-1 do
P = pow(j,i)
$designT[i*long+j]= P
$design[j*degree+i]= P
Next
Next
//Matrix.mult
For i = 0 to degree do
For j = 0 to degree do
sum = 0
For k = 0 to long-1 do
sum=sum+$designT[i*long+k]*$design[k*degree+j]
Next
$produit[i*degree+j]=sum
Next
Next
init = 0
Endif

...

Khaled thanked this post

08/27/2023 at 10:30 AM #219834 quote

Khaled

Participant

Veteran

@LucasBest Bravo. It’s clear, you’re talented. How can I finish translating the remaining part so that I can get the full code working? Thanks

08/27/2023 at 10:46 AM #219835 quote

LucasBest

Participant

Average

I am trying to found a way to code simply the calculation of the inverse of a square matrix.

If someone can help me to do so, it would be appreciate, because all i learned in school about matrix is very far now… 🙂

The rest of LuxAlgo pine script will be quit easy to translate then.

For example, in the link below the script in c++ for inverse matrix calculation…

https://www.tutorialspoint.com/cplusplus-program-to-find-inverse-of-a-graph-matrix

Khaled thanked this post

08/27/2023 at 10:53 AM #219836 quote

Khaled

Participant

Veteran

Lucas, can i suggest that you replace this inverse matrix by whatever pleases you to get over this step (for now until we find a solution) and continue the rest with an alternative option to this inverse matrix? Thanks

08/27/2023 at 11:08 AM #219839 quote

LucasBest

Participant

Average

Impossible! It would be like cooking a sauerkraut without cabbage or a couscous without semolina…
We need this matrix inversion to calculate Matrix a, then Matrix b, and everything that come after!

08/27/2023 at 11:17 AM #219841 quote

Khaled

Participant

Veteran

Fair enough! Bravo anyway! France has talents.

08/27/2023 at 11:33 AM #219846 quote

PeterSt

Participant

Master

LucasBest wrote:

will require several lines of code and take long time to calculate

LucasBest wrote:

like cooking a sauerkraut without cabbage

The latter can be overwon by a. growing the gabbage and b. ferment it. Yes, take many months for that indeed. The semolina needs further investigation.

08/27/2023 at 11:46 AM #219847 quote

LucasBest

Participant

Average

PeterSt wrote:

The latter can be overwon by a. growing the gabbage and b. ferment it. Yes, take many months for that indeed. The semolina needs further investigation.

Hey Peter,

this is funny, but it does not help me to code the inverse function of a matrix… 😉

08/27/2023 at 6:52 PM #219882 quote

LucasBest

Participant

Average

defparam drawonlastbaronly = true
Maxlength = 500
long = Min(barindex,Min(Maxlength,length))
// degree = 0-8 Polynomial Degree
src = customclose
// lock = Lock Forecast
once init = 1

n = barindex

If init = 1 then
For k = 0 to degree*long-1 do
$design[k]=0
Next
For i = 0 to degree-1 do
For j = 0 to long-1 do
P = pow(j,i)
$designT[i*long+j]= P
$design[j*degree+i]= P
Next
Next
//Matrix.mult
For i = 0 to degree-1 do
For j = 0 to degree-1 do
sum = 0
For k = 0 to long-1 do
sum=sum+$designT[i*long+k]*$design[k*degree+j]
Next
$produit[i*degree+j]=sum
Next
Next

//Extracting Minors Matrix i,j
Minordegree = degree-1
For i = 0 to Minordegree do
For j = 0 to Minordegree do
m = 0
For k = 0 to degree*degree-1 do
If (j<>k mod degree) and (i<>floor(k/degree)) then
$Minor[m]=$produit[k]
m=m+1
Endif
Next
//Calculation Determinant
If Minordegree = 1 then
determinant = $Minor[1]
Elsif Minordegree = 2 then
determinant = $Minor[1]*$Minor[4]-$Minor[2]*$Minor[3]
Elsif Minordegree = 3 then
determinant = $Minor[1]*($Minor[5]*$Minor[9]-$Minor[6]*$Minor[8])-$Minor[2]*($Minor[4]*$Minor[9]-$Minor[6]*$Minor[7])+$Minor[3]*($Minor[4]*$Minor[8]-$Minor[5]*$Minor[7])
Endif
//Setting cofactor Matrix
$cofactor[i*degre+j]=pow(-1,i+j)*determinant
Next
Next
//Calculating overall determinant
determinant = 0
For k = 0 to degree-1 do
determinant = determinant + $produit[k]*$cofactor[k]
$Inverse[k] = 0
Next
//Setting Inverse Matrix
For i = 0 to degree-1 do
For j = 0 to degree-1 do
$Inverse[i+j*degree] = $cofactor[i*degree+j]*(1/determinant)
Next
Next
init = 0
Endif

Khaled wrote:

Lucas, can i suggest that you replace this inverse matrix by whatever pleases you to get over this step (for now until we find a solution) and continue the rest with an alternative option to this inverse matrix? Thanks

Ok, i did not replace, but i found a solution for calculating the inverse of the matrix, until degree 4… Now i can finish and will found a solution later for inversing bigger square matrix

Nicolas thanked this post

08/28/2023 at 9:16 AM #219918 quote

LucasBest

Participant

Average

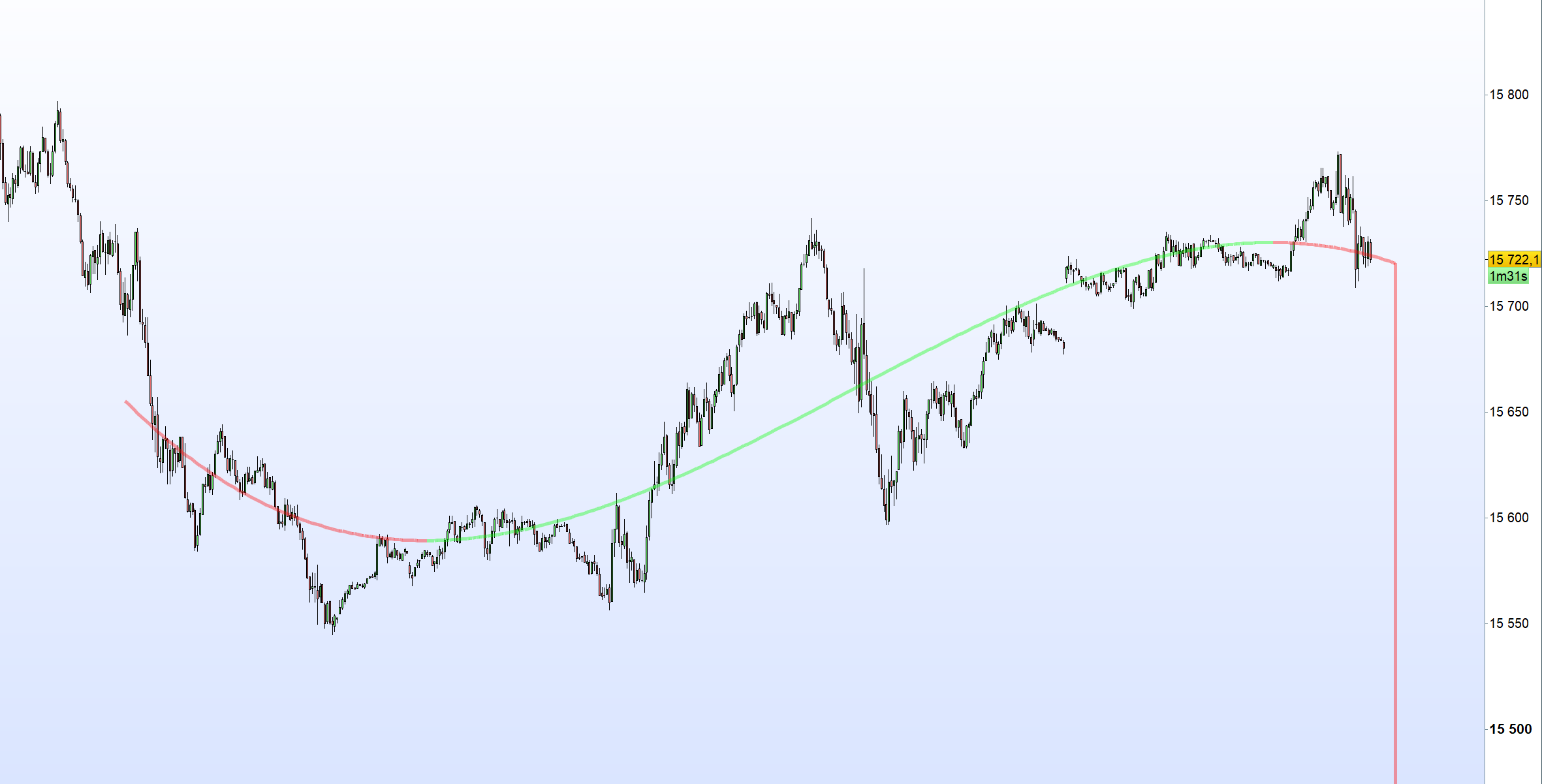

It is working now, but there is still some bugs…

defparam drawonlastbaronly = true
Maxlength = 500
long = Min(barindex,Min(Maxlength,length))
// degree = 0-8 Polynomial Degree
src = customclose
// lock = Lock Forecast
once init = 1

n = barindex

If init=1 and long=length then
For k = 0 to degree*long-1 do
$design[k]=0
Next
For i = 0 to degree-1 do
For j = 0 to long-1 do
P = pow(j,i)
$designT[i*long+j]= P
$design[j*degree+i]= P
Next
Next
//Matrix.mult
For i = 0 to degree-1 do
For j = 0 to degree-1 do
sum = 0
For k = 0 to long-1 do
sum=sum+$designT[i*long+k]*$design[k*degree+j]
Next
$produit[i*degree+j]=sum
Next
Next

//Extracting Minors Matrix i,j
Minordegree = degree-1
For i = 0 to Minordegree do
For j = 0 to Minordegree do
m = 0
For k = 0 to degree*degree-1 do
If (j<>k mod degree) and (i<>floor(k/degree)) then
$Minor[m]=$produit[k]
m=m+1
Endif
Next
//Calculation Determinant
If Minordegree = 1 then
determinant = $Minor[0]
Elsif Minordegree = 2 then
determinant = $Minor[0]*$Minor[3]-$Minor[1]*$Minor[2]
Elsif Minordegree = 3 then
determinant = $Minor[0]*($Minor[4]*$Minor[8]-$Minor[5]*$Minor[7])-$Minor[1]*($Minor[3]*$Minor[8]-$Minor[5]*$Minor[6])+$Minor[2]*($Minor[3]*$Minor[7]-$Minor[4]*$Minor[6])
Endif
//Setting cofactor Matrix
$cofactor[i*degree+j]=pow(-1,i+j)*determinant
Next
Next
//Calculating overall determinant
determinant = 0
For k = 0 to degree-1 do
determinant = determinant + $produit[k]*$cofactor[k]
Next
//Setting Inverse Matrix => $a
For k = 0 to degree*degree-1 do
$a[k]=0
Next
For i = 0 to degree-1 do
For j = 0 to degree-1 do
$a[i+j*degree] = $cofactor[i*degree+j]*(1/determinant)
Next
Next

For i = 0 to degree-1 do
For j = 0 to degree-1 do
$a[i+j*degree] = $cofactor[i*degree+j]*(1/determinant)
Next
Next
//Setting Mult matrice => $b
For i = 0 to degree-1 do
For j = 0 to long-1 do
sum = 0
For k = 0 to degree-1 do
sum=sum+$a[i*degree+k]*$designT[k*long+j]
Next
$b[i*long+j]=sum
Next
Next
init = 0
Endif

once pass = 1
once x = -1 * Extrapolate
once forecast = 0

If IsLastBarUpdate then
If pass = 1 then
For i = 0 to long-1 do
$response[i] = src[i]
Next
//Setting Mult matrice => $coefficients
For i = 0 to degree-1 do
j = 0
sum = 0
For k = 0 to long-1 do
sum=sum+$b[i*long+k]*$response[k]
Next
$coefficients[i]=sum
Next
once y1 = 0
idx = 0
For i = -Extrapolate to long-1 do
y2 = 0
for j = 0 to degree-1 do
y2 = y2+pow(i,j)*$coefficients[j]
Next
If idx = 0 then
forecast = y2
Endif
If y2 < y1 then
r = 10
g = 255
b = 10
else
r = 255
g = 10
b = 10
Endif
DRAWSEGMENT(n-i, y2, n-i+1, y1)style(line,5)coloured(r,g,b,100)
y1 = y2
idx = idx+1

If lock then
pass = 0
Endif
Next
else
y2 = 0
x = x -1
For j = 0 to degree do
y2 = y2+pow(x,j)*$coefficients[j]
Next
forecast = y2
Endif

If pass = 0 then
DRAWPOINT(n+extrapolate, forecast, 5)
Endif
Endif

Return


08/28/2023 at 9:34 AM #219923 quote

LucasBest

Participant

Average

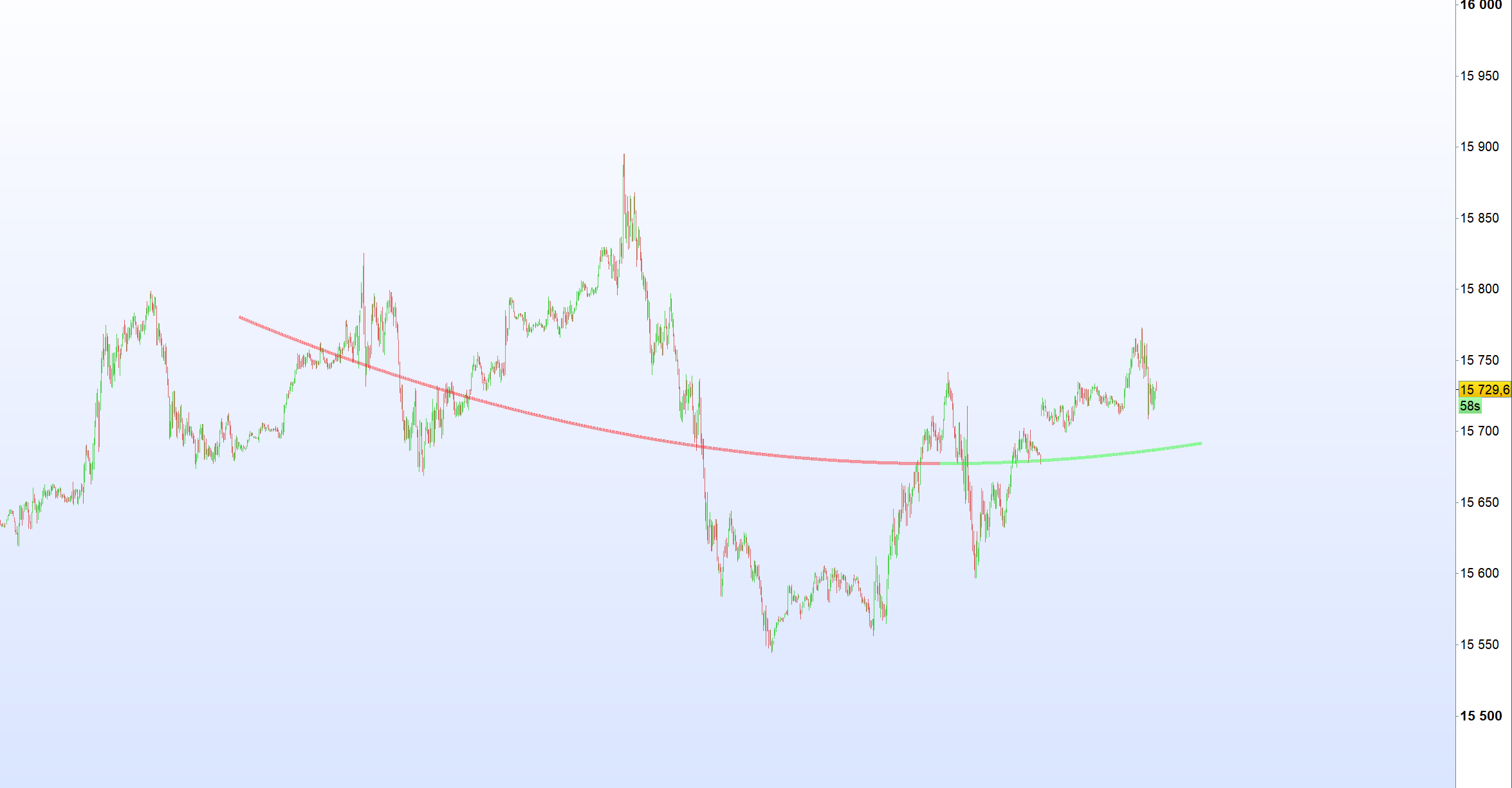

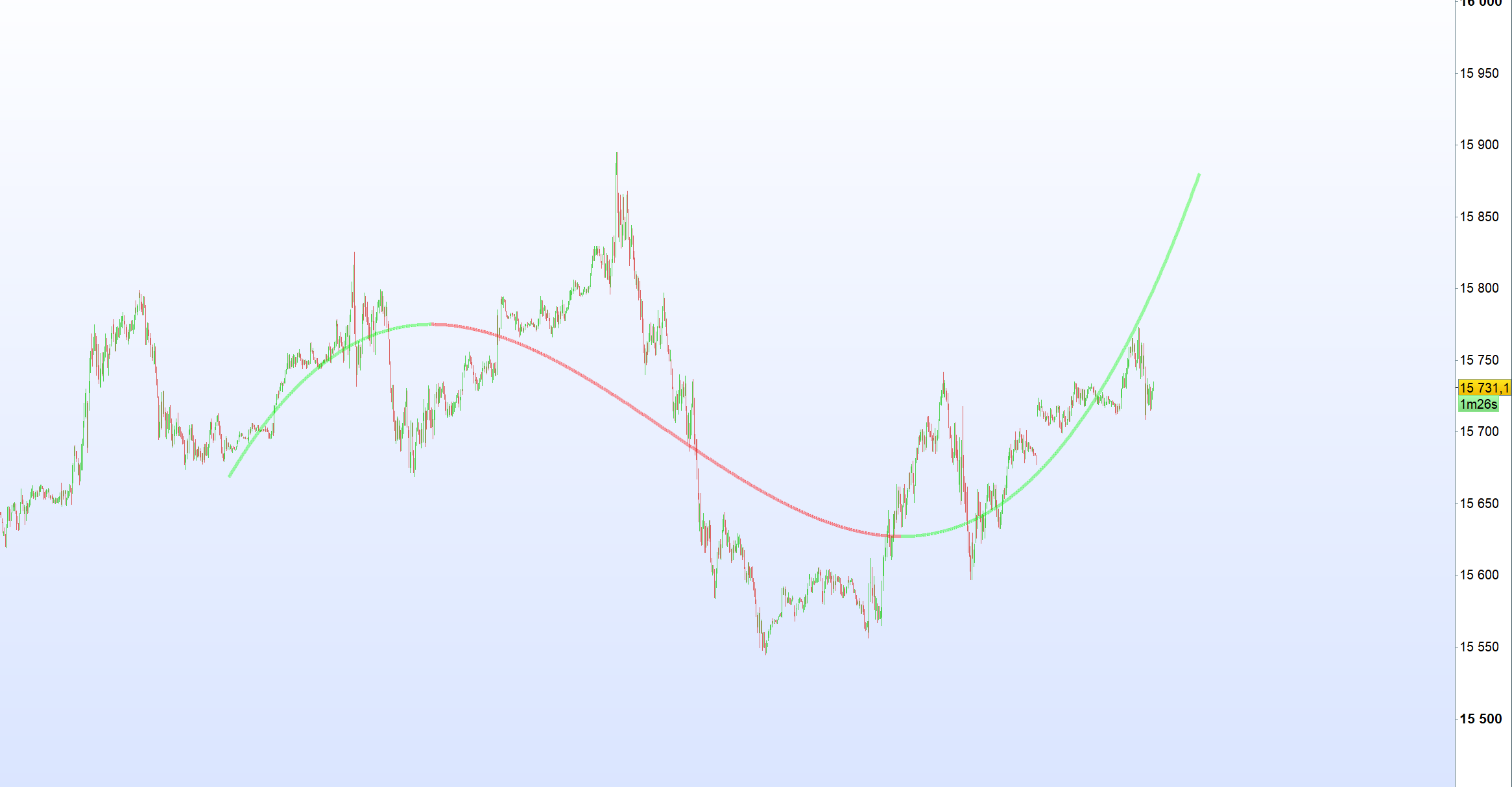

With 3 and 4 degree and a different lngth… forecast can be completly different while increasing/decreasing degree or length.
I think this kind of indicator, that repaint, and only shows what we want to see are completly useless for trading.




08/28/2023 at 9:37 AM #219927 quote

LucasBest

Participant

Average

There is still some bugs/issues, but i add here the last itf i have. I will try to found the bugs later wheni will have time.

Khaled and robert123 thanked this post

Polynomial-Regressi-Extrapolat.itf

08/28/2023 at 9:47 AM #219930 quote

Khaled

Participant

Veteran

Bravo Lucas. Yes, it repaints like the Center of Gravity. But anyway, bravo for having solved such a complex mathematical/coding problem. We can have separate discussion on the relevance of Indicators in general for a Retail Trader. After a few yers of observation of the Futures markets (never trader Forex), the Indicators do offer very limited success for day trading. They might be uselful on higher timeframe, but up to 30 minutes, what matters is Order Flow and Price Action, which unless you have access to sophisticated tools and an army of quants and programmers can be a huge task for a Retail Trader. The HFT Algos use the information available in the DOM to grab a few ticks and play games of manipulation and spoofing. Merci encore!

08/28/2023 at 3:36 PM #219955 quote

Aragorna

Participant

Junior

Hi, I tried to put it on but it doesn’ show anything. Very strange!

Author

Posts

Viewing 15 posts - 1 through 15 (of 23 total)

1 2 →

You must be logged in to reply to this topic.

Pine Scipt conversion – Polynomial Regression Extrapolation

ProBuilder: Indicators & Custom Tools

New Reply

Author

Khaled @khaled Participant

Summary

This topic contains 22 replies,
has 6 voices, and was last updated by LucasBest
2 years, 6 months ago.

Topic Details

Forum:	ProBuilder: Indicators & Custom Tools
Language:	English
Started:	10/05/2022
Status:	Active
Attachments:	7 files

Expert Services

No recent search

Pine Scipt conversion – Polynomial Regression Extrapolation

Pine Scipt conversion – Polynomial Regression Extrapolation ProBuilder: Indicators & Custom Tools

Author

Summary

Topic Details

About personal data collected

Get Assistance

Assistance Type

Your Need

Proposed Solutions

Choose Assistance Type

Your Need

Programming Help

Download Codes

Trading Help

ProRealTime Information

Account Assistance

Paid Programming Help

Pine Scipt conversion – Polynomial Regression Extrapolation

ProBuilder: Indicators & Custom Tools
