PHANTOMFLOW TREND DETECTOR

brian gilbert · 2026-05-07T14:10:40+00:00

Hello everyone, I'm writing about a new TW indicator that seems interesting to me, and I'd like to know if I can get the corresponding Prorealcode indicator. Here's the link: https://www.tradingview.com/script/AuFIke86-PhantomFlow-TrendDetector/ And here's the Pine-script code // This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/ // © PhantomFlow_s666ex_ //@version=5 indicator(“PhantomFlow Trend Detector”, “PhantomFlow TrendDetector”, true, max_lines_count = 500) type fractal int fractal_bar box bx type wave bool isActive bool isSearchCountertrendFormation bool isSearchTrendFormation int bar_start int bar_end float high_price float low_price array lines var array waves_down = array.new () var array waves_up = array.new () var array fractals_down_zigzag = array.new () var array fractals_up_zigzag = array.new () var array listFractals = array.new () var array LevelsShort = array.new () var array LevelsLong = array.new () var array LevelsShortHTF = array.new () var array LevelsLongHTF = array.new () var array levelsToCoef = array.new () htf_alerts_enable = input.bool(title=’Enable Alerts’, defval = false) ltf = timeframe.period up_trend_start = input.color(title=’Low’, defval = color.rgb(255, 253, 106), group=”Up Trend Power”, inline = “up_trend”) up_trend_end = input.color(title=’High’, defval = color.rgb(0, 255, 0), group=”Up Trend Power”, inline = “up_trend”) down_trend_start = input.color(title=’Low’, defval = color.rgb(255, 89, 255), group=”Down Trend Power”, inline = “down_trend”) down_trend_end = input.color(title=’High’, defval = color.rgb(255, 0, 0), group=”Down Trend Power”, inline = “down_trend”) n_zigzag = 2 is_down_fractal_zigzag() => bool isConfirmFractal = false for i = 0 to n_zigzag + n_zigzag if low[n_zigzag] > low[i] break if (i == n_zigzag + n_zigzag) isConfirmFractal := true isConfirmFractal is_up_fractal_zigzag() => bool isConfirmFractal = false for i = 0 to n_zigzag + n_zigzag if high[n_zigzag] if array.size(fractals_up_zigzag) > 2 item1 = array.last(fractals_up_zigzag) item2 = array.get(fractals_up_zigzag, array.size(fractals_up_zigzag) – 2) item3 = array.get(fractals_up_zigzag, array.size(fractals_up_zigzag) – 3) if (high[bar_index – item1] ())) true else wave last_wave = array.last(waves_up) if (item3 >= last_wave.bar_start and item3 ())) true check_is_add_down_liquidity() => if array.size(fractals_down_zigzag) > 2 item1 = array.last(fractals_down_zigzag) item2 = array.get(fractals_down_zigzag, array.size(fractals_down_zigzag) – 2) item3 = array.get(fractals_down_zigzag, array.size(fractals_down_zigzag) – 3) if (low[bar_index – item1] > low[bar_index – item2] and low[bar_index – item2] > low[bar_index – item3]) if array.size(waves_down) == 0 array.push(waves_down, wave.new(true, true, true, item3, item1, low[bar_index – item1], low[bar_index – item3], array.new ())) true else wave last_wave = array.last(waves_down) if (item3 >= last_wave.bar_start and item3 ())) true bool is_search_fractal_zigzag = bar_index – n_zigzag * 2 >= 0 if is_search_fractal_zigzag and true if is_up_fractal_zigzag() if array.size(fractals_up_zigzag) == 0 array.push(fractals_up_zigzag, bar_index – (n_zigzag)) array.push(listFractals, true) else isUpLastFractal = array.last(listFractals) lastFractal = array.last(fractals_up_zigzag) if isUpLastFractal and high[bar_index – lastFractal] < high[n_zigzag] array.pop(fractals_up_zigzag) array.push(fractals_up_zigzag, bar_index – (n_zigzag)) check_is_add_up_liquidity() if not isUpLastFractal lastFractalDown = array.last(fractals_down_zigzag) if (low[bar_index – lastFractalDown] < high[n_zigzag]) array.push(fractals_up_zigzag, bar_index – (n_zigzag)) array.push(listFractals, true) check_is_add_up_liquidity() if is_down_fractal_zigzag() if array.size(fractals_down_zigzag) == 0 array.push(fractals_down_zigzag, bar_index – (n_zigzag)) array.push(listFractals, false) else isUpLastFractal = array.last(listFractals) lastFractal = array.last(fractals_down_zigzag) if not isUpLastFractal and low[bar_index – lastFractal] > low[n_zigzag] array.pop(fractals_down_zigzag) array.push(fractals_down_zigzag, bar_index – (n_zigzag)) check_is_add_down_liquidity() if isUpLastFractal lastFractalUp = array.last(fractals_up_zigzag) if (high[bar_index – lastFractalUp] > low[n_zigzag]) array.push(fractals_down_zigzag, bar_index – (n_zigzag)) array.push(listFractals, false) check_is_add_down_liquidity() bool isDownTrend = false bool isUpTrend = false var float last_low = na var float last_high = na if (array.size(waves_up) != 0 and array.size(waves_down) != 0) wave lastWaveUp = array.last(waves_up) wave lastWaveDown = array.last(waves_down) if (close lastWaveUp.low_price) if (lastWaveDown.bar_end = lastWaveDown.high_price and close > lastWaveUp.low_price) isUpTrend := true last_low := lastWaveUp.low_price last_high := lastWaveUp.high_price if (close lastWave.low_price) isUpTrend := true last_low := lastWave.low_price last_high := lastWave.high_price if (array.size(waves_down) != 0 and array.size(waves_up) == 0) wave lastWave = array.last(waves_down) if (close < lastWave.high_price) isDownTrend := true last_low := lastWave.low_price last_high := lastWave.high_price var color trend_css = na float signal = ta.ema(close, 1) color signalColorDown = color.from_gradient(signal, last_low, last_high, up_trend_start, up_trend_end) color signalColorUp = color.from_gradient(signal, last_low, last_high, down_trend_end, down_trend_start) if isDownTrend trend_css := signalColorUp if isUpTrend trend_css := signalColorDown isUpTrendAlert = trend_css == signalColorDown isDownTrendAlert = trend_css == signalColorUp if (isDownTrendAlert and not isDownTrendAlert[1] and htf_alerts_enable and not isUpTrendAlert and barstate.isconfirmed) alert(“🔴A new Down Trend has been detected!🔴”) if (isUpTrendAlert and not isUpTrendAlert[1] and htf_alerts_enable and barstate.isconfirmed) alert(“🟢A new Up Trend has been detected!🟢”) plotcandle(open, high, low, close , color = trend_css , wickcolor = trend_css , bordercolor = trend_css , editable = false , display = display.pane) ———————————————————————————————————————————————————————————— Thank you very much! Paolo Bonsanti

Viewing 3 posts - 1 through 3 (of 3 total)

Author

Posts
05/07/2026 at 4:10 PM #260910 quote
brian gilbert
Participant

Senior
```
Hello everyone, I'm writing about a new TW indicator that seems interesting to me, and I'd like to know if I can get the corresponding Prorealcode indicator. Here's the link:
```
https://www.tradingview.com/script/AuFIke86-PhantomFlow-TrendDetector/
```
And here's the Pine-script code
```
// This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © PhantomFlow_s666ex_

//@version=5
indicator(“PhantomFlow Trend Detector”, “PhantomFlow TrendDetector”, true, max_lines_count = 500)

type fractal
  int fractal_bar
  box bx

type wave
  bool isActive
  bool isSearchCountertrendFormation
  bool isSearchTrendFormation
  int bar_start
  int bar_end
  float high_price
  float low_price
  array<line> lines

var array<wave> waves_down = array.new<wave>()
var array<wave> waves_up = array.new<wave>()
var array<int> fractals_down_zigzag = array.new<int>()
var array<int> fractals_up_zigzag = array.new<int>()

var array<bool> listFractals = array.new<bool>()

var array<fractal> LevelsShort = array.new<fractal>()
var array<fractal> LevelsLong = array.new<fractal>()

var array<fractal> LevelsShortHTF = array.new<fractal>()
var array<fractal> LevelsLongHTF = array.new<fractal>()

var array<int> levelsToCoef = array.new<int>()
htf_alerts_enable = input.bool(title=’Enable Alerts’, defval = false)

ltf = timeframe.period
up_trend_start = input.color(title=’Low’, defval = color.rgb(255, 253, 106), group=”Up Trend Power”, inline = “up_trend”)
up_trend_end = input.color(title=’High’, defval = color.rgb(0, 255, 0), group=”Up Trend Power”, inline = “up_trend”)
down_trend_start = input.color(title=’Low’, defval = color.rgb(255, 89, 255), group=”Down Trend Power”, inline = “down_trend”)
down_trend_end = input.color(title=’High’, defval = color.rgb(255, 0, 0), group=”Down Trend Power”, inline = “down_trend”)

n_zigzag = 2

is_down_fractal_zigzag() =>
  bool isConfirmFractal = false

  for i = 0 to n_zigzag + n_zigzag
    if low[n_zigzag] > low[i]
      break

    if (i == n_zigzag + n_zigzag)
isConfirmFractal := true

  isConfirmFractal

is_up_fractal_zigzag() =>
  bool isConfirmFractal = false

  for i = 0 to n_zigzag + n_zigzag
    if high[n_zigzag] < high[i]
      break

    if (i == n_zigzag + n_zigzag)
isConfirmFractal := true

  isConfirmFractal

check_is_add_up_liquidity() =>
  if array.size(fractals_up_zigzag) > 2
    item1 = array.last(fractals_up_zigzag)
    item2 = array.get(fractals_up_zigzag, array.size(fractals_up_zigzag) – 2)
    item3 = array.get(fractals_up_zigzag, array.size(fractals_up_zigzag) – 3)
    if (high[bar_index – item1] < high[bar_index – item2] and high[bar_index – item2] < high[bar_index – item3])
      if array.size(waves_up) == 0
        array.push(waves_up, wave.new(true, true, true, item3, item1, high[bar_index – item3], high[bar_index – item1], array.new<line>()))
        true
      else
        wave last_wave = array.last(waves_up)
        if (item3 >= last_wave.bar_start and item3 < last_wave.bar_end)
          last_wave.bar_end := item1
          last_wave.low_price := high[bar_index – item1]
          last_wave.isActive := false
          true
        else
          array.push(waves_up, wave.new(true, true, true, item3, item1, high[bar_index – item3], high[bar_index – item1], array.new<line>()))
          true

check_is_add_down_liquidity() =>
  if array.size(fractals_down_zigzag) > 2
    item1 = array.last(fractals_down_zigzag)
    item2 = array.get(fractals_down_zigzag, array.size(fractals_down_zigzag) – 2)
    item3 = array.get(fractals_down_zigzag, array.size(fractals_down_zigzag) – 3)
    if (low[bar_index – item1] > low[bar_index – item2] and low[bar_index – item2] > low[bar_index – item3])
      if array.size(waves_down) == 0
        array.push(waves_down, wave.new(true, true, true, item3, item1, low[bar_index – item1], low[bar_index – item3], array.new<line>()))
        true
      else
        wave last_wave = array.last(waves_down)
        if (item3 >= last_wave.bar_start and item3 < last_wave.bar_end)
          last_wave.bar_end := item1
          last_wave.high_price := low[bar_index – item1]
          last_wave.isActive := false
          true
        else
          array.push(waves_down, wave.new(true, true, true, item3, item1, low[bar_index – item1], low[bar_index – item3], array.new<line>()))
          true

bool is_search_fractal_zigzag = bar_index – n_zigzag * 2 >= 0

if is_search_fractal_zigzag and true
  if is_up_fractal_zigzag()
    if array.size(fractals_up_zigzag) == 0
      array.push(fractals_up_zigzag, bar_index – (n_zigzag))
      array.push(listFractals, true)
    else
      isUpLastFractal = array.last(listFractals)
      lastFractal = array.last(fractals_up_zigzag)

      if isUpLastFractal and high[bar_index – lastFractal] < high[n_zigzag]
        array.pop(fractals_up_zigzag)
        array.push(fractals_up_zigzag, bar_index – (n_zigzag))
        check_is_add_up_liquidity()

      if not isUpLastFractal
        lastFractalDown = array.last(fractals_down_zigzag)
        if (low[bar_index – lastFractalDown] < high[n_zigzag])
          array.push(fractals_up_zigzag, bar_index – (n_zigzag))
          array.push(listFractals, true)
          check_is_add_up_liquidity()
  if is_down_fractal_zigzag()
    if array.size(fractals_down_zigzag) == 0
      array.push(fractals_down_zigzag, bar_index – (n_zigzag))
      array.push(listFractals, false)
    else
      isUpLastFractal = array.last(listFractals)
      lastFractal = array.last(fractals_down_zigzag)

      if not isUpLastFractal and low[bar_index – lastFractal] > low[n_zigzag]
        array.pop(fractals_down_zigzag)
        array.push(fractals_down_zigzag, bar_index – (n_zigzag))
        check_is_add_down_liquidity()

      if isUpLastFractal
        lastFractalUp = array.last(fractals_up_zigzag)
        if (high[bar_index – lastFractalUp] > low[n_zigzag])
          array.push(fractals_down_zigzag, bar_index – (n_zigzag))
          array.push(listFractals, false)
          check_is_add_down_liquidity()

bool isDownTrend = false
bool isUpTrend = false

var float last_low = na
var float last_high = na

if (array.size(waves_up) != 0 and array.size(waves_down) != 0)
  wave lastWaveUp = array.last(waves_up)
  wave lastWaveDown = array.last(waves_down)

  if (close < lastWaveDown.high_price and close > lastWaveUp.low_price)
    if (lastWaveDown.bar_end < lastWaveUp.bar_end)
      isUpTrend := true
      last_low := lastWaveUp.low_price
      last_high := lastWaveUp.high_price
    else
      isDownTrend := true
      last_low := lastWaveDown.low_price
      last_high := lastWaveDown.high_price

  if (close >= lastWaveDown.high_price and close > lastWaveUp.low_price)
    isUpTrend := true
    last_low := lastWaveUp.low_price
    last_high := lastWaveUp.high_price

  if (close < lastWaveDown.high_price and close <= lastWaveUp.low_price)
    isDownTrend := true
    last_low := lastWaveDown.low_price
    last_high := lastWaveDown.high_price

if (array.size(waves_up) != 0 and array.size(waves_down) == 0)
  wave lastWave = array.last(waves_up)
  if (close > lastWave.low_price)
    isUpTrend := true
    last_low := lastWave.low_price
    last_high := lastWave.high_price

if (array.size(waves_down) != 0 and array.size(waves_up) == 0)
  wave lastWave = array.last(waves_down)
  if (close < lastWave.high_price)
    isDownTrend := true
    last_low := lastWave.low_price
    last_high := lastWave.high_price

var color trend_css = na
float signal = ta.ema(close, 1)

color signalColorDown = color.from_gradient(signal, last_low, last_high, up_trend_start, up_trend_end)
color signalColorUp = color.from_gradient(signal, last_low, last_high, down_trend_end, down_trend_start)

if isDownTrend
  trend_css := signalColorUp
if isUpTrend
  trend_css := signalColorDown

isUpTrendAlert = trend_css == signalColorDown
isDownTrendAlert = trend_css == signalColorUp

if (isDownTrendAlert and not isDownTrendAlert[1] and htf_alerts_enable and not isUpTrendAlert and barstate.isconfirmed)
  alert(“🔴A new Down Trend has been detected!🔴”)
if (isUpTrendAlert and not isUpTrendAlert[1] and htf_alerts_enable and barstate.isconfirmed)
  alert(“🟢A new Up Trend has been detected!🟢”)

plotcandle(open, high, low, close
, color = trend_css
, wickcolor = trend_css
, bordercolor = trend_css
, editable = false
, display = display.pane)
————————————————————————————————————————————————————————————
Thank you very much!
Paolo Bonsanti
05/11/2026 at 9:45 AM #260955 quote
Iván González
Moderator

Legend

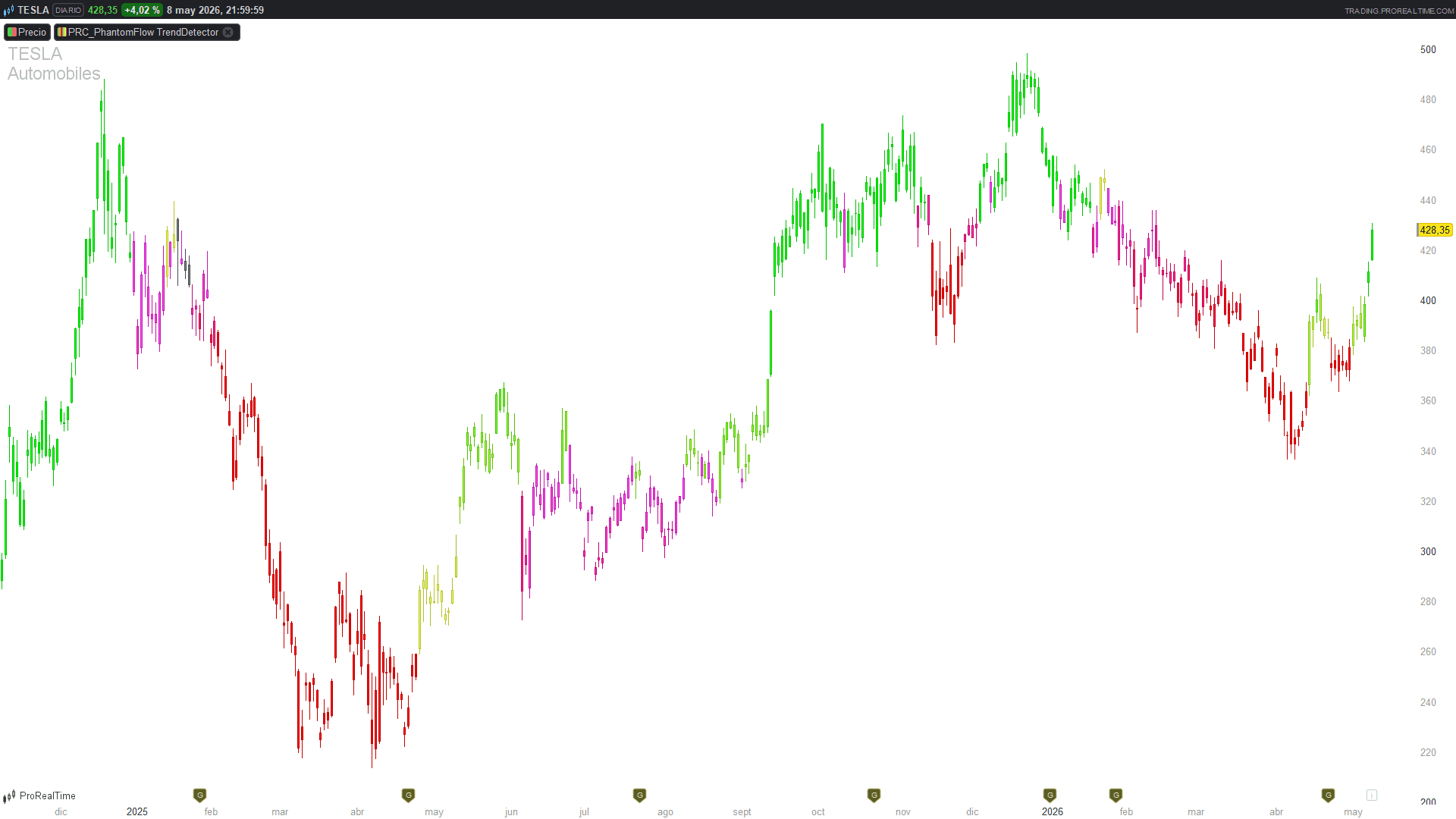

hi, here you have
```
//----------------------------------------------------------------------------------------
//PRC_PhantomFlow TrendDetector
//version = 0
//11.05.2026
//Ivan Gonzalez @ www.prorealcode.com
//Sharing ProRealTime knowledge
// Original: PhantomFlow_s666ex_ (TradingView, MPL 2.0)
//----------------------------------------------------------------------------------------
// === Inputs ===
//----------------------------------------------------------------------------------------
//nZigzag = 2

// Up Trend gradient (low -> high)
upStartR = 255
upStartG = 253
upStartB = 106
upEndR = 0
upEndG = 255
upEndB = 0

// Down Trend gradient (low -> high)
downStartR = 255
downStartG = 89
downStartB = 255
downEndR = 255
downEndG = 0
downEndB = 0
//----------------------------------------------------------------------------------------
// === Inicializacion (primera barra) ===
//----------------------------------------------------------------------------------------
IF barindex = 0 THEN
   fracUp1 = 0
   fracUp2 = 0
   fracUp3 = 0
   fracDown1 = 0
   fracDown2 = 0
   fracDown3 = 0
   numUp = 0
   numDown = 0
   isLastUp = -1
   waveUpStart = 0
   waveUpEnd = 0
   waveUpHigh = 0
   waveUpLow = 0
   hasWaveUp = 0
   waveDownStart = 0
   waveDownEnd = 0
   waveDownHigh = 0
   waveDownLow = 0
   hasWaveDown = 0
   lastLow = 0
   lastHigh = 0
ENDIF

addUpWave = 0
addDownWave = 0
//----------------------------------------------------------------------------------------
// === Deteccion de fractales (simetricos n=2, ventana = 5 barras) ===
//----------------------------------------------------------------------------------------
canSearchFractal = barindex >= 2 * nZigzag

IF canSearchFractal THEN
   // Fractal up: high[2] es maximo de high[0..4]
   IF high[nZigzag] = highest[2 * nZigzag + 1](high) THEN
      isUpFractal = 1
   ELSE
      isUpFractal = 0
   ENDIF
   // Fractal down: low[2] es minimo de low[0..4]
   IF low[nZigzag] = lowest[2 * nZigzag + 1](low) THEN
      isDownFractal = 1
   ELSE
      isDownFractal = 0
   ENDIF

   barFrac = barindex - nZigzag
   priceUpFrac = high[nZigzag]
   priceDownFrac = low[nZigzag]

   // --- Procesar fractal up ---
   IF isUpFractal = 1 THEN
      IF numUp = 0 AND numDown = 0 THEN
         fracUp1 = barFrac
         numUp = 1
         isLastUp = 1
      ELSE
         IF isLastUp = 1 THEN
            // Ultimo era up: si el nuevo es mas alto, reemplazar (pop + push)
            IF high[barindex - fracUp1] < priceUpFrac THEN
               fracUp1 = barFrac
               addUpWave = 1
            ENDIF
         ELSE
            // Ultimo era down: confirmar zigzag si new high > last down low
            IF low[barindex - fracDown1] < priceUpFrac THEN
               fracUp3 = fracUp2
               fracUp2 = fracUp1
               fracUp1 = barFrac
               numUp = numUp + 1
               isLastUp = 1
               addUpWave = 1
            ENDIF
         ENDIF
      ENDIF
   ENDIF

   // Check is_add_up_liquidity: 3 ups consecutivos con highs decrecientes
   IF addUpWave = 1 AND numUp >= 3 THEN
      h1 = high[barindex - fracUp1]
      h2 = high[barindex - fracUp2]
      h3 = high[barindex - fracUp3]
      IF h1 < h2 AND h2 < h3 THEN
         IF hasWaveUp = 1 AND fracUp3 >= waveUpStart AND fracUp3 < waveUpEnd THEN
            // Extender wave
            waveUpEnd = fracUp1
            waveUpLow = h1
         ELSE
            // Nueva wave
            waveUpStart = fracUp3
            waveUpEnd = fracUp1
            waveUpHigh = h3
            waveUpLow = h1
         ENDIF
         hasWaveUp = 1
      ENDIF
   ENDIF

   // --- Procesar fractal down ---
   IF isDownFractal = 1 THEN
      IF numDown = 0 AND numUp = 0 THEN
         fracDown1 = barFrac
         numDown = 1
         isLastUp = 0
      ELSE
         IF isLastUp = 0 THEN
            // Ultimo era down: si el nuevo es mas bajo, reemplazar
            IF low[barindex - fracDown1] > priceDownFrac THEN
               fracDown1 = barFrac
               addDownWave = 1
            ENDIF
         ELSE
            // Ultimo era up: confirmar zigzag si last up high > new down low
            IF high[barindex - fracUp1] > priceDownFrac THEN
               fracDown3 = fracDown2
               fracDown2 = fracDown1
               fracDown1 = barFrac
               numDown = numDown + 1
               isLastUp = 0
               addDownWave = 1
            ENDIF
         ENDIF
      ENDIF
   ENDIF

   // Check is_add_down_liquidity: 3 downs consecutivos con lows crecientes
   IF addDownWave = 1 AND numDown >= 3 THEN
      l1 = low[barindex - fracDown1]
      l2 = low[barindex - fracDown2]
      l3 = low[barindex - fracDown3]
      IF l1 > l2 AND l2 > l3 THEN
         IF hasWaveDown = 1 AND fracDown3 >= waveDownStart AND fracDown3 < waveDownEnd THEN
            // Extender wave
            waveDownEnd = fracDown1
            waveDownHigh = l1
         ELSE
            // Nueva wave
            waveDownStart = fracDown3
            waveDownEnd = fracDown1
            waveDownLow = l3
            waveDownHigh = l1
         ENDIF
         hasWaveDown = 1
      ENDIF
   ENDIF
ENDIF
//----------------------------------------------------------------------------------------
// === Determinar tendencia ===
//----------------------------------------------------------------------------------------
isUpTrend = 0
isDownTrend = 0

IF hasWaveUp = 1 AND hasWaveDown = 1 THEN
   IF close < waveDownHigh AND close > waveUpLow THEN
      IF waveDownEnd < waveUpEnd THEN
         isUpTrend = 1
         lastLow = waveUpLow
         lastHigh = waveUpHigh
      ELSE
         isDownTrend = 1
         lastLow = waveDownLow
         lastHigh = waveDownHigh
      ENDIF
   ENDIF
   IF close >= waveDownHigh AND close > waveUpLow THEN
      isUpTrend = 1
      lastLow = waveUpLow
      lastHigh = waveUpHigh
   ENDIF
   IF close < waveDownHigh AND close <= waveUpLow THEN
      isDownTrend = 1
      lastLow = waveDownLow
      lastHigh = waveDownHigh
   ENDIF
ENDIF

IF hasWaveUp = 1 AND hasWaveDown = 0 THEN
   IF close > waveUpLow THEN
      isUpTrend = 1
      lastLow = waveUpLow
      lastHigh = waveUpHigh
   ENDIF
ENDIF

IF hasWaveDown = 1 AND hasWaveUp = 0 THEN
   IF close < waveDownHigh THEN
      isDownTrend = 1
      lastLow = waveDownLow
      lastHigh = waveDownHigh
   ENDIF
ENDIF
//----------------------------------------------------------------------------------------
// === Color gradient interpolado (signal = close, ema(1) = close) ===
//----------------------------------------------------------------------------------------
signal = close

IF lastHigh - lastLow <= 0 THEN
   norm = 0.5
ELSE
   norm = (signal - lastLow) / (lastHigh - lastLow)
   IF norm < 0 THEN
      norm = 0
   ENDIF
   IF norm > 1 THEN
      norm = 1
   ENDIF
ENDIF

paintR = 128
paintG = 128
paintB = 128

IF isUpTrend = 1 THEN
   // Up: upStart (low) -> upEnd (high)
   paintR = ROUND(upStartR + (upEndR - upStartR) * norm)
   paintG = ROUND(upStartG + (upEndG - upStartG) * norm)
   paintB = ROUND(upStartB + (upEndB - upStartB) * norm)
ENDIF

IF isDownTrend = 1 THEN
   // Down: downEnd (low) -> downStart (high)
   paintR = ROUND(downEndR + (downStartR - downEndR) * norm)
   paintG = ROUND(downEndG + (downStartG - downEndG) * norm)
   paintB = ROUND(downEndB + (downStartB - downEndB) * norm)
ENDIF

DRAWCANDLE(open, high, low, close) COLOURED(paintR, paintG, paintB)
//----------------------------------------------------------------------------------------
RETURN
```
brian gilbert thanked this post

05/11/2026 at 6:52 PM #260980 quote

brian gilbert
Participant

Senior

thank you very much, wonderful job as usual!
Author

Posts
