Optimisation affichage des ranges

Viewing 12 posts - 1 through 12 (of 12 total)
  • Author
    Posts
  • 12/08/2025 at 9:52 PM #254369 quote
    Med5
    Participant
    New

    Bonjour,

    J’utilise un indicateur de détection de range/inside bars inspiré de celui posté par @LucasBest que je trouve top, mais je voudrais l’optimiser pour qu’il soit plus lisible pour mon utilisation.

    Actuellement, il affiche tous les ranges détectés, et ça surcharge énormément mon graphique.

    Je cherche à n’afficher que deux ranges maximum à la fois :

    1. Le range actuel en formation (en violet).

    2. Le dernier range qui a été cassé (qui devient vert).

    Dès qu’un nouveau range violet est cassé, il prend la place de l’ancien vert, et on attend le nouveau violet. L’idée est de n’avoir qu’un seul vert (le dernier cassé) et un seul violet (l’actuel).

    Merci beaucoup pour votre aide ! 🙏

    DefParam DrawOnLastBarOnly = true

once candleLow = low
once candleHigh = high
once candleOpen = open
once candleClose = close
once insideCandles = 1
once RangeIndex = 0

MyTR = max(Range, max(abs(high - close[1]), abs(low - close[1])))

if high > candleHigh[1] and close <= candleHigh[1] then
candleHigh = high
endif

if low < candleLow[1] and close >= candleLow[1] then
candleLow = low
endif

breakoutCandle = close > candleHigh or close < candleLow
bullishBreak = close > candleHigh[1] and insideCandles[1] >= (minLemgth+1)
bearishBreak = close < candleLow[1] and insideCandles[1] >= (minLemgth+1)

candleMiddle = (candleHigh + candleLow)/2

FiltreBreakoutCandle1 = (Average[2](MyTR[0]) > F*Average[20](MyTR[1]) and breakindex >= barindex-1)
FiltreBreakoutCandle2 = 0
FiltreBreakoutCandle3 = 0

If insideCandles >= 3 then
upside = insideCandles>=3 and summation[ceil((insideCandles+1)/2)](close>=candleMiddle) = ceil((insideCandles+1)/2)
downside = insideCandles>=3 and summation[ceil((insideCandles+1)/2)](close<=candleMiddle) = ceil((insideCandles+1)/2)
FiltreBreakoutCandle2 = upside or downside
FiltreBreakoutCandle3 = (close >= candleHigh[2] or close <= candleLow[2]) and insideCandles>=2
endif

if breakoutCandle or (filtre and ((FilteringMethod=1 and FiltreBreakoutCandle1) or (FilteringMethod=2 and FiltreBreakoutCandle2) or (FilteringMethod=3 and FiltreBreakoutCandle3))) then

If not breakoutCandle and (filtre and FilteringMethod=2 and FiltreBreakoutCandle2) then

if upside then
candleLow = lowest[ceil((insideCandles+1)/2)](low)
candleHigh = candleHigh
candleOpen = open
candleClose = close
insideCandles = 1
breakindex = barindex

elsif downside then
candleLow = candleLow
candleHigh = highest[ceil((insideCandles+1)/2)](high)
candleOpen = open
candleClose = close
insideCandles = 1
breakindex = barindex
endif

else
candleLow = low
candleHigh = high
candleOpen = open
candleClose = close
insideCandles = 1
breakindex = barindex
endif

If insideCandles[1] >= (minLemgth) and insideCandles = 1 then

If close > candleHigh[1] then
Drawarrowup(Barindex, Low)
Elsif close < candleLow[1] then
Drawarrowdown(Barindex, High)
Endif

Endif

else
insideCandles = insideCandles + 1

if insideCandles >= (minLemgth) then

If $RangeStart[RangeIndex] = breakindex then
$RangeLength[RangeIndex] = insideCandles
$RangeHigh[RangeIndex] = candleHigh
$RangeLow[RangeIndex] = candleLow
Else
RangeIndex = RangeIndex + 1
$RangeStart[RangeIndex] = breakindex
$RangeLength[RangeIndex] = insideCandles
$RangeHigh[RangeIndex] = candleHigh
$RangeLow[RangeIndex] = candleLow
Endif

// Dernier rectangle (violet)
drawsegment(breakindex, candleHigh, barindex+1, candleHigh) style(dottedline1,3) coloured(255,79,255,255)
drawsegment(breakindex, candleLow, barindex+1, candleLow) style(dottedline1,3) coloured(255,79,255,255)
DRAWRECTANGLE(breakindex, candleHigh, barindex+1, candleLow) coloured(255,79,255,20) bordercolor(255,79,255,200)
drawsegment(breakindex, (candleHigh+candleLow)/2, barindex+1, (candleHigh+candleLow)/2) style(dottedline1,3) coloured(255,79,255,255)

endif
endif

Fin = Max(0, RangeIndex - ($RangeStart[RangeIndex] = breakindex))

If OnlyLastRange > 0 then
Debut = Max(0, Fin - OnlyLastRange + 1 + ($RangeStart[RangeIndex] = breakindex))
Else
Debut = 0
Endif

If RangeIndex > 1 then
For i = Debut to Fin do

// Précédents rectangles (vert/jaune)
drawsegment($RangeStart[i], $RangeHigh[i], $RangeStart[i]+$RangeLength[i], $RangeHigh[i]) style(line,3) coloured(198,255,0,255)
drawsegment($RangeStart[i], $RangeLow[i], $RangeStart[i]+$RangeLength[i], $RangeLow[i]) style(line,3) coloured(198,255,0,255)
DRAWRECTANGLE($RangeStart[i], $RangeHigh[i], $RangeStart[i]+$RangeLength[i], $RangeLow[i]) coloured(198,255,0,20) bordercolor(198,255,0,200)
drawsegment($RangeStart[i], ($RangeHigh[i]+$RangeLow[i])/2, $RangeStart[i]+$RangeLength[i], ($RangeHigh[i]+$RangeLow[i])/2) style(dottedline1,3) coloured(198,255,0,255)

Next
Endif

return
    12/09/2025 at 12:33 AM #254374 quote
    LucasBest
    Participant
    Junior
    DefParam DrawOnLastBarOnly = true

//Paramètres à mettre en commentaire (car déjà définis dans la configuration)
once f=0
once filteringmethod = 1
once filtre = 0
once minLemgth = 15
//


once candleLow = low
once candleHigh = high
once candleOpen = open
once candleClose = close
once insideCandles = 1
once RangeIndex = 0

MyTR = max(Range, max(abs(high - close[1]), abs(low - close[1])))

if high > candleHigh[1] and close <= candleHigh[1] then
candleHigh = high
endif

if low < candleLow[1] and close >= candleLow[1] then
candleLow = low
endif

breakoutCandle = close > candleHigh or close < candleLow
bullishBreak = close > candleHigh[1] and insideCandles[1] >= (minLemgth+1)
bearishBreak = close < candleLow[1] and insideCandles[1] >= (minLemgth+1)

candleMiddle = (candleHigh + candleLow)/2

FiltreBreakoutCandle1 = (Average[2](MyTR[0]) > F*Average[20](MyTR[1]) and breakindex >= barindex-1)
FiltreBreakoutCandle2 = 0
FiltreBreakoutCandle3 = 0

If insideCandles >= 3 then
upside = insideCandles>=3 and summation[ceil((insideCandles+1)/2)](close>=candleMiddle) = ceil((insideCandles+1)/2)
downside = insideCandles>=3 and summation[ceil((insideCandles+1)/2)](close<=candleMiddle) = ceil((insideCandles+1)/2)
FiltreBreakoutCandle2 = upside or downside
FiltreBreakoutCandle3 = (close >= candleHigh[2] or close <= candleLow[2]) and insideCandles>=2
endif

if breakoutCandle or (filtre and ((FilteringMethod=1 and FiltreBreakoutCandle1) or (FilteringMethod=2 and FiltreBreakoutCandle2) or (FilteringMethod=3 and FiltreBreakoutCandle3))) then

If not breakoutCandle and (filtre and FilteringMethod=2 and FiltreBreakoutCandle2) then

if upside then
candleLow = lowest[ceil((insideCandles+1)/2)](low)
candleHigh = candleHigh
candleOpen = open
candleClose = close
insideCandles = 1
breakindex = barindex

elsif downside then
candleLow = candleLow
candleHigh = highest[ceil((insideCandles+1)/2)](high)
candleOpen = open
candleClose = close
insideCandles = 1
breakindex = barindex
endif

else
candleLow = low
candleHigh = high
candleOpen = open
candleClose = close
insideCandles = 1
breakindex = barindex
endif

If insideCandles[1] >= (minLemgth) and insideCandles = 1 then

If close > candleHigh[1] then
Drawarrowup(Barindex, Low)
Elsif close < candleLow[1] then
Drawarrowdown(Barindex, High)
Endif

Endif

else
insideCandles = insideCandles + 1

if insideCandles >= (minLemgth) then

OnlyLastRange = 2 //Pour afficher le range en cours et celui d'avant

If $RangeStart[RangeIndex] = breakindex then
$RangeLength[RangeIndex] = insideCandles
$RangeHigh[RangeIndex] = candleHigh
$RangeLow[RangeIndex] = candleLow
Else
RangeIndex = RangeIndex + 1
$RangeStart[RangeIndex] = breakindex
$RangeLength[RangeIndex] = insideCandles
$RangeHigh[RangeIndex] = candleHigh
$RangeLow[RangeIndex] = candleLow
Endif

// Dernier rectangle (violet)
drawsegment(breakindex, candleHigh, barindex+1, candleHigh) style(dottedline1,3) coloured(255,79,255,255)
drawsegment(breakindex, candleLow, barindex+1, candleLow) style(dottedline1,3) coloured(255,79,255,255)
DRAWRECTANGLE(breakindex, candleHigh, barindex+1, candleLow) coloured(255,79,255,20) bordercolor(255,79,255,200)
drawsegment(breakindex, (candleHigh+candleLow)/2, barindex+1, (candleHigh+candleLow)/2) style(dottedline1,3) coloured(255,79,255,255)

else
OnlyLastRange = 1 //Pour afficher le range en cours et celui d'avant
endif
endif

Fin = Max(0, RangeIndex - ($RangeStart[RangeIndex] = breakindex))

If OnlyLastRange > 0 then
Debut = Max(0, Fin - OnlyLastRange + 1 + ($RangeStart[RangeIndex] = breakindex))
Else
Debut = 0
Endif

If RangeIndex > 1 then
For i = Debut to Fin do

// Précédents rectangles (vert/jaune)
drawsegment($RangeStart[i], $RangeHigh[i], $RangeStart[i]+$RangeLength[i], $RangeHigh[i]) style(line,3) coloured(198,255,0,255)
drawsegment($RangeStart[i], $RangeLow[i], $RangeStart[i]+$RangeLength[i], $RangeLow[i]) style(line,3) coloured(198,255,0,255)
DRAWRECTANGLE($RangeStart[i], $RangeHigh[i], $RangeStart[i]+$RangeLength[i], $RangeLow[i]) coloured(198,255,0,20) bordercolor(198,255,0,200)
drawsegment($RangeStart[i], ($RangeHigh[i]+$RangeLow[i])/2, $RangeStart[i]+$RangeLength[i], ($RangeHigh[i]+$RangeLow[i])/2) style(dottedline1,3) coloured(198,255,0,255)

Next
Endif

return
    Il suffit de rajouter les lignes : 90, 110 et 111 (Ne pas oublier de mettre les paramètres à commentaire)
    Iván González and robertogozzi thanked this post
    12/09/2025 at 1:04 PM #254388 quote
    Med5
    Participant
    New
    Merci , oui ce code affiche que deux ranges, mais vous voulez dire quoi par ” Ne pas oublier de mettre les paramètres à commentaire)” ? merci
    12/09/2025 at 6:02 PM #254398 quote
    LucasBest
    Participant
    Junior
    //Paramètres à mettre en commentaire (car déjà définis dans la configuration) once f=0 once filteringmethod = 1 once filtre = 0 once minLemgth = 15 // => cette partie du code peut être enlevée
    Iván González and Med5 thanked this post
    12/10/2025 at 8:40 PM #254425 quote
    Med5
    Participant
    New
    Vraiment top merci Par contre, je l’utilise en multi-timeframe et ça rame pas mal, même en affichant seulement les deux ranges, ça reste lourd. Tu aurais une astuce pour le rendre encore plus léger, s’il te plaît ? Merci d’avance pour l’aide ! 🙏
    12/11/2025 at 12:30 PM #254432 quote
    LaMaille
    Participant
    Junior
    Tout dépend de quelles options tu as besoin ? Est ce que filtre est à 0/Non ou 1/oui?
    12/11/2025 at 4:37 PM #254450 quote
    Med5
    Participant
    New
    Merci pour ta réponse Pour clarifier : je n’utilise aucun filtre Le code fonctionne bien et affiche uniquement deux ranges mais en multi-timeframe il reste quand même assez lourd et fait ramer l’affichage. Je cherche donc simplement une solution pour l’alléger, sans changer la logique de détection actuelle, juste optimiser la partie affichage. Merci d’avance si tu as une idée ! 🙏
    12/11/2025 at 7:34 PM #254466 quote
    LucasBest
    Participant
    Junior
    Je ne pense pas que ce soit l’affichage de 2 rectangles et 6 segments qui fasse ramer le code… Comment l’utilises tu en multi timeframe ? Si l’on veut accélérer le code, on peut enlever toute la partie filtre (s’il n’est pas utilisé) et on peut aussi se passer de tableau dans la mesure où seulement 1 ou 2 ranges sont nécessaires…
    Med5 thanked this post
    12/11/2025 at 8:38 PM #254468 quote
    Med5
    Participant
    New
    J’ai enlevé toute la partie filtres + les tableaux, et je garde seulement 2 ranges : le violet actuel et le dernier cassé en vert. beaucoup plus léger même en multi-timeframe (1 min → 4h). Merci pour l’aide !
    12/11/2025 at 9:01 PM #254473 quote
    LucasBest
    Participant
    Junior
    Est-ce plus rapide comme cela?
    DefParam DrawOnLastBarOnly = true

once CandleLow = low
once CandleHigh = high
once InsideCandles = 1
once Breakindex = Barindex

once PrevCandleLow = low
once PrevCandleHigh = high
once PrevInsideCandles = 1
once PrevStartindex = 0
once PrevEndindex = 0

If Breakindex < Barindex then

BreakoutCandle = close > candleHigh[1] or close < candleLow[1]

If BreakoutCandle then

if InsideCandles >= minLemgth then

If close > CandleHigh[1] then
Drawarrowup(Barindex, Low)
Elsif close < CandleLow[1] then
Drawarrowdown(Barindex, High)
Endif

PrevCandleLow = CandleLow
PrevCandleHigh = CandleHigh
PrevInsideCandles = InsideCandles
PrevStartindex = Breakindex
PrevEndindex = Barindex
PrevCandleMiddle = CandleMiddle

Endif

CandleLow = low
CandleHigh = high
InsideCandles = 1
Breakindex = barindex

Else

if high > candleHigh[1] and close <= candleHigh[1] then
candleHigh = high
endif

if low < candleLow[1] and close >= candleLow[1] then
candleLow = low
endif

CandleMiddle = (candleHigh + candleLow)/2
insideCandles = insideCandles+1

if insideCandles >= minLemgth then

drawsegment(breakindex,candleHigh,barindex+1,candleHigh)style(dottedline1,2)coloured("orange",255)
drawsegment(breakindex,candlelow,barindex+1,candlelow)style(dottedline1,2)coloured("orange",255)
DRAWRECTANGLE(breakindex,candleHigh,barindex+1,candlelow)coloured("orange",20)bordercolor("orange",100)
drawsegment(breakindex,CandleMiddle,barindex+1,CandleMiddle)style(dottedline1,2)coloured("orange",255)

endif
Endif
Endif

If PrevStartindex > 0 then

drawsegment(PrevStartindex,PrevCandleHigh,PrevEndindex,PrevCandleHigh)style(line,2)coloured("blue",255)
drawsegment(PrevStartindex,PrevCandlelow,PrevEndindex,PrevCandlelow)style(line,2)coloured("blue",255)
DRAWRECTANGLE(PrevStartindex,PrevCandleHigh,PrevEndindex,PrevCandlelow)coloured("grey",20)bordercolor("grey",100)
drawsegment(PrevStartindex,PrevCandleMiddle,PrevEndindex,PrevCandleMiddle)style(dottedline1,2)coloured("blue",255)

Endif

return
    Med5 thanked this post
    12/11/2025 at 9:17 PM #254474 quote
    LucasBest
    Participant
    Junior

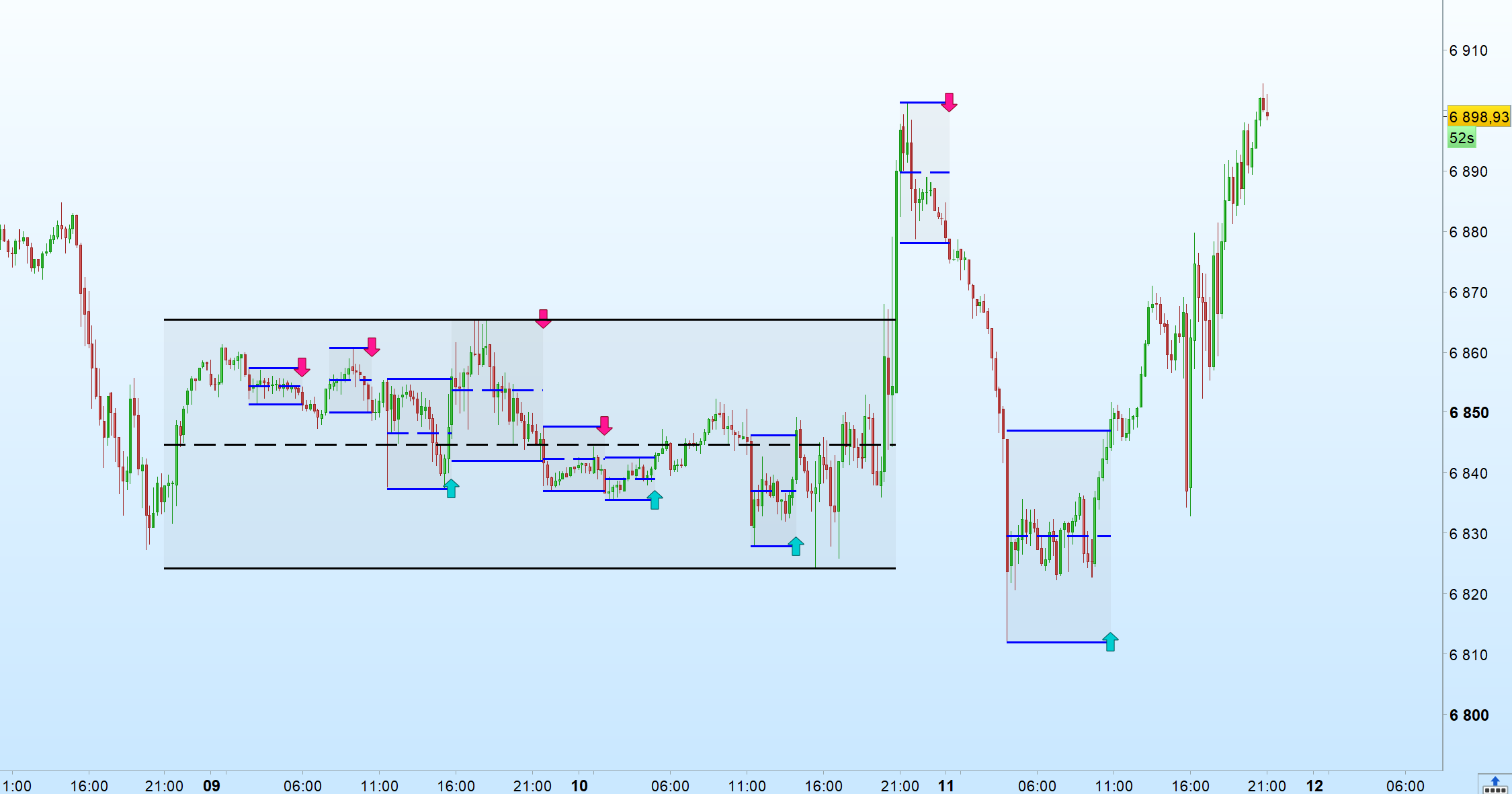

    J’avais aussi créé une version MTF…
    DefParam DrawOnLastBarOnly = true

Timeframe(240 minutes,updateonclose)

BarInd2H = Barindex

Close2H = Close

once RangeLow2H = low
once RangeHigh2H = high
once insideCandles2H = 1
once RangeIndex2H = 0

MyTR2H = max(Range,max(abs(high - close[1]),abs(low - close[1])))

if high > RangeHigh2H[1] and close <= RangeHigh2H[1] then
RangeHigh2H = high
endif

if low < RangeLow2H[1] and close >= RangeLow2H[1] then
RangeLow2H = low
endif

breakoutCandle2H = close > RangeHigh2H or close < RangeLow2H
bullishBreak2H = close > RangeHigh2H[1] and insideCandles2H[1] >= (minLength2H+1)
bearishBreak2H = close < RangeLow2H[1] and insideCandles2H[1] >= (minLength2H+1)

RangeMiddle2H = (RangeHigh2H + RangeLow2H)/2

FiltreBreakoutCandle2H = (Average[2](MyTR2H[0])>F2H*Average[20](MyTR2H[1]) and StartIndex2H>=BarInd2H-1)

if breakoutCandle2H or (filtre2H and FiltreBreakoutCandle2H) then //(Average[2](MyTR[0])>F*Average[20](MyTR[1]) and StartIndex>=BarInd2H-1)) then
RangeLow2H = low
RangeHigh2H = high
insideCandles2H = 1
StartIndex2H = BarInd2H

If insideCandles2H[1] >= (minLength2H) and insideCandles2H = 1 then //and $RangeStart[RangeIndex] = StartIndex[1] then
If close > RangeHigh2H[1] then
Drawarrowup(BarInd2H,RangeLow2H[1]) coloured("darkturquoise",255)
Elsif close < RangeLow[1] then
Drawarrowdown(BarInd2H,RangeHigh2H[1]) coloured("deeppink",255)
Endif

Endif

else
insideCandles2H = insideCandles2H+1

if insideCandles2H >= (minLength2H) then

If $RangeStart2H[RangeIndex2H] = StartIndex2H then
$RangeFinish2H[RangeIndex2H] = StartIndex2H+insideCandles2H
$RangeHigh2H[RangeIndex2H] = RangeHigh2H
$RangeLow2H[RangeIndex2H] = RangeLow2H
Else
RangeIndex2H = RangeIndex2H + 1
$RangeStart2H[RangeIndex2H] = StartIndex2H
$RangeFinish2H[RangeIndex2H] = StartIndex2H+insideCandles2H
$RangeHigh2H[RangeIndex2H] = RangeHigh2H
$RangeLow2H[RangeIndex2H] = RangeLow2H
Endif

drawsegment(StartIndex2H,RangeHigh2H,BarInd2H+1,RangeHigh2H)style(dottedline1,2)coloured("orange",255)
drawsegment(StartIndex2H,RangeLow2H,BarInd2H+1,RangeLow2H)style(dottedline1,2)coloured("orange",255)
DRAWRECTANGLE(StartIndex2H,RangeHigh2H,BarInd2H+1,RangeLow2H)coloured("orange",20)bordercolor("orange",100)
drawsegment(StartIndex2H,(RangeHigh2H+RangeLow2H)/2,BarInd2H+1,(RangeHigh2H+RangeLow2H)/2)style(dottedline1,2)coloured("orange",255)

endif
endif

Fin2H = Max(0,RangeIndex2H-($RangeStart2H[RangeIndex2H]=StartIndex2H))

If OnlyLastRange2H > 0 then
Debut2H = Max(0,Fin2H-OnlyLastRange2H+1+($RangeStart2H[RangeIndex2H]=StartIndex2H))
Else
Debut2H = 0
Endif

/////////////////////////////////////////////////////////////////

Timeframe(default)

once config = 0

once RangeLow = low
once RangeHigh = high
once insideCandles = 1
once RangeIndex = 0

MyTR = max(Range,max(abs(high - close[1]),abs(low - close[1])))

if high > RangeHigh[1] and close <= RangeHigh[1] then
RangeHigh = high
endif

if low < RangeLow[1] and close >= RangeLow[1] then
RangeLow = low
endif

breakoutCandle = close > RangeHigh or close < RangeLow
bullishBreak = close > RangeHigh[1] and insideCandles[1] >= (minLength+1)
bearishBreak = close < RangeLow[1] and insideCandles[1] >= (minLength+1)

RangeMiddle = (RangeHigh + RangeLow)/2

FiltreBreakoutCandle1 = (Average[2](MyTR[0])>F*Average[20](MyTR[1]) and StartIndex>=BarInd2H-1)

if breakoutCandle or (filtre and FiltreBreakoutCandle1) then //(Average[2](MyTR[0])>F*Average[20](MyTR[1]) and StartIndex>=BarInd2H-1)) then
RangeLow = low
RangeHigh = high
insideCandles = 1
StartIndex = barindex

If insideCandles[1] >= (minLength) and insideCandles = 1 then //and $RangeStart[RangeIndex] = StartIndex[1] then
If close > RangeHigh[1] then
Drawarrowup(Barindex,RangeLow) coloured("darkturquoise",255)
Elsif close < RangeLow[1] then
Drawarrowdown(Barindex,RangeHigh) coloured("deeppink",255)
Endif

Endif

else
insideCandles = insideCandles+1

if insideCandles >= (minLength) then

If $RangeStart[RangeIndex] = StartIndex then
$RangeFinish[RangeIndex] = StartIndex+insideCandles
$RangeHigh[RangeIndex] = RangeHigh
$RangeLow[RangeIndex] = RangeLow
Else
RangeIndex = RangeIndex + 1
$RangeStart[RangeIndex] = StartIndex
$RangeFinish[RangeIndex] = StartIndex+insideCandles
$RangeHigh[RangeIndex] = RangeHigh
$RangeLow[RangeIndex] = RangeLow
Endif

drawsegment(StartIndex,RangeHigh,barindex+1,RangeHigh)style(dottedline1,2)coloured("orange",255)
drawsegment(StartIndex,RangeLow,barindex+1,RangeLow)style(dottedline1,2)coloured("orange",255)
DRAWRECTANGLE(StartIndex,RangeHigh,barindex+1,RangeLow)coloured("orange",20)bordercolor("orange",100)
drawsegment(StartIndex,(RangeHigh+RangeLow)/2,barindex+1,(RangeHigh+RangeLow)/2)style(dottedline1,2)coloured("orange",255)

endif
endif

Fin = Max(0,RangeIndex-($RangeStart[RangeIndex]=StartIndex))

If OnlyLastRange > 0 then
Debut = Max(0,Fin-OnlyLastRange+1+($RangeStart[RangeIndex]=StartIndex))
Else
Debut = 0
Endif

If RangeIndex > 1 then
For i = Debut to Fin do
drawsegment($RangeStart[i],$RangeHigh[i],$RangeFinish[i],$RangeHigh[i])style(line,2)coloured("blue",255)
drawsegment($RangeStart[i],$RangeLow[i],$RangeFinish[i],$RangeLow[i])style(line,2)coloured("blue",255)
DRAWRECTANGLE($RangeStart[i],$RangeHigh[i],$RangeFinish[i],$RangeLow[i])coloured("grey",20)bordercolor(204,0,0,1)
drawsegment($RangeStart[i],($RangeHigh[i]+$RangeLow[i])/2,$RangeFinish[i],($RangeHigh[i]+$RangeLow[i])/2)style(dottedline1,2)coloured("blue",255)
Lastclose = close[Barindex-($RangeFinish[i])]
If Lastclose > $RangeHigh[i] then
Drawarrowup($RangeFinish[i],$RangeLow[i]) coloured("darkturquoise",255)
Else
Drawarrowdown($RangeFinish[i],$RangeHigh[i]) coloured("deeppink",255)
Endif
Next
Endif

IF BarInd2H > 0 and BarInd2H <> BarInd2H[1] THEN

If config = 0 and BarInd2H > 0 then
For k = 0 to BarInd2H-1 do
$BarBegin[k] = 0
$BarEnd[k] = Barindex
Next
config = 1
Endif

$BarBegin[BarInd2H] = $BarEnd[BarInd2H-1]+1
$BarEnd[BarInd2H] = Barindex

Endif

if insideCandles2H >= (minLength2H) then

drawsegment($BarBegin[StartIndex2H],RangeHigh2H,BarIndex+1,RangeHigh2H)style(dottedline1,2)coloured("peru",255)
drawsegment($BarBegin[StartIndex2H],RangeLow2H,BarIndex+1,RangeLow2H)style(dottedline1,2)coloured("peru",255)
DRAWRECTANGLE($BarBegin[StartIndex2H],RangeHigh2H,BarIndex+1,RangeLow2H)coloured("peru",10)bordercolor("peru",10)
drawsegment($BarBegin[StartIndex2H],(RangeHigh2H+RangeLow2H)/2,BarIndex+1,(RangeHigh2H+RangeLow2H)/2)style(dottedline1,2)coloured("peru",255)

endif

If Debut2H >= 0 then
For i = Debut2H to Fin2H do
If $RangeStart2H[i]>=2 then
Start=abs(round($RangeStart2H[i]))
Finish=abs(round($RangeFinish2H[i]))
drawsegment($BarBegin[Start],$RangeHigh2H[i],$BarEnd[Finish],$RangeHigh2H[i])style(line,2)coloured("black",255)
drawsegment($BarBegin[Start],$RangeLow2H[i],$BarEnd[Finish],$RangeLow2H[i])style(line,2)coloured("black",255)
DRAWRECTANGLE($BarBegin[Start],$RangeHigh2H[i],$BarEnd[Finish],$RangeLow2H[i])coloured("black",10)bordercolor(204,0,0,1)
drawsegment($BarBegin[Start],($RangeHigh2H[i]+$RangeLow2H[i])/2,$BarEnd[Finish],($RangeHigh2H[i]+$RangeLow2H[i])/2)style(dottedline1,2)coloured("black",255)
/*Lastclose2H = Close2H[BarInd2H-Finish]
If Lastclose2H > $RangeHigh2H[i] then
Drawarrowup($BarEnd[Finish],$RangeLow2H[i]) coloured("darkturquoise",255)
Else
Drawarrowdown($BarEnd[Finish],$RangeHigh2H[i]) coloured("deeppink",255)
Endif*/
/*Test1 = $RangeStart2H[i]
Test2 = $RangeFinish2H[i]
Test3 = Lastset($BarBegin)
Test4 = Lastset($Barend)
*/
Endif
Next
Endif

Return
    Med5 thanked this post
    12/11/2025 at 11:25 PM #254481 quote
    Med5
    Participant
    New
    merci beaucoup @LucasBest c’est le top
  • Author
    Posts
Viewing 12 posts - 1 through 12 (of 12 total)
  • You must be logged in to reply to this topic.

Optimisation affichage des ranges


ProBuilder : Indicateurs & Outils Personnalisés

New Reply
Author
author-avatar
Med5 @adilmed10 Participant
Summary

This topic contains 11 replies,
has 3 voices, and was last updated by Med5
1 month, 3 weeks ago.

Topic Details
Forum: ProBuilder : Indicateurs & Outils Personnalisés
Language: French
Started: 12/08/2025
Status: Active
Attachments: 2 files
Logo Logo
Loading...
Do you like cookies? 🍪 We use cookies to ensure you get the best experience on our website. (Learn more)
©2026 ProRealCode - Trading & Coding with ProRealTime™
