new indicator: ALMA TREND DETECTOR

micha2012 · 2025-02-18T15:29:35+00:00

Hello all, I tried to code a trend indicator based on ALMA indicator…so far so good. BUT, my coding skills are basic and I couldn`t code the “coloring” of the bars. Please could anyone help finalizing this code and adding correct colouring to bars? Thank you all very much in advance. Regards, Micha {// ALMA Trend Detector Indicator für ProRealTime DEFPARAM CalculateOnLastBars = 1200 // Eingaben inputLength = 48 // Arnaud Legoux MA Länge inputOffset = 0.15 // ALMA Offset inputSigma = 6 // ALMA Sigma Wert // ALMA m = (inputOffset * (inputLength – 1)) s = inputLength / inputSigma WtdSum = 0 CumWt = 0 FOR k = 0 TO inputLength – 1 DO Wtd = EXP(-((k – m) * (k – m)) / (2 * s * s)) WtdSum = WtdSum + Wtd * Close[inputLength – 1 – k] CumWt = CumWt + Wtd NEXT trendALMA = WtdSum / CumWt // Farben IF trendALMA >= trendALMA[1] THEN r1 = 0 g1 = 255 b1 = 255 // Aqua ELSE r1 = 255 g1 = 0 b1 = 255 // Fuchsia ENDIF IF Low = trendALMA, RGB(0, 255, 0)) // Grün für Balken über ALMA // ???????? RETURN trendALMA}

Viewing 3 posts - 1 through 3 (of 3 total)

Author

Posts
02/18/2025 at 4:29 PM #243987 quote

micha2012
Participant

Average

Hello all,

I tried to code a trend indicator based on ALMA indicator…so far so good.

BUT, my coding skills are basic and I couldn`t code the “coloring” of the bars.

Please could anyone help finalizing this code and adding correct colouring to bars?

Thank you all very much in advance.

Regards,

Micha

{// ALMA Trend Detector Indicator für ProRealTime

DEFPARAM CalculateOnLastBars = 1200

// Eingaben
inputLength = 48 // Arnaud Legoux MA Länge
inputOffset = 0.15 // ALMA Offset
inputSigma = 6 // ALMA Sigma Wert

// ALMA
m = (inputOffset * (inputLength – 1))
s = inputLength / inputSigma

WtdSum = 0
CumWt = 0

FOR k = 0 TO inputLength – 1 DO
Wtd = EXP(-((k – m) * (k – m)) / (2 * s * s))
WtdSum = WtdSum + Wtd * Close[inputLength – 1 – k]
CumWt = CumWt + Wtd
NEXT

trendALMA = WtdSum / CumWt

// Farben
IF trendALMA >= trendALMA[1] THEN
r1 = 0
g1 = 255
b1 = 255 // Aqua
ELSE
r1 = 255
g1 = 0
b1 = 255 // Fuchsia
ENDIF

IF Low < trendALMA THEN
r12 = 255
g12 = 0
b12 = 0 // Rot
ELSE
r12 = 0
g12 = 255
b12 = 0 // Grün
ENDIF

// Zeichnen der ALMA-Linie
FOR i = 1 TO BarNumber DO
DRAWSEGMENT(i-1, trendALMA[i-1], i, trendALMA[i], RGB(r1, g1, b1), 2)
NEXT

// Balkenfarben
BACKGROUNDCOLOR(Low < trendALMA, RGB(r12, g12, b12)) // Rot für Balken unter ALMA //???????
BACKGROUNDCOLOR(Low >= trendALMA, RGB(0, 255, 0)) // Grün für Balken über ALMA // ????????

RETURN trendALMA}

02/18/2025 at 10:29 PM #244012 quote
JS
Participant

Master

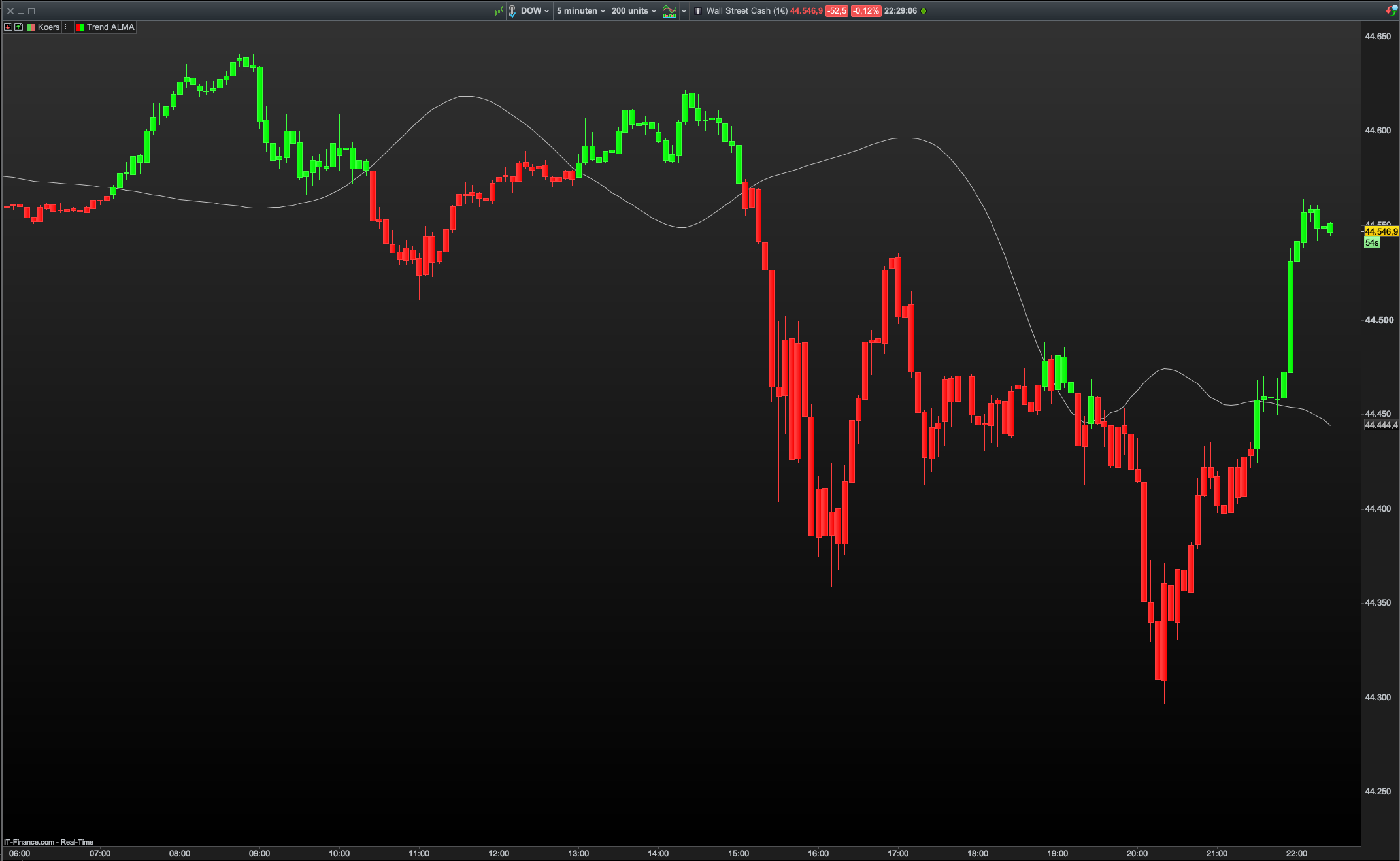

This is with the coloring of the candles…
```
DEFPARAM CalculateOnLastBars = 1200

// Eingaben
inputLength = 48 // Arnaud Legoux MA Länge
inputOffset = 0.15 // ALMA Offset
inputSigma = 6 // ALMA Sigma Wert

// ALMA
m = (inputOffset * (inputLength - 1))
s = inputLength / inputSigma

WtdSum = 0
CumWt = 0

FOR k = 0 TO inputLength - 1 DO
Wtd = EXP(-((k - m) * (k - m)) / (2 * s * s))
WtdSum = WtdSum + Wtd * Close[inputLength - 1 - k]
CumWt = CumWt + Wtd
NEXT

trendALMA = WtdSum / CumWt

If Close>TrendAlma then
R=0
G=255
B=0
Else
R=255
G=0
B=0
EndIf

DrawCandle(Open,High,Low,Close)Coloured(R,G,B)

Return TrendAlma
```
Iván González, robertogozzi, micha2012 and KumoNoJuzza thanked this post

02/20/2025 at 2:17 PM #244097 quote

micha2012
Participant

Average

@JS

Hello JS,

thank you very, very much for your support and help.

Now, the indicator is completely runnig!

Bedankt, mein Freund!

CU all.

Thank you.
