Multi breakout screener

• 01/20/2018 at 1:39 PM #59950
  tradingtrader80

  Hello,



  I was inspired with this topic :

  https://www.prorealcode.com/topic/monthly-high-low-close-indicator/

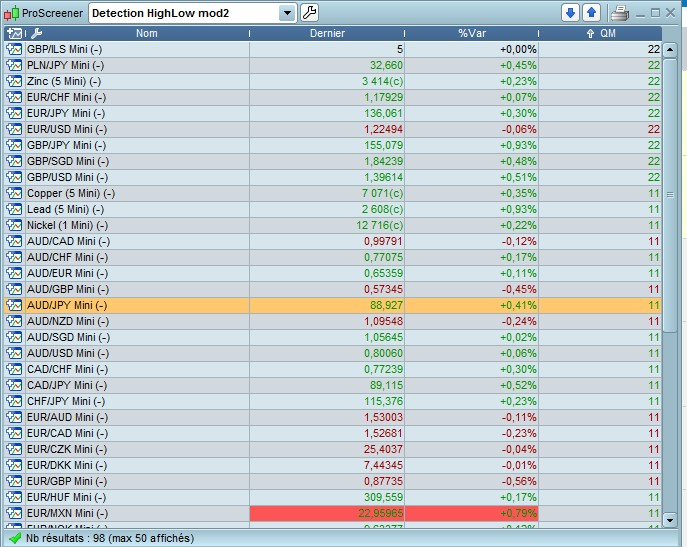

  and try to improve the screener on 2sd page. The purpose is to have a 2 digits number in the result column : first number is trimestrial tendency ans 2sd number is monthly tendency. 22 is above trim high and Monthly high (N-1), 21 is above trim high and below monthly low, 01 between trim high and low and below monthly low, etc …

  Instead of adding numbers, Iwould like to have them print in the result column because 0+1 = 1 (and not 01) 0+0 = 0

  Moreover, it seems that it’s working only for extreme (22,0 or 1) but not for mixed (21,11,12, …)



  Any idéa to help me fix that ?

  Here is the code :

  timeframe(daily) //previous monthly high/low if Month < Month[1] then Mhi = Highest[BarIndex - lastMonthBarIndex](DHigh(1)) Mlo = Lowest[BarIndex - lastMonthBarIndex](DLow(1)) lastMonthBarIndex = BarIndex endif // previous quartly high/low trimH = max(trimH,high) trimL = min(trimL,low) if month < month[1] then //Mhi=trimH //Mlo=trimL if month = 4 or month = 7 or month = 10 or month = 1 then Qhi = trimH Qlo = trimL trimL = close*100 trimH = 0 endif endif if close > Qhi then q = 20 endif if close < Qlo then q = 10 endif if close < Qhi and close > Qlo then q = 0 endif //m=0 if close > Mhi then m = 2 endif if close < Mlo then m = 1 endif if close < Mhi and close > Mlo then m = 0 endif t = q + m SCREENER (t as "Q M")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46

  timeframe(daily)   //previous monthly high/low if Month < Month[1] then Mhi = Highest[BarIndex - lastMonthBarIndex](DHigh(1)) Mlo = Lowest[BarIndex - lastMonthBarIndex](DLow(1)) lastMonthBarIndex = BarIndex endif   // previous quartly high/low trimH = max(trimH,high) trimL = min(trimL,low) if month < month[1] then //Mhi=trimH //Mlo=trimL if month = 4 or month = 7 or month = 10 or month = 1 then Qhi = trimH Qlo = trimL trimL = close*100 trimH = 0 endif endif   if close > Qhi then q = 20 endif if close < Qlo then q = 10 endif if close < Qhi and close > Qlo then q = 0 endif   //m=0 if close > Mhi then m = 2 endif if close < Mlo then m = 1 endif if close < Mhi and close > Mlo then m = 0 endif t = q + m   SCREENER (t as "Q M")







  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/20/2018 at 4:39 PM #59955
  robertogozzi

  To write code, please use the <> “insert PRT code” button. Thanks.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 16463

  Been thanked: 3639 times
  01/21/2018 at 11:12 AM #60065
  Nicolas

  Screener conditions must be under brackets and not parenthesis.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4738 times
  01/21/2018 at 7:33 PM #60092
  tradingtrader80

  Nicolas wrote:

  Screener conditions must be under brackets and not parenthesis.

  Thanks for your answer.

  There is no conditions for that screener, (t as “Q M”) is only the indication  how to display results.

  And my question is how to display result as 2 numbers and not an addition.

  Thanks



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/21/2018 at 8:39 PM #60098
  Nicolas

  Sorry.. did not understand your question the first time.

  10+1 should return 11 obviously. If it doesn’t, there must something wrong in your code or in the quarterly calculation. Did you try to return the variables and to compare it with an indicator?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4738 times
  01/22/2018 at 8:29 AM #60124
  tradingtrader80

  Thanks, I will check that tonignt



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/22/2018 at 8:36 PM #60219
  tradingtrader80

  Hello,

  It seems to works all right except that sometimes the calculation is wrong. but I think it’s only a reference problem.

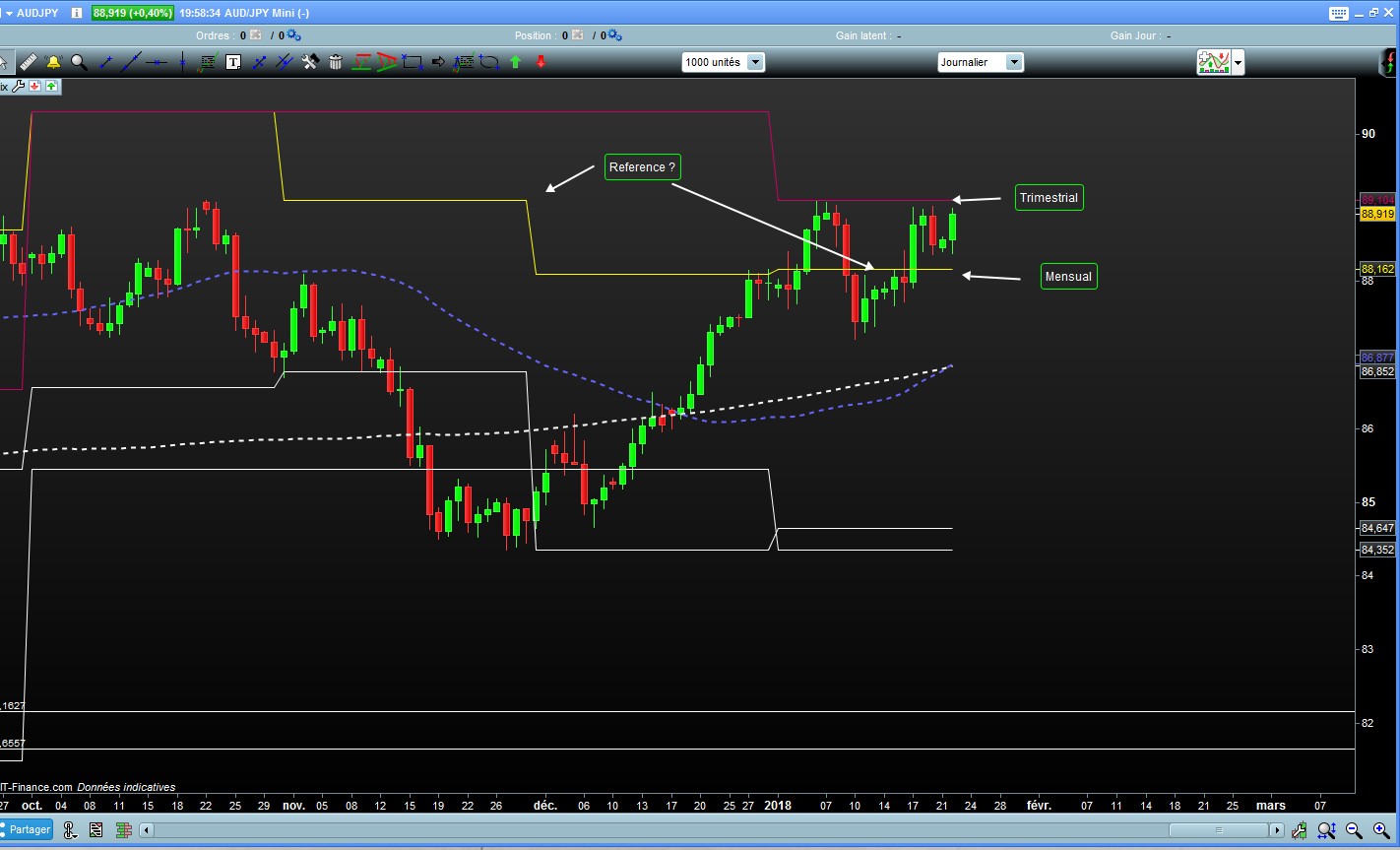

  It returns that prices are between High and Low, even if we are above last trimester or month high. We can see on Audjpy graph joined that price is under October’s high and program considers that we are under monthly high. I would like to consider only last month or last trimester’s high for calculation.

  Is that possible ? I put the code below.

  Thanks a lot for your help.



  Detection HighLow mod2

  timeframe(daily) //previous monthly high/low if Month < Month[1] then Mhi = Highest[BarIndex - lastMonthBarIndex](DHigh(1)) Mlo = Lowest[BarIndex - lastMonthBarIndex](DLow(1)) lastMonthBarIndex = BarIndex endif // previous quartly high/low trimH = max(trimH,high) trimL = min(trimL,low) if month < month[1] then //Mhi=trimH //Mlo=trimL if month = 4 or month = 7 or month = 10 or month = 1 then Qhi = trimH Qlo = trimL trimL = close*100 trimH = 0 endif endif if close > Qhi then q = 20 endif if close < Qlo then q =0 endif if close < Qhi and close > Qlo then q =10 endif //m=0 if close > Mhi then m = 2 endif if close < Mlo then m = 0 endif if close < Mhi and close > Mlo then m = 1 endif t = q + m SCREENER ( t as "QM")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46

  timeframe(daily) //previous monthly high/low if Month < Month[1] then Mhi = Highest[BarIndex - lastMonthBarIndex](DHigh(1)) Mlo = Lowest[BarIndex - lastMonthBarIndex](DLow(1)) lastMonthBarIndex = BarIndex endif // previous quartly high/low trimH = max(trimH,high) trimL = min(trimL,low) if month < month[1] then //Mhi=trimH //Mlo=trimL if month = 4 or month = 7 or month = 10 or month = 1 then Qhi = trimH Qlo = trimL trimL = close*100 trimH = 0 endif endif if close > Qhi  then q = 20 endif if close < Qlo  then q =0 endif if close < Qhi and close > Qlo then q =10 endif   //m=0 if close > Mhi then m = 2 endif if close < Mlo then m = 0 endif if close < Mhi and close > Mlo then m = 1 endif t = q + m   SCREENER ( t as "QM")





  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/22/2018 at 8:38 PM #60220
  tradingtrader80

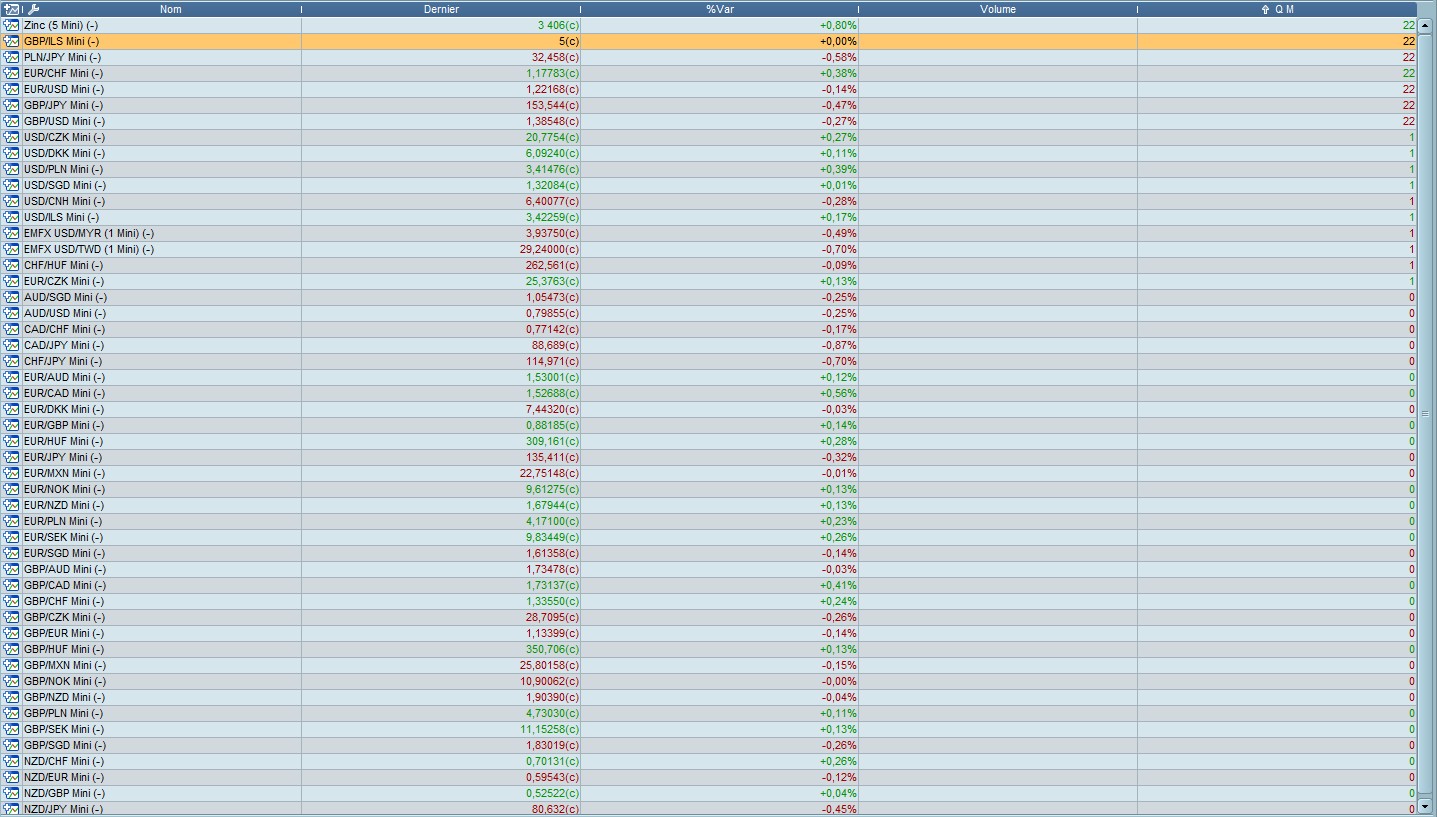

  here are attachments



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/23/2018 at 10:53 AM #60272
  Nicolas

  There is something wrong at line 4, month can only be inferior to month[1] one time per year, in January. You should code it like this:

  if Month <> Month[1] then

  1	if Month <> Month[1] then





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4738 times
  01/23/2018 at 8:01 PM #60345
  tradingtrader80

  I modified that because there is no result returned with <>



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/23/2018 at 8:37 PM #60348
  tradingtrader80

  Indeed it’s working ok for trimestrial but do not refer to last month’s high for monthly. Probably for the reason you said, but I don’t understand why no result are returned.



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/24/2018 at 9:50 PM #60449
  tradingtrader80

  tradingtrader80 wrote:

  I modified that because there is no result returned with <>

  Hello,



  Any idea why ?



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  01/26/2018 at 9:42 AM #60568
  Nicolas

  I think I fixed it, here is the code:

  //previous monthly high/low if Month <> Month[1] then Mhi = Highest[max(1,BarIndex - lastMonthBarIndex)](High[1]) Mlo = Lowest[max(1,BarIndex - lastMonthBarIndex)](Low[1]) lastMonthBarIndex = BarIndex endif // previous quartly high/low trimH = max(trimH,high) trimL = min(trimL,low) if month <> month[1] then //Mhi=trimH //Mlo=trimL if month = 4 or month = 7 or month = 10 or month = 1 then Qhi = trimH Qlo = trimL trimL = close*100 trimH = 0 endif endif if qhi>0 and qlo>0 then if close > Qhi then q = 20 endif if close < Qlo then q =0 endif if close < Qhi and close > Qlo then q =10 endif endif if mhi>0 and mlo>0 then if close > Mhi then m = 2 endif if close < Mlo then m = 0 endif if close < Mhi and close > Mlo then m = 1 endif t = q + m endif SCREENER ( t as "QM")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47

  //previous monthly high/low if Month <> Month[1] then Mhi = Highest[max(1,BarIndex - lastMonthBarIndex)](High[1]) Mlo = Lowest[max(1,BarIndex - lastMonthBarIndex)](Low[1]) lastMonthBarIndex = BarIndex endif   // previous quartly high/low trimH = max(trimH,high) trimL = min(trimL,low) if month <> month[1] then //Mhi=trimH //Mlo=trimL if month = 4 or month = 7 or month = 10 or month = 1 then Qhi = trimH Qlo = trimL trimL = close*100 trimH = 0 endif endif   if qhi>0 and qlo>0 then   if close > Qhi  then q = 20 endif if close < Qlo  then q =0 endif if close < Qhi and close > Qlo then q =10 endif endif   if mhi>0 and mlo>0 then if close > Mhi then m = 2 endif if close < Mlo then m = 0 endif if close < Mhi and close > Mlo then m = 1 endif t = q + m endif   SCREENER ( t as "QM")

  The problem came from a wrong period for the look of Highest high and the Lowest low, no error was fired by ProScreener for it, but I think it was caused by a period set to 0 at the first run of the code.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4738 times
  01/26/2018 at 7:15 PM #60636
  tradingtrader80

  GREAT ! It works perfectly ! Thanks a lot, I would never find that !

  I’m really graceful for the help you provide to all of us.



  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
  02/13/2018 at 8:46 PM #62658
  tradingtrader80

  Hello,

  I’m back with a similar problem I had with monthly return.

  I want to had Weekly classification in the screener, and sometimes it returns the right number and sometimes not.

  I suppose that it’s because it doesn’t reffer to last week but older week.

  Again the line “if month < month[1] then” is probably wrong but if I use <> the screener doesn’t return anything.

  Any idéa to fix that ?

  I will add Daily after that.



  Thanks a lot for your help

  once Whi=undefined once Wlo=undefined dailyHigh= DHigh(1) dailyLow= DLow(1) //Calcul le +Haut Weekly de la semaine passée If DayOfWeek < DayOfWeek[1] then Whi = Highest[BarIndex - lastWeekBarIndex](dailyHigh) Wlo = Lowest[BarIndex - lastWeekBarIndex](dailyLow) lastWeekBarIndex = BarIndex endif //previous monthly high/low if Month <> Month[1] then Mhi = Highest[max(1,BarIndex - lastMonthBarIndex)](High[1]) Mlo = Lowest[max(1,BarIndex - lastMonthBarIndex)](Low[1]) lastMonthBarIndex = BarIndex endif // previous quartly high/low trimH = max(trimH,high) trimL = min(trimL,low) if month <> month[1] then //Mhi=trimH //Mlo=trimL if month = 4 or month = 7 or month = 10 or month = 1 then Qhi = trimH Qlo = trimL trimL = close*100 trimH = 0 endif endif if qhi>0 and qlo>0 then if close > Qhi then q = 200 endif if close < Qlo then q =0 endif if close < Qhi and close > Qlo then q =100 endif endif if mhi>0 and mlo>0 then if close > Mhi then m = 20 endif if close < Mlo then m = 0 endif if close < Mhi and close > Mlo then m = 10 endif t = q + m + w endif if Whi>0 and Wlo>0 then if close > Whi then w = 2 endif if close < Wlo then w =0 endif if close < Whi and close > Wlo then w =1 endif endif SCREENER ( t as "QM")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74

  once Whi=undefined once Wlo=undefined   dailyHigh= DHigh(1) dailyLow= DLow(1)   //Calcul le +Haut Weekly de la semaine passée If DayOfWeek < DayOfWeek[1] then Whi = Highest[BarIndex - lastWeekBarIndex](dailyHigh) Wlo = Lowest[BarIndex - lastWeekBarIndex](dailyLow) lastWeekBarIndex = BarIndex endif   //previous monthly high/low if Month <> Month[1] then Mhi = Highest[max(1,BarIndex - lastMonthBarIndex)](High[1]) Mlo = Lowest[max(1,BarIndex - lastMonthBarIndex)](Low[1]) lastMonthBarIndex = BarIndex endif // previous quartly high/low trimH = max(trimH,high) trimL = min(trimL,low) if month <> month[1] then //Mhi=trimH //Mlo=trimL if month = 4 or month = 7 or month = 10 or month = 1 then Qhi = trimH Qlo = trimL trimL = close*100 trimH = 0 endif endif     if qhi>0 and qlo>0 then if close > Qhi  then q = 200 endif if close < Qlo  then q =0 endif if close < Qhi and close > Qlo then q =100 endif endif if mhi>0 and mlo>0 then if close > Mhi then m = 20 endif if close < Mlo then m = 0 endif if close < Mhi and close > Mlo then m = 10 endif t = q + m + w endif   if Whi>0 and Wlo>0 then if close > Whi  then w = 2 endif if close < Wlo  then w =0 endif if close < Whi and close > Wlo then w =1 endif endif SCREENER ( t as "QM")





  tradingtrader80

  Participant

  Topics: 2

  Replies: 18

  Been thanked: 0 times
