MTF – Multi Time Frame Coding – No Trades Executed – Weekly, Daily, 1hr

• 01/14/2021 at 11:49 PM #157897
  Yohan T

  Hi All,

  I am new to the site and new to coding with PRT. I have coded a MTF momentum pull back strategy which shows no errors

  when i code it in PRT but when i backtest it, the strategy executes no trades at all. I think something may be wrong with

  the syntax or structure of my MTF coding, hoping someone can give me some guidance.

  Also if you have any suggestions to improve this code or strategy , please let me know.

  Here is a summary of the strategy and code:

  1. Weekly Time Frame – Price above 5MA + Price Higher Than Last 4 Bars + MACD>0  (Stock Rising on weekly time frame)

  2. Daily Time Frame – Price above 5MA + Price Higher Than Last 4 Bars + MACD>0 (Stock Rising on daily time frame)

  3. Hourly Time Frame – MACD <0 + MACD Higher Than Last 4 Bars (Trade should execute on 1hr time frame. Buy on rising but negative MACD (dips))

  4. Trade Execution – Execute trade on the 1 hour chart if weekly and daily conditions  are met. If weekly and daily condition are not met, do not trade.

  MTF- Multi Time Frame - Momentum Pull Back - Weekly -Daily- 1 Hour Entry

  // Definition of code parameters DEFPARAM CumulateOrders = False // Cumulating positions activated //Start - The following code is related to the weekly timeframe timeframe (weekly, updateonclose) indicator1 = Average[5](close) indicator2 = MACD[12,26,9](close) c1 = (close > indicator1) c2 = (close > close[4]) c3 = (indicator2 > 0) c4 = c1 AND c2 AND c3 //Start - The following code is related to the daily timeframe timeframe (daily, updateonclose) indicator3 = Average[5](close) c5 = (close > indicator3) c6 = (close > close[3]) c7 = c5 AND c6 //Start - The following code is related to the 1hr timeframe timeframe (1 hour, default) c8 = (indicator2 < 0) c9 = (indicator2 > indicator2 [4]) c10 = c8 and c9 // Conditions to enter long positions IF c4 AND c7 AND c10 THEN BUY 0.5 PERPOINT AT MARKET ENDIF // Conditions to exit long positions timeframe (daily) c11 = (close < indicator3) IF c11 THEN SELL AT MARKET ENDIF // Stops and targets SET STOP %LOSS 5

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

  // Definition of code parameters DEFPARAM CumulateOrders = False // Cumulating positions activated   //Start - The following code is related to the weekly timeframe timeframe (weekly, updateonclose) indicator1 = Average[5](close) indicator2 = MACD[12,26,9](close) c1 = (close > indicator1) c2 = (close > close[4]) c3 = (indicator2 > 0) c4 = c1 AND c2 AND c3   //Start - The following code is related to the daily timeframe timeframe (daily, updateonclose) indicator3 = Average[5](close) c5 = (close > indicator3) c6 = (close > close[3]) c7 = c5 AND c6   //Start - The following code is related to the 1hr timeframe timeframe (1 hour, default) c8 = (indicator2 < 0) c9 = (indicator2 > indicator2 [4]) c10 = c8 and c9   // Conditions to enter long positions IF c4 AND c7 AND c10 THEN BUY 0.5 PERPOINT AT MARKET ENDIF   // Conditions to exit long positions timeframe (daily) c11 = (close < indicator3) IF c11 THEN SELL AT MARKET ENDIF   // Stops and targets SET STOP %LOSS 5

  #mtf #multitimeframe #multi time frame



  Yohan T

  Participant

  Topics: 3

  Replies: 4

  Been thanked: 0 times
  01/15/2021 at 12:13 AM #157898
  robertogozzi

  I would move all conditions to the default TF.

  I would call the default TF just DEFAULT without 1h, so you can run it from another TF, just in case.

  I would remove line 32.

  // Definition of code parameters DEFPARAM CumulateOrders = False // Cumulating positions activated //Start - The following code is related to the weekly timeframe timeframe (weekly, updateonclose) indicator1 = Average[5](close) indicator2 = MACD[12,26,9](close) //Start - The following code is related to the daily timeframe timeframe (daily, updateonclose) indicator3 = Average[5](close) //Start - The following code is related to the 1hr timeframe timeframe (default) c1 = (close > indicator1) c2 = (close > close[4]) c3 = (indicator2 > 0) c4 = c1 AND c2 AND c3 c5 = (close > indicator3) c6 = (close > close[3]) c7 = c5 AND c6 c8 = (indicator2 < 0) c9 = (indicator2 > indicator2 [4]) c10 = c8 and c9 // Conditions to enter long positions IF c4 AND c7 AND c10 THEN BUY 0.5 PERPOINT AT MARKET ENDIF // Conditions to exit long positions c11 = (close < indicator3) IF c11 THEN SELL AT MARKET ENDIF // Stops and targets SET STOP %LOSS 5

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

  // Definition of code parameters DEFPARAM CumulateOrders = False // Cumulating positions activated //Start - The following code is related to the weekly timeframe timeframe (weekly, updateonclose) indicator1 = Average[5](close) indicator2 = MACD[12,26,9](close) //Start - The following code is related to the daily timeframe timeframe (daily, updateonclose) indicator3 = Average[5](close) //Start - The following code is related to the 1hr timeframe timeframe (default) c1 = (close > indicator1) c2 = (close > close[4]) c3 = (indicator2 > 0) c4 = c1 AND c2 AND c3 c5 = (close > indicator3) c6 = (close > close[3]) c7 = c5 AND c6 c8 = (indicator2 < 0) c9 = (indicator2 > indicator2 [4]) c10 = c8 and c9   // Conditions to enter long positions IF c4 AND c7 AND c10 THEN BUY 0.5 PERPOINT AT MARKET ENDIF // Conditions to exit long positions c11 = (close < indicator3) IF c11 THEN SELL AT MARKET ENDIF // Stops and targets SET STOP %LOSS 5





  robertogozzi

  Moderator

  Topics: 69

  Replies: 16465

  Been thanked: 3641 times
  01/18/2021 at 7:10 PM #158360
  Yohan T

  Thanks for taking a look Roberto and for the structure updates around the code, unfortunately, it still doesn’t work, backtest just shows   “No Data”. No trades are executed.

  Strangely, there are no errors anywhere that i can see, my original code also returned no errors. I have tried on different time frames and different stocks and the same thing.

  I have provided a screen shot of what i see as an example.







  Yohan T

  Participant

  Topics: 3

  Replies: 4

  Been thanked: 0 times
  01/18/2021 at 8:08 PM #158383
  Yohan T

  To add to this, i have just noticed something strange.

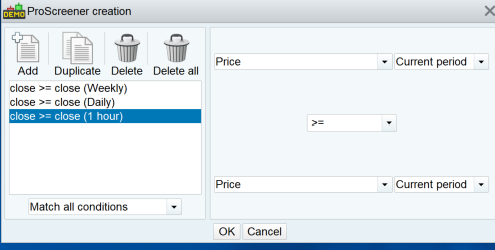

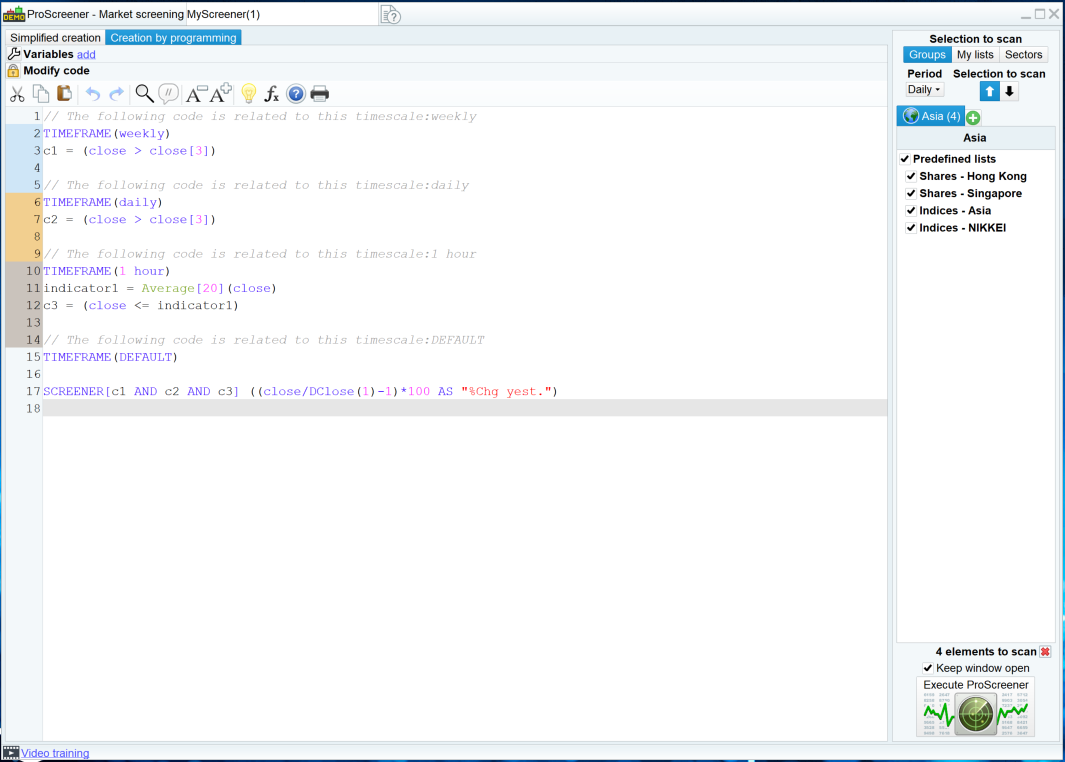

  If i create a MTF scanner with the assisted mode, PRT creates the correct code with the different timeframe parameters and the scanner works.

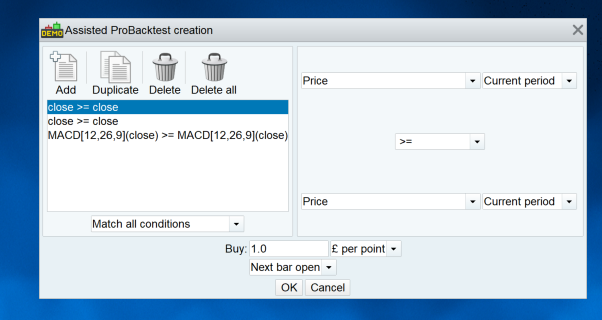

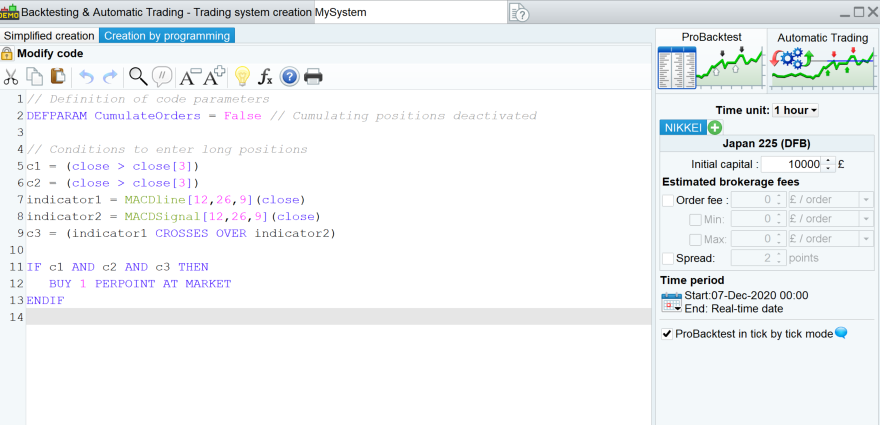

  If i then try the same thing with the backtest / auto trading, PRT DOES NOT not create any code at all related to the different timeframes. There are no timeframe references.

  This suggests that MTF is available and works on the scanner but not on backtesting / autotrading.

  I am doing all this in my IG PRT Demo Account, v11.1 of PRT being used, if that makes any difference.

  Anyone seen anything like this ?  I will test my real account later.

  Screenshots attached.



  Yohan T

  Participant

  Topics: 3

  Replies: 4

  Been thanked: 0 times
