Moving Average RSI Hybrid Line

• 09/24/2017 at 12:36 PM #47126
  juanj

  Good Day

  I only recently started playing around coding and more specifically graphing indicators.

  I am looking to create a simple indicator that works and functions exactly like a standard moving average line except the color of the line is dependent on the position of the RSI2 period.

  Variables should be as follows:

  RSI Period: i.e. 2
  Moving Average Period: i.e. 21
  Moving Average Type: i.e. 2 (Exponential)
  RSI Top Threshold: 90
  RSI Bottom Threshold: 10

  Thus as long as the RSI Period is within the threshold, the moving average line is black.
  If the RSI is above the threshold the line is red and if below blue.



  juanj

  Participant

  Topics: 51

  Replies: 505

  Been thanked: 170 times
  09/24/2017 at 2:00 PM #47136
  Despair

  I think it is only possible to have two different colours but not three.



  Despair

  Blocked

  Topics: 97

  Replies: 1034

  Been thanked: 217 times
  09/24/2017 at 2:32 PM #47139
  juanj

  Guess I would need two lines then right on top of each other, one changing color from black to blue if below the RSI threshold and another changing black to red if above the threshold.





  juanj

  Participant

  Topics: 51

  Replies: 505

  Been thanked: 170 times
  09/24/2017 at 3:04 PM #47142
  JC_Bywan

  You can do it with just your one line, just use an if statement to define the 3 variables r, g, b according to your various rsi thresholds so that each set of r,g,b defines each of the 3 colours you want, and then use them in the color definitions in your return line “return myma coloured (r,g,b)”

  1 user thanked author for this post.

  Despair



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2542

  Been thanked: 836 times
  09/24/2017 at 3:20 PM #47144
  JC_Bywan

  Sthg like:

  r=0 g=0 b=0 myrsi=RSI[2](close) myma=ExponentialAverage[21](close) if myrsi>90 then r=255 g=30 b=30 elsif myrsi<10 then r=30 g=144 b=255 endif return myma coloured(r,g,b) as "my ma"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

  r=0 g=0 b=0 myrsi=RSI[2](close) myma=ExponentialAverage[21](close) if myrsi>90 then    r=255    g=30    b=30 elsif myrsi<10 then    r=30    g=144    b=255 endif   return myma coloured(r,g,b) as "my ma"





  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2542

  Been thanked: 836 times
  09/24/2017 at 4:49 PM #47148
  Despair

  Excellent idea Noobywan. A little related problem I had 2 days ago. If i use drawhline  to draw a line and then I want it to disappear again. How can this be done? Just painting over with white doesn’t work since the background of PRT is not white. :-S



  Despair

  Blocked

  Topics: 97

  Replies: 1034

  Been thanked: 217 times
  09/24/2017 at 5:19 PM #47152
  JC_Bywan

  In the context of being able to keep some graphic objects drawn on previous bars while deleting some others, I haven’t found a way to selectively make lines disappear because of background as you said, however if keeping previous graphic elements doesn’t matter, then adding at the beginning of the code the line:

  defparam drawonlastbaronly=true

  1	defparam drawonlastbaronly=true

  will allow you to keep only the horizontal line you’ve defined on the last bar (and so it needs to be defined at each bar even if it doesn’t move), but it will delete anything else drawn on previous bars

  1 user thanked author for this post.

  Despair



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2542

  Been thanked: 836 times
  09/24/2017 at 9:41 PM #47161
  Despair

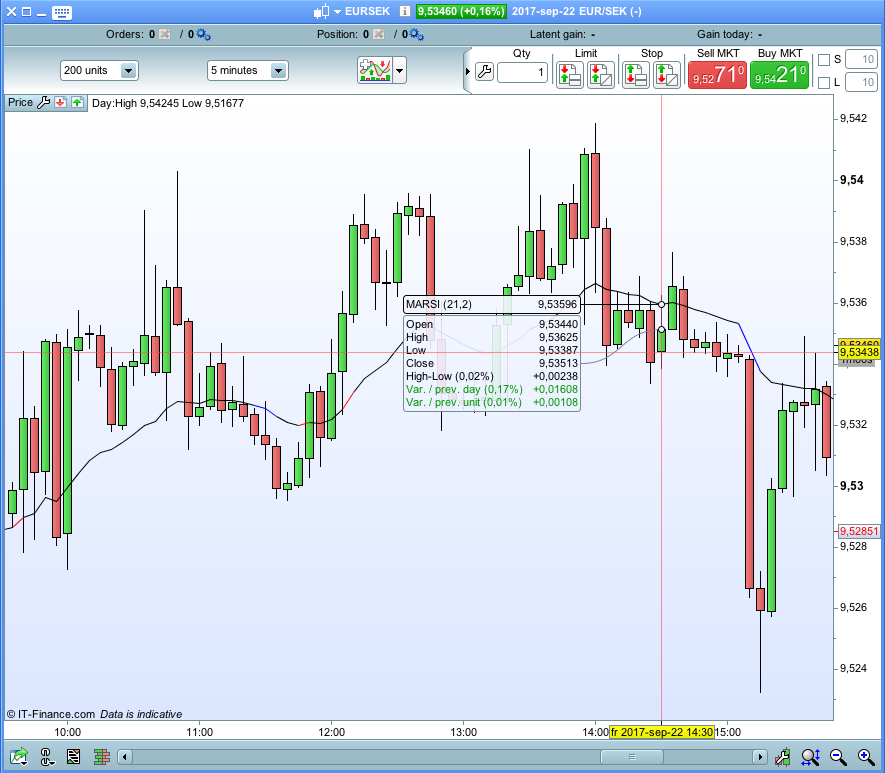

  Here is the MARSI indicator you described @juanj.

  Edit: Now I see Noobywan posted the same already above.  .-)



  Despair

  Blocked

  Topics: 97

  Replies: 1034

  Been thanked: 217 times
  09/24/2017 at 9:51 PM #47164
  juanj

  Thanks, Guys, implemented it as follows:

  //variables to add: //RSIPeriod (Default: 2) //MAPeriod (Default: 21) //MAType (Default: 2) //RSIUpperThreshold (Default: 95) //RSILowerThreshold (Default: 5) myrsi=RSI[RSIPeriod](close) myma=Average[MAPeriod,MAType](close) if myrsi>RSIUpperThreshold then r=255 g=0 b=0 Elsif myrsi<=RSIUpperThreshold and myrsi > 50 then r=0//255 g=0//145 b=0//164 elsif myrsi<RSILowerThreshold then r=0 g=255 b=0 Elsif myrsi>RSILowerThreshold and myrsi < 50 then r=0//173 g=0//255 b=0//47 Elsif myrsi = 50 then r=0 g=0 b=0 endif return myma coloured(r,g,b) as "Hybrid MA"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

  //variables to add:   //RSIPeriod (Default: 2) //MAPeriod (Default: 21) //MAType (Default: 2) //RSIUpperThreshold (Default: 95) //RSILowerThreshold (Default: 5)   myrsi=RSI[RSIPeriod](close) myma=Average[MAPeriod,MAType](close) if myrsi>RSIUpperThreshold then r=255 g=0 b=0 Elsif myrsi<=RSIUpperThreshold and myrsi > 50 then r=0//255 g=0//145 b=0//164 elsif myrsi<RSILowerThreshold then r=0 g=255 b=0 Elsif myrsi>RSILowerThreshold and myrsi < 50 then r=0//173 g=0//255 b=0//47 Elsif myrsi = 50 then r=0 g=0 b=0 endif return myma coloured(r,g,b) as "Hybrid MA"
