Certains considèrent que la bourse est un jeu à somme nulle, d’autre pense qu’il y a une similitude entre Poker et stratégie mais personne ne remarque que le trading s’apparente au jeu d’échecs car il faut prévoir les coups à l’avance ?
C’est chose faite avec ce programme qui trace sous forme de pièces les événements éphémères les plus importants !
Qu’il soit blanc ou noir le choix du camp est important puisque c’est à vous qu’incombe la suite des évènements. Adopter une stratégie garantissant le contrôle des mouvements présent et à venir car dans ce jeu vous êtes la pièce principale qu’il faut conserver en toute circonstance et de son issue dépendra la réussite ou un cuisant échec …
Le rôle des pièces spécifique au système “ichimoku” est le suivant:

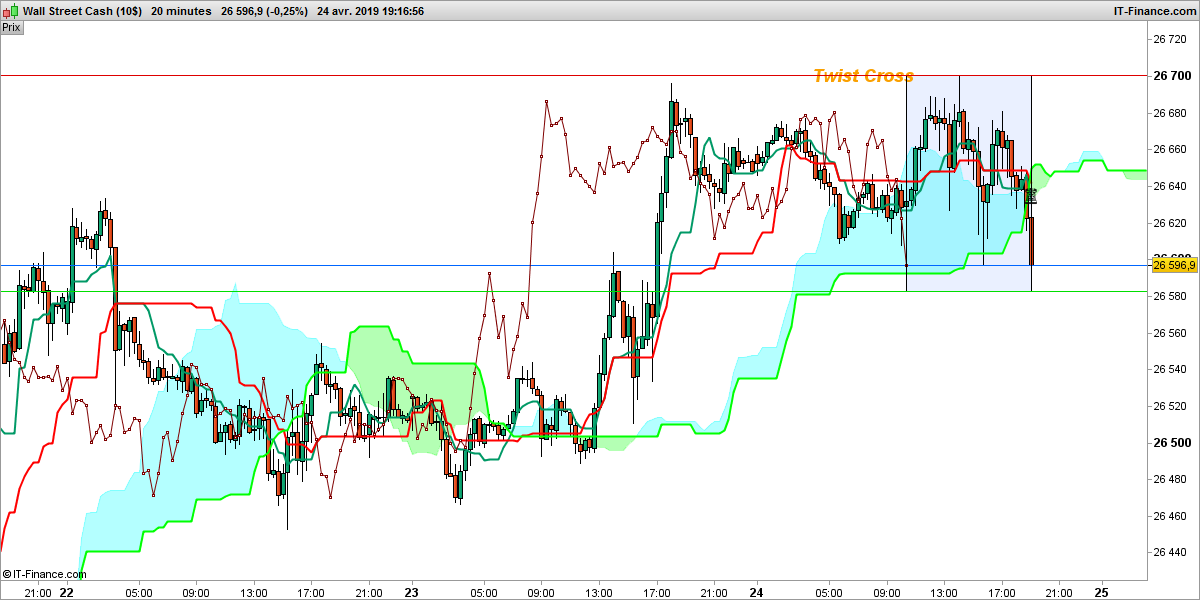

– ♖ La Tour : Elle vous informe sur la formation d’un “Twist Crossing” en traçant un rectangle encadrant les points mini/maxi des 26 dernières bougies (ou des 13 bougies dans le cas d’un “Twist Flat”)
– ♗ Le Fou : Sur un croisement “Tenkan-sen et Kijun-sen” indique la possibilité d’un départ imminent d’une Tendance
– ♘ Le Cavalier : Il montre le signal d’un Katana dès la superposition sur 2 ou 3 points de Tenkan et Kijun
– ♕ La Reine : Pièce importante qui visualise tout croisement qu’effectue la “Chikou Span” aux abords ou dans le “Kumo”
– ♙ Le Pion : La mémoire du passé évoluant en zone libre pour ouvrir le chemin une fois les obstacles franchis avec l’aide de la Reine
– ♔ Le Roi : Maître de l’avenir (clairvoyance, sagesse, patiente, humilité) tout cela s’apprends avec le temps mais il faut faire attention aux pièges cachés qui ne sont ni le marché ni les courtiers mais bien Toi !!!// Kosaten Hyo | Indicator // 24/04/2019 (Release 1.0) // Swapping @ www.forexswap.fr // Sharing ProRealTime knowledge (alt+16) // (Kosaten Hyo) "Croisement de courbe" (Katana) "Lame Longue" (Daisho) "Lame courte" DefParam DrawOnLastBarOnly = true // --- Property settings alpha = max(alpha,0) // Limit input variable alpha = min(alpha,255) // // --- end period = (p) UpHH = highest[period](high) LoLL = lowest[period](low) Tenkansen = (highest[9](High)+lowest[9](Low))/2 Kijunsen = (highest[26](High)+lowest[26](Low))/2 SenkouSA = (Tenkansen[26]+Kijunsen[26])/2 SenkouSB = (highest[52](High[26])+lowest[52](Low[26]))/2 Kata1 = summation[2](Tenkansen = Kijunsen) = 2 // (two contacts followed = Katana) Kata2 = summation[3](Tenkansen = Kijunsen) = 3 // (three contacts followed = Daisho) if close crosses over tenkansen[26] then co1=1 // for further development if ColorPawn = 0 then DrawText("♕",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen white else DrawText("♛",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen black endif if close crosses under tenkansen[26] then co2=2 if ColorPawn = 0 then DrawText("♕",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen white else DrawText("♛",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen black endif endif endif if close crosses over kijunsen[26] then co1=3 if ColorPawn = 0 then DrawText("♕",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen white else DrawText("♛",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen black endif endif if close crosses under kijunsen[26] then co2=4 if ColorPawn = 0 then DrawText("♕",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen white else DrawText("♛",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen black endif endif if close crosses over senkousa[26] then co1=5 if ColorPawn = 0 then DrawText("♕",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen white else DrawText("♛",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen black endif endif if close crosses under senkousa[26] then co2=6 if ColorPawn = 0 then DrawText("♕",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen white else DrawText("♛",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen black endif endif if close crosses over senkousb[26] then co1=7 if ColorPawn = 0 then DrawText("♕",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen white else DrawText("♛",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen black endif endif if close crosses under senkousb[26] then co2=8 if ColorPawn = 0 then DrawText("♕",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen white else DrawText("♛",barindex[26],close,Dialog,Standard,20) coloured(0,0,0,alpha) // chess queen black endif endif if Tenkansen crosses over Kijunsen then co1=9 if ColorPawn = 0 then DrawText("♗",barindex,kijunsen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess crazy white else DrawText("♝",barindex,Tenkansen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess crazy black endif endif if Tenkansen crosses under Kijunsen then co2=10 if ColorPawn = 0 then DrawText("♗",barindex,kijunsen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess crazy white else DrawText("♝",barindex,Tenkansen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess crazy black endif endif if Kijunsen crosses over Tenkansen then co1=11 if ColorPawn = 0 then DrawText("♗",barindex,kijunsen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess crazy white else DrawText("♝",barindex,Tenkansen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess crazy black endif endif if Kijunsen crosses under Tenkansen then co2=12 if ColorPawn = 0 then DrawText("♗",barindex,kijunsen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess crazy white else DrawText("♝",barindex,Tenkansen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess crazy black endif endif if close > tenkansen[26] and close > kijunsen[26] and close > senkousa[26] and close > senkousb[26] and close > high[26] then // Chikou Span » Free High Area co1=13 if ColorPawn = 0 then DrawText("♙",barindex[26],close,Dialog,Standard,26) coloured(0,0,0,alpha) // chess pawn white else DrawText("♟",barindex[26],close,Dialog,Standard,26) coloured(0,0,0,alpha) // chess pawn black endif endif if close < tenkansen[26] and close < kijunsen[26] and close < senkousa[26] and close < senkousb[26] and close < high[26] then // Chikou Span « Free Low Area co2=14 if ColorPawn = 0 then DrawText("♙",barindex[26],close,Dialog,Standard,26) coloured(0,0,0,alpha) // chess pawn white else DrawText("♟",barindex[26],close,Dialog,Standard,26) coloured(0,0,0,alpha) // chess pawn black endif endif if Kata1 then co1=15 DrawText("Katana",barindex[5],LoLL,Dialog,BoldItalic,18) coloured(0,160,250) if ColorPawn = 0 then DrawText("♘",barindex,Tenkansen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess horse white else DrawText("♞",barindex,Tenkansen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess horse black endif if Kata2 then co2=16 DrawText("Daisho",barindex,UpHH,Dialog,BoldItalic,16) coloured(250,160,0) if ColorPawn = 0 then DrawText("♘",barindex,Tenkansen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess horse white else DrawText("♞",barindex,Tenkansen,Dialog,Standard,20) coloured(0,0,0,alpha) // chess horse black endif endif endif if SenkouSA crosses over SenkouSB or SenkouSA crosses under SenkouSB then // Twist crossing co1=17 DrawText("Twist Cross",barindex[35],UpHH,Dialog,BoldItalic,18) coloured(250,160,0) DrawLine(barindex[period],UpHH[0],barindex[0],UpHH[0]) coloured(222,0,0) // Line Upper (Optional) DrawLine(barindex[period],LoLL[0],barindex[0],LoLL[0]) coloured(0,222,0) // Line Lower (Optional) DrawRectangle(barindex[period],UpHH[0],barindex,LoLL[0]) // Default if ColorPawn = 0 then DrawText("♖",barindex,SenkouSA,Dialog,Standard,20) coloured(0,0,0,alpha) // chess tower white else DrawText("♜",barindex,SenkouSA,Dialog,Standard,20) coloured(0,0,0,alpha) // chess tower black endif endif if SenkouSA = SenkouSB then // Twist flat co2=18 DrawText("Twist Flat",barindex[21],UpHH,Dialog,BoldItalic,18) coloured(250,160,0) period = (p)/2 UpHH = highest[period](high) LoLL = lowest[period](low) DrawLine(barindex[period],UpHH[0],barindex[0],UpHH[0]) coloured(222,0,0) // Line Upper (Optional) DrawLine(barindex[period],LoLL[0],barindex[0],LoLL[0]) coloured(0,222,0) // Line Lower (Optional) DrawRectangle(barindex[period],UpHH[0],barindex,LoLL[0]) // Default if ColorPawn = 0 then DrawText("♖",barindex,SenkouSA,Dialog,Standard,20) coloured(0,0,0,alpha) // chess tower white else DrawText("♜",barindex,SenkouSA,Dialog,Standard,20) coloured(0,0,0,alpha) // chess tower black endif endif //DrawText("◯",barindex[26],LoDay,MonoSpaced,Standard,26) coloured(10,190,0) // for further development DrawText(" #co1#",barindex[26],LoDay,SansSerif,Bold,18) coloured(10,190,0,0) // ------------- //DrawText("◯",barindex[20],LoDay,MonoSpaced,Standard,26) coloured(190,10,0) // ------------- DrawText(" #co2#",barindex[20],LoDay,SansSerif,Bold,18) coloured(190,10,0,0) // ------------- // Fibonacci Section if day <> day[1] then firstbar = barindex endif HiDay = dhigh(0) LoDay = dlow(0) if Fibonacci = 1 then fib0 = (hiday-loday)*.0+loday DrawSegment(firstbar,fib0,barindex-3,fib0) coloured(0,0,0,alpha) DrawText("0%",barindex,fib0,Dialog,Bold,11) coloured(0,0,0,alpha) fib236 = (hiday-loday)*.236+loday DrawSegment(firstbar,fib236,barindex-3,fib236) coloured(0,0,0,alpha) DrawText("23.6%",barindex,fib236,Dialog,Bold,11) coloured(0,0,0,alpha) fib382 = (hiday-loday)*.382+loday DrawSegment(firstbar,fib382,barindex-3,fib382) coloured(0,0,0,alpha) DrawText("38.2%",barindex,fib382,Dialog,Bold,11) coloured(0,0,0,alpha) fib500 = (hiday-loday)*.5+loday DrawSegment(firstbar,fib500,barindex-3,fib500) coloured(0,0,0,alpha) DrawText("50.0%",barindex,fib500,Dialog,Bold,11) coloured(0,0,0,alpha) fib618 = (hiday-loday)*.618+loday DrawSegment(firstbar,fib618,barindex-3,fib618) coloured(0,0,0,alpha) DrawText("61.8%",barindex,fib618,Dialog,Bold,11) coloured(0,0,0,alpha) fib764 = (hiday-loday)*.764+loday DrawSegment(firstbar,fib764,barindex-3,fib764) coloured(0,0,0,alpha) DrawText("76.4%",barindex,fib764,Dialog,Bold,11) coloured(0,0,0,alpha) fib1000 = (hiday-loday)*1.0+loday DrawSegment(firstbar,fib1000,barindex-3,fib1000) coloured(0,0,0,alpha) DrawText("100%",barindex,fib1000,Dialog,Bold,11) coloured(0,0,0,alpha) elsif Fibonacci = 2 then fib0 = (hiday-loday)*1.0+loday DrawSegment(firstbar,fib0,barindex-3,fib0) coloured(0,0,0,alpha) DrawText("0%",barindex,fib0,Dialog,Bold,11) coloured(0,0,0,alpha) fib236 = (hiday-loday)*.764+loday DrawSegment(firstbar,fib236,barindex-3,fib236) coloured(0,0,0,alpha) DrawText("23.6%",barindex,fib236,Dialog,Bold,11) coloured(0,0,0,alpha) fib382 = (hiday-loday)*.618+loday DrawSegment(firstbar,fib382,barindex-3,fib382) coloured(0,0,0,alpha) DrawText("38.2%",barindex,fib382,Dialog,Bold,11) coloured(0,0,0,alpha) fib500 = (hiday-loday)*.5+loday DrawSegment(firstbar,fib500,barindex-3,fib500) coloured(0,0,0,alpha) DrawText("50.0%",barindex,fib500,Dialog,Bold,11) coloured(0,0,0,alpha) fib618 = (hiday-loday)*.382+loday DrawSegment(firstbar,fib618,barindex-3,fib618) coloured(0,0,0,alpha) DrawText("61.8%",barindex,fib618,Dialog,Bold,11) coloured(0,0,0,alpha) fib764 = (hiday-loday)*.236+loday DrawSegment(firstbar,fib764,barindex-3,fib764) coloured(0,0,0,alpha) DrawText("76.4%",barindex,fib764,Dialog,Bold,11) coloured(0,0,0,alpha) fib1000 = (hiday-loday)*.0+loday DrawSegment(firstbar,fib1000,barindex-3,fib1000) coloured(0,0,0,alpha) DrawText("100%",barindex,fib1000,Dialog,Bold,11) coloured(0,0,0,alpha) endif returnVous pouvez modifier le nombre de chandelier, ajouter un Fibonacci du plus haut et du plus bas, inverser ses valeurs, vous pouvez également rendre partiellement transparent les pièces et même choisir la couleur (blanche ou noire)…
Alai-n thanked this postBonjour Nicolas, c’est étrange puisque je l’ai bien dans le fichier que j’ai placé sur le thread #97075 ? je le télécharge et il est bien présent !

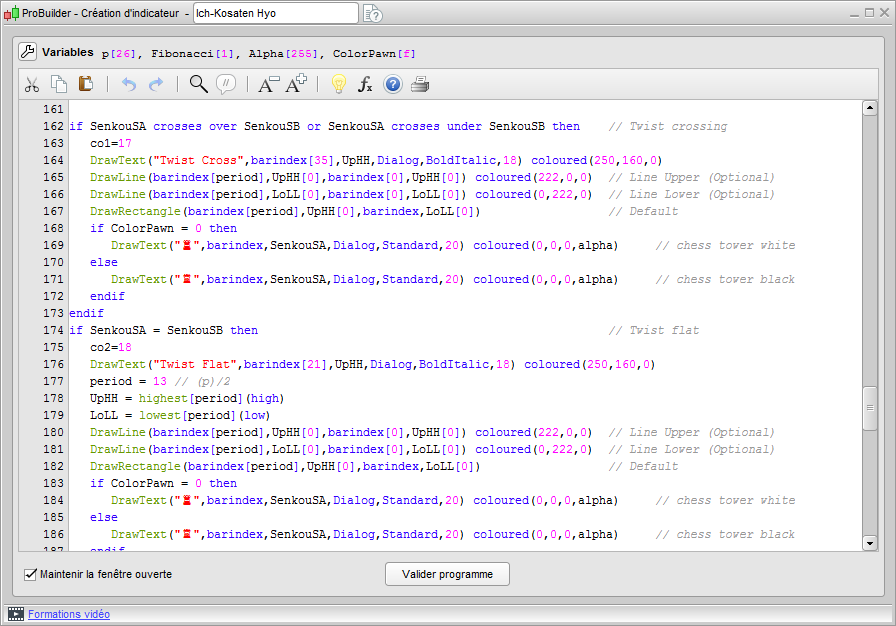

Je le replace ici en pièce jointe ( celui-ci est corrigé à la ligne 177 ce sera celui la à placer dans la bibliothèque si tu veux bien) et te montre un screenshout des variables (en dur) du fichier .itf
de tout façon, merci
Nicolas thanked this post
