Klinger Oscillator conversion

• 01/29/2025 at 6:40 PM #243195
  regus

  Is it possible to convert this Thinkscript code to Prorealcode.

  input MALength = 13;

  def DM = high – low;
  def Trend = if hlc3 > hlc3[1] then 1 else -1;
  def CM = DM + if Trend == Trend[1] then CM[1] else DM[1];
  def VForce = if CM != 0 then Trend * 100 * volume * AbsValue(2 * DM / CM – 1) else VForce[1];
  plot KVOsc = ExpAverage(VForce, 34) – ExpAverage(VForce, 55);
  plot TriggerLine = Average(KVOsc, MALength);
  plot ZeroLine = 0;Klin



  regus

  Participant

  Topics: 2

  Replies: 3

  Been thanked: 0 times
  01/29/2025 at 7:01 PM #243201
  cjr30

  No se si estará bien, pero creo que es de la siguiente forma:

  I don’t know if it’s correct, but I think it’s like this:

  MALength = 13
  DM = high – low
  hlc3= (high + low + close)/3
  if(hlc3>hlc3[1]) THEN
  Trend = 1
  ELSE
  Trend = -1
  ENDIF
  CM = DM
  if Trend = Trend[1] then
  CM = CM[1] + DM
  else
  CM = DM[1]
  endif

  if CM <> 0 then
  VForce = Trend * 100 * volume * Abs(2 * DM / CM – 1)
  else
  VForce = VForce[1]
  endif
  KVOsc = ExponentialAverage[34](VForce) – ExponentialAverage[55](VForce)
  TriggerLine = Average[MALength](KVOsc)
  return KVOsc as “Klinger” ,TriggerLine as “Signal”



  cjr30

  Participant

  Topics: 10

  Replies: 34

  Been thanked: 11 times
  01/29/2025 at 7:26 PM #243203
  robertogozzi

  @cjr30

  Only post in the language of the forum that you are posting in. For example English only in the English speaking forums and French only in the French speaking forums

  Thanks 🙂





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17503

  Been thanked: 4260 times
  01/29/2025 at 8:45 PM #243206
  JS

  Here is the modified version:

  Klinger Oscillator

  // Define input parameter MALength = 13 HLC3=(High+Low+Close)/3 // Calculate DM (Daily Movement) DM = HIGH - LOW // Determine Trend IF (HLC3 > HLC3[1]) THEN Trend = 1 ELSE Trend = -1 ENDIF // Calculate CM (Cumulative Movement) IF (Trend = Trend[1]) THEN CM = DM + CM[1] ELSE CM = DM + DM[1] ENDIF // Calculate VForce (Volume Force) IF (CM <> 0) THEN VForce = Trend * 100 * Volume * abs(2 * DM / CM - 1) ELSE VForce = VForce[1] ENDIF // Calculate KVOscillator (KVOsc) KVOsc = Average[34,1](VForce) - Average[55,1](VForce) // Calculate Trigger Line (Signal Line) TriggerLine = Average[MALength](KVOsc) // Define Zero Line ZeroLine = 0 // Plot the indicators RETURN KVOsc AS "KVOsc" Coloured("Yellow"), TriggerLine AS "TriggerLine" Coloured("Green"), ZeroLine AS "ZeroLine"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

  // Define input parameter MALength = 13 HLC3=(High+Low+Close)/3   // Calculate DM (Daily Movement) DM = HIGH - LOW   // Determine Trend IF (HLC3 > HLC3[1]) THEN Trend = 1 ELSE Trend = -1 ENDIF   // Calculate CM (Cumulative Movement) IF (Trend = Trend[1]) THEN CM = DM + CM[1] ELSE CM = DM + DM[1] ENDIF   // Calculate VForce (Volume Force) IF (CM <> 0) THEN VForce = Trend * 100 * Volume * abs(2 * DM / CM - 1) ELSE VForce = VForce[1] ENDIF   // Calculate KVOscillator (KVOsc) KVOsc = Average[34,1](VForce) - Average[55,1](VForce)   // Calculate Trigger Line (Signal Line) TriggerLine = Average[MALength](KVOsc)   // Define Zero Line ZeroLine = 0   // Plot the indicators RETURN KVOsc AS "KVOsc" Coloured("Yellow"), TriggerLine AS "TriggerLine" Coloured("Green"), ZeroLine AS "ZeroLine"

  1 user thanked author for this post.

  regus



  JS

  Participant

  Topics: 27

  Replies: 2016

  Been thanked: 1066 times
  01/29/2025 at 8:46 PM #243208
  regus

  Thanks for your try cjr30.

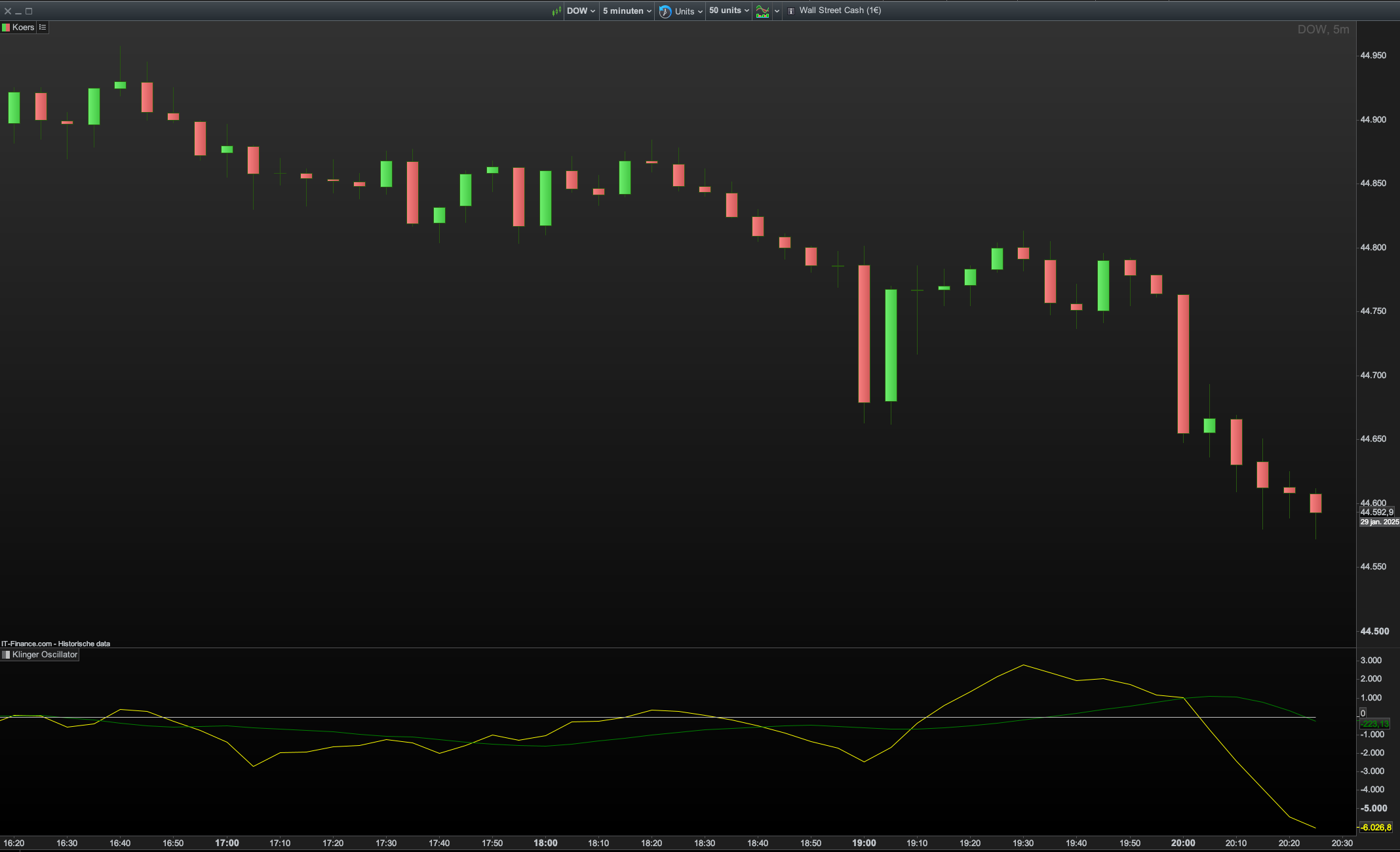

  If I compare both codes with same timeframe there is huge difference (yes it could be data).

  Can someone else give it a try?



  regus

  Participant

  Topics: 2

  Replies: 3

  Been thanked: 0 times
  01/30/2025 at 10:54 AM #243218
  Iván

  Hi, I've coded it too, I hadn't seen the JS code and I have the same result as him.

  MaLength=13 dm=high-low hlc3=(high+low+close)/3 if hlc3 > hlc3[1] then trend=1 else trend=-1 endif if trend=trend[1] then cm=dm+cm[1] else cm=dm+dm[1] endif if cm<>0 then vForce=trend*100*volume*abs(2*dm/cm-1) else vForce=vForce[1] endif KVosc=average[34,1](vForce)-average[55,1](vForce) triggerline=average[MaLength](KVosc) zero=0 return KVosc coloured("blue"), triggerline coloured("red"), zero

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

  MaLength=13   dm=high-low hlc3=(high+low+close)/3   if hlc3 > hlc3[1] then trend=1 else trend=-1 endif   if trend=trend[1] then cm=dm+cm[1] else cm=dm+dm[1] endif   if cm<>0 then vForce=trend*100*volume*abs(2*dm/cm-1) else vForce=vForce[1] endif   KVosc=average[34,1](vForce)-average[55,1](vForce) triggerline=average[MaLength](KVosc) zero=0 return KVosc coloured("blue"), triggerline coloured("red"), zero

  1 user thanked author for this post.

  regus



  Iván

  Moderator

  Topics: 0

  Replies: 1437

  Been thanked: 542 times
