Hi Nic and all,

Could I please request for this reliable indicator to be converted to PRT? I personally use it with success in my daytrading on the M15 timeframe.

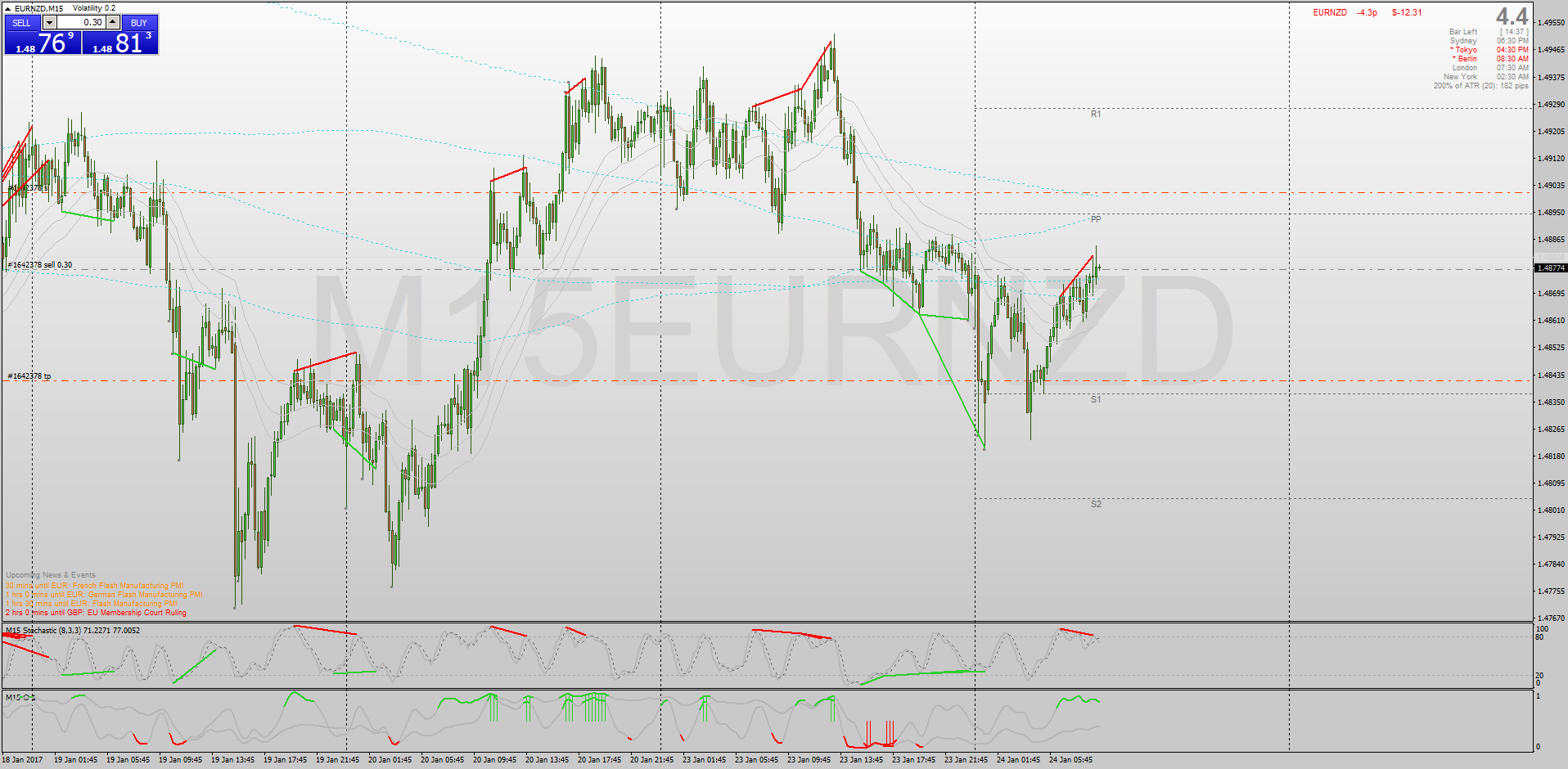

Please see screenshot below for how it looks like in MT4. I’ve attached the MQ4 source code and file.

//------------------------------------------------------------------
#property copyright "www.forex-tsd.com"
#property link      "www.forex-tsd.com"
//------------------------------------------------------------------

#property indicator_separate_window
#property indicator_buffers 4
#property indicator_color1  Aqua
#property indicator_color2  Magenta
#property indicator_color3	 LightSeaGreen
#property indicator_color4	 Red
#property indicator_level1	 80
#property indicator_level2	 20
#property indicator_maximum 100
#property indicator_minimum 0

//
//
//
//
//

extern string TimeFrame                 = "Current time frame";
extern int    StoKPeriod                = 8;
extern int    StoDPeriod                = 3;
extern int    StoSlowing                = 3;
extern int    StoPrice                  = 0;
extern int    SignalMode                = MODE_SMA;
extern int    DivergearrowSize          = 0;
extern double arrowsUpperGap            = 0.25;
extern double arrowsLowerGap            = 0.25;
extern bool   drawDivergences           = true;
extern bool   ShowClassicalDivergence   = true;
extern bool   ShowHiddenDivergence      = false;
extern bool   drawIndicatorTrendLines   = true;
extern bool   drawPriceTrendLines       = true;
extern color  divergenceBullishColor    = Lime;
extern color  divergenceBearishColor    = Red;
extern string drawLinesIdentificator    = "stochdiverge1";
extern bool   divergenceAlert           = true;
extern bool   divergenceAlertsMessage   = true;
extern bool   divergenceAlertsSound     = true;
extern bool   divergenceAlertsEmail     = false;
extern bool   divergenceAlertsNotify    = false;
extern string divergenceAlertsSoundName = "alert1.wav";
extern bool   alertsOn                  = true;
extern bool   alertsOnCurrent           = true;
extern bool   alertsMessage             = true;
extern bool   alertsSound               = true;
extern bool   alertsNotify              = true;
extern bool   alertsEmail               = false;
extern string soundFile                 = "alert2.wav";



//
//
//
//
//

double bullishDivergence[];
double bearishDivergence[];
double sto[];
double sig[];
double trend[];

//
//
//
//
//

string indicatorName;
string labelNames;

string indicatorFileName;
bool   calculateValue;
bool   returnBars;
int    timeFrame;


//+------------------------------------------------------------------
//|
//+------------------------------------------------------------------
//
//
//
//
//

int init()
{
   IndicatorBuffers(5);
   SetIndexBuffer(0,bullishDivergence); SetIndexStyle(0,DRAW_ARROW,0,DivergearrowSize); SetIndexArrow(0,233);
   SetIndexBuffer(1,bearishDivergence); SetIndexStyle(1,DRAW_ARROW,0,DivergearrowSize); SetIndexArrow(1,234);
   SetIndexBuffer(2,sto);
   SetIndexBuffer(3,sig);
   SetIndexBuffer(4,trend);

      //
      //
      //
      //
      //

      timeFrame     = stringToTimeFrame(TimeFrame);
      labelNames    = "Stochastic_DivergenceLine "+drawLinesIdentificator+":";
      indicatorName = timeFrameToString(timeFrame)+" Stochastic ("+StoKPeriod+","+StoDPeriod+","+StoSlowing+")";
      IndicatorShortName(indicatorName);

      //
      //
      //
      //
      //

      indicatorFileName = WindowExpertName();
      calculateValue    = (TimeFrame=="calculateValue"); if (calculateValue) return(0);
      returnBars        = (TimeFrame=="returnBars");     if (returnBars)     return(0);
return(0);
}

//
//
//
//
//

int deinit()
{
   int length=StringLen(labelNames);
   for(int i=ObjectsTotal()-1; i>=0; i--)
   {
      string name = ObjectName(i);
      if(StringSubstr(name,0,length) == labelNames)  ObjectDelete(name);
   }
   return(0);
}

//+------------------------------------------------------------------
//|
//+------------------------------------------------------------------
//
//
//
//
//

int start()
{
   int i,limit,counted_bars=IndicatorCounted();

   if(counted_bars<0) return(-1);
   if(counted_bars>0) counted_bars--;
         limit = MathMin(Bars-counted_bars,Bars-1);
         if (returnBars)  { bullishDivergence[0] = limit+1; return(0); }

   //
   //
   //
   //
   //

   if (calculateValue || timeFrame == Period())
   {
     for (i=limit; i>=0; i--)
     {
        sto[i] = iStochastic(NULL,0,StoKPeriod,StoDPeriod,StoSlowing,SignalMode,StoPrice,MODE_MAIN  ,i);
        sig[i] = iStochastic(NULL,0,StoKPeriod,StoDPeriod,StoSlowing,SignalMode,StoPrice,MODE_SIGNAL,i);
          trend[i] = trend[i+1];
          if (sto[i]>sig[i]) trend[i]= 1;
          if (sto[i]<sig[i]) trend[i]=-1;
          if (drawDivergences)
          {
            CatchBullishDivergence(i);
            CatchBearishDivergence(i);
          }
      }
      manageAlerts();
     return(0);
     }

     //
     //
     //
     //
     //

     limit = MathMax(limit,MathMin(Bars-1,iCustom(NULL,timeFrame,indicatorFileName,"returnBars",0,0)*timeFrame/Period()));
     for (i=limit;i>=0;i--)
     {
        int y = iBarShift(NULL,timeFrame,Time[i]);
           sto[i]                 = iCustom(NULL,timeFrame,indicatorFileName,"calculateValue",StoKPeriod,StoDPeriod,StoSlowing,StoPrice,SignalMode,DivergearrowSize,arrowsUpperGap,arrowsLowerGap,drawDivergences,ShowClassicalDivergence,ShowHiddenDivergence,drawIndicatorTrendLines,drawPriceTrendLines,divergenceBullishColor,divergenceBearishColor,drawLinesIdentificator,divergenceAlert,divergenceAlertsMessage,divergenceAlertsSound,divergenceAlertsEmail,divergenceAlertsNotify,divergenceAlertsSoundName,2,y);
           sig[i]                 = iCustom(NULL,timeFrame,indicatorFileName,"calculateValue",StoKPeriod,StoDPeriod,StoSlowing,StoPrice,SignalMode,DivergearrowSize,arrowsUpperGap,arrowsLowerGap,drawDivergences,ShowClassicalDivergence,ShowHiddenDivergence,drawIndicatorTrendLines,drawPriceTrendLines,divergenceBullishColor,divergenceBearishColor,drawLinesIdentificator,divergenceAlert,divergenceAlertsMessage,divergenceAlertsSound,divergenceAlertsEmail,divergenceAlertsNotify,divergenceAlertsSoundName,3,y);
           bullishDivergence[i]   = EMPTY_VALUE;
           bearishDivergence[i]   = EMPTY_VALUE;

           int firstBar = iBarShift(NULL,0,iTime(NULL,timeFrame,y));
           if (i==firstBar)
           {
             bullishDivergence[i] = iCustom(NULL,timeFrame,indicatorFileName,"calculateValue",StoKPeriod,StoDPeriod,StoSlowing,StoPrice,SignalMode,DivergearrowSize,arrowsUpperGap,arrowsLowerGap,drawDivergences,ShowClassicalDivergence,ShowHiddenDivergence,drawIndicatorTrendLines,drawPriceTrendLines,divergenceBullishColor,divergenceBearishColor,drawLinesIdentificator,divergenceAlert,divergenceAlertsMessage,divergenceAlertsSound,divergenceAlertsEmail,divergenceAlertsNotify,divergenceAlertsSoundName,0,y);
             bearishDivergence[i] = iCustom(NULL,timeFrame,indicatorFileName,"calculateValue",StoKPeriod,StoDPeriod,StoSlowing,StoPrice,SignalMode,DivergearrowSize,arrowsUpperGap,arrowsLowerGap,drawDivergences,ShowClassicalDivergence,ShowHiddenDivergence,drawIndicatorTrendLines,drawPriceTrendLines,divergenceBullishColor,divergenceBearishColor,drawLinesIdentificator,divergenceAlert,divergenceAlertsMessage,divergenceAlertsSound,divergenceAlertsEmail,divergenceAlertsNotify,divergenceAlertsSoundName,1,y);
           }
      }
      manageAlerts();
return(0);
}

//
//
//
//
//

void CatchBullishDivergence(int shift)
{
   shift++;
         bullishDivergence[shift] = EMPTY_VALUE;
            ObjectDelete(labelNames+"l"+DoubleToStr(Time[shift],0));
            ObjectDelete(labelNames+"l"+"os" + DoubleToStr(Time[shift],0));
   if(!IsIndicatorLow(shift)) return;

   //
   //
   //
   //
   //

   int currentLow = shift;
   int lastLow    = GetIndicatorLastLow(shift+1);
   if (sto[currentLow] > sto[lastLow] && Low[currentLow] < Low[lastLow])
   {
     if (ShowClassicalDivergence)
     {
        bullishDivergence[currentLow] = sto[currentLow] - arrowsLowerGap * iATR(NULL,0,20,currentLow);
        if (drawPriceTrendLines)    DrawPriceTrendLine("l",Time[currentLow],Time[lastLow],Low[currentLow],Low[lastLow],    divergenceBullishColor,STYLE_SOLID);
        if (drawIndicatorTrendLines)DrawIndicatorTrendLine("l",Time[currentLow],Time[lastLow],sto[currentLow],sto[lastLow],divergenceBullishColor,STYLE_SOLID);
        if (divergenceAlert)        DisplayAlert("Classical bullish divergence",currentLow);
     }

   }

   //
   //
   //
   //
   //

   if (sto[currentLow] < sto[lastLow] && Low[currentLow] > Low[lastLow])
   {
     if (ShowHiddenDivergence)
     {
        bullishDivergence[currentLow] = sto[currentLow] - arrowsLowerGap * iATR(NULL,0,20,currentLow);
        if (drawPriceTrendLines)     DrawPriceTrendLine("l",Time[currentLow],Time[lastLow],Low[currentLow],Low[lastLow],     divergenceBullishColor, STYLE_DOT);
        if (drawIndicatorTrendLines) DrawIndicatorTrendLine("l",Time[currentLow],Time[lastLow],sto[currentLow], sto[lastLow],divergenceBullishColor, STYLE_DOT);
        if (divergenceAlert)         DisplayAlert("Reverse bullish divergence",currentLow);
     }
   }
}


//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
//
//
//
//
//

void CatchBearishDivergence(int shift)
{
   shift++;
         bearishDivergence[shift] = EMPTY_VALUE;
            ObjectDelete(labelNames+"h"+DoubleToStr(Time[shift],0));
            ObjectDelete(labelNames+"h"+"os" + DoubleToStr(Time[shift],0));
   if(IsIndicatorPeak(shift) == false) return;
   int currentPeak = shift;
   int lastPeak = GetIndicatorLastPeak(shift+1);

   //
   //
   //
   //
   //

   if (sto[currentPeak] < sto[lastPeak] && High[currentPeak]>High[lastPeak])
   {
     if (ShowClassicalDivergence)
     {
        bearishDivergence[currentPeak] = sto[currentPeak] + arrowsUpperGap * iATR(NULL,0,20,currentPeak);
        if (drawPriceTrendLines)     DrawPriceTrendLine("h",Time[currentPeak],Time[lastPeak],High[currentPeak],High[lastPeak],  divergenceBearishColor,STYLE_SOLID);
        if (drawIndicatorTrendLines) DrawIndicatorTrendLine("h",Time[currentPeak],Time[lastPeak],sto[currentPeak],sto[lastPeak],divergenceBearishColor,STYLE_SOLID);
        if (divergenceAlert)         DisplayAlert("Classical bearish divergence",currentPeak);
     }

   }

   //
   //
   //
   //
   //

   if (sto[currentPeak] > sto[lastPeak] && High[currentPeak] < High[lastPeak])
   {
     if (ShowHiddenDivergence)
     {
        bearishDivergence[currentPeak] = sto[currentPeak] + arrowsUpperGap * iATR(NULL,0,20,currentPeak);
        if (drawPriceTrendLines)     DrawPriceTrendLine("h",Time[currentPeak],Time[lastPeak],High[currentPeak],High[lastPeak],  divergenceBearishColor, STYLE_DOT);
        if (drawIndicatorTrendLines) DrawIndicatorTrendLine("h",Time[currentPeak],Time[lastPeak],sto[currentPeak],sto[lastPeak],divergenceBearishColor, STYLE_DOT);
        if (divergenceAlert)         DisplayAlert("Reverse bearish divergence",currentPeak);
     }

   }
}

//
//
//
//
//

bool IsIndicatorPeak(int shift)
{
   if(sto[shift] >= sto[shift+1] && sto[shift] > sto[shift+2] && sto[shift] > sto[shift-1])
       return(true);
   else
       return(false);
}

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
//
//

bool IsIndicatorLow(int shift)
{
   if(sto[shift] <= sto[shift+1] && sto[shift] < sto[shift+2] && sto[shift] < sto[shift-1])
       return(true);
   else
       return(false);
}

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
//
//

int GetIndicatorLastPeak(int shift)
{
    for(int i = shift+5; i < Bars; i++)
    {
       if(sto[i] >= sto[i+1] && sto[i] > sto[i+2] && sto[i] >= sto[i-1] && sto[i] > sto[i-2])
         return(i);
    }
return(-1);
}

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
//
//

int GetIndicatorLastLow(int shift)
{
    for (int i = shift+5; i < Bars; i++)
    {
       if (sto[i] <= sto[i+1] && sto[i] < sto[i+2] && sto[i] <= sto[i-1] && sto[i] < sto[i-2])
         return(i);
}

return(-1);
}

//
//
//
//
//

void DisplayAlert(string doWhat, int shift)
{
    string dmessage;
    static datetime lastAlertTime;
    if(shift <= 2 && Time[0] != lastAlertTime)
    {
      dmessage =  StringConcatenate(Symbol()," at ",TimeToStr(TimeLocal(),TIME_SECONDS)," Stochastic ",doWhat);
          if (divergenceAlertsMessage) Alert(dmessage);
          if (divergenceAlertsNotify)  SendNotification(dmessage);
          if (divergenceAlertsEmail)   SendMail(StringConcatenate(Symbol()," Stochastic "),dmessage);
          if (divergenceAlertsSound)   PlaySound(divergenceAlertsSoundName);
          lastAlertTime = Time[0];
    }
}

//
//
//
//
//

void DrawPriceTrendLine(string first,datetime t1, datetime t2, double p1, double p2, color lineColor, double style)
{
    string label = labelNames+first+"os"+DoubleToStr(t1,0);
      ObjectDelete(label);
      ObjectCreate(label, OBJ_TREND, 0, t1, p1, t2, p2, 0, 0);
         ObjectSet(label, OBJPROP_RAY, 0);
         ObjectSet(label, OBJPROP_COLOR, lineColor);
         ObjectSet(label, OBJPROP_STYLE, style);
         ObjectSet(label, OBJPROP_WIDTH, 2);
}

//
//
//
//
//

void DrawIndicatorTrendLine(string first,datetime t1, datetime t2, double p1, double p2, color lineColor, double style)
{
    int indicatorWindow = WindowFind(indicatorName);
    if (indicatorWindow < 0) return;

    //
    //
    //
    //
    //

    string label = labelNames+first+DoubleToStr(t1,0);
      ObjectDelete(label);
      ObjectCreate(label, OBJ_TREND, indicatorWindow, t1, p1, t2, p2, 0, 0);
         ObjectSet(label, OBJPROP_RAY, 0);
         ObjectSet(label, OBJPROP_COLOR, lineColor);
         ObjectSet(label, OBJPROP_STYLE, style);
         ObjectSet(label, OBJPROP_WIDTH, 2);
}

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
//
//
//
//
//

string sTfTable[] = {"M1","M5","M15","M30","H1","H4","D1","W1","MN"};
int    iTfTable[] = {1,5,15,30,60,240,1440,10080,43200};

//
//
//
//
//

int stringToTimeFrame(string tfs)
{
   tfs = StringUpperCase(tfs);
   for (int i=ArraySize(iTfTable)-1; i>=0; i--)
         if (tfs==sTfTable[i] || tfs==""+iTfTable[i]) return(MathMax(iTfTable[i],Period()));
                                                      return(Period());
}

string timeFrameToString(int tf)
{
   for (int i=ArraySize(iTfTable)-1; i>=0; i--)
         if (tf==iTfTable[i]) return(sTfTable[i]);
                              return("");
}

//
//
//
//
//

string StringUpperCase(string str)
{
   string   s = str;
   for (int length=StringLen(str)-1; length>=0; length--)
   {
      int tchar = StringGetChar(s, length);
         if((tchar > 96 && tchar < 123) || (tchar > 223 && tchar < 256))
                     s = StringSetChar(s, length, tchar - 32);
         else if(tchar > -33 && tchar < 0)
                     s = StringSetChar(s, length, tchar + 224);
   }
   return(s);
}

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
//
//
//
//
//

void manageAlerts()
{
   if (alertsOn)
   {
      if (alertsOnCurrent)
           int whichBar = 0;
      else     whichBar = 1; whichBar = iBarShift(NULL,0,iTime(NULL,timeFrame,whichBar));
      if (trend[whichBar] != trend[whichBar+1])
      {
         if (trend[whichBar] == 1) doAlert(whichBar,"crossing signal up");
         if (trend[whichBar] ==-1) doAlert(whichBar,"crossing signal down");
      }
   }
}

//
//
//
//
//

void doAlert(int forBar, string doWhat)
{
   static string   previousAlert="nothing";
   static datetime previousTime;
   string message;

      if (previousAlert != doWhat || previousTime != Time[forBar]) {
          previousAlert  = doWhat;
          previousTime   = Time[forBar];

          //
          //
          //
          //
          //

           message =  StringConcatenate(Symbol()," ",timeFrameToString(timeFrame)," at ",TimeToStr(TimeLocal(),TIME_SECONDS)," Stochastic ",doWhat);
             if (alertsMessage) Alert(message);
             if (alertsNotify)  SendNotification(message);
             if (alertsEmail)   SendMail(StringConcatenate(Symbol(), Period(), " Stochastic "),message);
             if (alertsSound)   PlaySound(soundFile);
      }
}

EURNZDM15.png stochastic_divergence_mtfalerts_nmc_2.mq4
