How to enter and exit the market at each big pic ?

• 02/18/2021 at 1:10 AM #161865
  macdopa

  How to enter and exit the market at each pic ?
  While you are in a bar or candlestick (in 60 seconds) – when it has a big pic ( alpha=up or omega=down) of a certain value(X=10 to 100 PIP) of the exchange rate – how can you program the buy (if pic goes up) or sell (if pic goes down) and exit directly after (in the same bar or in 1 minute)?
  See Image with the blue circles on the pics.
  Thanks !



  macdopa

  Participant

  Topics: 13

  Replies: 23

  Been thanked: 9 times
  02/18/2021 at 8:57 AM #161887
  Nicolas

  Topic moved in the English section of the forum (you posted in the french one).

  I think you are talking about the tail and nose of the candlestick (not pic).

  The size of the tail and nose can’t be known before the candle is closed, so what you want is detect the difference between the high – max(open,close) and the min(open,close) – low, during the life of the bar, is that right?



  Nicolas

  Keymaster

  Topics: 83

  Replies: 20906

  Been thanked: 4871 times
  02/18/2021 at 9:28 AM #161893
  macdopa

  so what you want is detect the difference between the high – max(open,close) and the min(open,close) – low, during the life of the bar, is that right?
  YES thanks to give or show me code.



  macdopa

  Participant

  Topics: 13

  Replies: 23

  Been thanked: 9 times
  02/18/2021 at 1:02 PM #161915
  Nicolas

  the code is:

  timeframe(5 minutes) //timeframe of the bar, use whatever the one you want upper = high – max(open,close) lower = min(open,close) – low timeframe(default) //add below what you want to do with that values // example: if upper>10*pointsize then ... endif

  1 2 3 4 5 6 7

  timeframe(5 minutes) //timeframe of the bar, use whatever the one you want upper = high – max(open,close) lower = min(open,close) – low   timeframe(default) //add below what you want to do with that values // example: if upper>10*pointsize then ... endif





  Nicolas

  Keymaster

  Topics: 83

  Replies: 20906

  Been thanked: 4871 times
  02/18/2021 at 6:05 PM #161945
  macdopa

  Thanks for the code, well it doesn’t work according to the logic of the strategy.
  Here’s how it works already. And we want your help to perfect it as desired (see my question).



  //---------------------------------------- ONCE Pic = 50 // variation : 10 to 100 indexBar = 0 WHILE IntradayBarIndex > indexBar DO upper = ABS(Open - High) lower = ABS(Open - Low) IF upper >= Pic AND ....... THEN .....BUY........ ELSIF lower >= Pic AND ....... THEN .....SELL........ ............ ENDIF indexBar = indexBar + 1 WEND

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

  //---------------------------------------- ONCE Pic = 50 // variation : 10 to 100 indexBar = 0   WHILE IntradayBarIndex > indexBar DO     upper = ABS(Open - High)     lower = ABS(Open - Low)       IF upper >= Pic AND ....... THEN     .....BUY........     ELSIF lower >= Pic AND ....... THEN     .....SELL........     ............     ENDIF          indexBar = indexBar + 1 WEND

  Thanks for yours suggestions.




  macdopa

  Participant

  Topics: 13

  Replies: 23

  Been thanked: 9 times
  02/18/2021 at 9:56 PM #161952
  Vonasi

  macdopa – Please be more careful when posting any future posts. Your post was a HTML mess that needed tidying up by moderators as you had your comments within the inserted PRT code box.

  You have 5 minutes after submitting any post to delete or edit it if it does not look right.



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1812 times
  02/19/2021 at 9:09 AM #161971
  Nicolas

  I think that your logic is wrong.

  1/ you are using a loop to scan all candles of the day, even ones far from the current period, why? How would it be possible to trade in the past? 😀

  2/ I might be wrong, but you are computing the wrong way the tail/nose size, you are using open of the candle for both sides of the candlesticks, the definition I used is the right way to get the sizes of the tail/nose, no matter if close>open or close<open.

  Please have a second look to the code I gave above, it uses the 5 minutes bar to get the wick/nose size. This calculation is made 1 time each “default” timeframe, which can be the 1-minute one for instance.

  So basically, during the 10:05:00 candlestick, if at 10:03:00 the tail is > 10 points, an order is launched (we act during the candlestick formation). But, you should now that if at the closure of the 10:05:00 candlestick the tail isn’t > 10 points, it doesn’t mean it never been during the life of the candle! And that’s what you see on an history chart that only show you closed bars.





  Nicolas

  Keymaster

  Topics: 83

  Replies: 20906

  Been thanked: 4871 times
  02/19/2021 at 1:27 PM #161985
  macdopa

  My logic is good and it works, but I still need to make it better: It consists in taking advantage in each bar (candlestick) in the timeframe of 1 minute (60 seconds) which presents great Ticks.

  1/ you use a loop to scan all the candles of the day, even those that are far from the current period, why? How would it be possible to exchange in the past? 😀
  ANSWER: The loop runs in each candle and so on when a big gap between Ask and Bid is found. After that, we move on to the next candle (in progress) .

  2/ I could be wrong, but you calculate the candle tail/nose size in the wrong way, you use the candle opening for both sides of the candlesticks, the definition I used is the right way to get the tail/nose sizes, it doesn’t matter if close>open or close<open.
  ANSWER: It already works with my formula. In yours, the price-close is the problem; because, when you’re still in the bar, the closing price is not yet known. Now, according to my logic, the take-profit set must be realized before the end (close) of the candle (according to the timeframe).

  I think that, now, with your expertise, you will improve the code well in order to take advantage of the bounce of the big Tick to launch the corresponding order (in the opposite direction of the variation of the Tick) and exit directly after Take-profit.
  NB: The Take-Profit varies from 20 to 100 PIP for Forex and from 100 to 300 PIP for Crypto-money.



  macdopa

  Participant

  Topics: 13

  Replies: 23

  Been thanked: 9 times
  02/19/2021 at 1:39 PM #161986
  Nicolas

  1/ that point is not clear to me sorry, I dont understand why you are looping through the previous bars? Are you looking in “big gap” from the previous bars in order to trade in the current one?

  2/ Close price is the current price, during a candlestick, that’s why I’m using it in the code 🙂



  Nicolas

  Keymaster

  Topics: 83

  Replies: 20906

  Been thanked: 4871 times
  02/19/2021 at 2:19 PM #161990
  macdopa

  1/ that point is not clear to me sorry, I dont understand why you are looping through the previous bars? Are you looking in “big gap” from the previous bars in order to trade in the current one?
  (=NO. In the current bar, with the WHILE control, if you spot a big gap, then you launch the corresponding order and exit as soon as the profit is reached).

  2/ The closing price is the current price, during a candlestick, that’s why I use it in the code 🙂.
  (OK for the price-Close)



  macdopa

  Participant

  Topics: 13

  Replies: 23

  Been thanked: 9 times
  02/19/2021 at 3:27 PM #162006
  Nicolas

  1/ your loop is not necessary here, i’m sorry.

  Code is read only just one time during a bar, so in order to do something during the bar, we have to use an inferior timeframe.

  Here is the strategy code that is read 300 times during a 5-minutes bar by launching it on a 1-sec timeframe:

  tested in a 1-sec timeframe

  defparam cumulateorders=false timeframe(5 minutes) //timeframe of the bar, use whatever the one you want upper = high - max(open,close) lower = min(open,close) - low green = close>open red = close<open timeframe(default) size = 5 //size of nose/wick if not onmarket then if upper>size*pointsize and green then buy 1 contract at market endif if lower>size*pointsize and red then sellshort 1 contract at market endif endif set target pprofit 20 set stop ploss 10 graph upper coloured(0,200,200) graph lower coloured(200,200,0) graph size

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

  defparam cumulateorders=false   timeframe(5 minutes) //timeframe of the bar, use whatever the one you want upper = high - max(open,close) lower = min(open,close) - low green = close>open red = close<open   timeframe(default) size = 5 //size of nose/wick if not onmarket then if upper>size*pointsize and green then   buy 1 contract at market endif   if lower>size*pointsize and red then   sellshort 1 contract at market endif endif   set target pprofit 20 set stop ploss 10   graph upper coloured(0,200,200) graph lower coloured(200,200,0) graph size

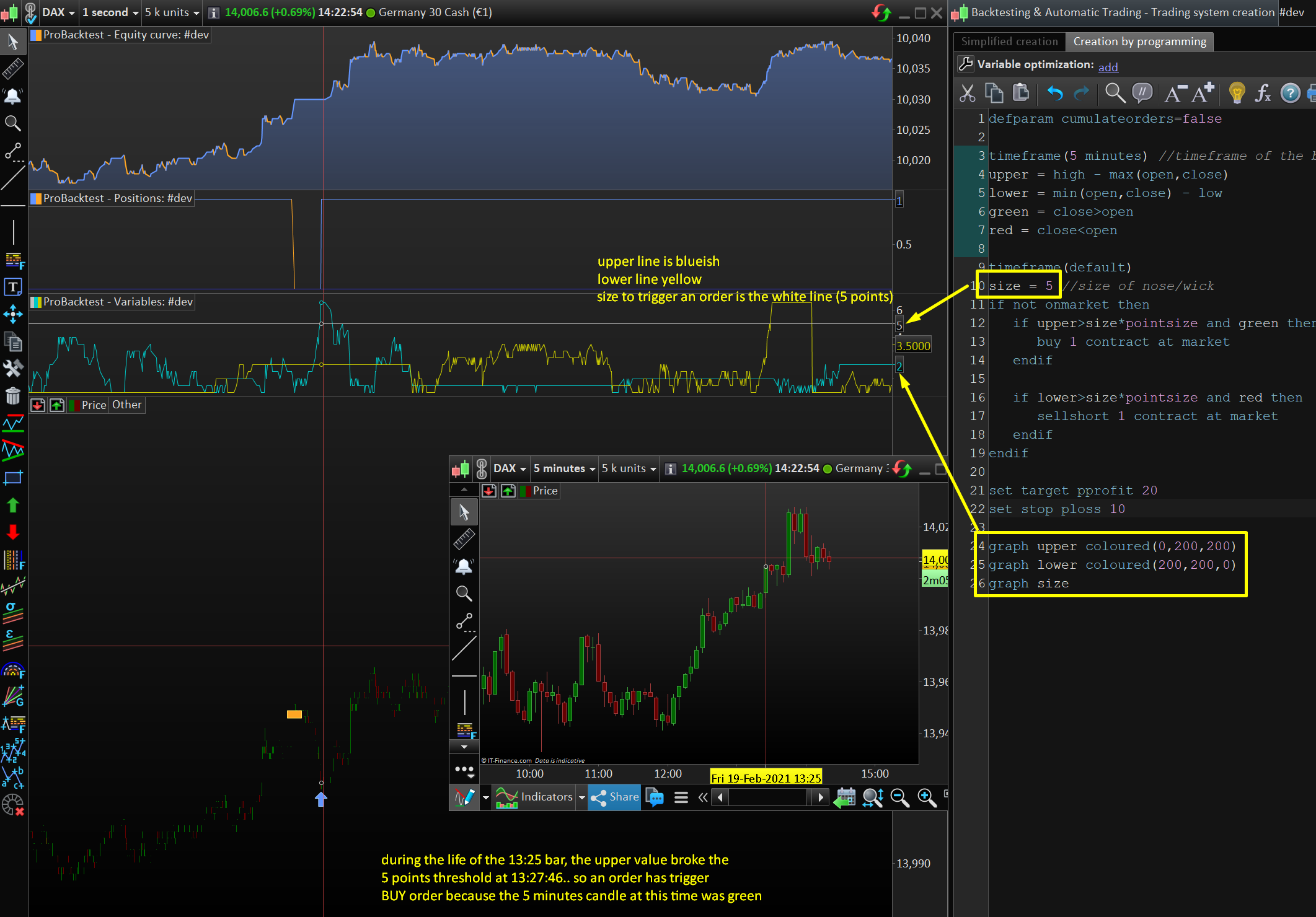

  Look at attached picture in order to understand how it works, please.





  Nicolas

  Keymaster

  Topics: 83

  Replies: 20906

  Been thanked: 4871 times
  02/19/2021 at 6:00 PM #162029
  macdopa

  It doesn’t work.
  I tested with USD/CHF and BTC/USD; no results.



  macdopa

  Participant

  Topics: 13

  Replies: 23

  Been thanked: 9 times
  02/19/2021 at 7:43 PM #162042
  GraHal

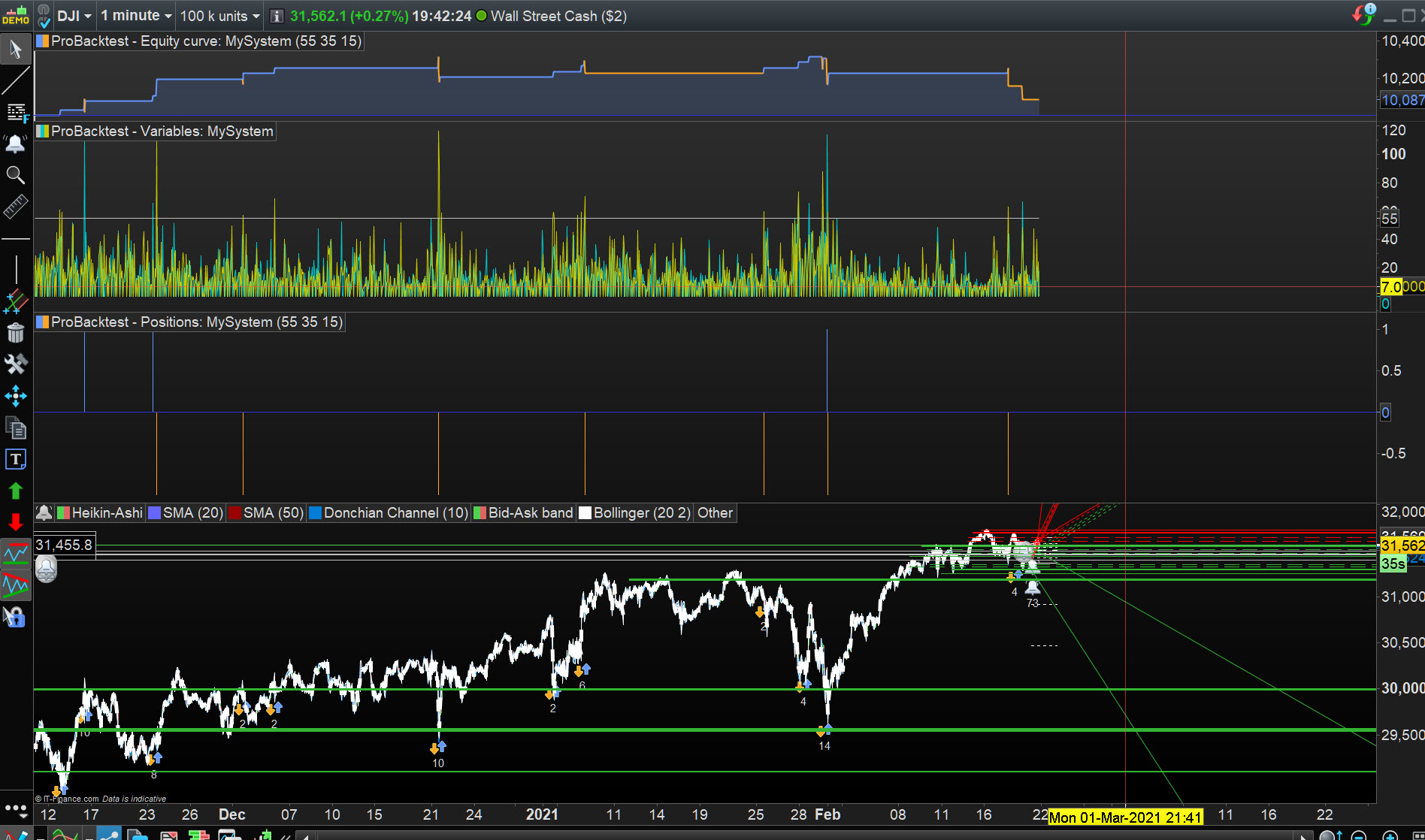

  Works on DJI … see attached, spread = 5





  GraHal

  Participant

  Topics: 222

  Replies: 9307

  Been thanked: 2462 times
  02/19/2021 at 7:58 PM #162044
  macdopa

  GraHal, give-me a link…



  macdopa

  Participant

  Topics: 13

  Replies: 23

  Been thanked: 9 times
  02/19/2021 at 8:00 PM #162045
  GraHal

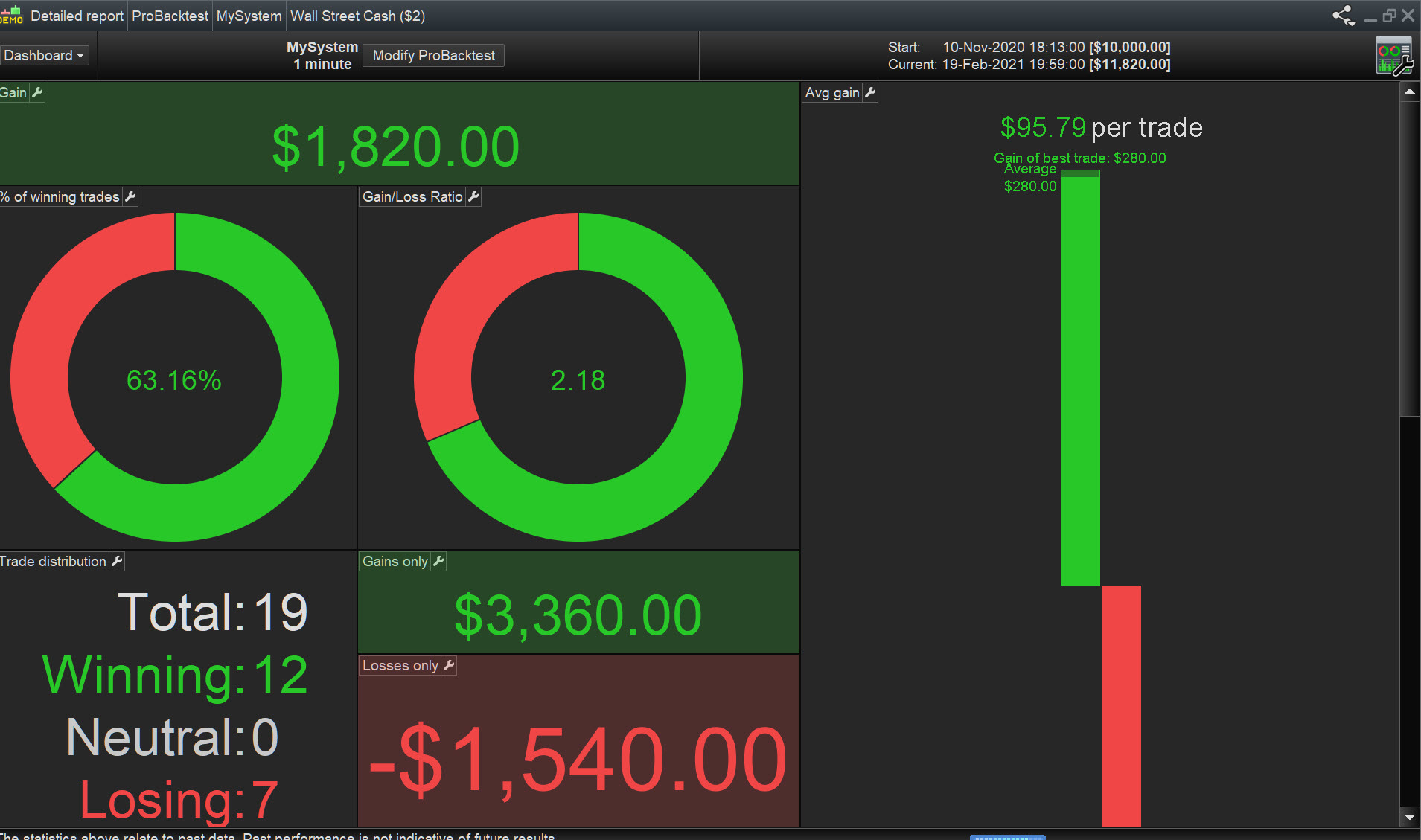

  Better still … attached!



  GraHal

  Participant

  Topics: 222

  Replies: 9307

  Been thanked: 2462 times
