How to draw a rectangle with a filled color

• 05/19/2025 at 4:30 AM #247291
  dbl007

  Ho to draw a rectangle with that is filled with a specific color?



  dbl007

  Participant

  Topics: 13

  Replies: 15

  Been thanked: 1 time
  05/19/2025 at 5:26 AM #247292
  JS

  Try this one:

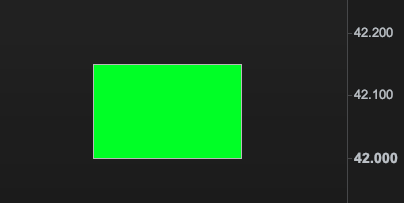

  Rectangle with Color

  DefParam DrawOnLastBarOnly=True //DrawRectangle(x1,y1,x2,y2) FillColor(R,G,B) DrawRectangle(BarIndex-75,42000,BarIndex,42150) FillColor(0,255,0) Return

  1 2 3 4 5 6 7

  DefParam DrawOnLastBarOnly=True   //DrawRectangle(x1,y1,x2,y2) FillColor(R,G,B)   DrawRectangle(BarIndex-75,42000,BarIndex,42150) FillColor(0,255,0)   Return



  1 user thanked author for this post.

  Iván



  JS

  Participant

  Topics: 27

  Replies: 2070

  Been thanked: 1126 times
  05/19/2025 at 7:37 AM #247294
  dbl007

  Thks.



  dbl007

  Participant

  Topics: 13

  Replies: 15

  Been thanked: 1 time
  05/19/2025 at 8:28 AM #247296
  LucasBest

  It is also possible to use coloured and bordercolor to fill the rectangle/triangle.

  Note that if you use coloured alone, it will only color the rectangle (not filling the inside). If you add bordercolor instruction, then you will color the rectangle and fill it (with same or different color as you wish).

  If you want just to fill it, then fillcolor is the best. You can also use bordercolor and fillcolor in order to have 2 diferent color for the rectangle and the filling…

  Filled with COLOURED

  DefParam DrawOnLastBarOnly=True //DrawRectangle(x1,y1,x2,y2) FillColor(R,G,B) DrawRectangle(BarIndex-75,close,BarIndex,close+30) FillColor(0,255,0) DrawRectangle(BarIndex-75,close,BarIndex,close-30) coloured(0,255,0) bordercolor("red",255)style(line,3) Return

  1 2 3 4 5 6 7 8 9

  DefParam DrawOnLastBarOnly=True //DrawRectangle(x1,y1,x2,y2) FillColor(R,G,B) DrawRectangle(BarIndex-75,close,BarIndex,close+30) FillColor(0,255,0)   DrawRectangle(BarIndex-75,close,BarIndex,close-30) coloured(0,255,0) bordercolor("red",255)style(line,3)   Return

  1 user thanked author for this post.

  Iván



  LucasBest

  Participant

  Topics: 22

  Replies: 384

  Been thanked: 132 times
  05/19/2025 at 3:36 PM #247329
  Iván

  Hi. Finally, you can adjust the transparency (0–255): fillcolor(r, g, b, transparency)
  This also applies to all color instructions: drawsegment(x1, y1, x2, y2) coloured(r, g, b, transparency)



  Iván

  Moderator

  Topics: 0

  Replies: 1499

  Been thanked: 585 times
  05/20/2025 at 6:35 AM #247353
  dbl007

  Thks for the excellent info.
  Plse explain difference between coloured(0,255,0)  and bordercolor(“red”,255).  I notice that at https://www.prorealcode.com/prorealtime-documentation/ , bordercolor is not listed but it is found in proBuilder manual.
  For the transparency,  fillcolor(r, g, b, transparency),  the smaller value of transparency means less transparent?





  dbl007

  Participant

  Topics: 13

  Replies: 15

  Been thanked: 1 time
  05/20/2025 at 7:52 AM #247354
  LucasBest

  For the 3 of them (coloured, bordercolor and fillcolor) you can use either the “color name” or R,G,B numbers and the transparency :
  – (“colorname”,tansparency)
  – (R,G,B,tansparency)

  transparency can go from 0 (completly transparent) to 255 (no transparency)

  * Bordercolor instruction can only color rectangle/triangle itself (as it is a segment/line that draws the rectangle/triangle, you can add “style” instruction for the width or/and the style of the line, dotted or not…)
  * fillcolor instruction can only color/fill the inside of the rectangle/triangle
  * coloured instruction can do both (the color of the rectangle/triangle OR the inside filling) : if it is used alone, it will color the rectangle/triangle itself, if it is used with bordercolor (after of before it), it will color/fill the inside of the rectangle/triangle.

  1 user thanked author for this post.

  Iván



  LucasBest

  Participant

  Topics: 22

  Replies: 384

  Been thanked: 132 times
  05/21/2025 at 8:27 AM #247419
  dbl007

  Thks for the explanation.



  dbl007

  Participant

  Topics: 13

  Replies: 15

  Been thanked: 1 time
