HMA-Kahlman with Trend Indicator – Code Conversion Request
-
Hello,
Could you help me with a code conversion from Pinescript to ProRealtime please? “HMA Kahlman with Trend” is a custom indicator that appears in TradingView and uses a version of the Hull Moving Average to generate buy and sell signals.

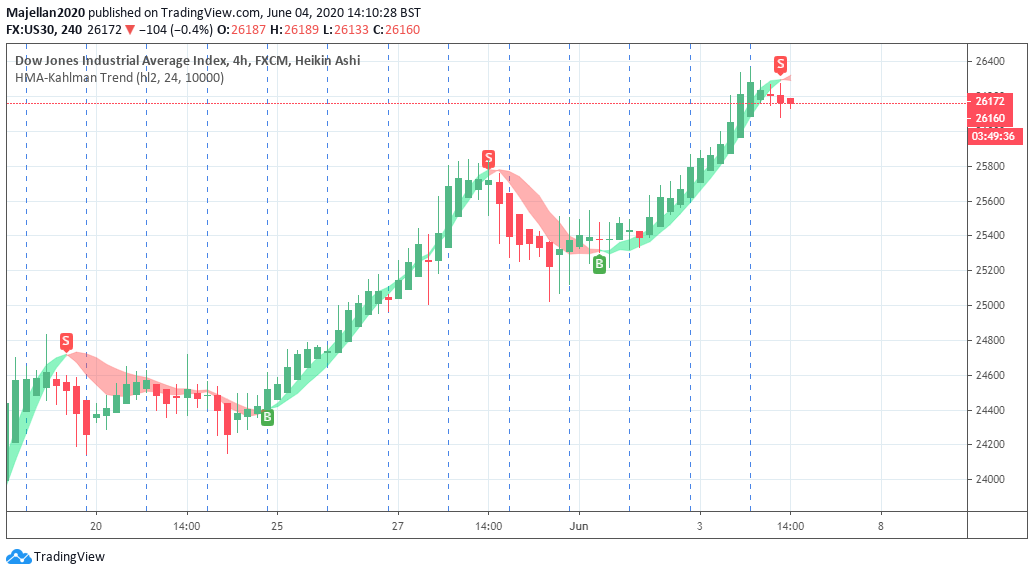

Please see attached the Pinescript code and a screen shot of the indicator applied to US30 on the H4 timeframe.
If you could help me to get this indicator working in PRT that would be much appreciated. If that can be done then stage 2 would be to create a strategy that generates buys and sell orders in accordance with the signals.
Any questions please get in touch.
Best Regards,
Majellan.
Source Code – Hull Trend with Kahlman – from TradingView
//@version=4 study("Hull Trend with Kahlman", shorttitle="HMA-Kahlman Trend", overlay=true) src = input(hl2, "Price Data") length = input(24, "Lookback") showcross = input(true, "Show cross over/under") gain = input(10000, "Gain") k = input(true, "Use Kahlman") hma(_src, _length) => wma((2 * wma(_src, _length / 2)) - wma(_src, _length), round(sqrt(_length))) hma3(_src, _length) => p = length/2 wma(wma(close,p/3)*3 - wma(close,p/2) - wma(close,p),p) kahlman(x, g) => kf = 0.0 dk = x - nz(kf[1], x) smooth = nz(kf[1],x)+dk*sqrt((g/10000)*2) velo = 0.0 velo := nz(velo[1],0) + ((g/10000)*dk) kf := smooth+velo a = k ? kahlman(hma(src, length), gain) : hma(src, length) b = k ? kahlman(hma3(src, length), gain) : hma3(src, length) c = b > a ? color.lime : color.red crossdn = a > b and a[1] < b[1] crossup = b > a and b[1] < a[1] p1 = plot(a,color=c,linewidth=1,transp=75) p2 = plot(b,color=c,linewidth=1,transp=75) fill(p1,p2,color=c,transp=55) plotshape(showcross and crossdn ? a : na, location=location.absolute, style=shape.labeldown, color=color.red, size=size.tiny, text="S", textcolor=color.white, transp=0, offset=-1) plotshape(showcross and crossup ? a : na, location=location.absolute, style=shape.labelup, color=color.green, size=size.tiny, text="B", textcolor=color.white, transp=0, offset=-1)Good morning,
there seems to be a problem downloading it for inclusion in the library…

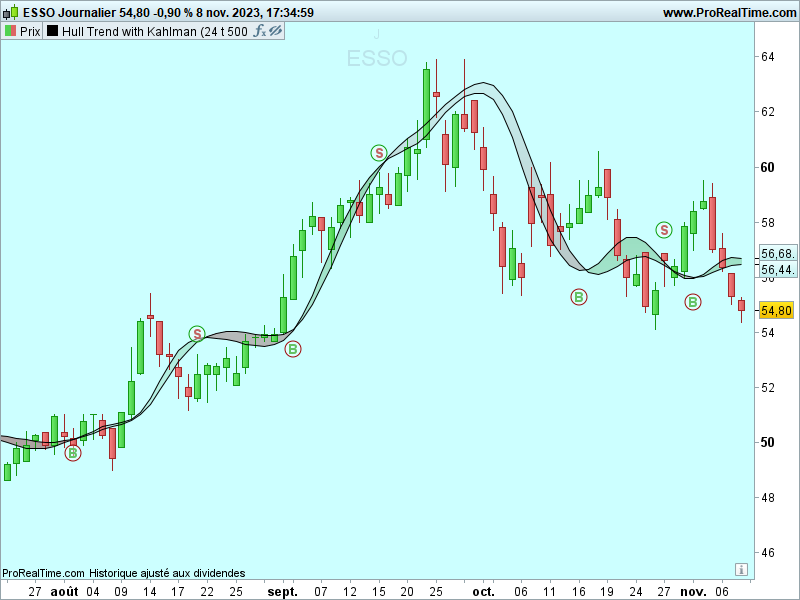

so here is this conversion in attached files
Msport71 thanked this post
