Please need help to translate from pinescript to prorealcode is a simple code
length1 = input(1)
length2 = input(24)
length3 = input(120)
source = close
osc1 = sma(source, length1) - sma(source, length2)
osc2 = sma(source, length1) - sma(source, length3)
smooth1 = sma(osc1, input(2))
smooth2 = sma(osc2, input(24))
//plot(osc, color=gray, style=columns)
scolor1=smooth1 > smooth1[1] and smooth1 > 0 ? green :
smooth1 > smooth1[1] and smooth1 < 0 ? olive :
smooth1 < smooth1[1] and smooth1 < 0 ? maroon :
smooth1 < smooth1[1] and smooth1 > 0 ? orange : black
scolor2=smooth2 > smooth2[1] and smooth2 > 0 ? green :
smooth2 > smooth2[1] and smooth2 < 0 ? olive :
smooth2 < smooth2[1] and smooth2 < 0 ? maroon :
smooth2 < smooth2[1] and smooth2 > 0 ? orange : black
plot(smooth2, color=scolor2, style=columns, linewidth=1)
plot(smooth2, color=black, style=line, linewidth=1)
plot(smooth1, color=scolor1, style=histogram, linewidth=2)
plot(smooth1, color=black, style=line, linewidth=1)
hline(0)
// ||--- Caps analysis
upperholder = nz(upper[1])
lowerholder = nz(lower[1])
upper = smooth2 >= upperholder ? smooth2 : upperholder
lower = smooth2 <= lowerholder ? smooth2 : lowerholder
signal1 = cross(smooth2, 0) ? upper : na
signal2 = cross(smooth1, 0) ? lower : na
signalcolor1 = smooth2 > 0 ? green : maroon
signalcolor2 = smooth1 > 0 ? green : maroon
hidesignals = input(true)
plot(hidesignals ? na : signal1, style=cross, color=signalcolor1, linewidth=4)
plot(hidesignals ? na : signal2, style=cross, color=signalcolor2, linewidth=4)
What is the name of this indicator? Do you have at least screenshots to see how it looks on a chart? Believe me, it helps me a lot to know how to code it!
Thank you Nicolas I tried to upload am image but I couldn’t, I will post this again to post the image if it’s ok thanks again

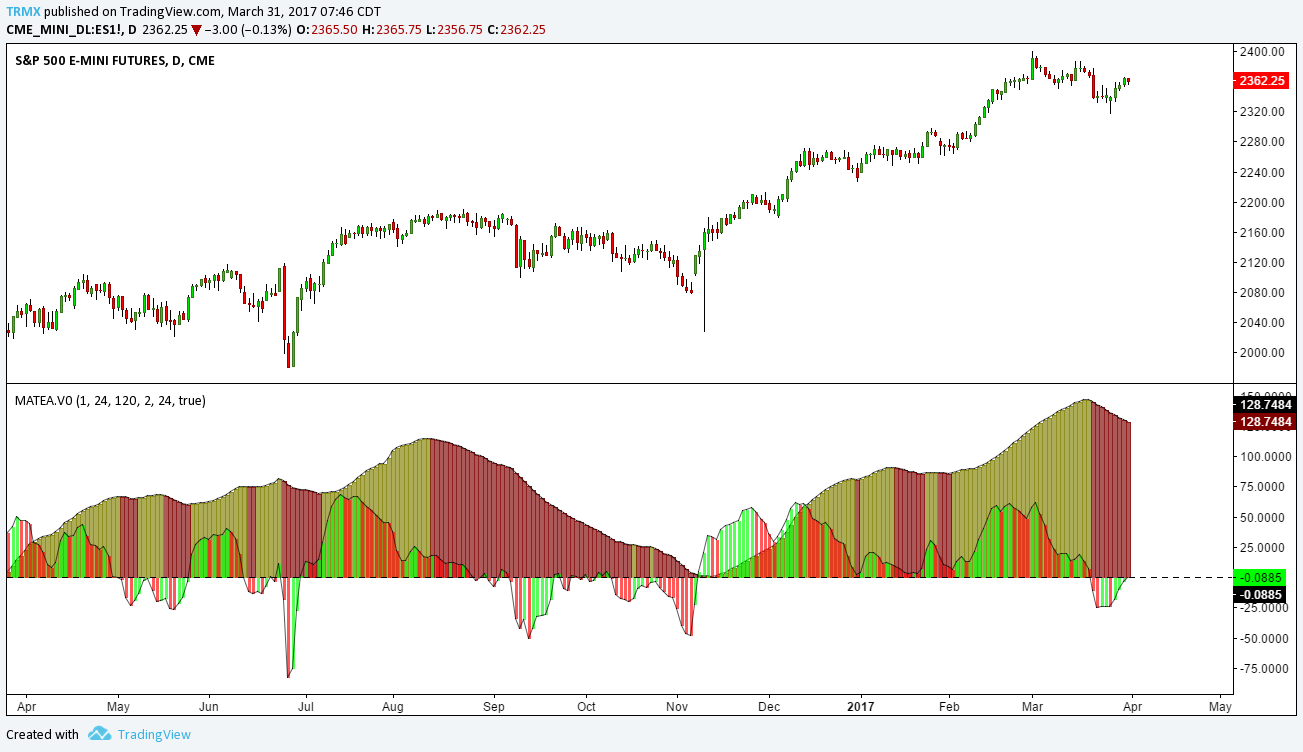

I added your picture to the first post. A description of the indicator maybe? or the original link? I’d like to know what is the original idea behind the code 🙂
Sorry I don’t have the info I’ll try to find the author or the idea behind this
I read the code and this what I understood so far: it’s 2 moving averages differences, smoothed separately with another SMA (just like an old MACD). These 2 curves have different periods to catch the long trend and the short one (this is the 2 black lines). Then histogram are changing their colours, according to their direction: if they are ascending or descending (the 2 MA differences / convergences).
So to make it brief, this is 2 MACD signal lines made of SMA (instead of EMA), do you still want to translate it?
You’re right I will use MACD
