FVG(Fair Value Gap) indicator – convert to Trading Code

Viewing 15 posts - 1 through 15 (of 16 total)

1 2 →

Author

Posts
08/07/2025 at 4:17 PM #249481 quote

Andre Vorster
Participant

Senior

Hello.

Can someone please help me modify this indicator so that it can be used in AutoTrader to open and close trades?
The indicator works, but I need it to open buy/sell positions when it displays an indication on the screen.
Also needed only run between certain times of the day as well as position Qty and TS options.

Thank you.

// FVG (Fair Value Gap) indicator

DEFPARAM DrawOnLastBarOnly = true
DEBUG = 0

// Start of code, don’t change anything below

IF IsLastBarUpdate THEN
$RangeHigh[0] = 0
$RangeLow[0] = 0
$RangeIndex[0] = 0
RangeIdx = 0
BI = 0
B = 0
RI = 0
TotalBars = BarIndex[0]

IF DEBUG = 1 THEN
DRAWTEXT(“Total bars: #TotalBars#”, BarIndex[0], High[0])
ENDIF

// List all imbalance
FOR RI = 1 TO TotalBars – 2 DO
BI = BarIndex[RI]
//drawtext(“#BI#”, BI, High[RI])
IF High[BI – 1] < Low[BI + 1] THEN
RangeIdx = RangeIdx + 1
$RangeHigh[RangeIdx] = Low[BI + 1]
$RangeLow[RangeIdx] = High[BI – 1]
$RangeIndex[RangeIdx] = RI
ENDIF
IF High[BI + 1] < Low[BI – 1] THEN
RangeIdx = RangeIdx + 1
$RangeHigh[RangeIdx] = Low[BI – 1]
$RangeLow[RangeIdx] = High[BI + 1]
$RangeIndex[RangeIdx] = RI
ENDIF
NEXT

IF DEBUG = 1 THEN
DRAWTEXT(“Imbalance found: #RangeIdx#”, BarIndex[0], Low[0])
ENDIF

// Remove mitigated imbalance
FOR RI = 1 TO RangeIdx DO
IF DEBUG = 1 THEN
DRAWRECTANGLE($RangeIndex[RI] – 1, $RangeHigh[RI], $RangeIndex[RI] + 1, $RangeLow[RI]) COLOURED(0,0,200)
//DRAWRECTANGLE($RangeIndex[RI] – 1, $RangeHigh[RI], $RangeIndex[RI] + 1, $RangeLow[RI]) COLOURED(0,0,200)
ENDIF

Valid = 1
FOR B = $RangeIndex[RI] + 2 TO TotalBars DO
LB = Low[BarIndex[B]]
HB = High[BarIndex[B]]
// Candle is above or below our zone, ignore it
IF LB >= $RangeHigh[RI] OR HB <= $RangeLow[RI] THEN
IF DEBUG = 1 THEN
DRAWTEXT(“Out”, B, High[BarIndex[B]])
ENDIF
CONTINUE
ENDIF

IF LB <= $RangeLow[RI] THEN
// Candle engulfs our zone, so imbalance is mitigated
IF HB >= $RangeHigh[RI] THEN
IF DEBUG = 1 THEN
DRAWTEXT(“Mitigated”, B, High[BarIndex[B]])
ENDIF
Valid = 0
BREAK
ENDIF
IF DEBUG = 1 THEN
DRAWTEXT(“High”, B, High[BarIndex[B]])
ENDIF
$RangeLow[RI] = HB
ELSE
// In this case, Low is within the zone
IF DEBUG = 1 THEN
DRAWTEXT(“Low”, B, High[BarIndex[B]])
ENDIF
$RangeHigh[RI] = LB
ENDIF
NEXT
IF Valid = 1 THEN
DRAWRECTANGLE($RangeIndex[RI], $RangeHigh[RI], TotalBars+2000, $RangeLow[RI]) COLOURED(0,0,0,0) FILLCOLOR(173,194,201)
//COLOURED(0,0,0,0) FILLCOLOR(173,194,201)
//(0,0,0,30) 201,40,51
ENDIF

NEXT

ENDIF

RETURN

08/07/2025 at 4:32 PM #249482 quote

robertogozzi
Moderator

Master

I deleted the other post in the French forum.

08/07/2025 at 4:36 PM #249483 quote

Andre Vorster
Participant

Senior

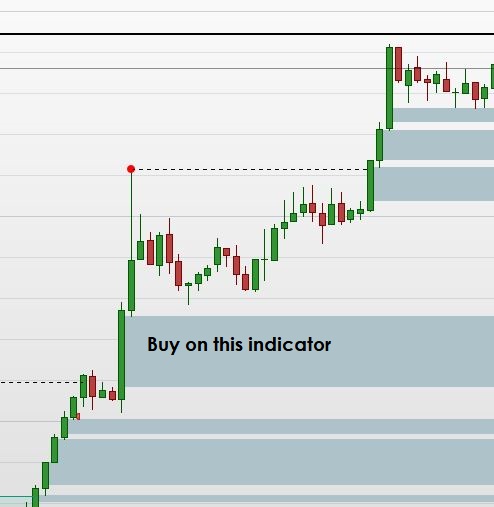

See the images for more clarity when to Buy or Sell.

Sell.jpg Buy.jpg

08/08/2025 at 12:03 PM #249502 quote
robertogozzi
Moderator

Master
Post your topic in the correct forum:
_ ProRealTime Platform Support: only platform related issues.
_ ProOrder: only strategy topics.
_ ProBuilder: only indicator topics.
_ ProScreener: only screener topics
_ General Discussion: any other topics.
_ Welcome New Members: for new forum members to introduce themselves.

I moved it from the ProScreener support.

There you go:
```
// FVG (Fair Value Gap) indicator
//DEFPARAM DrawOnLastBarOnly = true
//DEBUG = 0
// Start of code, don’t change anything below

//IF IsLastBarUpdate THEN
$RangeHigh[0] = 0
$RangeLow[0] = 0
$RangeIndex[0] = 0
//RangeIdx = 0
//BI = 0
//B = 0
//RI = 0
//TotalBars = BarIndex[0]
//IF DEBUG = 1 THEN
//DRAWTEXT("Total bars: #TotalBars#", BarIndex[0], High[0])
//ENDIF
// List all imbalance
//FOR RI = 1 TO TotalBars - 2 DO
RI = 1
BI = RI//BarIndex[RI]
//drawtext("#BI#", BI, High[RI])
IF High[BI - 1] < Low[BI + 1] THEN
//RangeIdx = RangeIdx + 1
//$RangeHigh[RangeIdx] = Low[BI + 1]
//$RangeLow[RangeIdx]  = High[BI - 1]
//$RangeIndex[RangeIdx] = RI
IF Not OnMarket THEN // or   IF Not ShortOnMarket THEN
SELLSHORT 1 CONTRACT AT MARKET
ENDIF
ENDIF
IF High[BI + 1] < Low[BI - 1] THEN
RangeIdx = RangeIdx + 1
//$RangeHigh[RangeIdx] = Low[BI - 1]
//$RangeLow[RangeIdx] = High[BI + 1]
//$RangeIndex[RangeIdx] = RI
IF Not OnMarket THEN // or   IF Not LongOnMarket THEN
BUY 1 CONTRACT AT MARKET
ENDIF
ENDIF
SET STOP   pLOSS   100
SET TARGET pPROFIT 300
//NEXT
//IF DEBUG = 1 THEN
//DRAWTEXT("Imbalance found: #RangeIdx#", BarIndex[0], Low[0])
//ENDIF
//// Remove mitigated imbalance
//FOR RI = 1 TO RangeIdx DO
//IF DEBUG = 1 THEN
//DRAWRECTANGLE($RangeIndex[RI] - 1, $RangeHigh[RI], $RangeIndex[RI] + 1, $RangeLow[RI]) COLOURED(0,0,200)
////DRAWRECTANGLE($RangeIndex[RI] - 1, $RangeHigh[RI], $RangeIndex[RI] + 1, $RangeLow[RI]) COLOURED(0,0,200)
//ENDIF
//Valid = 1
//FOR B = $RangeIndex[RI] + 2 TO TotalBars DO
//LB = Low[BarIndex[B]]
//HB = High[BarIndex[B]]
//// Candle is above or below our zone, ignore it
//IF LB >= $RangeHigh[RI] OR HB <= $RangeLow[RI] THEN
//IF DEBUG = 1 THEN
//DRAWTEXT("Out", B, High[BarIndex[B]])
//ENDIF
//CONTINUE
//ENDIF
//IF LB <= $RangeLow[RI] THEN
//// Candle engulfs our zone, so imbalance is mitigated
//IF HB >= $RangeHigh[RI] THEN
//IF DEBUG = 1 THEN
//DRAWTEXT("Mitigated", B, High[BarIndex[B]])
//ENDIF
//Valid = 0
//BREAK
//ENDIF
//IF DEBUG = 1 THEN
//DRAWTEXT("High", B, High[BarIndex[B]])
//ENDIF
//$RangeLow[RI] = HB
//ELSE
//// In this case, Low is within the zone
//IF DEBUG = 1 THEN
//DRAWTEXT("Low", B, High[BarIndex[B]])
//ENDIF
//$RangeHigh[RI] = LB
//ENDIF
//NEXT
//IF Valid = 1 THEN
//IF (close[RI-1] > open[RI-1]) THEN
//DRAWRECTANGLE($RangeIndex[RI], $RangeHigh[RI], TotalBars+20, $RangeLow[RI]) COLOURED(0,0,0,0) FILLCOLOR("Green")//(173,194,201)
//ELSE
//DRAWRECTANGLE($RangeIndex[RI], $RangeHigh[RI], TotalBars+20, $RangeLow[RI]) COLOURED(0,0,0,0) FILLCOLOR("Red")//(173,194,201)
//ENDIF
////COLOURED(0,0,0,0) FILLCOLOR(173,194,201)
////(0,0,0,30) 201,40,51
//ENDIF
//NEXT
//ENDIF
```
08/08/2025 at 12:14 PM #249503 quote

Andre Vorster
Participant

Senior

Thank you for moving the post.
Plus Thank you for the script !

robertogozzi thanked this post

08/08/2025 at 12:50 PM #249510 quote

Andre Vorster
Participant

Senior

The script is working – does open/close trades.
Will it be possible for the script to only open positions when the indicator(grey) is activated. When the indicator draws on the screen and not trade at any other time.
The earlier attached images shows what I try to say in words when to open positions.

08/08/2025 at 9:14 PM #249526 quote

robertogozzi
Moderator

Master

It uses the same code, so it can only enter when the indicator detects a FVG.ù

If it doesn’t, please post the name of the instrument traded, timeframe used, date and time of one or more incorrect enrtries.

08/10/2025 at 1:22 PM #249582 quote

MaoRai54
Participant

Master

@ ROBERTO

Sorry, but I feel that with all the // that you’ve placed, this script is only selecting these lines:

IF High[BI – 1] < Low[BI + 1] THEN or

IF High[BI + 1] < Low[BI – 1] THEN

where, however, B1 is always = 1. Therefore the lines become:

IF High[0] < Low[2] THEN or

IF High[2] < Low[0] THEN

Is it right or maybe there should be less // to filter more variables?

robertogozzi thanked this post

08/10/2025 at 1:24 PM #249583 quote

Andre Vorster
Participant

Senior

Thank you.
I’ll test it in the next 2 days. I want to run it asap 🙂

08/11/2025 at 10:00 AM #249616 quote

robertogozzi
Moderator

Master

MaoRai54 wrote:

@ ROBERTO

Sorry, but I feel that with all the // that you’ve placed, this script is only selecting these lines:

IF High[BI – 1] < Low[BI + 1] THEN or

IF High[BI + 1] < Low[BI – 1] THEN

where, however, B1 is always = 1. Therefore the lines become:

IF High[0] < Low[2] THEN or

IF High[2] < Low[0] THEN

Is it right or maybe there should be less // to filter more variables?

Yes, those are the only lines that matter in an automated strategy, as he requested to enter whenever a FVG is detected.

MaoRai54 thanked this post

08/12/2025 at 1:09 PM #249671 quote

Andre Vorster
Participant

Senior

Thank you.

Somewhere I’m missing something becuse I can’t get yoru suggestion to work.
My knowledge of any programming code is limited.

I’m using this on CAC, DAX, DJ, NASDAQ, JAPAN.
Timeframe – Prefferable 1-5 min
I’ve seen the existing code runs on any time frame.

I know it might not be possible to AutoTrade code form this indicator but if this indicator can trigger another acceptable indicator that can trigger auto trade.

08/20/2025 at 4:47 PM #249928 quote

robertogozzi
Moderator

Master

Sorry for the delay.

Can you please recap when you want to enter either LONG or SHORT based on the code you first posted?

08/21/2025 at 9:24 AM #249937 quote

Andre Vorster
Participant

Senior

The script gives indicator on the candle when to Buy/Sell.
Not a separate script for Long/Short.

I’ve even asked Ai to write code to give an alarm that will start auto trade.
Ai wrote two other indicator scripts based on the original script that it will trigger an alert and auto trade to start when the alert is triggered.
I could not get it to work 100%. Will test it further over the next few days to be sure why it does not work before replying to Ai to modify the scripts.
I’m sure you will understand the code/scripts better. I struggle to read/understand code -not a strong point of mine.

FVG_Zones_TradeSignal.itf FVG-Status.itf FVG-00.itf

08/28/2025 at 2:48 PM #250166 quote

robertogozzi
Moderator

Master

What’s the purpose of each one of them?

08/28/2025 at 5:45 PM #250171 quote

geroniman
Participant

Average

Thank you Roberto for the FVG itf. Is it possible to add a line at 50% of the FVG that will disappear when it is reached. Thanks
