Exponential Average of Candle Value Intermittently Flat Lines

• 05/21/2021 at 2:48 AM #170079
  Nelson

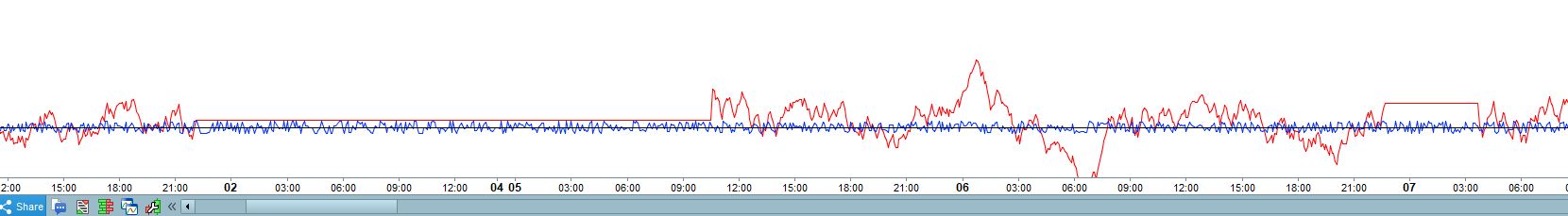

  I am trying to code a very simple exponential average (60) of a calculated candle value, it sometimes stops calculating and flatlines which is strange. There has to be an error in my code as the candle value still calculates. To see it better I have scaled the values up

  Does anyone have any idea as to why this is happening I have tried a few things to no success.

  Flow Oscillator

  //Flow // Works out the candle value and to see result is scaled up by * 200 //Zero Line DRAWHLINE(0)coloured(0,0,0) CandleValue = (close - open) / (high - low) CV = CandleValue * 200 // Exponential average of scaled up Candle Value and this is scaled up * 50 to see result MVC = Average[60,1](CV) MVC1 = MVC * 50 Return MVC1 as "MVC", CandleValue as "CV", CV as "Scale Up CV", 0 as "0"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

  //Flow   // Works out the candle value and to see result is scaled up by * 200   //Zero Line DRAWHLINE(0)coloured(0,0,0)   CandleValue = (close - open) / (high - low) CV = CandleValue * 200   // Exponential average of scaled up Candle Value and this is scaled up * 50 to see result MVC = Average[60,1](CV) MVC1 = MVC * 50   Return MVC1 as "MVC", CandleValue as "CV", CV as "Scale Up CV", 0 as "0"





  Nelson

  Participant

  Topics: 1

  Replies: 2

  Been thanked: 0 times
  05/21/2021 at 8:12 AM #170090
  robertogozzi

  It’s quite weird, I tested it on DAX, different TF’s, even replacing AVERAGE with EXPONENTIALAVERAGE, but it still plots flat lines almost everyday.

  It occurs mainly on Indices (Dax, Ftse, Nikkei, Cac40, Russel, Nasdaq, S&P500 and Dow Jones ). As to FX pairs I experienced the same issue on NZD/CHF, GBP/CAD and GBP/CHF (I did only test it on about 15 pairs).

  I have no idea why.

  I suggest that you open a ticket for assistamce (press Ctrl+M from the platform).









  robertogozzi

  Moderator

  Topics: 69

  Replies: 18045

  Been thanked: 4611 times
  05/21/2021 at 11:48 AM #170107
  Nelson

  Yeah same Robertogozzi I also tried EXPONENTIALAVERAGE and same issue I shall raise a ticket and update with the feedback. Thanks for looking into this



  Nelson

  Participant

  Topics: 1

  Replies: 2

  Been thanked: 0 times
  05/21/2021 at 12:09 PM #170108
  JC_Bywan

  You divide by (high-low) in line 8, which creates undefined values when high=low because of division by 0, and propagates the undefined through the averages. You can try to surround your line 8 by “if high<>low then … endif” and see if it achieves what you expect.

  2 users thanked author for this post.

  Nelson, robertogozzi



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2807

  Been thanked: 1091 times
  05/21/2021 at 3:00 PM #170123
  robertogozzi

  Well spotted Noobywan!

  You can replace line 8 with this one:

  CandleValue = (close - open) / max(0.00001,(high - low))

  1	CandleValue = (close - open) / max(0.00001,(high - low))



  robertogozzi

  Moderator

  Topics: 69

  Replies: 18045

  Been thanked: 4611 times
  05/21/2021 at 3:05 PM #170124
  robertogozzi

  Maybe this a better solution, replace lines 8-9 with:

  IF (high - low) >0 THEN CandleValue = (close - open) / (high - low) CV = CandleValue * 200 ENDIF

  1 2 3 4

  IF (high - low) >0 THEN    CandleValue = (close - open) / (high - low)    CV = CandleValue * 200 ENDIF

  1 user thanked author for this post.

  Nelson



  robertogozzi

  Moderator

  Topics: 69

  Replies: 18045

  Been thanked: 4611 times
  05/22/2021 at 1:10 AM #170160
  Nelson

  Great spot Noobywan, Robertogozzi that last code works great as expected thanks guys.



  Nelson

  Participant

  Topics: 1

  Replies: 2

  Been thanked: 0 times
• Author
  Posts
