Elder Auto Envelopes

• 05/10/2021 at 8:07 AM #169225
  Alfy

  Good morning guys, I’m looking to create the Alexander Elder auto envelopes. It doesn’t look like anyone on the forum has mentioned them before. The indicator shows a 22 day exponential moving average and then an envelope around said moving average which is calculated as the standard deviation of the price compared to that moving average over a lookback of 100days multiplied by 2.7 standard deviations. I’ve created some code but I’m having trouble on the bit calculating the standard deviation compared to the moving average if anyone can help?

  Best regards and thanks in advance

  Elder Auto envelope

  a=exponentialAverage[22](Close) // We define the standard deviation. StdDeviation = STD[100](Close) Bsup = a + 2.7 * StdDeviation Binf = a - 2.7 * StdDeviation return A as "average", Bsup as "upperband", Binf as "lowerband"

  1 2 3 4 5 6 7

  a=exponentialAverage[22](Close) // We define the standard deviation. StdDeviation = STD[100](Close) Bsup = a + 2.7 * StdDeviation Binf = a - 2.7 * StdDeviation   return A as "average", Bsup as "upperband", Binf as "lowerband"





  Alfy

  Participant

  Topics: 34

  Replies: 53

  Been thanked: 5 times
  05/10/2021 at 8:41 AM #169228
  Alfy

  Heres some metastock code i found in case my explanation above was poor.

  Best regards



  MetaStock FORMULA EMA:=Input("Base EMA",1,100,22); Factor:=Input("Factor",1,50,27); Avg:=Mov(C,EMA,E); csize:= StDev(2*Max(abs(H-Avg) ,abs(L-Avg)) / Avg,100)*Factor/10; {Use 100 days for stable channel size - default is 2.7 std} Csize:= ValueWhen(1, DayOfWeek()<span class="prism-token prism-tag"><span class="prism-token prism-punctuation"><</span>Ref(DayOfWeek() <span class="prism-token prism-attr-name">,-1)</span> <span class="prism-token prism-attr-name">OR</span> <span class="prism-token prism-attr-name">(</span> <span class="prism-token prism-attr-name">DayOfWeek()</span><span class="prism-token prism-attr-value"><span class="prism-token prism-punctuation">=</span>Ref(DayOfWeek(),-1)</span> <span class="prism-token prism-attr-name">AND</span> <span class="prism-token prism-attr-name">DayOfMonth()</span> <span class="prism-token prism-attr-name"><</span><span class="prism-token prism-punctuation">></span></span> Ref(DayOfMonth(),-1)) ,Ref(csize,-1)); { This pegs the StDev to last bar of week AND only changes once per week} csize:=LastValue(csize); {fix to constant using last value} channel:=csize*Avg; Avg+channel/2; Avg-channel/2; Avg;

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

  MetaStock FORMULA   EMA:=Input("Base EMA",1,100,22); Factor:=Input("Factor",1,50,27); Avg:=Mov(C,EMA,E); csize:= StDev(2*Max(abs(H-Avg) ,abs(L-Avg)) / Avg,100)*Factor/10; {Use 100 days for stable channel size - default is 2.7 std} Csize:= ValueWhen(1, DayOfWeek()<span class="prism-token prism-tag"><span class="prism-token prism-punctuation"><</span>Ref(DayOfWeek() <span class="prism-token prism-attr-name">,-1)</span> <span class="prism-token prism-attr-name">OR</span> <span class="prism-token prism-attr-name">(</span> <span class="prism-token prism-attr-name">DayOfWeek()</span><span class="prism-token prism-attr-value"><span class="prism-token prism-punctuation">=</span>Ref(DayOfWeek(),-1)</span> <span class="prism-token prism-attr-name">AND</span> <span class="prism-token prism-attr-name">DayOfMonth()</span> <span class="prism-token prism-attr-name"><</span><span class="prism-token prism-punctuation">></span></span> Ref(DayOfMonth(),-1)) ,Ref(csize,-1)); { This pegs the StDev to last bar of week  AND only changes once per week} csize:=LastValue(csize); {fix to constant using last value} channel:=csize*Avg; Avg+channel/2; Avg-channel/2; Avg;





  Alfy

  Participant

  Topics: 34

  Replies: 53

  Been thanked: 5 times
  12/20/2024 at 9:31 AM #241605
  Demon

  Hi,

  I search also the same.

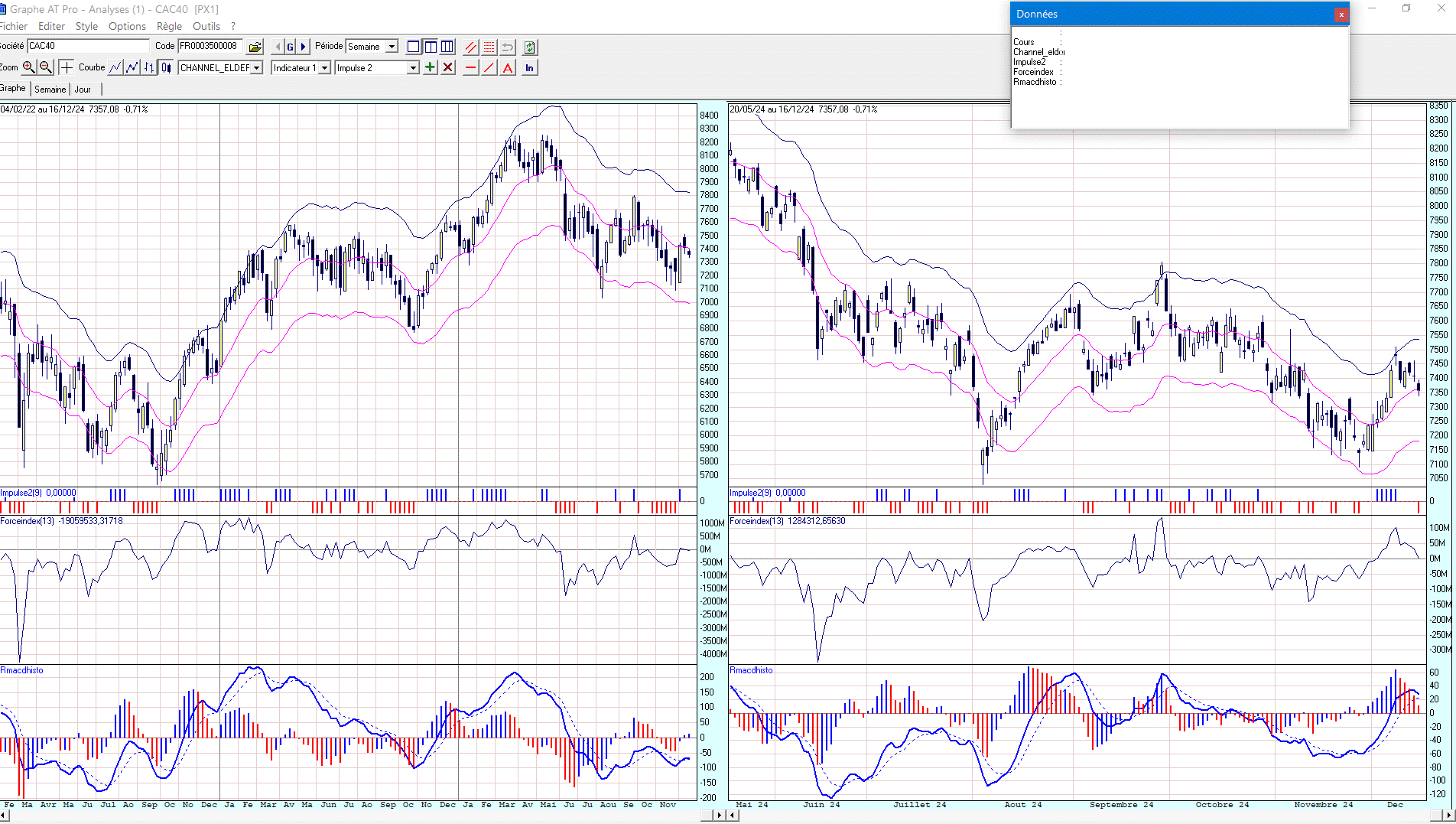

  I used this code create by smallcaps90 on a forum Graph At On Univers bourse site.

  Could somebody adapt it on PRT.

  Thanks

  For this code, I use

  P1 = 13

  P2 = 90

  P3 = 30

  //=============
  //CHANNEL_ELDER
  //=============

  //V1.0 PROTO
  //le 21/02/2009
  //smallcaps90
  //=============

  //Paramètres :
  //
  //P1=recul de calcul de la moyenne exponentielle
  //P2%=pourcentage de cours souhaités dans le channel
  //P3=nombre de périodes prises en compte
  //
  //====================================================
  //Ligne centrale du channel
  //
  Mid_Line=Exposuiv(Mid_Line,Cloture,P1)

  //Algorithme de recherche de la largeur du channel
  //
  Si RangHisto=FinHisto Alors

  //Boucle sur la largeur du channel
  //
  i=50
  TantQue i>=1 Faire
  Som_Up=0
  Som_Dn=0

  //Boucle sur les cours tests des nbs des dépassements
  //
  Pour P3 Cours
  Si Haut>Mid_Line*(1+i%) Alors Som_Up=Som_Up+1
  Si Bas<Mid_Line*(1-i%) Alors Som_Dn=Som_Dn+1
  FinPour

  //Vérification du nombre de hauts et de bas en dehors du channel
  //
  Si Som_Up>=(1-P2%)*P3 OU Som_Dn>=(1-P2%)*P3
  Alors
  Break
  FinSi

  i=i-0.1
  FinTantQue
  //Pour récupération par la statistique
  //
  ECART=i%
  NB_HAUTS_OUT=Som_Up
  NB_BAS_OUT=Som_Dn

  //Tracé du channel sur les cours
  //
  Pour 350 Cours
  Up_Line=Mid_Line*(1+i%)
  Dn_Line=Mid_Line*(1-i%)
  FinPour

  FinSi



  Demon

  Participant

  Topics: 3

  Replies: 18

  Been thanked: 2 times
