DRAWRECTANGLE in the middle of a barindex

Kaci · 2020-06-19T12:54:43+00:00

Hi all, I’m trying to build an indicator but I’m not sure it is possible to draw a rectangle in the middle of barindex ? I mean when I’m using the DRAWRECTANGLE it actually display the rectangle at the beginning of the barindex so it’s kind of “offset”. Whereas when I use the chart configurator I manage to get the black rectangle in the middle of the barindex (C.f. Screenshot) Also is it possible to get a specific color between the two red and green lines in the code directly ? Or is it only possible in the chart configuration ? Many thanks ! Kaci.

Viewing 3 posts - 1 through 3 (of 3 total)

Author

Posts
06/19/2020 at 1:54 PM #136553 quote

Kaci
Participant

Junior

Hi all,

I’m trying to build an indicator but I’m not sure it is possible to draw a rectangle in the middle of barindex ?

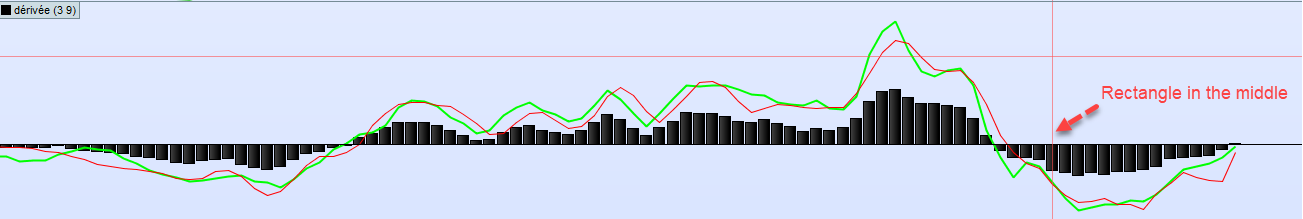

I mean when I’m using the DRAWRECTANGLE it actually display the rectangle at the beginning of the barindex so it’s kind of “offset”. Whereas when I use the chart configurator I manage to get the black rectangle in the middle of the barindex (C.f. Screenshot)
Also is it possible to get a specific color between the two red and green lines in the code directly ? Or is it only possible in the chart configuration ?

Many thanks !

Kaci.


06/19/2020 at 2:27 PM #136557 quote
robertogozzi
Moderator

Legend
As you can see from the attached pics you can draw rectangles in 3 ways:
```

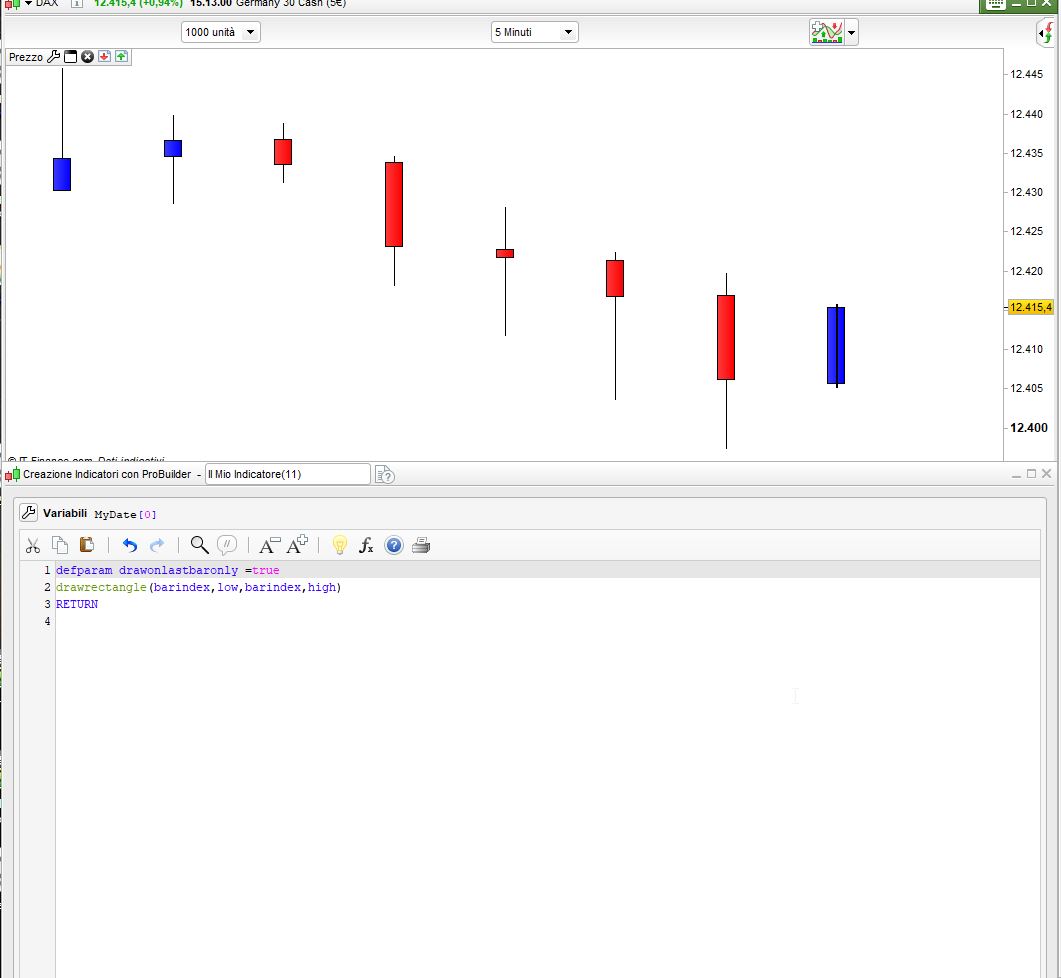

defparam drawonlastbaronly = true            //#1 it will only show on the current bar, so it's almost invisible (you can only change the bordercolor)
drawrectangle(barindex,low,barindex,high)
RETURN
```
```

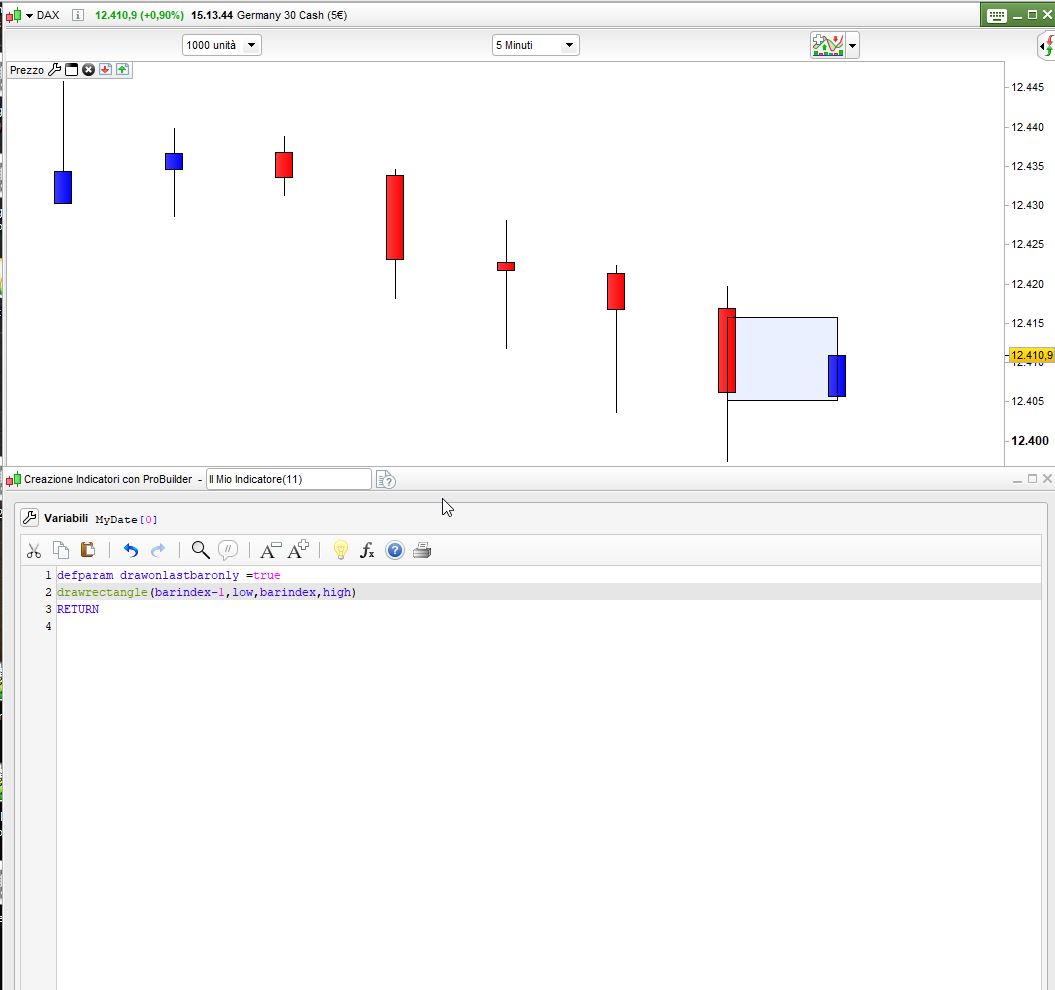

defparam drawonlastbaronly = true            //#2 you can start from a previous bar
drawrectangle(barindex-1,low,barindex,high)
RETURN
```
```

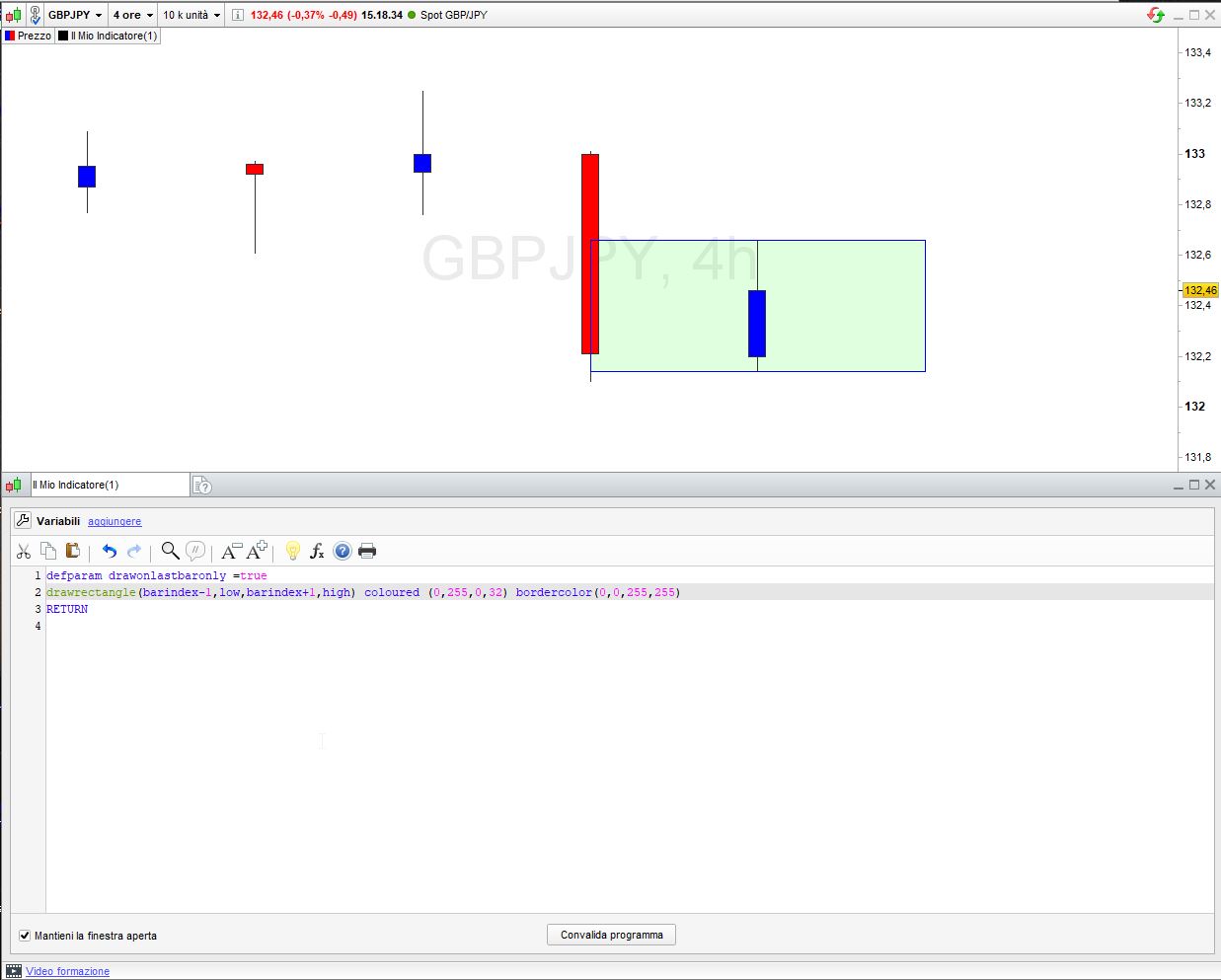

defparam drawonlastbaronly = true            //#3 you can also end on a future bar and change both border and inside colours                       (v11.x ONLY)
drawrectangle(barindex-1,low,barindex+1,high) coloured (0,255,0,32) bordercolor(0,0,255,255)
RETURN
```
Zigo, Kaci and Nicolas thanked this post

DrawRectangle1.jpg DrawRectangle2.jpg DrawRectangle3.jpg
06/19/2020 at 3:20 PM #136564 quote

Kaci
Participant

Junior

Hi Robert,

Thanks I will try which one is the best !

Kaci.
