DRAWARROWUP not working

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • 02/21/2018 at 7:48 AM #63339 quote
    Alberto Lucchese
    Participant
    Average

    Hi,

    I’m working on an indicator that will mark with an arrow certain bars, thing is, the DRAWARROWUP function doesn’t seems to work. I’ve tried the simple example below and nothing is drawn on the screen, any thoughts? Thanks!

    sto = Stochastic[10,3](close)
signal = average[5](sto)
rge = averagetruerange[10](close)

if sto[1]>80 and sto crosses under signal then
  DRAWARROWDOWN(barindex[1],high[1]+rge/2)coloured(255,10,10)
elsif sto[1]<20 and sto crosses over signal then
  DRAWARROWUP(barindex[1],low[1]-rge/2)coloured(10,255,10)
endif

RETURN
    02/21/2018 at 9:58 AM #63356 quote
    Nicolas
    Keymaster
    Master

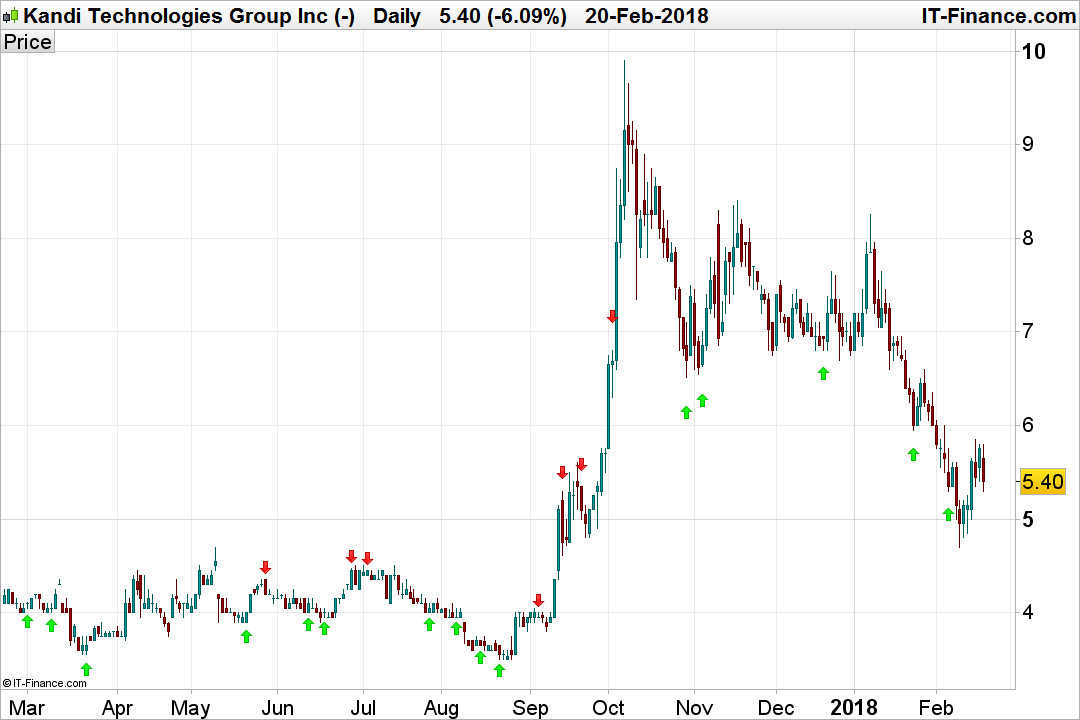

    Your code is working well, if you add it on the price chart.

    02/21/2018 at 9:30 PM #63421 quote
    Alberto Lucchese
    Participant
    Average

    Thank you Nicolas,

    I’ve tried again, and it doesn’t work. I added it to the chart but no arrows are drawn. Are there any requirements (like version or something) for this command to work?

    02/22/2018 at 12:28 AM #63430 quote
    robertogozzi
    Moderator
    Master

    It works finely, as Nicolas said, you should add it ON the price chart like moving averages, not below it like other indicators/oscillators (read https://www.prorealcode.com/topic/add-indicator-in-mainchart/).

    02/22/2018 at 7:22 AM #63443 quote
    Alberto Lucchese
    Participant
    Average

    Sorry!!! i couldn’t tell the difference, now i realize that i need to add the indicator throught the “right click->settings price” option on the chart.

    Thank you both! really appreciate it

    02/22/2018 at 11:28 AM #63493 quote
    robertogozzi
    Moderator
    Master

    You don’t have to RIGHT click, just CLICK.

    Follow the hints from the 4 attached pics, A through D.

    I added Pivot Points as an example, you want to add whatever you like.

    Nicolas thanked this post
