Cybernetic Oscillator by John F. Ehlers

• 09/29/2025 at 1:34 PM #251959
  elekin.

  Hello guys,

  I’ve coded the cybernetic oscillator by John F. Ehlers, taking it from the article “Making a Better Oscillator” from the TASC journal, but I’ve faced some issues.

  The original code is written in Easy Language, you can find it in the pdf attached. I wrote in the same page the code of the high-pass filter, the Super Smoother and the RMS formula to obtain the final formula of the cybernetic oscillator, without calling the other indicators from external codes.

  The problem is that the oscillator’s values exploded in the first periods while are too small in the latests, so it seems like it’s not normalized as it should.

  Can anyone help me? The following is the code written in ProRealTime:

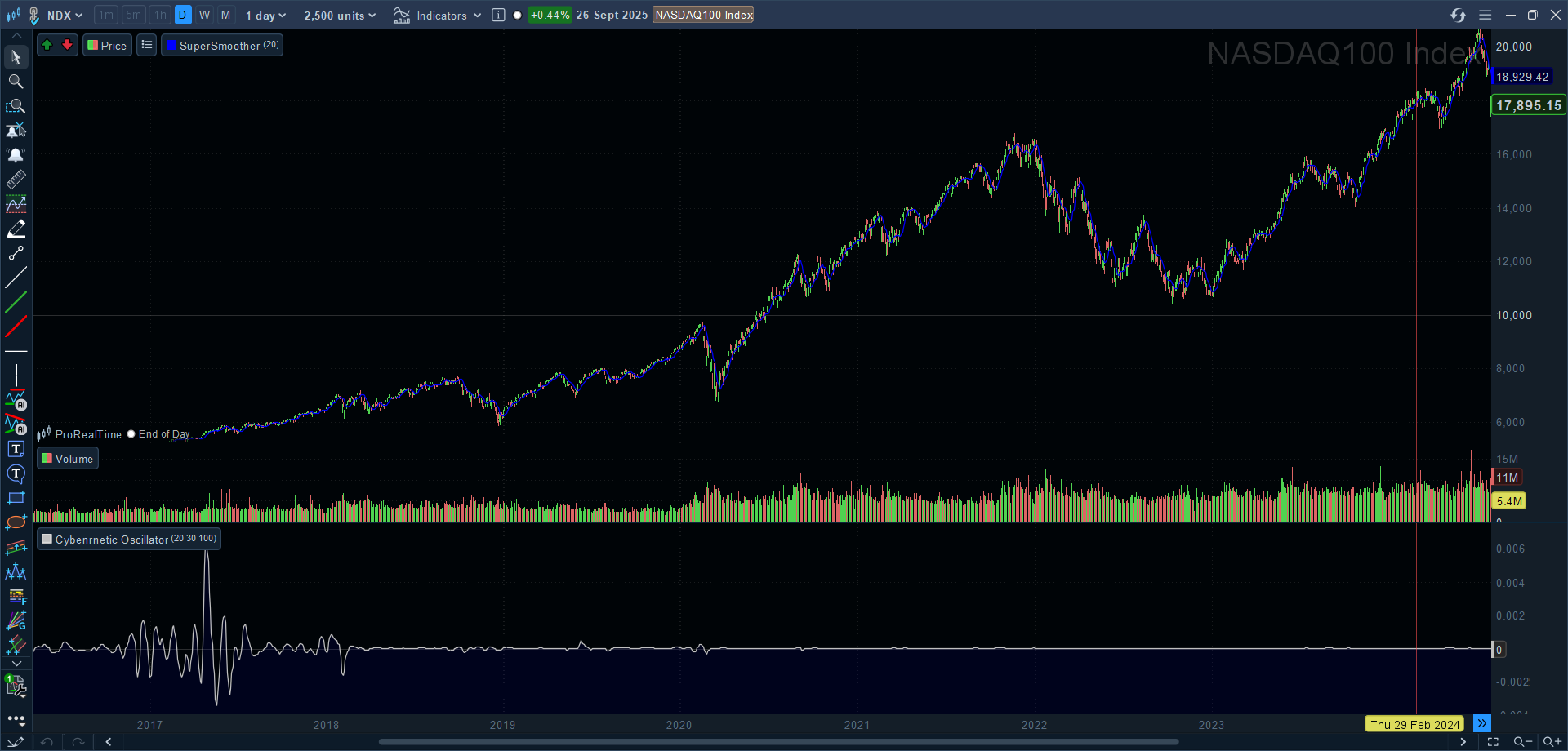

  // === Coefficienti High-Pass === a1HP = EXP(-(SQRT(2) * 3.14159) / HPLength) b1HP = 2 * a1HP * COS((SQRT(2) * 180) / HPLength) c2HP = b1HP c3HP = -(a1HP * a1HP) c1HP = (1 + c2HP - c3HP)/4 // === High-Pass Filter === IF BarIndex >= 4 THEN HP = c1HP * (Close - 2*Close[1] + Close[2]) + c2HP * HP[1] + c3HP * HP[2] ELSE HP = 0 ENDIF // === Coefficienti Super Smoother === a1SS = EXP(-(SQRT(2) * 3.14159) / LPLength) b1SS = 2 * a1SS * COS((SQRT(2) * 180) / LPLength) c2SS = b1SS c3SS = -(a1SS * a1SS) c1SS = 1 - c2SS - c3SS // === Super Smoother === IF BarIndex >= 4 THEN SS = c1SS * (HP + HP[1]) / 2 + c2SS * SS[1] + c3SS * SS[2] ELSE SS = HP ENDIF // === RMS === SumSq = 0 FOR Count = 0 to RMSLength - 1 DO Sumsq = SumSq + SS[count]*SS[Count] NEXT IF SumSq <> 0 THEN RMS = SQR(SumSq/RMSLength) ENDIF // === Cybernetic Oscillator === IF RMS <> 0 THEN CyberneticOscillator = SS / RMS ENDIF RETURN CyberneticOscillator AS "Cybenrnetic Oscillator" The variables HPLength, LPLength and RMSLength are set as parameters in the ProBuilder code editor. I attached also a screenshot of the behaviour of the CO, applied to the graph of the NASDAQ Index.

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

  // === Coefficienti High-Pass === a1HP = EXP(-(SQRT(2) * 3.14159) / HPLength) b1HP = 2 * a1HP * COS((SQRT(2) * 180) / HPLength) c2HP = b1HP c3HP = -(a1HP * a1HP) c1HP = (1 + c2HP - c3HP)/4   // === High-Pass Filter === IF BarIndex >= 4 THEN    HP = c1HP * (Close - 2*Close[1] + Close[2]) + c2HP * HP[1] + c3HP * HP[2] ELSE    HP = 0 ENDIF   // === Coefficienti Super Smoother === a1SS = EXP(-(SQRT(2) * 3.14159) / LPLength) b1SS = 2 * a1SS * COS((SQRT(2) * 180) / LPLength) c2SS = b1SS c3SS = -(a1SS * a1SS) c1SS = 1 - c2SS - c3SS   // === Super Smoother === IF BarIndex >= 4 THEN    SS = c1SS * (HP + HP[1]) / 2 + c2SS * SS[1] + c3SS * SS[2] ELSE    SS = HP ENDIF   // === RMS === SumSq = 0 FOR Count = 0 to RMSLength - 1 DO    Sumsq = SumSq + SS[count]*SS[Count] NEXT   IF SumSq <> 0 THEN    RMS = SQR(SumSq/RMSLength) ENDIF     // === Cybernetic Oscillator === IF RMS <> 0 THEN    CyberneticOscillator = SS / RMS ENDIF   RETURN CyberneticOscillator AS "Cybenrnetic Oscillator"   The variables HPLength, LPLength and RMSLength are set as parameters in the ProBuilder code editor. I attached also a screenshot of the behaviour of the CO, applied to the graph of the NASDAQ Index.



  elekin.

  Participant

  Topics: 2

  Replies: 2

  Been thanked: 0 times
  09/29/2025 at 8:02 PM #252008
  robertogozzi

  The PDF file is missing, if you can’t attach it, please post the text of the code.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17961

  Been thanked: 4555 times
  10/01/2025 at 9:06 AM #252044
  Iván

  Hi! I found the oscillator in trading view.

  // ==================================================== //PRC_Cybernetic Oscillator (John Ehlers, TASC 2025) //version = 0 //01.10.25 //Iván González @ www.prorealcode.com //Sharing ProRealTime knowledge // ==================================================== // ----- Parámetros hpPeriod = 30 // Periodo filtro Highpass lpPeriod = 20 // Periodo filtro Lowpass (Super Smoother) rmsLen = 100 // Longitud RMS threshold = 1 // Umbral opcional // ----- Constantes pi = 3.1415926535 sqrt2 = 1.41421356237 src = close // ==================================================== // Calculos // ==================================================== if barindex>=4 then // ----- High-Pass Filter (2nd order) a0 = sqrt2 * pi / hpPeriod a1 = EXP(-a0) c2hp = 2*a1*COS(a0*180/pi) c3hp = -(a1*a1) c1hp = (1 + c2hp - c3hp) * 0.25 hp = 0 hp = c1hp * (src - 2*src[1] + src[2]) + c2hp*hp[1] + c3hp*hp[2] // ----- Super Smoother (Low-Pass, 2nd order) a0lp = sqrt2 * pi / lpPeriod a1lp = EXP(-a0lp) c2lp = 2*a1lp*COS(a0lp*180/pi) c3lp = -(a1lp*a1lp) c1lp = 1 - c2lp - c3lp lp = 0 lp = c1lp * 0.5*(hp + hp[1]) + c2lp*lp[1] + c3lp*lp[2] endif // ==================================================== // RMS Normalization // ==================================================== pow2 = lp*lp rms = SQRT(Average[rmsLen](pow2)) epsilon = 0.000001 den = MAX(rms, epsilon) osc = lp / den // ==================================================== // Líneas de referencia // ==================================================== zeroline = 0 upth = threshold lowth = -threshold if osc > 0 then red=0 green=255 blue=0 else red=255 green=0 blue=0 endif // ==================================================== RETURN osc AS "Cybernetic Osc" coloured(red,green,blue)style(line,3),zeroline COLOURED(200,200,200) AS "0",upth COLOURED(150,150,150) AS "+Threshold",lowth COLOURED(150,150,150) AS "-Threshold"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66

  // ==================================================== //PRC_Cybernetic Oscillator (John Ehlers, TASC 2025) //version = 0 //01.10.25 //Iván González @ www.prorealcode.com //Sharing ProRealTime knowledge // ==================================================== // ----- Parámetros hpPeriod = 30       // Periodo filtro Highpass lpPeriod = 20       // Periodo filtro Lowpass (Super Smoother) rmsLen   = 100      // Longitud RMS threshold = 1       // Umbral opcional // ----- Constantes pi = 3.1415926535 sqrt2 = 1.41421356237 src = close // ==================================================== // Calculos // ==================================================== if barindex>=4 then    // ----- High-Pass Filter (2nd order)    a0 = sqrt2 * pi / hpPeriod    a1 = EXP(-a0)    c2hp = 2*a1*COS(a0*180/pi)    c3hp = -(a1*a1)    c1hp = (1 + c2hp - c3hp) * 0.25       hp = 0    hp = c1hp * (src - 2*src[1] + src[2]) + c2hp*hp[1] + c3hp*hp[2]       // ----- Super Smoother (Low-Pass, 2nd order)    a0lp = sqrt2 * pi / lpPeriod    a1lp = EXP(-a0lp)    c2lp = 2*a1lp*COS(a0lp*180/pi)    c3lp = -(a1lp*a1lp)    c1lp = 1 - c2lp - c3lp       lp = 0    lp = c1lp * 0.5*(hp + hp[1]) + c2lp*lp[1] + c3lp*lp[2] endif // ==================================================== // RMS Normalization // ==================================================== pow2 = lp*lp rms = SQRT(Average[rmsLen](pow2)) epsilon = 0.000001 den = MAX(rms, epsilon)   osc = lp / den // ==================================================== // Líneas de referencia // ==================================================== zeroline = 0 upth = threshold lowth = -threshold if osc > 0 then    red=0    green=255    blue=0 else    red=255    green=0    blue=0 endif // ==================================================== RETURN osc AS "Cybernetic Osc" coloured(red,green,blue)style(line,3),zeroline COLOURED(200,200,200) AS "0",upth COLOURED(150,150,150) AS "+Threshold",lowth COLOURED(150,150,150) AS "-Threshold"

  1 user thanked author for this post.

  elekin.



  Iván

  Moderator

  Topics: 0

  Replies: 1894

  Been thanked: 836 times
  10/01/2025 at 11:38 AM #252061
  elekin.

  Ops, sorry, It hasn’t been uploaded. I’ll try again, if it doesn’t work, here is the code, written in EasyLanguage from the original file:

  High-Pass filter:

  {
  Highpass Function
  (C) 2004-2024 John F. Ehlers
  }
  Inputs:
  Price(numericseries),
  Period(numericsimple);
  Vars:
  a1(0),
  b1(0),
  c1(0),
  c2(0),
  c3(0);
  a1 = expvalue(-1.414*3.14159 / Period);
  b1 = 2*a1*Cosine(1.414*180 / Period);
  c2 = b1;
  c3 = -a1*a1;
  c1 = (1 + c2 – c3) / 4;
  If CurrentBar >= 4 Then $HighPass = c1*(Price – 2*Price[1] +
  Price[2]) + c2*$HighPass[1] + c3*$HighPass[2];
  If Currentbar < 4 Then $HighPass = 0; Super Smoother: { SuperSmoother Function (C) 2004-2025 John F. Ehlers } Inputs: Price(numericseries), Period(numericsimple); Vars: a1(0), b1(0), c1(0), c2(0), c3(0); a1 = expvalue(-1.414*3.14159 / Period); b1 = 2*a1*Cosine(1.414*180 / Period); c2 = b1; c3 = -a1*a1; c1 = 1 - c2 - c3; If CurrentBar >= 4 Then $SuperSmoother =
  c1*(Price + Price[1]) / 2 + c2*$SuperSmoother[1] +
  c3*$SuperSmoother[2];
  If Currentbar < 4 Then $SuperSmoother = Price; Root Mean Square: { RMS Function (C) 2015-2025 John F. Ehlers } Inputs: Price(numericseries), Length(numericsimple); Vars: SumSq(0), count(0); SumSq = 0; for count = 0 to Length - 1 Begin SumSq = SumSq + Price[count]*Price[count]; End; If SumSq <> 0 Then $RMS = SquareRoot(SumSq / Length);

  Final formula of the Cybernetic Oscillator:

  {
  Cybernetic Oscillator
  (C) 2025 John F. Ehlers
  }
  Inputs:
  HPLength(30),
  LPLength(20);
  Vars:
  HP(0),
  LP(0),
  RMS(0),
  CyberneticOsc(0);
  HP = $HighPass(Close, HPLength);
  LP = $SuperSmoother(HP, LPLength);
  RMS = $RMS(LP, 100);
  If RMS <> 0 Then CyberneticOsc = LP / RMS;
  Plot1(CyberneticOsc);
  Plot2(0);



  elekin.

  Participant

  Topics: 2

  Replies: 2

  Been thanked: 0 times
  10/01/2025 at 12:05 PM #252066
  elekin.

  Thanks!
  I did wrong something about the RMS formula, I guess, now the values are way more stable and the same of the cybernetic oscillator posted on TradingView.
