Créer une Alerte sur test IFVG

Viewing 7 posts - 1 through 7 (of 7 total)
  • Author
    Posts
  • 06/17/2025 at 9:18 AM #248317 quote
    Alai-n
    Participant
    Veteran

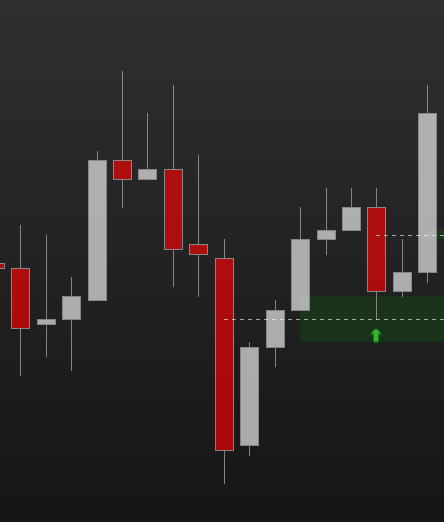

    Bonjour, comment serait-il possible de créer une alerte du type (+1/-1) lors du test du point médian de l’IFVG dans le code joint?

    Du genre low[1] <= MedianIFVG and high[1]>=MedianIFVG (OU) low[1] <= MedianIFVG and close[1]>MedianIFVG

    Merci

    defparam drawonlastbaronly=true
//dispNum=7
//atrMult=0.25
//showbrokenFvg=0
//-----------------------------------------------//
// Atr calculation
//-----------------------------------------------//
if barindex<=200 and barindex>1 then
atr=averagetruerange[barindex](close)*atrMult
else
atr=averagetruerange[200](close)*atrMult
endif
//-----------------------------------------------//
// FVG Detection
//-----------------------------------------------//
fvgUp=low>high[2] and close[1]>high[2]
fvgDown=high<low[2] and close[1]<low[2]
ctop=max(close,open)
cbot=min(close,open)

if fvgUp and abs(low-high[2])>atr then
$fvgLeft[n+1]=barindex[1]
$fvgTop[n+1]=low
$fvgRight[n+1]=barindex
$fvgBot[n+1]=high[2]
$fvgMid[n+1]=(low+high[2])/2
$fvgDir[n+1]=1
$State[n+1]=0
n=n+1
endif

if fvgDown and abs(low[2]-high)>atr then
$fvgLeft[n+1]=barindex[1]
$fvgTop[n+1]=low[2]
$fvgRight[n+1]=barindex
$fvgBot[n+1]=high
$fvgMid[n+1]=(low[2]+high)/2
$fvgDir[n+1]=-1
$State[n+1]=0
n=n+1
endif

if islastbarupdate then
t1=0
FOR i = n DOWNTO 0 DO
t1=$fvgLeft[i]+1
if t1<barindex then
for j=barindex-t1 downto 0 do
IF $fvgDir[i] = 1 AND cbot[j] < $fvgBot[i] THEN
$invLeft[i] = $fvgLeft[i]
$invTop[i] = $fvgTop[i]
$invRight[i] = barindex[j]
$invBot[i] = $fvgBot[i]
$State[i] = 1
break
ENDIF
IF $fvgDir[i] = -1 AND ctop[j] > $fvgTop[i] THEN
$invLeft[i] = $fvgLeft[i]
$invTop[i] = $fvgTop[i]
$invRight[i] = barindex[j]
$invBot[i] = $fvgBot[i]
$State[i] = 1
break
ENDIF
next
endif
NEXT
count2=0
t2=0
for i=n downto 0 do
t2=$invRight[i]+1
if t2<barindex then
for j=barindex-t2 downto 0 do
if $fvgDir[i] = 1 and $State[i] = 1 and close[j] > $invTop[i] THEN
if count2<dispNum and showbrokenFvg then
drawrectangle($invLeft[i],$invTop[i],$invRight[i],$invBot[i])coloured("green",0)fillcolor("green",10)
drawsegment($invRight[i],$invTop[i],barindex[j],$invTop[i])coloured("yellow",100)style(dottedline)
endif
count2=count2+1
$State[i] = -1
break
endif
if $fvgDir[i] = -1 and $State[i] = 1 and close[j] < $invBot[i] THEN
if count2<dispNum and showbrokenFvg then
drawrectangle($invLeft[i],$invTop[i],$invRight[i],$invBot[i])coloured("red",0)fillcolor("red",10)
drawsegment($invRight[i],$invTop[i],barindex[j],$invTop[i])coloured("yellow",100)style(dottedline)
endif
count2=count2+1
$State[i] = -1
break
endif
next
endif
next

count=0
for i=n downto 0 do
if $State[i] = 1 and count < dispNum then
count=count+1
if $fvgDir[i]=1 then
//drawrectangle($invLeft[i],$invTop[i],$invRight[i],$invBot[i])coloured("green",0)fillcolor("green",50)
drawrectangle($invRight[i],$invTop[i],barindex+10,$invBot[i])coloured("red",0)fillcolor("red",50)
drawsegment($invLeft[i],($invBot[i]+$invTop[i])/2,barindex+10,($invBot[i]+$invTop[i])/2)coloured("white",150)style(dottedline3)

elsif $fvgDir[i]=-1 then
//drawrectangle($invLeft[i],$invTop[i],$invRight[i],$invBot[i])coloured("red",0)fillcolor("red",50)
drawrectangle($invRight[i],$invTop[i],barindex+10,$invBot[i])coloured("green",0)fillcolor("green",50)
drawsegment($invLeft[i],($invBot[i]+$invTop[i])/2,barindex+10,($invBot[i]+$invTop[i])/2)coloured("white",150)style(dottedline3)
endif
endif
next

endif

//-----------------------------------------------//
return
    06/19/2025 at 3:39 PM #248403 quote
    Iván González
    Moderator
    Master

    Bonjour. Voici un exemple de screener.
    J’ai créé un niveau de référence et l’ai stocké dans un tableau.

    dispNum=7
atrMult=0.25
//-----------------------------------------------//
// Atr calculation
//-----------------------------------------------//
if barindex<=200 and barindex>1 then
atr=averagetruerange[barindex](close)*atrMult
else
atr=averagetruerange[200](close)*atrMult
endif
//-----------------------------------------------//
// FVG Detection
//-----------------------------------------------//
fvgUp=low>high[2] and close[1]>high[2]
fvgDown=high<low[2] and close[1]<low[2]
ctop=max(close,open)
cbot=min(close,open)
// detectamos y almacenamos los fvg válidos alcistas
if fvgUp and abs(low-high[2])>atr then
$fvgLeft[n+1]=barindex[1]
$fvgTop[n+1]=low
$fvgRight[n+1]=barindex
$fvgBot[n+1]=high[2]
$fvgMid[n+1]=(low+high[2])/2
$fvgDir[n+1]=1
$State[n+1]=0
n=n+1
endif
// detectamos y almacenamos los fvg válidos bajistas
if fvgDown and abs(low[2]-high)>atr then
$fvgLeft[n+1]=barindex[1]
$fvgTop[n+1]=low[2]
$fvgRight[n+1]=barindex
$fvgBot[n+1]=high
$fvgMid[n+1]=(low[2]+high)/2
$fvgDir[n+1]=-1
$State[n+1]=0
n=n+1
endif

if islastbarupdate then
t1=0
FOR i = n DOWNTO 0 DO
t1=$fvgLeft[i]+1
if t1<barindex then
for j=barindex-t1 downto 0 do
IF $fvgDir[i] = 1 AND cbot[j] < $fvgBot[i] THEN
$invLeft[i] = $fvgLeft[i]
$invTop[i] = $fvgTop[i]
$invRight[i] = barindex[j]
$invBot[i] = $fvgBot[i]
$State[i] = 1
break
ENDIF
IF $fvgDir[i] = -1 AND ctop[j] > $fvgTop[i] THEN
$invLeft[i] = $fvgLeft[i]
$invTop[i] = $fvgTop[i]
$invRight[i] = barindex[j]
$invBot[i] = $fvgBot[i]
$State[i] = 1
break
ENDIF
next
endif
NEXT
count2=0
t2=0
for i=n downto 0 do
t2=$invRight[i]+1
if t2<barindex and $State[i] = 1 then
for j=barindex-t2 downto 0 do
if $fvgDir[i] = 1 and close[j] > $invTop[i] THEN
count2=count2+1
$State[i] = -1
break
endif
if $fvgDir[i] = -1 and close[j] < $invBot[i] THEN
count2=count2+1
$State[i] = -1
break
endif
next
endif
next
count=0
for i=n downto 0 do
if $State[i] = 1 and count < dispNum then
$levelPriceRef[count]=($invBot[i]+$invTop[i])/2
$levelIdxRef[count]=$invRight[i]
$DirRef[count]=$fvgDir[i]
count=count+1
endif
next
setup=0
for i=count downto 0 do
t3=$levelIdxRef[i]
if t3<barindex then
if high>$levelPriceRef[i] and low<$levelPriceRef[i] then
setup=1
dir=$DirRef[i]
break
endif
endif
next
endif

screener[setup ](dir)
    robertogozzi thanked this post
    06/20/2025 at 9:40 AM #248425 quote
    Alai-n
    Participant
    Veteran

    Bonjour Iván

    Super le Screener, un outil vraiment très bien…!

    Mais ma demande initiale portait sur un déclenchement d’ALERTE SONORE (+1/-1) sur un Indicateur dans une fenêtre sous le prix comme sur la photo jointe. Je viens de tenter quelque chose en m’inspirant de ton Screener, mais le résultat n’est pas satisfaisant.

    Du coup si tu avais une idée?

    (Il s’agirait de déclencher sur le CLOSE[1], pour éviter de nombreux déclenchements d’ALERTE durant la vie de le bougie en cours)

    06/20/2025 at 11:09 AM #248437 quote
    Iván González
    Moderator
    Master

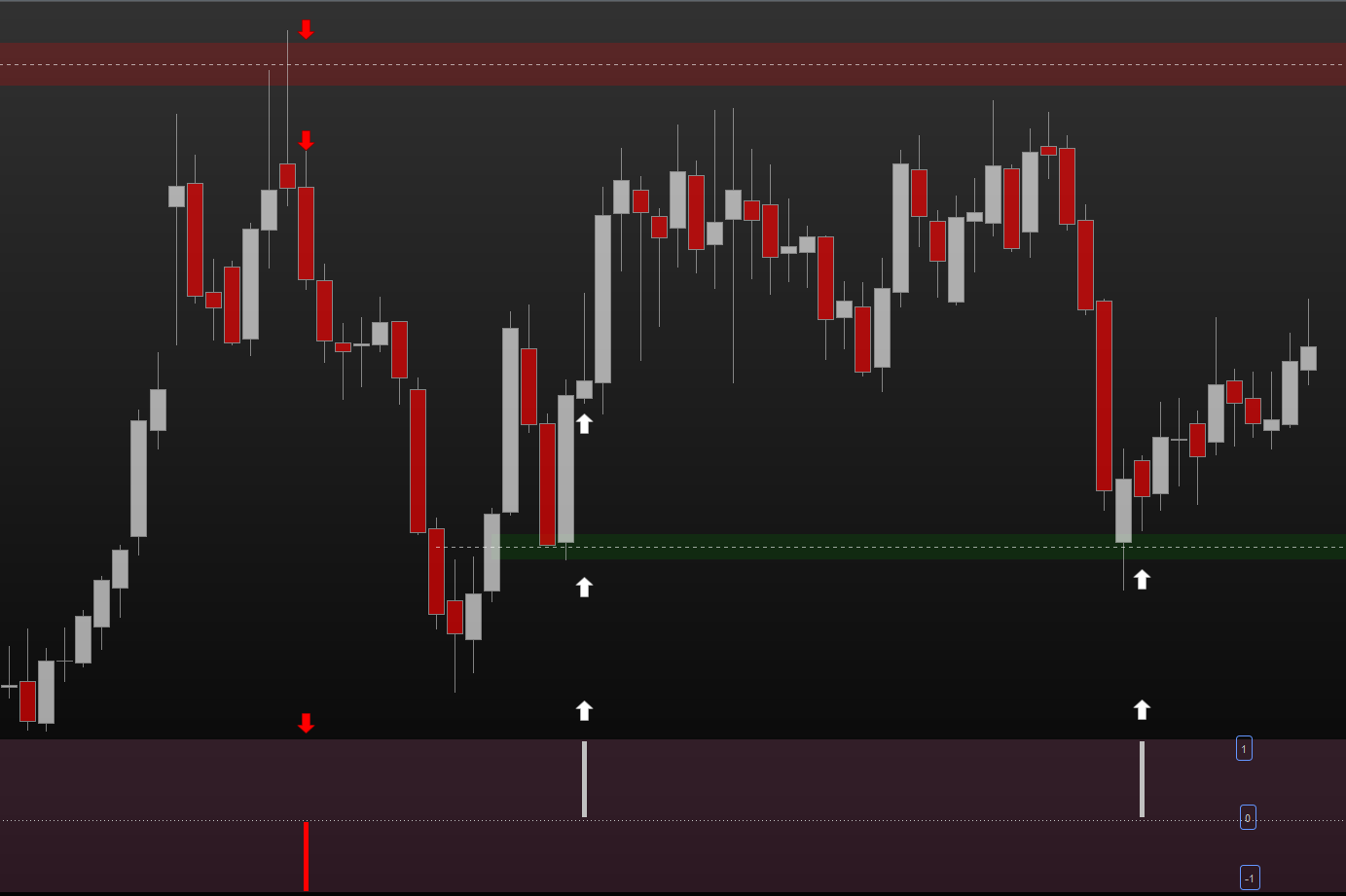

    Vous pouvez utiliser cet indicateur pour détecter des signaux dans le prix :

    defparam drawonlastbaronly=true
dispNum=7
atrMult=0.25
showbrokenFvg=0
//-----------------------------------------------//
// Atr calculation
//-----------------------------------------------//
if barindex<=200 and barindex>1 then
atr=averagetruerange[barindex](close)*atrMult
else
atr=averagetruerange[200](close)*atrMult
endif
//-----------------------------------------------//
// FVG Detection
//-----------------------------------------------//
fvgUp=low>high[2] and close[1]>high[2]
fvgDown=high<low[2] and close[1]<low[2]
ctop=max(close,open)
cbot=min(close,open)

if fvgUp and abs(low-high[2])>atr then
$fvgLeft[n+1]=barindex[1]
$fvgTop[n+1]=low
$fvgRight[n+1]=barindex
$fvgBot[n+1]=high[2]
$fvgMid[n+1]=(low+high[2])/2
$fvgDir[n+1]=1
$State[n+1]=0
n=n+1
endif

if fvgDown and abs(low[2]-high)>atr then
$fvgLeft[n+1]=barindex[1]
$fvgTop[n+1]=low[2]
$fvgRight[n+1]=barindex
$fvgBot[n+1]=high
$fvgMid[n+1]=(low[2]+high)/2
$fvgDir[n+1]=-1
$State[n+1]=0
n=n+1
endif

if islastbarupdate then
t1=0
FOR i = n DOWNTO 0 DO
t1=$fvgLeft[i]+1
if t1<barindex then
for j=barindex-t1 downto 0 do
IF $fvgDir[i] = 1 AND cbot[j] < $fvgBot[i] THEN
$invLeft[i] = $fvgLeft[i]
$invTop[i] = $fvgTop[i]
$invRight[i] = barindex[j]
$invBot[i] = $fvgBot[i]
$State[i] = 1
break
ENDIF
IF $fvgDir[i] = -1 AND ctop[j] > $fvgTop[i] THEN
$invLeft[i] = $fvgLeft[i]
$invTop[i] = $fvgTop[i]
$invRight[i] = barindex[j]
$invBot[i] = $fvgBot[i]
$State[i] = 1
break
ENDIF
next
endif
NEXT
count2=0
t2=0
for i=n downto 0 do
t2=$invRight[i]+1
if t2<barindex then
for j=barindex-t2 downto 0 do
if $fvgDir[i] = 1 and $State[i] = 1 and close[j] > $invTop[i] THEN
count2=count2+1
$State[i] = -1
break
endif
if $fvgDir[i] = -1 and $State[i] = 1 and close[j] < $invBot[i] THEN
count2=count2+1
$State[i] = -1
break
endif
next
endif
next

count=0
for i=n downto 0 do
if $State[i] = 1 and count < dispNum then
$levelPriceRef[count]=($invBot[i]+$invTop[i])/2
$levelIdxRef[count]=$invRight[i]
$DirRef[count]=$fvgDir[i]
count=count+1
endif
next
setup=0
for i=count downto 0 do
t3=$levelIdxRef[i]
if t3<barindex then
for j=barindex-(t3+1) downto 0 do
if high[j]>$levelPriceRef[i] and low[j]<$levelPriceRef[i] and $DirRef[i]=1 then
drawarrowdown(barindex[j],high[j])
elsif high[j]>$levelPriceRef[i] and low[j]<$levelPriceRef[i] and $DirRef[i]=-1 then
drawarrowup(barindex[j],low[j])
endif
next
endif
next
endif

//-----------------------------------------------//
return

    Et celui-ci pour créer une variable de configuration. Le seul problème est que seul le dernier jour est calculé.

    defparam drawonlastbaronly=true
dispNum=7
atrMult=0.25
showbrokenFvg=0
//-----------------------------------------------//
// Atr calculation
//-----------------------------------------------//
if barindex<=200 and barindex>1 then
atr=averagetruerange[barindex](close)*atrMult
else
atr=averagetruerange[200](close)*atrMult
endif
//-----------------------------------------------//
// FVG Detection
//-----------------------------------------------//
fvgUp=low>high[2] and close[1]>high[2]
fvgDown=high<low[2] and close[1]<low[2]
ctop=max(close,open)
cbot=min(close,open)

if fvgUp and abs(low-high[2])>atr then
$fvgLeft[n+1]=barindex[1]
$fvgTop[n+1]=low
$fvgRight[n+1]=barindex
$fvgBot[n+1]=high[2]
$fvgMid[n+1]=(low+high[2])/2
$fvgDir[n+1]=1
$State[n+1]=0
n=n+1
endif

if fvgDown and abs(low[2]-high)>atr then
$fvgLeft[n+1]=barindex[1]
$fvgTop[n+1]=low[2]
$fvgRight[n+1]=barindex
$fvgBot[n+1]=high
$fvgMid[n+1]=(low[2]+high)/2
$fvgDir[n+1]=-1
$State[n+1]=0
n=n+1
endif

if islastbarupdate then
t1=0
FOR i = n DOWNTO 0 DO
t1=$fvgLeft[i]+1
if t1<barindex then
for j=barindex-t1 downto 0 do
IF $fvgDir[i] = 1 AND cbot[j] < $fvgBot[i] THEN
$invLeft[i] = $fvgLeft[i]
$invTop[i] = $fvgTop[i]
$invRight[i] = barindex[j]
$invBot[i] = $fvgBot[i]
$State[i] = 1
break
ENDIF
IF $fvgDir[i] = -1 AND ctop[j] > $fvgTop[i] THEN
$invLeft[i] = $fvgLeft[i]
$invTop[i] = $fvgTop[i]
$invRight[i] = barindex[j]
$invBot[i] = $fvgBot[i]
$State[i] = 1
break
ENDIF
next
endif
NEXT
count2=0
t2=0
for i=n downto 0 do
t2=$invRight[i]+1
if t2<barindex then
for j=barindex-t2 downto 0 do
if $fvgDir[i] = 1 and $State[i] = 1 and close[j] > $invTop[i] THEN
count2=count2+1
$State[i] = -1
break
endif
if $fvgDir[i] = -1 and $State[i] = 1 and close[j] < $invBot[i] THEN
count2=count2+1
$State[i] = -1
break
endif
next
endif
next

count=0
for i=n downto 0 do
if $State[i] = 1 and count < dispNum then
$levelPriceRef[count]=($invBot[i]+$invTop[i])/2
$levelIdxRef[count]=$invRight[i]
$DirRef[count]=$fvgDir[i]
count=count+1
endif
next
setup=0
for i=count downto 0 do
t3=$levelIdxRef[i]
if t3<barindex then
for j=barindex-(t3+1) downto 0 do
if high[j]>$levelPriceRef[i] and low[j]<$levelPriceRef[i] and $DirRef[i]=1 then
setup=-1
elsif high[j]>$levelPriceRef[i] and low[j]<$levelPriceRef[i] and $DirRef[i]=-1 then
setup=1
else
setup=0
endif
next
endif
next
endif

//-----------------------------------------------//
return 0 as "zero", setup
    Alai-n thanked this post
    06/20/2025 at 11:51 AM #248443 quote
    Alai-n
    Participant
    Veteran

    Tout a l’air de fonctionner parfaitement comme tu le décris.

    Mais en effet c’est un problème que le deuxième code ne déclenche seulement que sûr le dernier IFVG. J’imagine que tu n’as pas d’autres solutions, sinon tu l’aurais mise en place. Encore merci

    07/28/2025 at 3:47 PM #249162 quote
    slimanb
    Participant
    New

    bonjour

    marci pour la reponse rapide

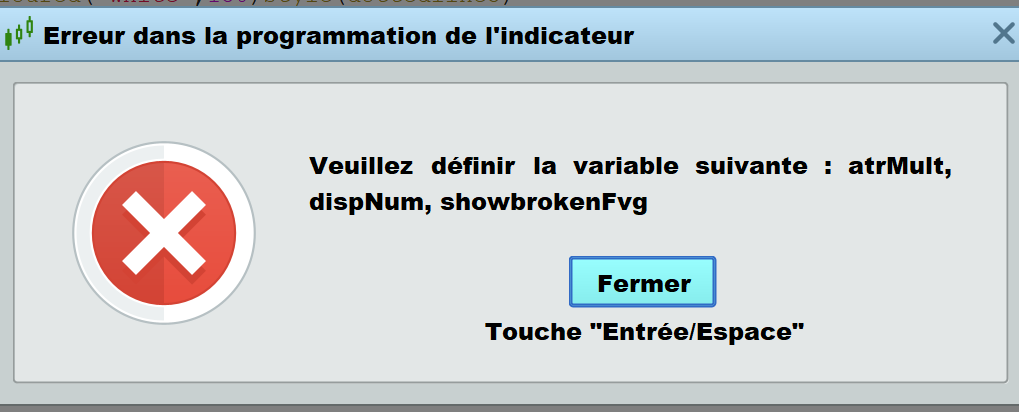

    quand j’active l’in dicateur je recois le signal erreur : définir les variabled:atrMult,dispNum,ShowbrokenFvg

    cordialement

    07/28/2025 at 3:56 PM #249166 quote
    robertogozzi
    Moderator
    Master

    Ces variables sont définies sur les lignes 2, 3 et 4.

    Iván González thanked this post
  • Author
    Posts
Viewing 7 posts - 1 through 7 (of 7 total)
  • You must be logged in to reply to this topic.

Créer une Alerte sur test IFVG


ProBuilder : Indicateurs & Outils Personnalisés

New Reply
Author
author-avatar
Alai-n @alai-n Participant
Summary

This topic contains 6 replies,
has 4 voices, and was last updated by robertogozzi
6 months, 1 week ago.

Topic Details
Forum: ProBuilder : Indicateurs & Outils Personnalisés
Language: French
Started: 06/17/2025
Status: Active
Attachments: 3 files
Logo Logo
Loading...
Do you like cookies? 🍪 We use cookies to ensure you get the best experience on our website. (Learn more)
©2026 ProRealCode - Trading & Coding with ProRealTime™
