Création boite Asie et projections fibo

• 01/02/2022 at 9:41 PM #184364
  Lifen



  Bonjour,

  Tout d’abord, je vous souhaite une bonne et heureuse année 2022 !

  Je me permets de vous solliciter car j’aurais besoin d’aide pour créer un indicateur qui se renouvellerait tous les jours et dont les principes sont :

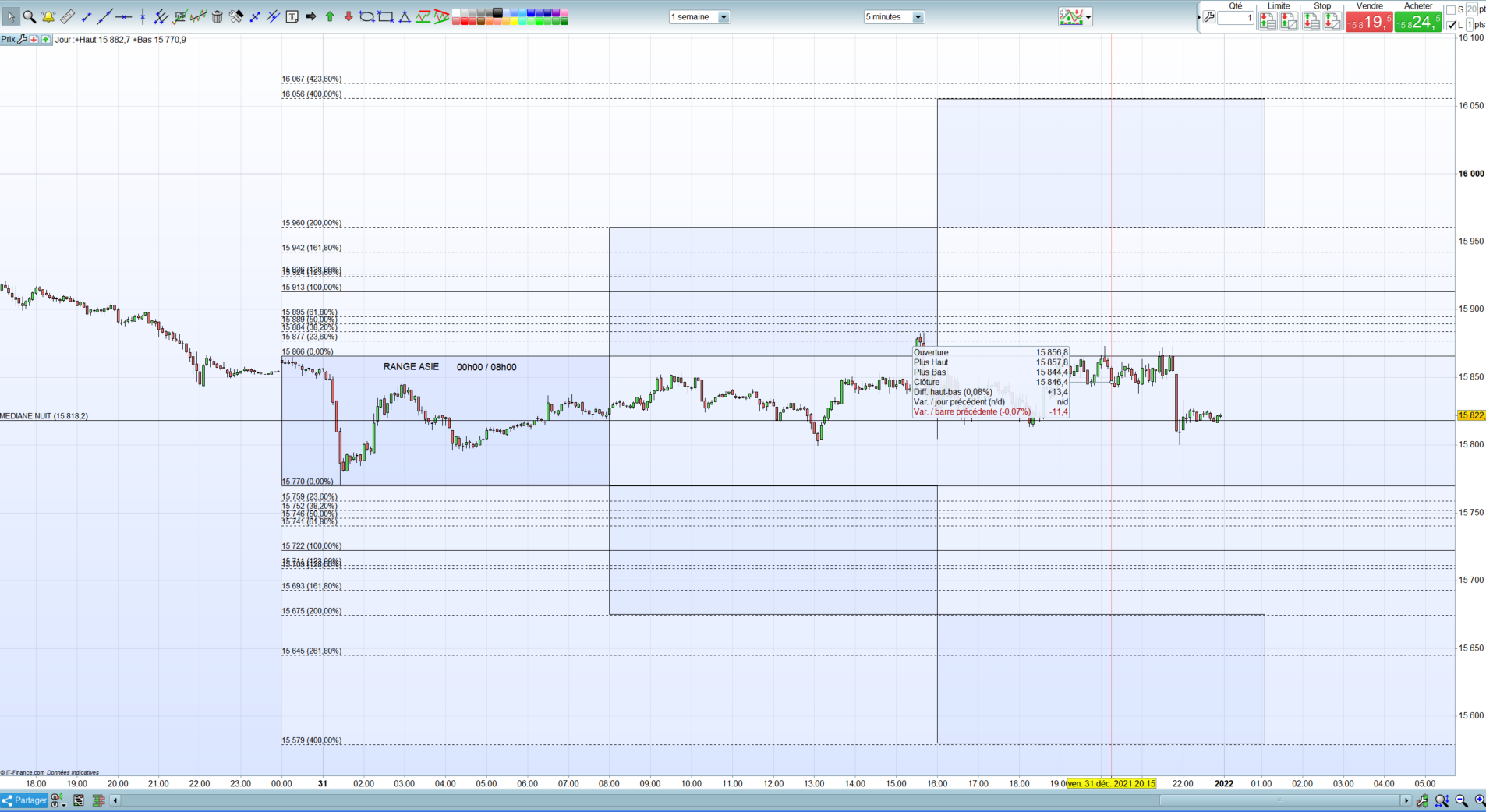

  • Création de la boite Asie en partant des horaires 00h00/08h00
  • Identification par une ligne horizontale de la médiane de cette boite Asie
  • Projection des niveaux de Fibonacci en partant de la médiane de la boite jusqu’au haut de la boite pour l’écart type qui sera à projeter avec les fibo à partir du haut de cette boite
  • Projection des niveaux de Fibonacci en partant de la médiane de la boite jusqu’au bas de la boite pour l’écart type qui sera à projeter avec les fibo à partir du bas de cette boite



  Vous remerciant par avance de votre attention et aide.

  Bien à vous



  Lifen

  Participant

  Topics: 5

  Replies: 28

  Been thanked: 3 times
  01/05/2022 at 11:28 PM #184683
  JC_Bywan

  Bonne année à toi aussi, à tester (ou que tu peux modifier facilement si par exemple tu ne veux pas le texte, ou le placer ailleurs, ou ajouter ou enlever des niveaux, etc…)

  if opentime[1]>opentime then startboxbar=barindex ll=low hh=high endif if opentime<080000 then ll=min(ll,low) hh=max(hh,high) endif if opentime[1]<080000 and opentime>=080000 then med=(ll+hh)/2 delta=hh-med h16=opendate*1000000+160000 h24=opendate*1000000+235900 custombar=(barindex+startboxbar)/2 textbar=(startboxbar+custombar)/2 DRAWRECTANGLE(startboxbar, ll, barindex, hh) DRAWSEGMENT(startboxbar, med, datetobarindex(h24), med) DRAWRECTANGLE(barindex, hh, datetobarindex(h16), hh+2*delta) DRAWSEGMENT(custombar, hh+delta, datetobarindex(h24), hh+delta) DRAWSEGMENT(custombar, hh+0.236*delta, datetobarindex(h24), hh+0.236*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+0.382*delta, datetobarindex(h24), hh+0.382*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+0.618*delta, datetobarindex(h24), hh+0.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+1.236*delta, datetobarindex(h24), hh+1.236*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+1.382*delta, datetobarindex(h24), hh+1.382*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+1.618*delta, datetobarindex(h24), hh+1.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+2*delta, datetobarindex(h24), hh+2*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+2.618*delta, datetobarindex(h24), hh+2.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+4*delta, datetobarindex(h24), hh+4*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+4.236*delta, datetobarindex(h24), hh+4.236*delta) style(dottedline,1) DRAWTEXT("23.6%", textbar, hh+0.236*delta) DRAWTEXT("38.2%", textbar, hh+0.382*delta) DRAWTEXT("61.8%", textbar, hh+0.618*delta) DRAWTEXT("100%", textbar, hh+delta) DRAWTEXT("123.6%", textbar, hh+1.236*delta) DRAWTEXT("138.2%", textbar, hh+1.382*delta) DRAWTEXT("161.8%", textbar, hh+1.618*delta) DRAWTEXT("200%", textbar, hh+2*delta) DRAWTEXT("261.8%", textbar, hh+2.618*delta) DRAWTEXT("400%", textbar, hh+4*delta) DRAWTEXT("423.6%", textbar, hh+4.236*delta) DRAWRECTANGLE(barindex, ll, datetobarindex(h16), ll-2*delta) DRAWSEGMENT(custombar, ll-delta, datetobarindex(h24), ll-delta) DRAWSEGMENT(custombar, ll-0.236*delta, datetobarindex(h24), ll-0.236*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-0.382*delta, datetobarindex(h24), ll-0.382*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-0.618*delta, datetobarindex(h24), ll-0.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-1.236*delta, datetobarindex(h24), ll-1.236*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-1.382*delta, datetobarindex(h24), ll-1.382*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-1.618*delta, datetobarindex(h24), ll-1.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-2*delta, datetobarindex(h24), ll-2*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-2.618*delta, datetobarindex(h24), ll-2.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-4*delta, datetobarindex(h24), ll-4*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-4.236*delta, datetobarindex(h24), ll-4.236*delta) style(dottedline,1) DRAWTEXT("23.6%", textbar, ll-0.236*delta) DRAWTEXT("38.2%", textbar, ll-0.382*delta) DRAWTEXT("61.8%", textbar, ll-0.618*delta) DRAWTEXT("100%", textbar, ll-delta) DRAWTEXT("123.6%", textbar, ll-1.236*delta) DRAWTEXT("138.2%", textbar, ll-1.382*delta) DRAWTEXT("161.8%", textbar, ll-1.618*delta) DRAWTEXT("200%", textbar, ll-2*delta) DRAWTEXT("261.8%", textbar, ll-2.618*delta) DRAWTEXT("400%", textbar, ll-4*delta) DRAWTEXT("423.6%", textbar, ll-4.236*delta) DRAWRECTANGLE(datetobarindex(h16), hh+2*delta, datetobarindex(h24), hh+4*delta) DRAWRECTANGLE(datetobarindex(h16), ll-2*delta, datetobarindex(h24), ll-4*delta) endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76

  if opentime[1]>opentime then startboxbar=barindex ll=low hh=high endif if opentime<080000 then ll=min(ll,low) hh=max(hh,high) endif if opentime[1]<080000 and opentime>=080000 then med=(ll+hh)/2 delta=hh-med h16=opendate*1000000+160000 h24=opendate*1000000+235900 custombar=(barindex+startboxbar)/2 textbar=(startboxbar+custombar)/2 DRAWRECTANGLE(startboxbar, ll, barindex, hh) DRAWSEGMENT(startboxbar, med, datetobarindex(h24), med)   DRAWRECTANGLE(barindex, hh, datetobarindex(h16), hh+2*delta) DRAWSEGMENT(custombar, hh+delta, datetobarindex(h24), hh+delta)   DRAWSEGMENT(custombar, hh+0.236*delta, datetobarindex(h24), hh+0.236*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+0.382*delta, datetobarindex(h24), hh+0.382*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+0.618*delta, datetobarindex(h24), hh+0.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+1.236*delta, datetobarindex(h24), hh+1.236*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+1.382*delta, datetobarindex(h24), hh+1.382*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+1.618*delta, datetobarindex(h24), hh+1.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+2*delta, datetobarindex(h24), hh+2*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+2.618*delta, datetobarindex(h24), hh+2.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+4*delta, datetobarindex(h24), hh+4*delta) style(dottedline,1) DRAWSEGMENT(custombar, hh+4.236*delta, datetobarindex(h24), hh+4.236*delta) style(dottedline,1)   DRAWTEXT("23.6%", textbar, hh+0.236*delta) DRAWTEXT("38.2%", textbar, hh+0.382*delta) DRAWTEXT("61.8%", textbar, hh+0.618*delta) DRAWTEXT("100%", textbar, hh+delta) DRAWTEXT("123.6%", textbar, hh+1.236*delta) DRAWTEXT("138.2%", textbar, hh+1.382*delta) DRAWTEXT("161.8%", textbar, hh+1.618*delta) DRAWTEXT("200%", textbar, hh+2*delta) DRAWTEXT("261.8%", textbar, hh+2.618*delta) DRAWTEXT("400%", textbar, hh+4*delta) DRAWTEXT("423.6%", textbar, hh+4.236*delta)   DRAWRECTANGLE(barindex, ll, datetobarindex(h16), ll-2*delta) DRAWSEGMENT(custombar, ll-delta, datetobarindex(h24), ll-delta)   DRAWSEGMENT(custombar, ll-0.236*delta, datetobarindex(h24), ll-0.236*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-0.382*delta, datetobarindex(h24), ll-0.382*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-0.618*delta, datetobarindex(h24), ll-0.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-1.236*delta, datetobarindex(h24), ll-1.236*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-1.382*delta, datetobarindex(h24), ll-1.382*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-1.618*delta, datetobarindex(h24), ll-1.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-2*delta, datetobarindex(h24), ll-2*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-2.618*delta, datetobarindex(h24), ll-2.618*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-4*delta, datetobarindex(h24), ll-4*delta) style(dottedline,1) DRAWSEGMENT(custombar, ll-4.236*delta, datetobarindex(h24), ll-4.236*delta) style(dottedline,1)   DRAWTEXT("23.6%", textbar, ll-0.236*delta) DRAWTEXT("38.2%", textbar, ll-0.382*delta) DRAWTEXT("61.8%", textbar, ll-0.618*delta) DRAWTEXT("100%", textbar, ll-delta) DRAWTEXT("123.6%", textbar, ll-1.236*delta) DRAWTEXT("138.2%", textbar, ll-1.382*delta) DRAWTEXT("161.8%", textbar, ll-1.618*delta) DRAWTEXT("200%", textbar, ll-2*delta) DRAWTEXT("261.8%", textbar, ll-2.618*delta) DRAWTEXT("400%", textbar, ll-4*delta) DRAWTEXT("423.6%", textbar, ll-4.236*delta)   DRAWRECTANGLE(datetobarindex(h16), hh+2*delta, datetobarindex(h24), hh+4*delta) DRAWRECTANGLE(datetobarindex(h16), ll-2*delta, datetobarindex(h24), ll-4*delta) endif   return



  1 user thanked author for this post.

  Lifen



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2742

  Been thanked: 1014 times
  01/09/2022 at 2:19 PM #184947
  Lifen

  Bonjour, merci pour ton aide, j’ai essayé d’implanter le code mais cela ne fonctionne pas. J’ai un message d’erreur, Ligne 18, caractère 34 : Merci de compléter la syntaxe de cette ligne. Je présume qu’il s’agit de la date à indiquer ? mais si je mets 0701, cela ne fonctionne pas mieux. Merci de regarder pour voir si c’est possible de remédier à ce bug. Bon dimanche



  Lifen

  Participant

  Topics: 5

  Replies: 28

  Been thanked: 3 times
  01/09/2022 at 2:41 PM #184949
  fifi743

  surement un problème de copier coller



  2 users thanked author for this post.

  Lifen, JC_Bywan



  fifi743

  Participant

  Topics: 10

  Replies: 984

  Been thanked: 477 times
