Convert X-bars Fractals Indicator (Serhii Ivanenko, MQL5) to ProRealTime

• 08/11/2025 at 12:21 PM #249620
  David1998P

  Fractals are used to identify market structure — a moment t where:

  Down fractal:
  Low(t) <= Lowest(t-a, t+b)
  for the minimum in domain [t-a, t+b]

  Up fractal:
  High(t) >= Highest(t-a, t+b)
  for the maximum in domain [t-a, t+b]

  Example:
  If lookback = 20 and a = b = 3

  Assume that at time t = i = 10 (bar index, where 0 is current, 1 is previous, n is nth bar, etc.):
  Lowest(10-3, 10+3) → Lowest(7 to 13) = Low(10)
  Then t = 10 is a down fractal.

  Reference:

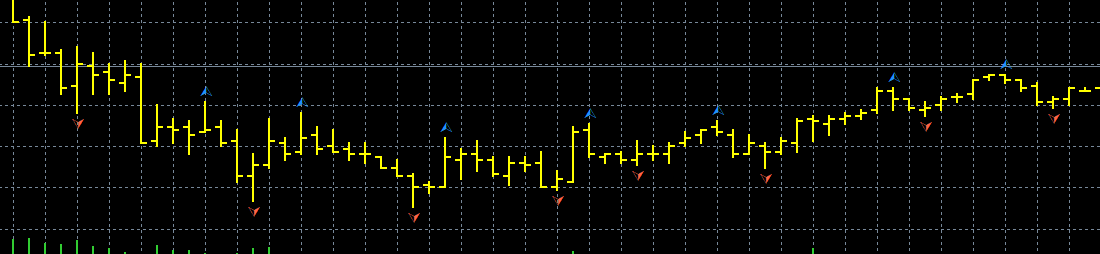

  Here is the code of the existing indicator (X-bars Fractals from Serhii Ivanenko) that would be great to convert for ProRealTime users:
  https://www.mql5.com/en/code/1381

  Thank you !



  David1998P

  Participant

  Topics: 5

  Replies: 8

  Been thanked: 0 times
  08/11/2025 at 3:02 PM #249627
  JS

  Hi,

  Try this one…

  x-Bar Fractals

  Once NLB=5 //Number Left Bars Once NRB=5 //Numer Right Bars TB=NLB+NRB //TotalBars fp=NRB+1 //fp=fractal point If High[fp]=Highest[TB+1](High) then DrawArrowUp(BarIndex-fp,High[fp]) Coloured("Blue") EndIf If Low[fp]=Lowest[TB+1](Low) then DrawArrowDown(BarIndex-fp,Low[fp]) Coloured("Green") endIf Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

  Once NLB=5 //Number Left Bars Once NRB=5 //Numer Right Bars     TB=NLB+NRB //TotalBars fp=NRB+1 //fp=fractal point   If High[fp]=Highest[TB+1](High) then DrawArrowUp(BarIndex-fp,High[fp]) Coloured("Blue") EndIf   If Low[fp]=Lowest[TB+1](Low) then DrawArrowDown(BarIndex-fp,Low[fp]) Coloured("Green") endIf   Return



  1 user thanked author for this post.

  robertogozzi



  JS

  Participant

  Topics: 29

  Replies: 2309

  Been thanked: 1349 times
  08/13/2025 at 9:54 AM #249692
  David1998P

  Thanks but it does not work…



  David1998P

  Participant

  Topics: 5

  Replies: 8

  Been thanked: 0 times
  08/13/2025 at 10:17 AM #249695
  JS

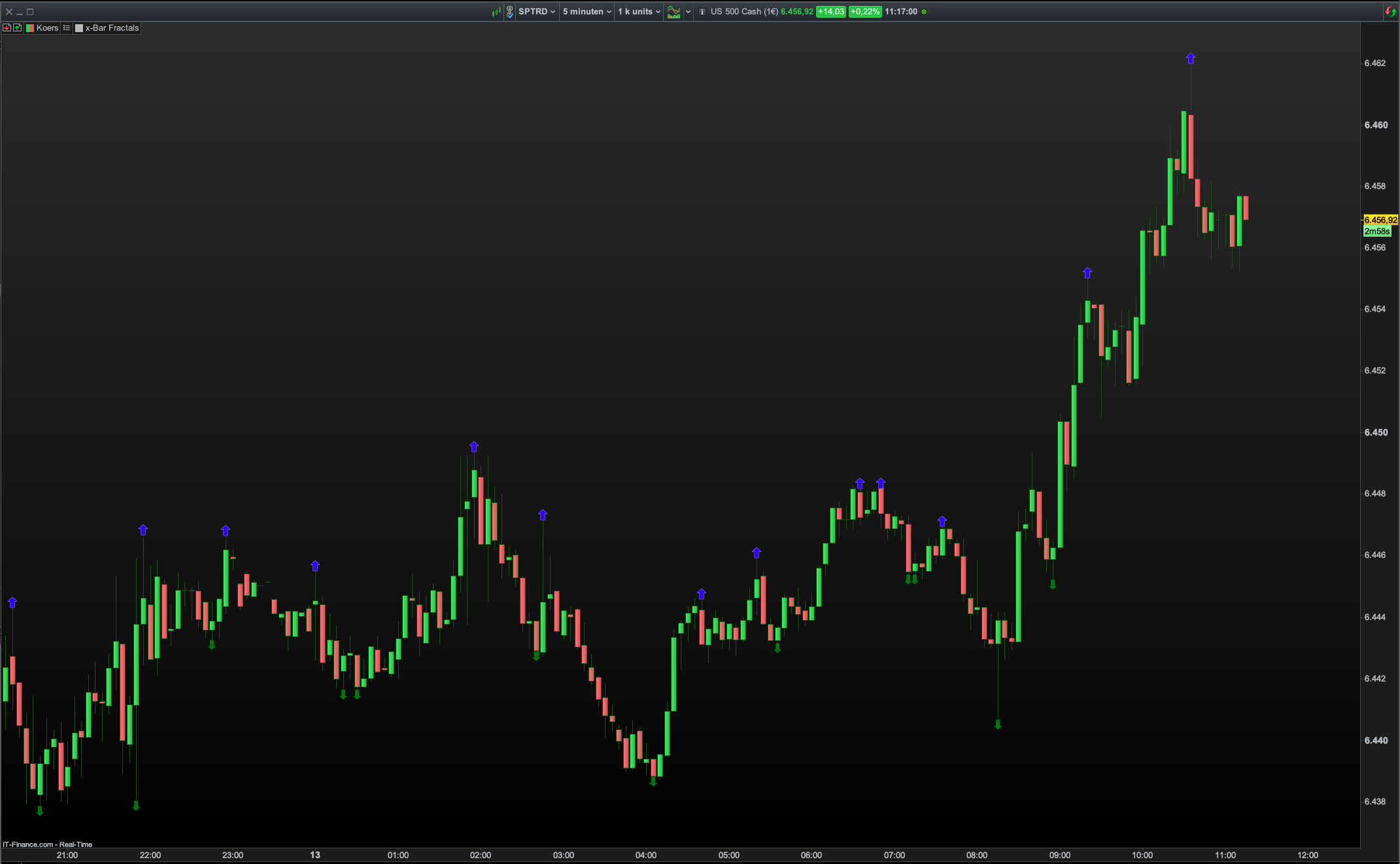

  Have you tried it, because it works fine for me…

  What doesn’t work…?



  JS

  Participant

  Topics: 29

  Replies: 2309

  Been thanked: 1349 times
  08/14/2025 at 12:29 PM #249753
  David1998P

  When I tried it yesterday during regular trading hours, it didn’t work. Now that I’ve tried it when the market is closed, it mostly works. This happens sometimes to me with other indicators as well. I wonder why…

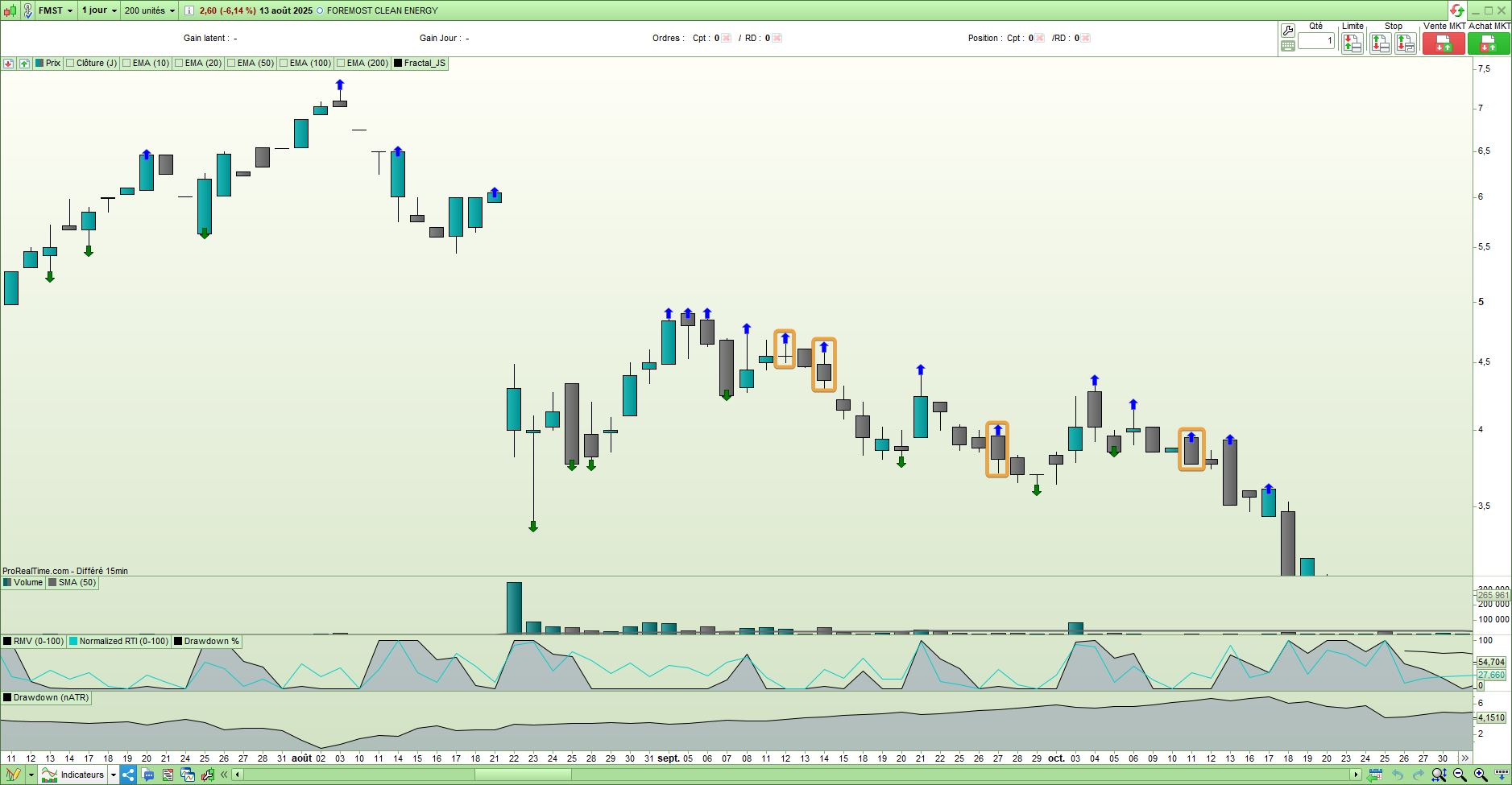

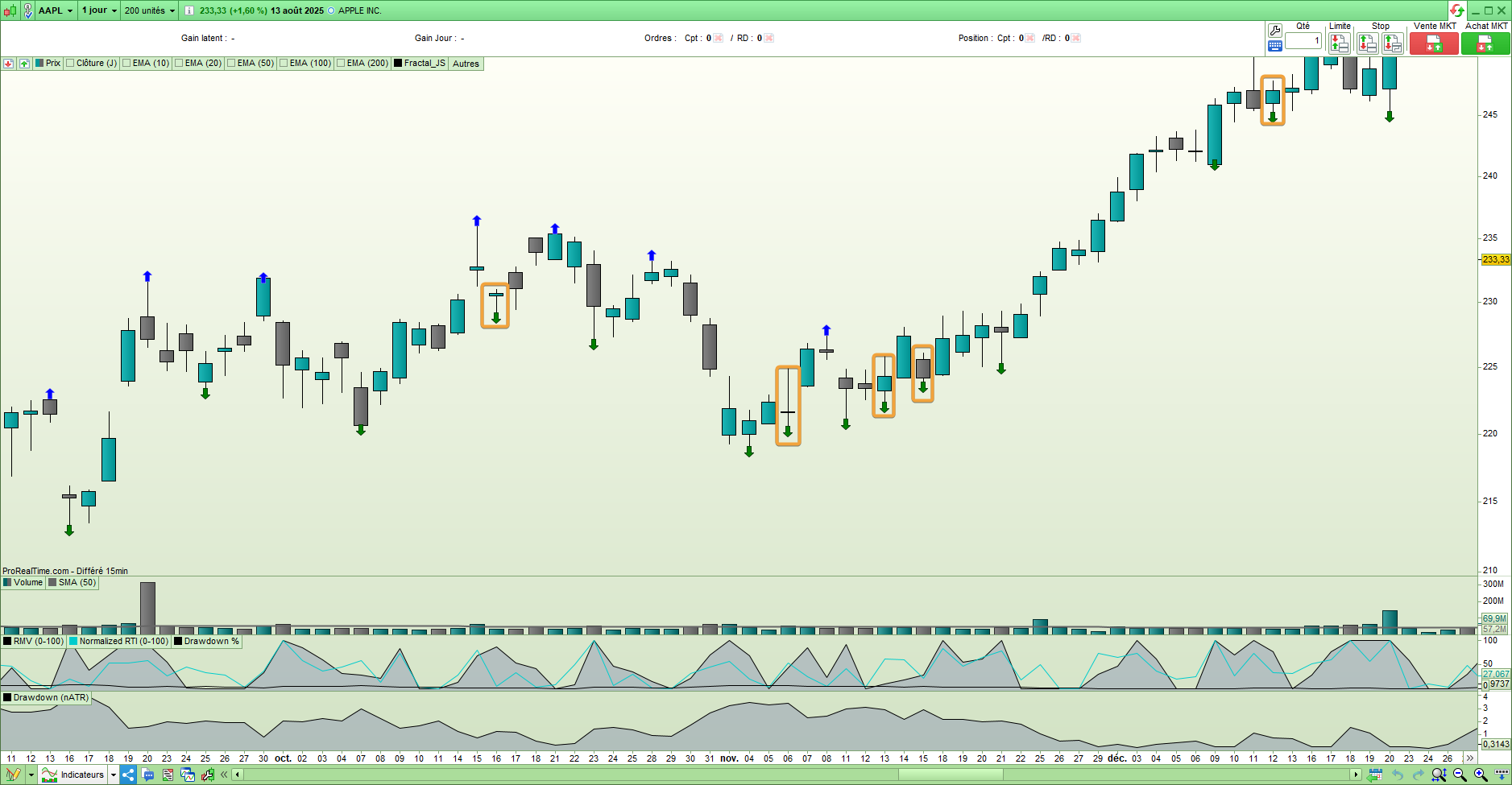

  But there are many false positives. Take a look at the screenshots here where NLB and NRB = 2; there are many examples of the displayed fractal not being the local min or max of the candle range (t-2, t+2, so in total 5 candles). Do you know why this happens?



  David1998P

  Participant

  Topics: 5

  Replies: 8

  Been thanked: 0 times
  08/14/2025 at 1:19 PM #249761
  JS

  Hi,

  Try this one… (small addition error)

  x-Bar Fractals

  Once NLB=2 //Number Left Bars Once NRB=2 //Numer Right Bars TB=NLB+NRB //TotalBars fp=NRB //fp=fractal point If High[fp]=Highest[TB+1](High) then DrawArrowUp(BarIndex-fp,High[fp]) Coloured("Blue") EndIf If Low[fp]=Lowest[TB+1](Low) then DrawArrowDown(BarIndex-fp,Low[fp]) Coloured("Green") endIf Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

  Once NLB=2 //Number Left Bars Once NRB=2 //Numer Right Bars     TB=NLB+NRB //TotalBars fp=NRB //fp=fractal point   If High[fp]=Highest[TB+1](High) then DrawArrowUp(BarIndex-fp,High[fp]) Coloured("Blue") EndIf   If Low[fp]=Lowest[TB+1](Low) then DrawArrowDown(BarIndex-fp,Low[fp]) Coloured("Green") endIf   Return



  1 user thanked author for this post.

  David1998P



  JS

  Participant

  Topics: 29

  Replies: 2309

  Been thanked: 1349 times
