Conversion of Imirror from MT4 to ProRealTime

• 01/06/2023 at 8:45 AM #206863
  gadetrading

  Hello.

  I have found an MT4 indicator that mirrors the chart. It will flip the chart. For example, if the market is uptrending it will then be downtrending and vice versa. It creates a mirror image within the chart. This allows me to train my ability to look at downtrending markets, as I struggle with this. Preferably, I would like the color of the bars to be grey when it is a negative bar and white when it is a positive bar. I will then hide the original bars from the chart.

  Any help converting this is greatly appreciated.



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  01/06/2023 at 8:46 AM #206865
  gadetrading

  I did not figure out how to attach multiple files, so I will attach an image in this reply.



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  01/06/2023 at 10:36 AM #206876
  JS

  • Interesting Thesis about inverting charts : Forum ProRealTime platform support – ProRealTime

  2 users thanked author for this post.

  gadetrading, Nicolas



  JS

  Participant

  Topics: 27

  Replies: 2038

  Been thanked: 1086 times
  01/06/2023 at 6:04 PM #206914
  gadetrading

  Thank you @JS

  I found the “TAC Invert Price” indicator in the post you linked to. That is what I was looking for.

  Have a good weekend, Andreas

  1 user thanked author for this post.

  JS



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  01/06/2023 at 6:56 PM #206921
  gadetrading

  Hello @JS

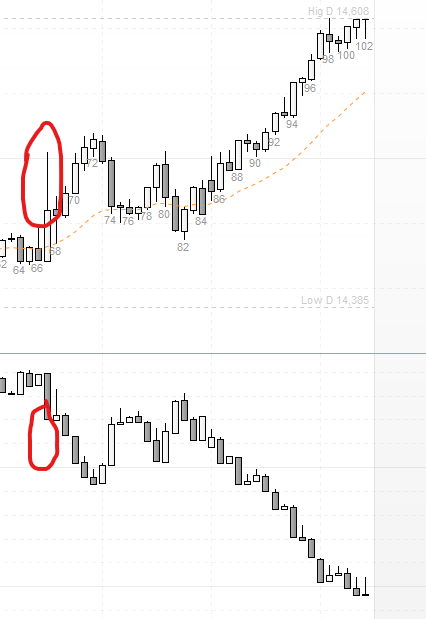

  I was wondering if it is possible to also make it display all tails on bars?

  //invert=1 If Invert=1 then If close>= open then DRAWCANDLE(-open, -high, -low, -close) coloured(153,153,153,255) else DRAWCANDLE(-open, -high, -low, -close) coloured(255,255,255,255) endif endif If Invert=0 then If close>= open then DRAWCANDLE(open, high, low, close) coloured(153,153,153,255) else DRAWCANDLE(open, high, low, close) coloured(255,255,255,255) endif endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

  //invert=1 If Invert=1 then If close>= open then DRAWCANDLE(-open, -high, -low, -close) coloured(153,153,153,255) else DRAWCANDLE(-open, -high, -low, -close) coloured(255,255,255,255) endif endif If Invert=0 then If close>= open then DRAWCANDLE(open, high, low, close) coloured(153,153,153,255) else DRAWCANDLE(open, high, low, close) coloured(255,255,255,255) endif endif return



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  01/06/2023 at 8:11 PM #206928
  JS

  Hi @gadetrading

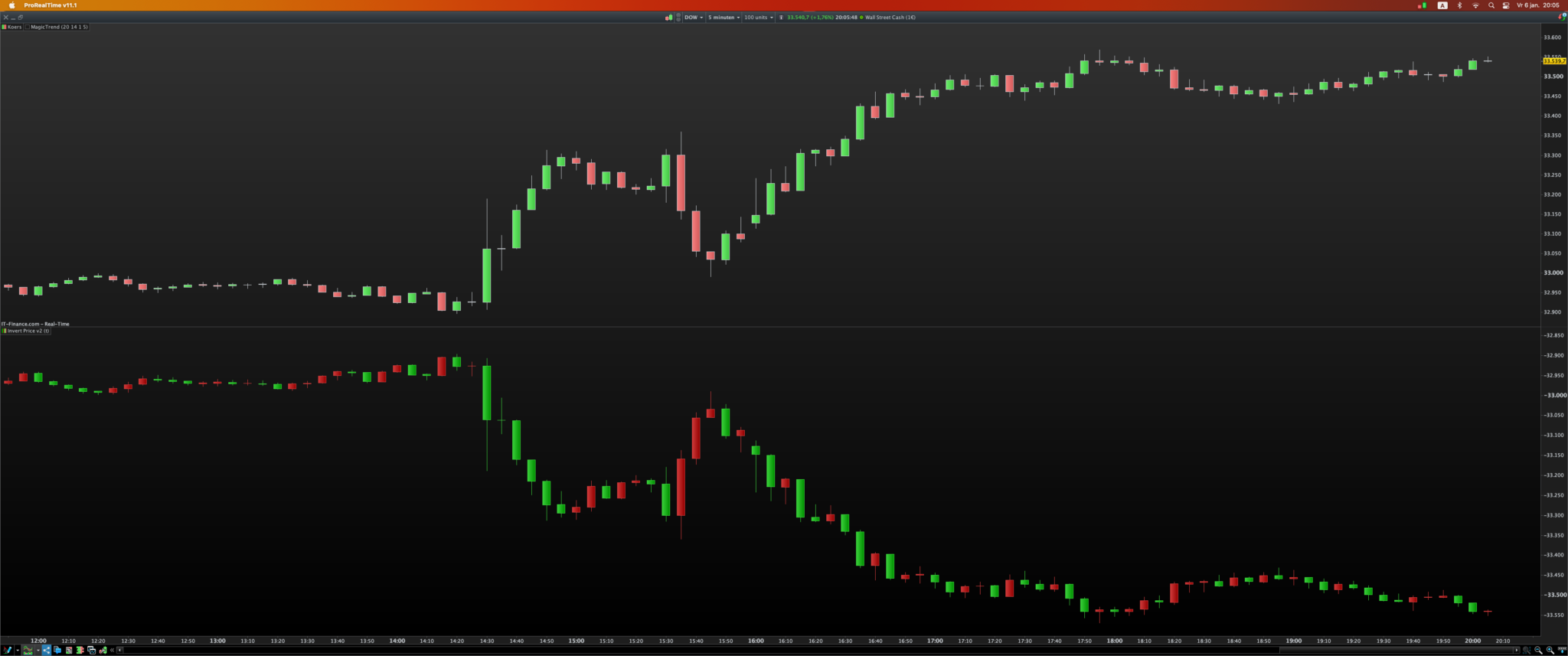

  Hereby the mirrored candles with “tails”…

  Invert Price v2

  If Invert=1 then xOpen = -1 * Open xHigh = -1 * Low xLow = -1 * High xClose = -1 * Close If close>= open then DRAWCANDLE(xOpen, xHigh, xLow, xClose) coloured(0,150,0,255) else DRAWCANDLE(xOpen, xHigh, xLow, xClose) coloured(150,0,0,255) endif endif If Invert=0 then If close>= open then DRAWCANDLE(open, high, low, close) coloured(0,150,0,255) else DRAWCANDLE(open, high, low, close) coloured(150,0,0,255) endif endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

  If Invert=1 then xOpen = -1 * Open xHigh = -1 * Low xLow = -1 * High xClose = -1 * Close   If close>= open then DRAWCANDLE(xOpen, xHigh, xLow, xClose) coloured(0,150,0,255) else DRAWCANDLE(xOpen, xHigh, xLow, xClose) coloured(150,0,0,255) endif endif   If Invert=0 then If close>= open then DRAWCANDLE(open, high, low, close) coloured(0,150,0,255) else DRAWCANDLE(open, high, low, close) coloured(150,0,0,255) endif endif   return

  1 user thanked author for this post.

  gadetrading



  JS

  Participant

  Topics: 27

  Replies: 2038

  Been thanked: 1086 times
