  • 02/12/2025 at 5:07 PM #243750 quote
    reb
    Participant
    Master

    Hello to the PRT masters,

    Would you be so kind to adapt the following TradingView code into a PRT code ?

    indicator(“Predictive Ranges [LuxAlgo]”, “LuxAlgo – Predictive Ranges”, overlay = true)
    //——————————————————————————
    //Settings
    //—————————————————————————–{
    length = input.int(200, ‘Length’, minval = 2)
    mult   = input.float(6., ‘Factor’, minval = 0, step = .5)
    tf     = input.timeframe(”, ‘Timeframe’)
    src    = input(close, ‘Source’)
    //—————————————————————————–}
    //Function
    //—————————————————————————–{
    pred_ranges(length, mult)=>
        var avg = src
        var hold_atr = 0.
        atr = nz(ta.atr(length)) * mult
        avg:=src-avg>atr?avg+atr:
          avg-src>atr?avg-atr:
          avg
        hold_atr := avg != avg[1] ? atr / 2 : hold_atr
        [avg + hold_atr * 2, avg + hold_atr, avg, avg – hold_atr, avg – hold_atr * 2]
    //—————————————————————————–}
    //Calculation
    //—————————————————————————–{
    [prR2
      , prR1
      , avg
      , prS1
      , prS2] = request.security(syminfo.tickerid, tf, pred_ranges(length, mult))
    //—————————————————————————–}
    //Plots
    //—————————————————————————–{
    plot_pru2  = plot(prR2, ‘PR Upper 2’, avg != avg[1] ? na : #f23645)
    plot_pru1  = plot(prR1, ‘PR Upper 1’, avg != avg[1] ? na : #f23645)
    plot_pravg = plot(avg , ‘PR Average’, avg != avg[1] ? na : #5b9cf6)
    plot_prl1  = plot(prS1, ‘PR Lower 1’, avg != avg[1] ? na : #089981)
    plot_prl2  = plot(prS2, ‘PR Lower 2’, avg != avg[1] ? na : #089981)
    //Fills
    fill(plot_pru2, plot_pru1, avg != avg[1] ? na : color.new(#f23645, 95))
    fill(plot_prl1, plot_prl2, avg != avg[1] ? na : color.new(#089981, 95))
    //—————————————————————————–}
    Thanks in advance,
    Reb
    02/13/2025 at 10:48 AM #243762 quote
    Iván González
    Moderator
    Master

    Hi. Here you have the code: https://www.prorealcode.com/prorealtime-indicators/predictive-ranges-indicator/

    //--------------------------------------//
//PRC_Predictive Ranges
//version = 0
//13.02.2025
//Iván González @ www.prorealcode.com
//Sharing ProRealTime knowledge
//--------------------------------------//
// inputs
//--------------------------------------//
length=200 // Length
mult= 6 // Factor
src=close
//--------------------------------------//
// Calculations
//--------------------------------------//
atr=averagetruerange[length](close)*mult
once avg=src

if src-avg > atr then
avg=avg+atr
elsif avg-src > atr then
avg=avg-atr
else
avg=avg
endif

if avg<>avg[1] then
holdAtr=atr/2
alpha=0
else
holdAtr=holdAtr
alpha=255
endif
//--------------------------------------//
// Supports and Resistances
//--------------------------------------//
prR2=avg+holdAtr*2
prR1=avg+holdAtr
prS1=avg-holdAtr
prS2=avg-holdAtr*2
//--------------------------------------//
// Plot
//--------------------------------------//
colorbetween(prR2,prR1,"red",alpha*0.05)
colorbetween(prS1,prS2,"green",alpha*0.05)
//--------------------------------------//
return avg coloured("blue",alpha),prR2 coloured("red",alpha),prR1 coloured("red",alpha),prS1 coloured("green",alpha),prS2 coloured("green",alpha)
    02/14/2025 at 7:05 AM #243819 quote
    reb
    Participant
    Master

    Hi Ivan

    Well done, nice job

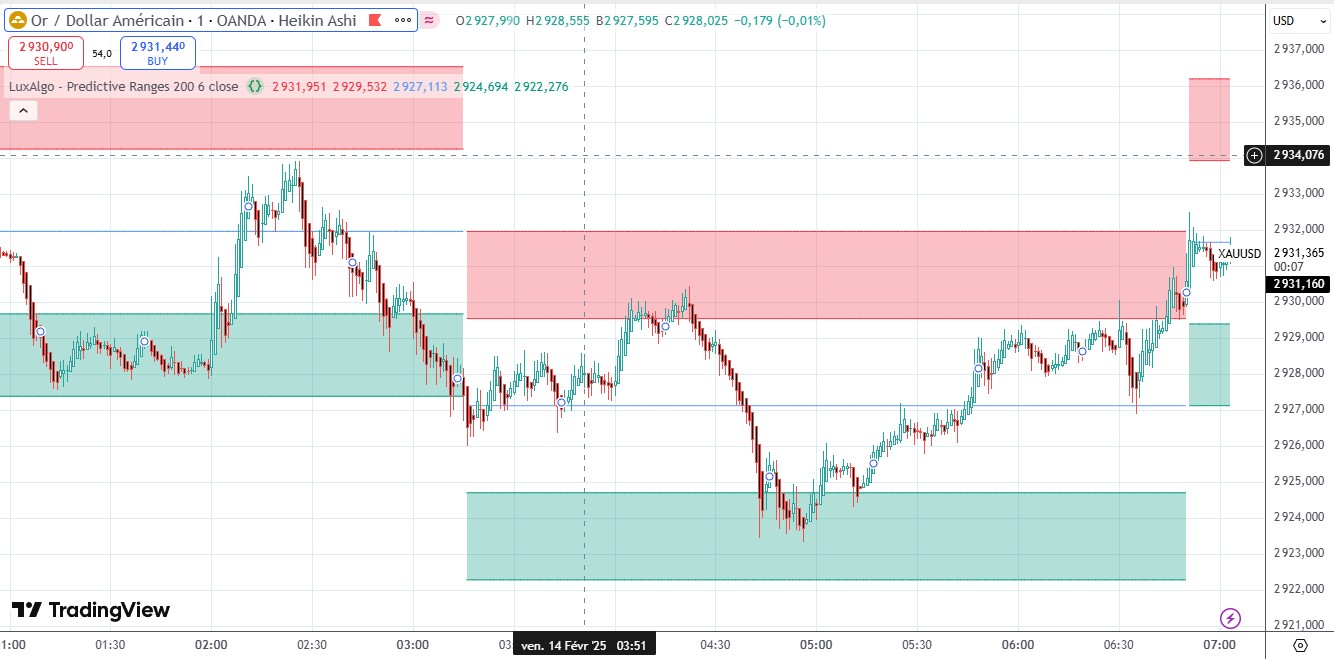

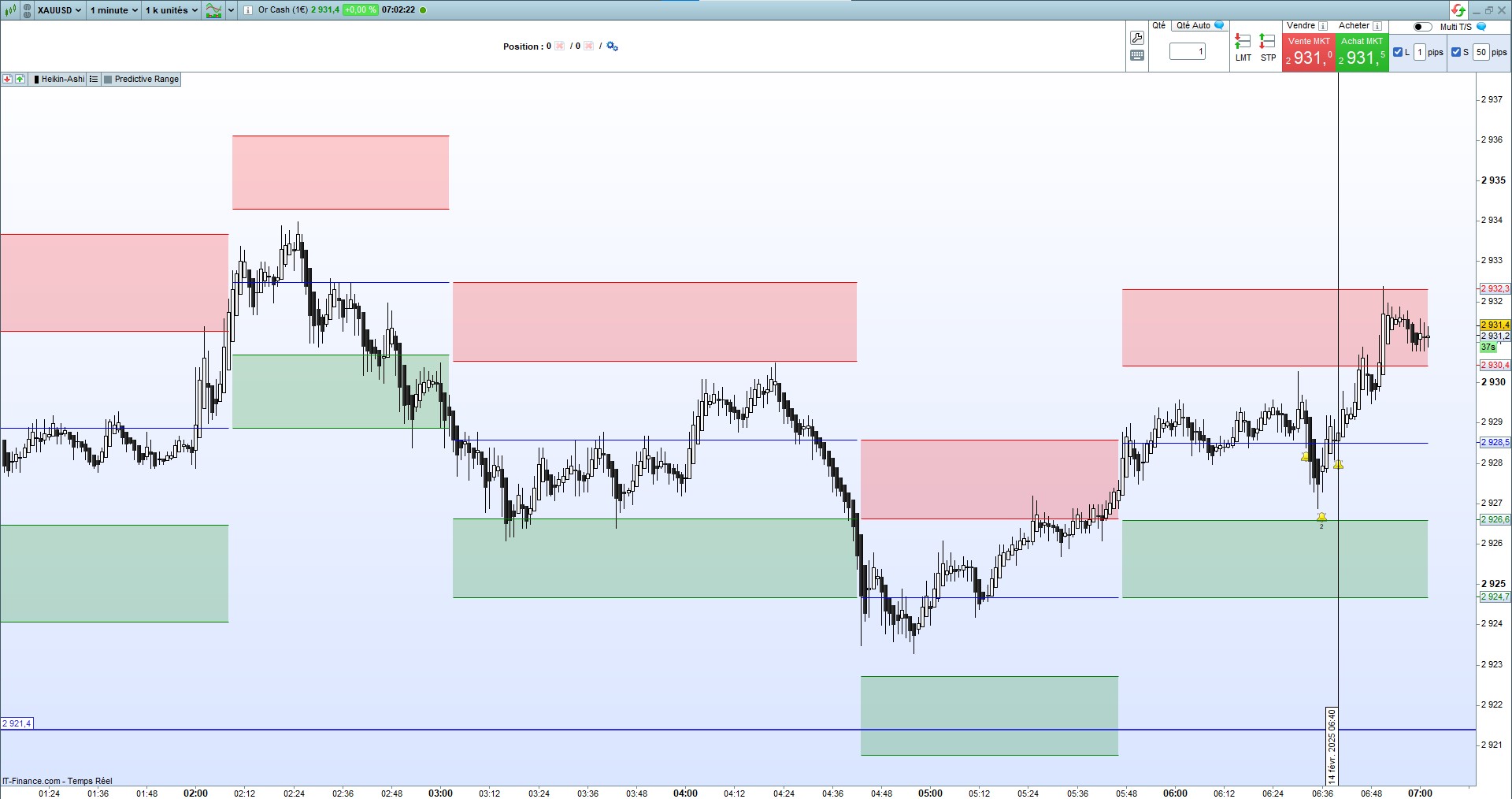

    I have a discrepancy between  range size in PRT and those in TV, do you know why ? (see attached)



    Thks in  advance



    Reb

    02/14/2025 at 2:36 PM #243842 quote
    Iván González
    Moderator
    Master

    Hi. I don't know. It could be because the prices are not the same (dividend adjustment, due to the data source itself, …)
