Changement TIMEFRAME IMBALANCE

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • 12/30/2024 at 9:05 PM #241985 quote
    larouedegann
    Participant
    Master

    Bonjour,

    ci-joint le code imbalance trouvé sur le forum. Je souhaiterais mettre ce code en 30 mn sur un graphique 5MN.

    TIME FRAME(30minutes)   apparemment ne fonctionne pas.

    DEFPARAM DrawOnLastBarOnly = true
    DEBUG = 0

    // Start of code, don’t change anything below

    IF IsLastBarUpdate THEN
    $RangeHigh[0] = 0
    $RangeLow[0] = 0
    $RangeIndex[0] = 0
    RangeIdx = 0
    BI = 0
    B = 0
    RI = 0
    TotalBars = BarIndex[0]

    IF DEBUG = 1 THEN
    DRAWTEXT(“Total bars: #TotalBars#”, BarIndex[0], High[0])
    ENDIF

    // List all imbalance
    FOR RI = 1 TO TotalBars – 2 DO
    BI = BarIndex[RI]
    //drawtext(“#BI#”, BI, High[RI])
    IF High[BI – 1] < Low[BI + 1] THEN
    RangeIdx = RangeIdx + 1
    $RangeHigh[RangeIdx] = Low[BI + 1]
    $RangeLow[RangeIdx] = High[BI – 1]
    $RangeIndex[RangeIdx] = RI
    ENDIF
    IF High[BI + 1] < Low[BI – 1] THEN
    RangeIdx = RangeIdx + 1
    $RangeHigh[RangeIdx] = Low[BI – 1]
    $RangeLow[RangeIdx] = High[BI + 1]
    $RangeIndex[RangeIdx] = RI
    ENDIF
    NEXT

    IF DEBUG = 1 THEN
    DRAWTEXT(“Imbalance found: #RangeIdx#”, BarIndex[0], Low[0])
    ENDIF

    // Remove mitigated imbalance
    FOR RI = 1 TO RangeIdx DO
    IF DEBUG = 1 THEN
    DRAWRECTANGLE($RangeIndex[RI] – 1, $RangeHigh[RI], $RangeIndex[RI] + 1, $RangeLow[RI]) COLOURED(“yellow”,150)
    ENDIF

    Valid = 1
    FOR B = $RangeIndex[RI] + 2 TO TotalBars DO
    LB = Low[BarIndex[B]]
    HB = High[BarIndex[B]]
    // Candle is above or below our zone, ignore it
    IF LB >= $RangeHigh[RI] OR HB <= $RangeLow[RI] THEN
    IF DEBUG = 1 THEN
    DRAWTEXT(“Out”, B, High[BarIndex[B]])
    ENDIF
    CONTINUE
    ENDIF

    IF LB <= $RangeLow[RI] THEN
    // Candle engulfs our zone, so imbalance is mitigated
    IF HB >= $RangeHigh[RI] THEN
    IF DEBUG = 1 THEN
    DRAWTEXT(“Mitigated”, B, High[BarIndex[B]])
    ENDIF
    Valid = 0
    BREAK
    ENDIF
    IF DEBUG = 1 THEN
    DRAWTEXT(“High”, B, High[BarIndex[B]])
    ENDIF
    $RangeLow[RI] = HB
    ELSE
    // In this case, Low is within the zone
    IF DEBUG = 1 THEN
    DRAWTEXT(“Low”, B, High[BarIndex[B]])
    ENDIF
    $RangeHigh[RI] = LB
    ENDIF
    NEXT
    IF Valid = 1 THEN
    DRAWRECTANGLE($RangeIndex[RI], $RangeHigh[RI], TotalBars+2000, $RangeLow[RI]) COLOURED(0,0,0,0) FILLCOLOR(“yellow”,150)
    ENDIF

    NEXT

    ENDIF

    RETURN





    merci

    12/31/2024 at 11:06 AM #241991 quote
    robertogozzi
    Moderator
    Master

    J’ai utilisé Copier & Coller et cela fonctionne sur une période de 1 minute, 5 minutes, 30 minutes, 1 heure et quotidienne.

    12/31/2024 at 11:39 AM #241992 quote
    larouedegann
    Participant
    Master

    oui merci je sais que le code fonctionne bien dans tous les timeframes.

    Mais ma question est

    comment mettre graphiquement le code imbalance 30 minutes dans un graphique 5 MN

    01/01/2025 at 8:04 PM #242048 quote
    robertogozzi
    Moderator
    Master

    Essaye ceci :

    DEFPARAM DrawOnLastBarOnly = true
Timeframe(30 minute,default)
DEBUG = 0

// Start of code, don’t change anything below

IF IsLastBarUpdate THEN
$RangeHigh[0] = 0
$RangeLow[0] = 0
$RangeIndex[0] = 0
RangeIdx = 0
BI = 0
B = 0
RI = 0
TotalBars = BarIndex[0]

IF DEBUG = 1 THEN
DRAWTEXT("Total bars: #TotalBars#", BarIndex[0], High[0])
ENDIF

// List all imbalance
FOR RI = 1 TO TotalBars - 2 DO
BI = BarIndex[RI]
//drawtext("#BI#", BI, High[RI])
IF High[BI - 1] < Low[BI + 1] THEN
RangeIdx = RangeIdx + 1
$RangeHigh[RangeIdx] = Low[BI + 1]
$RangeLow[RangeIdx] = High[BI - 1]
$RangeIndex[RangeIdx] = RI
ENDIF
IF High[BI + 1] < Low[BI - 1] THEN
RangeIdx = RangeIdx + 1
$RangeHigh[RangeIdx] = Low[BI - 1]
$RangeLow[RangeIdx] = High[BI + 1]
$RangeIndex[RangeIdx] = RI
ENDIF
NEXT

IF DEBUG = 1 THEN
DRAWTEXT("Imbalance found: #RangeIdx#", BarIndex[0], Low[0])
ENDIF

// Remove mitigated imbalance
FOR RI = 1 TO RangeIdx DO
IF DEBUG = 1 THEN
DRAWRECTANGLE($RangeIndex[RI] - 1, $RangeHigh[RI], $RangeIndex[RI] + 1, $RangeLow[RI]) COLOURED("yellow",150)
ENDIF

Valid = 1
FOR B = $RangeIndex[RI] + 2 TO TotalBars DO
LB = Low[BarIndex[B]]
HB = High[BarIndex[B]]
// Candle is above or below our zone, ignore it
IF LB >= $RangeHigh[RI] OR HB <= $RangeLow[RI] THEN
IF DEBUG = 1 THEN
DRAWTEXT("Out", B, High[BarIndex[B]])
ENDIF
CONTINUE
ENDIF

IF LB <= $RangeLow[RI] THEN
// Candle engulfs our zone, so imbalance is mitigated
IF HB >= $RangeHigh[RI] THEN
IF DEBUG = 1 THEN
DRAWTEXT("Mitigated", B, High[BarIndex[B]])
ENDIF
Valid = 0
BREAK
ENDIF
IF DEBUG = 1 THEN
DRAWTEXT("High", B, High[BarIndex[B]])
ENDIF
$RangeLow[RI] = HB
ELSE
// In this case, Low is within the zone
IF DEBUG = 1 THEN
DRAWTEXT("Low", B, High[BarIndex[B]])
ENDIF
$RangeHigh[RI] = LB
ENDIF
NEXT
IF Valid = 1 THEN
DRAWRECTANGLE($RangeIndex[RI], $RangeHigh[RI], TotalBars+2000, $RangeLow[RI]) COLOURED(0,0,0,0) FILLCOLOR("yellow",150)
ENDIF

NEXT

ENDIF
Timeframe(default)
RETURN
    01/02/2025 at 1:17 PM #242067 quote
    larouedegann
    Participant
    Master

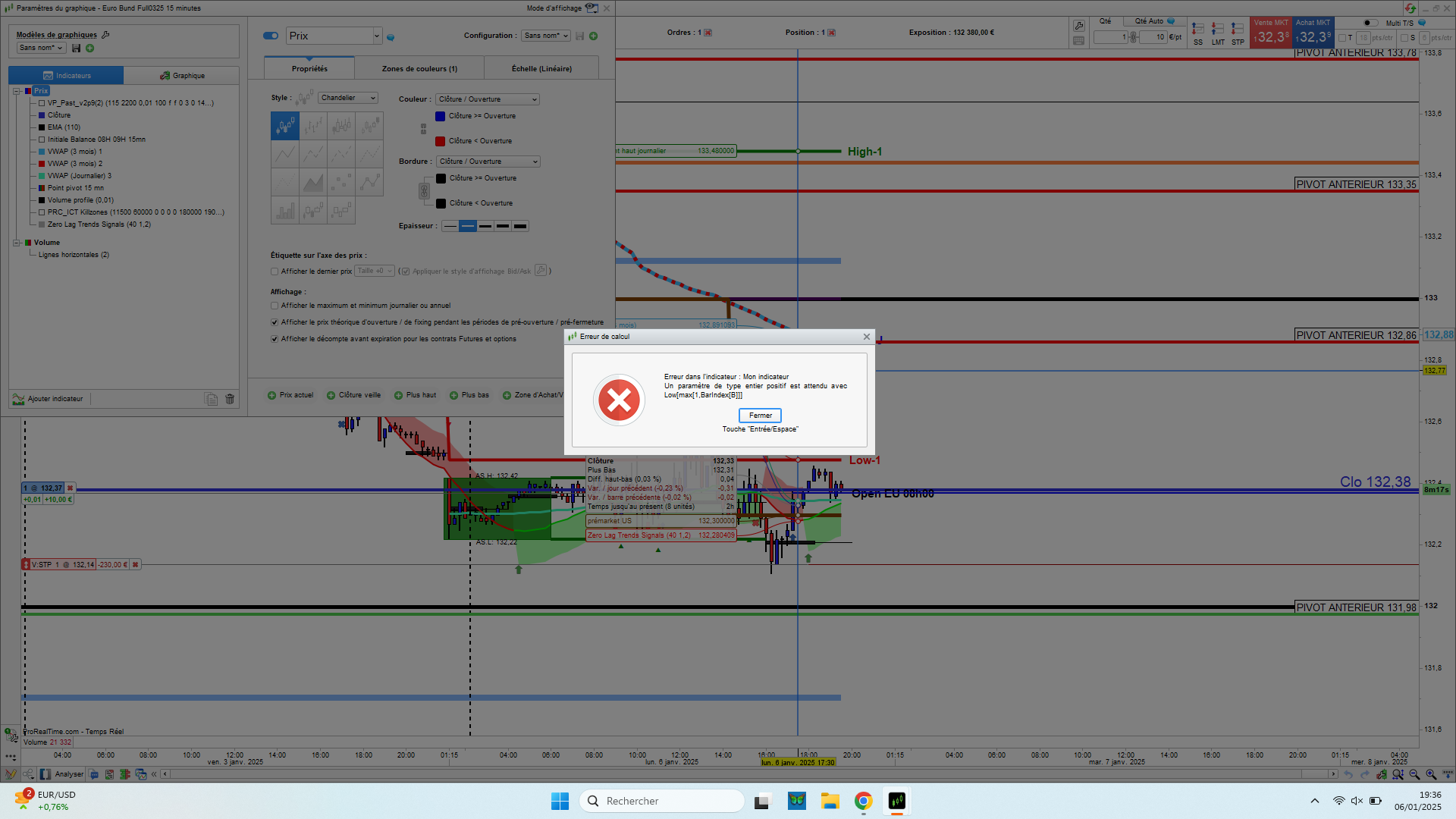

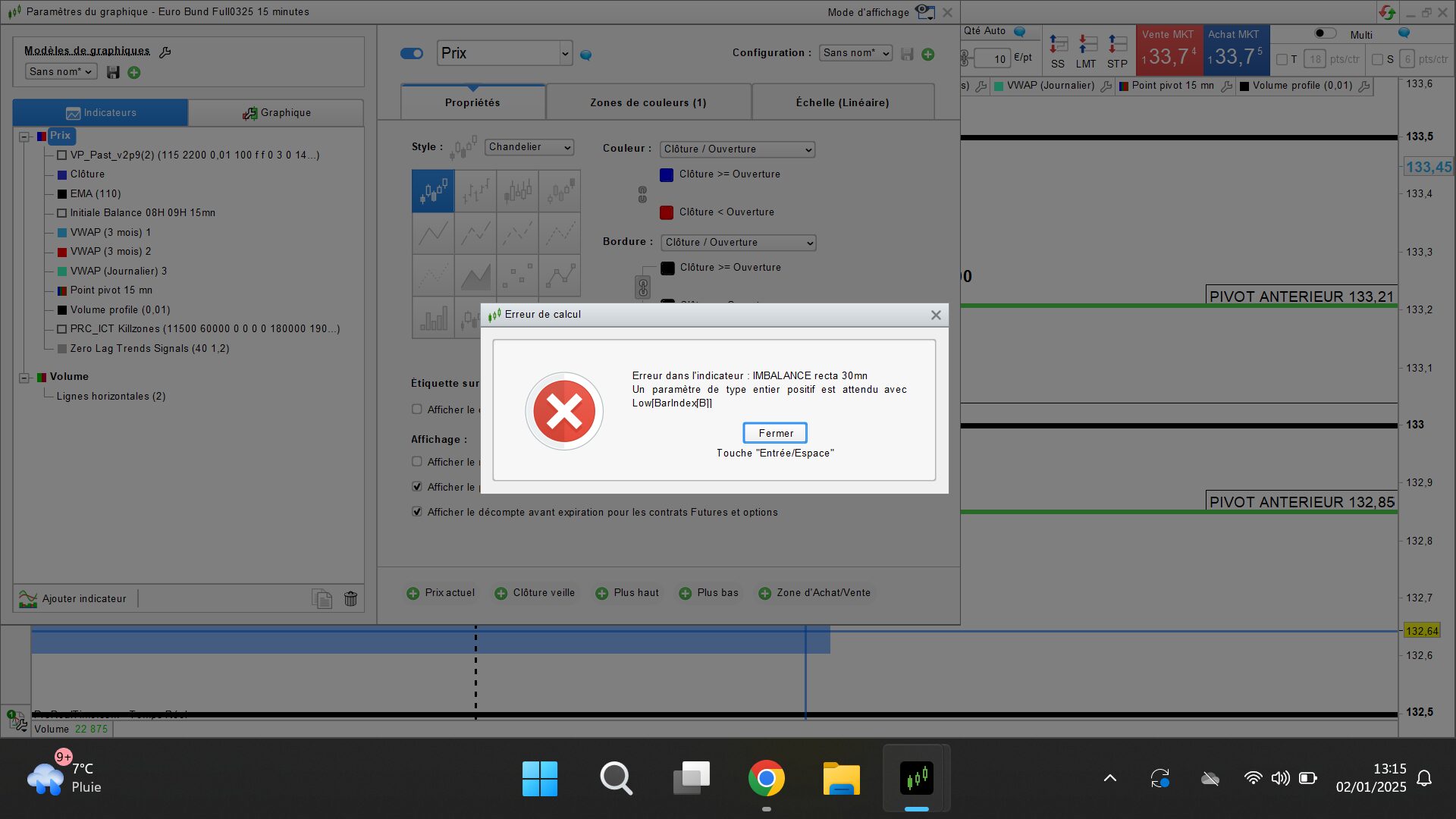

    J’ai un message d’erreur

    entier positif

    01/06/2025 at 4:50 PM #242228 quote
    robertogozzi
    Moderator
    Master

    Cela devrait résoudre l’erreur :

    DEFPARAM DrawOnLastBarOnly = true
Timeframe(30 minute,default)
DEBUG = 0

// Start of code, don’t change anything below

IF IsLastBarUpdate THEN
$RangeHigh[0] = 0
$RangeLow[0] = 0
$RangeIndex[0] = 0
RangeIdx = 0
BI = 0
B = 0
RI = 0
TotalBars = BarIndex[0]

IF DEBUG = 1 THEN
DRAWTEXT("Total bars: #TotalBars#", BarIndex[0], High[0])
ENDIF

// List all imbalance
FOR RI = 1 TO TotalBars - 2 DO
BI = BarIndex[RI]
//drawtext("#BI#", BI, High[RI])
IF High[BI - 1] < Low[BI + 1] THEN
RangeIdx = RangeIdx + 1
$RangeHigh[RangeIdx] = Low[BI + 1]
$RangeLow[RangeIdx] = High[BI - 1]
$RangeIndex[RangeIdx] = RI
ENDIF
IF High[BI + 1] < Low[BI - 1] THEN
RangeIdx = RangeIdx + 1
$RangeHigh[RangeIdx] = Low[BI - 1]
$RangeLow[RangeIdx] = High[BI + 1]
$RangeIndex[RangeIdx] = RI
ENDIF
NEXT

IF DEBUG = 1 THEN
DRAWTEXT("Imbalance found: #RangeIdx#", BarIndex[0], Low[0])
ENDIF

// Remove mitigated imbalance
FOR RI = 1 TO RangeIdx DO
IF DEBUG = 1 THEN
DRAWRECTANGLE($RangeIndex[RI] - 1, $RangeHigh[RI], $RangeIndex[RI] + 1, $RangeLow[RI]) COLOURED("yellow",150)
ENDIF

Valid = 1
FOR B = $RangeIndex[RI] + 2 TO TotalBars DO
LB = Low[max(1,BarIndex[B])]
HB = High[max(1,BarIndex[B])]
// Candle is above or below our zone, ignore it
IF LB >= $RangeHigh[RI] OR HB <= $RangeLow[RI] THEN
IF DEBUG = 1 THEN
DRAWTEXT("Out", B, High[max(1,BarIndex[B])])
ENDIF
CONTINUE
ENDIF

IF LB <= $RangeLow[RI] THEN
// Candle engulfs our zone, so imbalance is mitigated
IF HB >= $RangeHigh[RI] THEN
IF DEBUG = 1 THEN
DRAWTEXT("Mitigated", B, High[max(1,BarIndex[B])])
ENDIF
Valid = 0
BREAK
ENDIF
IF DEBUG = 1 THEN
DRAWTEXT("High", B, High[max(1,BarIndex[B])])
ENDIF
$RangeLow[RI] = HB
ELSE
// In this case, Low is within the zone
IF DEBUG = 1 THEN
DRAWTEXT("Low", B, High[max(1,BarIndex[B])])
ENDIF
$RangeHigh[RI] = LB
ENDIF
NEXT
IF Valid = 1 THEN
DRAWRECTANGLE($RangeIndex[RI], $RangeHigh[RI], TotalBars+2000, $RangeLow[RI]) COLOURED(0,0,0,0) FILLCOLOR("yellow",150)
ENDIF

NEXT

ENDIF
Timeframe(default)
RETURN
    01/06/2025 at 7:37 PM #242233 quote
    larouedegann
    Participant
    Master

    pas mieux

    01/09/2025 at 3:38 PM #242339 quote
    robertogozzi
    Moderator
    Master

    Je pense que c’est un manque d’unités. Essayez d’utiliser plus d’unités sur votre graphique, disons 100+.
