Merci pour le retour, mais ici cela donne la courbe du Force index répliqué suivant ATR

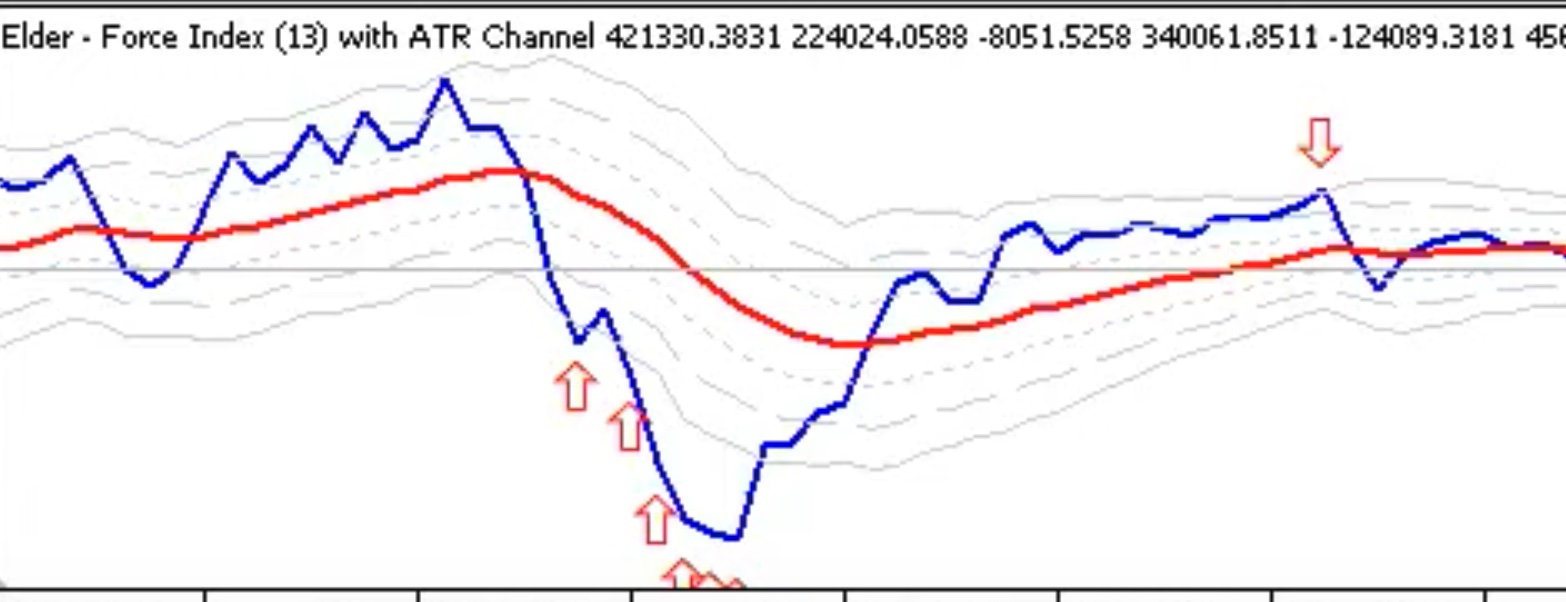

L’idée etait d’avoir la courbe du FORCE INDEX sur le quel on fait apparaitre les canaux ATR ( voir photo de l’indicateur sur MT5)

Merci


Pour ce sujet, voici le code de TV, cela peut-il aider ?

// This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © loxx

//@version=5
indicator(title='Elder Force Index With ATR Channels [loxx]', shorttitle='EFIATR [loxx]', format=format.volume, timeframe="", timeframe_gaps=true, max_bars_back = 5000)

RMA(x, t) =>
    EMA1 = x
    EMA1 := na(EMA1[1]) ? x : (x - nz(EMA1[1])) * (1/t) + nz(EMA1[1])
    EMA1

EMA(x, t) =>
    EMA1 = x
    EMA1 := na(EMA1[1]) ? x : (x - nz(EMA1[1])) * (2 / (t + 1)) + nz(EMA1[1])
    EMA1

_bpDom(len, bpw, mult) =>
    HP = 0.0
    BP = 0.0
    Peak = 0.0
    Real = 0.0
    counter = 0.0
    DC = 0.0
    alpha2 = (math.cos(0.25 * bpw * 2 * math.pi / len) + math.sin(0.25 * bpw * 2 * math.pi  / len) - 1) / math.cos(0.25 * bpw * 2 * math.pi / len)
    HP := (1 + alpha2 / 2) * (close - nz(close[1])) + (1 - alpha2) * nz(HP[1])
    beta1 = math.cos(2 * math.pi / len)
    gamma1 = 1 / math.cos(2 *  math.pi * bpw / len)
    alpha1 = gamma1 - math.sqrt(gamma1 * gamma1 - 1)
    BP := 0.5 * (1 - alpha1) * (HP - nz(HP[2])) + beta1 * (1 + alpha1) * nz(BP[1]) - alpha1 * nz(BP[2])
    BP := bar_index == 1 or bar_index == 2  ? 0 : BP
    Peak := 0.991 * Peak
    Peak := math.abs(BP) > Peak ? math.abs(BP) : Peak
    Real := Peak != 0 ?  BP / Peak : Real
    DC := nz(DC[1])
    DC := DC < 6 ? 6 : DC
    counter := counter[1] + 1
    if ta.crossover(Real, 0) or ta.crossunder(Real, 0)
        DC := 2 * counter
        if 2 * counter > 1.25 * nz(DC[1])
            DC := 1.25 * DC[1]
        if 2 * counter < 0.8 * nz(DC[1])
            DC := 0.8 * nz(DC[1])
        counter := 0
    temp_out = mult * DC
    temp_out

//inputs

src = input.source(close, title = "Source", group = "Basic Settings")
calc_type = input.string("Fixed", title = "Calculation Type", options =["Fixed", "Band-pass Dominant Cycle"], group = "Basic Settings")

len =   input.int(13, title = "Fixed EFI Period", group = "Fixed Settings")
slen =  input.int(21, title='Fixed Signal Period', group = "Fixed Settings")
atr_sm =  input.int(21, title ="Fixed ATR Smoothing Length", group = "Fixed Settings")


bp_period = input.int(13, "Band-pass Period", minval = 1, group = "Band-pass")
bp_width = input.float(0.20, "Band-pass Width", step = 0.1, group = "Band-pass")
cycle_len = input.float(100, "Signal and ATR Percent of Dominant Cycle (%)", step = 1.0, group = "Band-pass")/100
efi_reduction = input.float(75, "EFI Percent of Dominant Cycle (%) ", step = 1.0, group = "Band-pass")/100

len_out_fast = int(nz(_bpDom(bp_period, bp_width, efi_reduction), 1)) < 1 ? 1 : int(nz(_bpDom(bp_period, bp_width, efi_reduction), 1))
len_out_slow = int(nz(_bpDom(bp_period, bp_width, cycle_len), 1)) < 1 ? 1 : int(nz(_bpDom(bp_period, bp_width, cycle_len), 1))

atr_mult1 = input.int(1, title = "ATR Mult Level 1", group = "ATR Multipliers")
atr_mult2 = input.int(2, title = "ATR Mult Level 2", group = "ATR Multipliers")
atr_mult3 = input.int(3, title = "ATR Mult Level 3", group = "ATR Multipliers")

trunc_atr = input.bool(true, title = "Truncate over ATR Mult Level 4?", group = "UI Options")

//core calc
efi = EMA(ta.change(close) * volume, calc_type == "Fixed" ? len : len_out_fast)
sig = EMA(efi, calc_type == "Fixed" ? len : len_out_slow)
atr_ema = math.abs(efi[1] - efi)
atr_out =  RMA(atr_ema, calc_type == "Fixed" ? len : len_out_slow)

//atr channel calc
atr_high1 = sig + atr_out * atr_mult1
atr_low1 = sig - atr_out * atr_mult1

atr_high2= sig + atr_out * atr_mult2
atr_low2 = sig - atr_out * atr_mult2

atr_high3 = sig + atr_out * atr_mult3
atr_low3 = sig - atr_out * atr_mult3

atr_obhigh = sig + atr_out * (atr_mult3 + 1)
atr_oblow = sig - atr_out * (atr_mult3 + 1)

efi_out  = trunc_atr ? efi > atr_obhigh ? atr_high3 : efi < atr_oblow ? atr_low3 : efi : efi

//plot atr channels
plot(atr_high1, color = bar_index % 2 == 0 ? na : color.new(color.gray, 30), linewidth = 1, title = "ATR1 High")
plot(atr_high2, color = bar_index % 4 == 0 ? na : color.new(color.gray, 30), linewidth = 1, title = "ATR2 High")
plot(atr_high3, color = color.new(color.gray, 30), linewidth = 2, title = "ATR3 High")

plot(atr_low1, color = bar_index % 2 == 0 ? na : color.new(color.gray, 30), linewidth = 1, title = "ATR1 Low")
plot(atr_low2, color = bar_index % 4 == 0 ? na : color.new(color.gray, 30), linewidth = 1, title = "ATR2 Low")
plot(atr_low3, color = color.new(color.gray, 30), linewidth = 2, title = "ATR3 Low")

//plot main
plot(0, color=color.gray, style = plot.style_circles, title='Zero Line', linewidth = 2)
plot(sig, color=color.new(color.white, 0), title='Signal', linewidth = 2)
plot(efi_out, color = #4f6cdf, title='EFI', linewidth = 2)

//plot shapes
plot(efi_out >= atr_high3 ? efi_out : na, style = plot.style_circles, linewidth = 3, color = #D2042D, title = "Over ATR4 High")
plot(efi_out <= atr_low3 ? efi_out : na, style = plot.style_circles, linewidth = 3, color = #2DD204, title = "Over ATR4 Low")

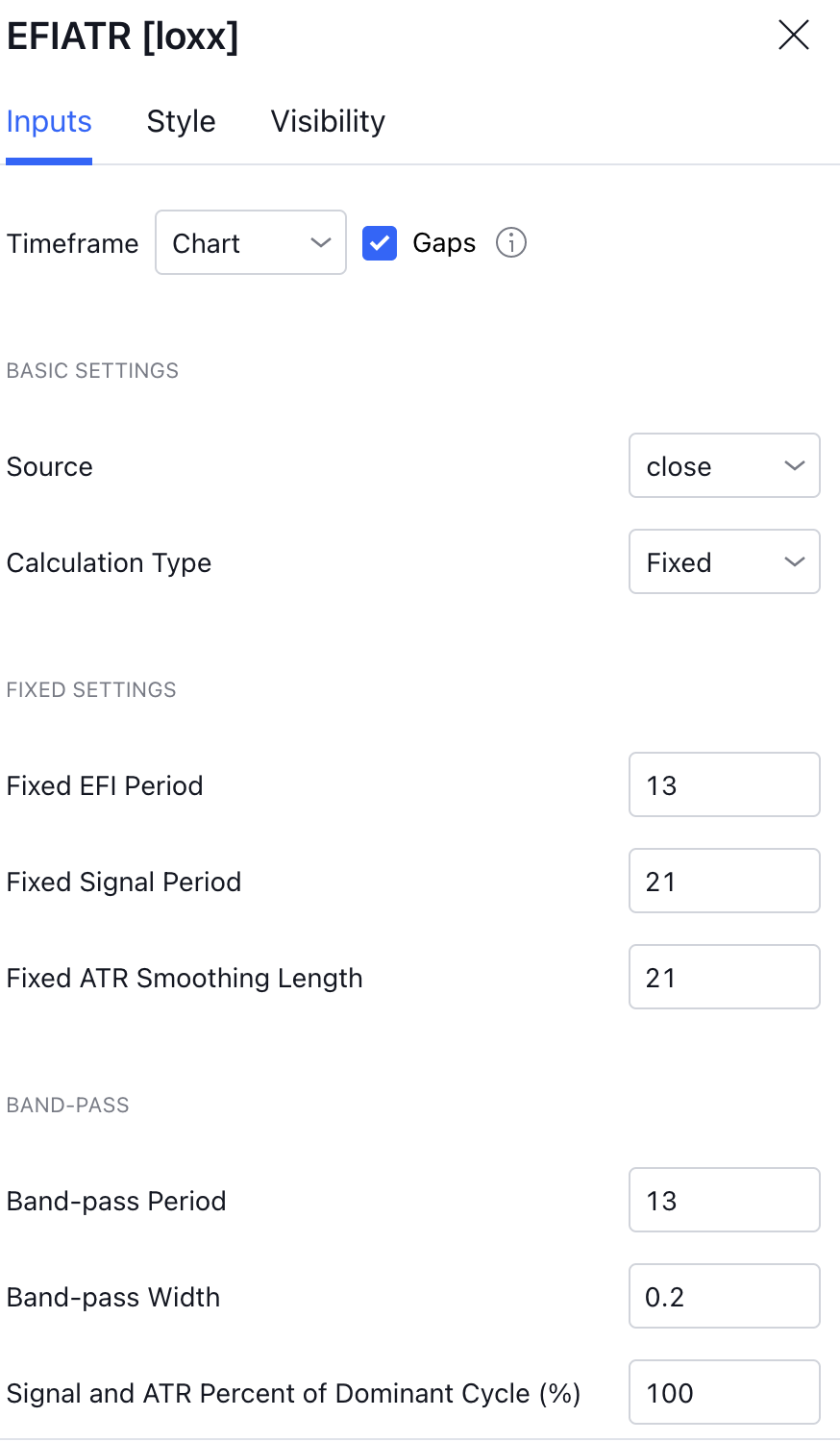

1.png 2.png
