Hello,
Please i need help in programming a strategy with bollinger band and the bandwidth.

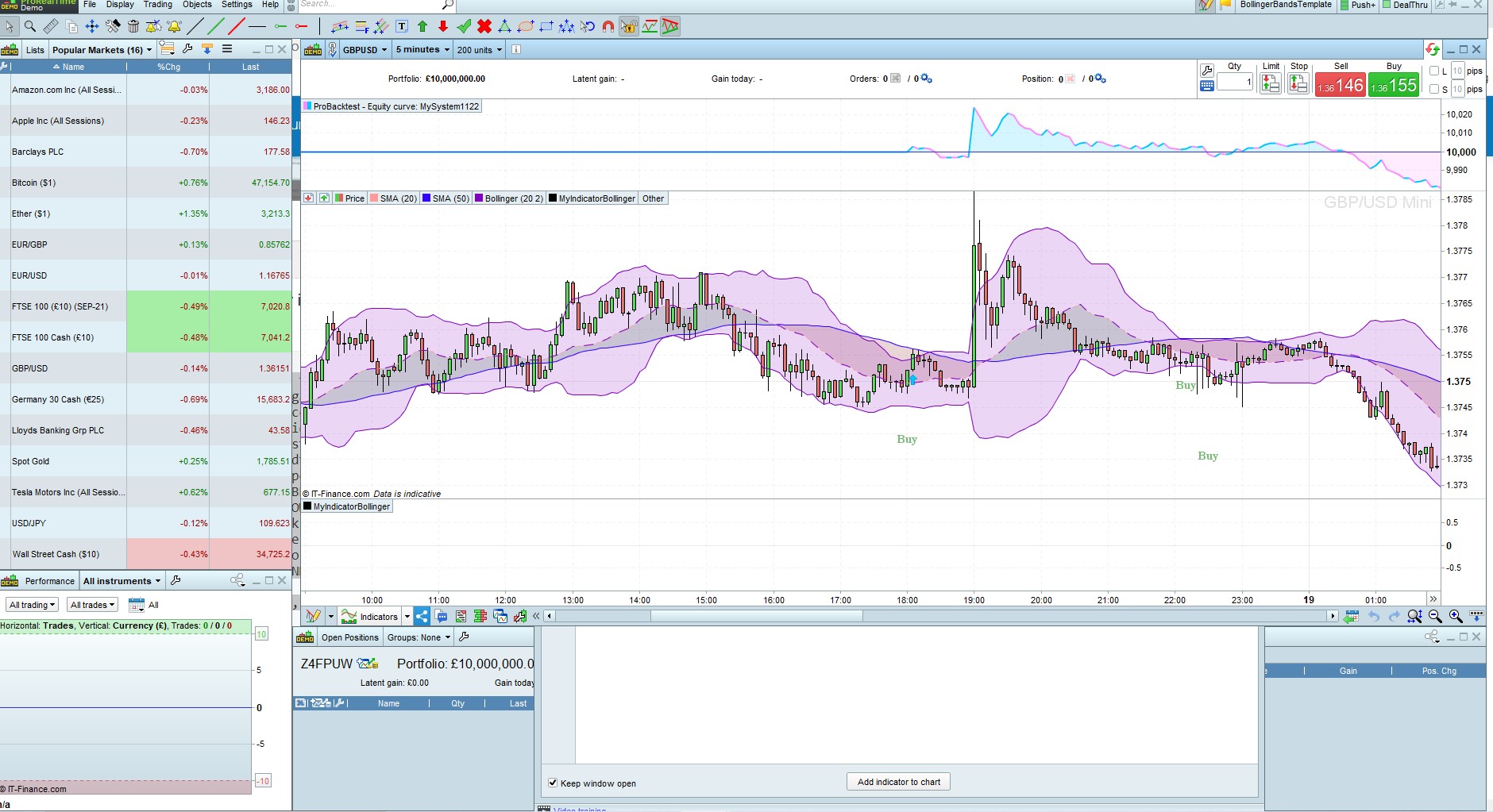

As shown in the attached screenshot;
Go long [L] when Bollinger Band Width starts to rise after contracting to a historic low.
How do i program this?
NB: Bollinger requires contractions below 2.0%, but wider contractions provide perfectly adequate signals.
There you go:
BBperiods = 20 //periods to calculate Bollinger Bands
LookBack = 50 //min BB gap in these last bars
MinWidth = 2 //max percentage of distance between the two bands
BBwidth = BollingerBandWidth[BBperiods](close)
L1 = BBwidth = lowest[LookBack](BBwidth)
L2 = BBwidth > BBwidth[1] //Contraction ended
BollUP = BollingerUP[BBperiods](close)
BollDOWN = BollingerDOWN[BBperiods](close)
BBgap = BollUP - BollDOWN
MinBBgap = lowest[LookBack](BBgap)
L3 = MinBBgap = lowest[LookBack](MinBBgap)
L4 = MinBBgap <= (BollUP * MinWidth / 100)
CondL = L1[1] AND L2 AND L3[1] AND L4[1] AND Not OnMarket
IF CondL THEN
BUY 1 Contract at Market
SET STOP pLOSS 200
SET TARGET pPROFIT 600
ENDIF
Thanks very much, i appreciate .
MyLongConditions = close CROSSES OVER BollingerDOWN[20]
MyShortConditions = close CROSSES UNDER BollingerUP[20]
BBperiods = 20 //periods to calculate Bollinger Bands
LookBack = 50 //min BB gap in these last bars
MinWidth = 2 //max percentage of distance between the two bands
BBwidth = BollingerBandWidth[BBperiods](close)
L1 = BBwidth = lowest[LookBack](BBwidth)
L2 = BBwidth > BBwidth[1] //Contraction ended
BollUP = BollingerUP[BBperiods](close)
BollDOWN = BollingerDOWN[BBperiods](close)
BBgap = BollUP – BollDOWN
MinBBgap = lowest[LookBack](BBgap)
L3 = MinBBgap = lowest[LookBack](MinBBgap)
L4 = MinBBgap <= (BollUP * MinWidth / 100)
CondL = L1[1] AND L2 AND L3[1] AND L4[1] AND Not OnMarket
IF CondL THEN
//IF MyLongConditions THEN
DrawText(“Buy”,barIndex, low – range*2,serif,bold,15) coloured(0,128,0,135)
//
//BUY 1 Contract at Market
//SET STOP pLOSS 200
//SET TARGET pPROFIT 600
ELSE
DrawText(“Sell”,barIndex, low – range*2,serif,bold,15) coloured(0,128,0,135)
ENDIF
RETURN

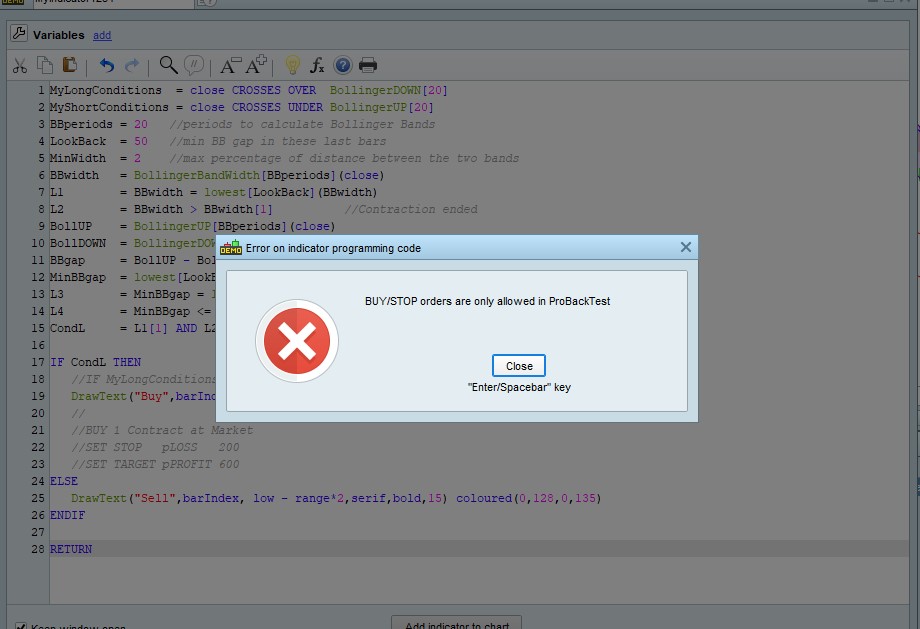

3. the codes does not take into account or does not consider the bollinger upper and lower crossovers.
“Go long [L] when Bollinger Band Width starts to rise after contracting to a historic low.” ; how do we incorporate upper and lower crossovers into this strategy?
Ok, I’m sorry, I coded a strategy instead of an indicator.
There you go:
BBperiods = 20 //periods to calculate Bollinger Bands
LookBack = 50 //min BB gap in these last bars
MinWidth = 2 //max percentage of distance between the two bands
BBwidth = BollingerBandWidth[BBperiods](close)
L1 = BBwidth = lowest[LookBack](BBwidth)
L2 = BBwidth > BBwidth[1] //Contraction ended
BollUP = BollingerUP[BBperiods](close)
BollDOWN = BollingerDOWN[BBperiods](close)
BBgap = BollUP - BollDOWN
MinBBgap = lowest[LookBack](BBgap)
L3 = MinBBgap = lowest[LookBack](MinBBgap)
L4 = MinBBgap <= (BollUP * MinWidth / 100)
CondL = L1[1] AND L2 AND L3[1] AND L4[1]
IF CondL THEN
DrawText(“Buy”,barIndex, low – range*2,serif,bold,15) coloured(0,128,0,135)
//ELSE
// DrawText(“Sell”,barIndex, high + range*2,serif,bold,15) coloured(0,128,0,135)
ENDIF
RETURN
If you want CROSSOVERS to be taken into account you need to tell me what to do in that case.
Furthermore, this code only considers LONG signals as per your request. For gthe SHORT side, if needed, tell me what to do.
Thanks very much,

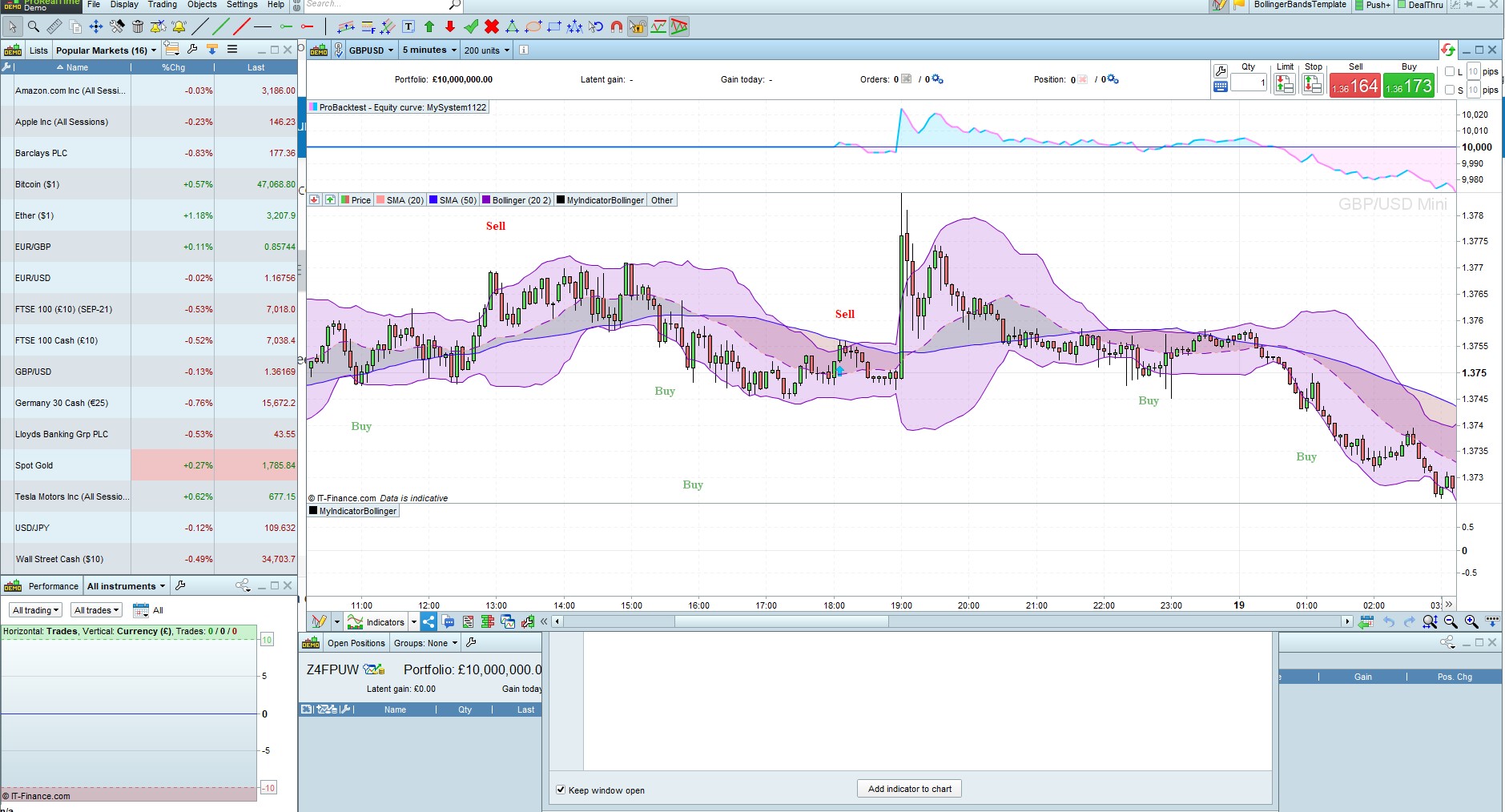

2. Also the first and original bollinger band strategy results is also attached (BollingerBandSqueeze_Bandwidth2) based on the codes below; here too trading taking place within the squeeze.
MyLongConditions = close CROSSES OVER BollingerDOWN[20]
MyShortConditions = close CROSSES UNDER BollingerUP[20]
MyBandWidth = BollingerBandWidth[20](close)
//For MyBandWidth <= 0.00295
IF MyShortConditions THEN
DrawText(“Sell”,barIndex, high + range*2,serif,bold,15) coloured(255,0,0,255)
ELSIF MyLongConditions THEN
DrawText(“Buy”,barIndex, low – range*2,serif,bold,15) coloured(0,128,0,135)
ENDIF
RETURN
3. “Go long [L] when Bollinger Band Width starts to rise after contracting to a historic low.” this should be modified to wait for crossovers first before Buy and Sell after contraction.
In other words there should be no Buy and Sell during consolidation or contraction
Hello, i just want to clarify further:
Hope this has fully clarified the strategy.
There you go:
BBperiods = 20 //periods to calculate Bollinger Bands
LookBack = 50 //min BB gap in these last bars
MinWidth = 2 //max percentage of distance between the two bands
BBwidth = BollingerBandWidth[BBperiods](close)
C1 = BBwidth = lowest[LookBack](BBwidth)
C2 = BBwidth > BBwidth[1] //Contraction ended
BollUP = BollingerUP[BBperiods](close)
BollDOWN = BollingerDOWN[BBperiods](close)
L1 = close CROSSES OVER BollDOWN
S1 = close CROSSES UNDER BollUP
CondL = C1[1] AND C2 AND L1
CondS = C1[1] AND C2 AND S1
IF CondL THEN
DrawText("Buy",barIndex, low - range*2,serif,bold,15) coloured(0,128,0,255)//135
ELSIF CondS THEN
DrawText("Sell",barIndex, high + range*2,serif,bold,15) coloured(255,0,0,255)
ENDIF
RETURN
Hello , thanks very much.

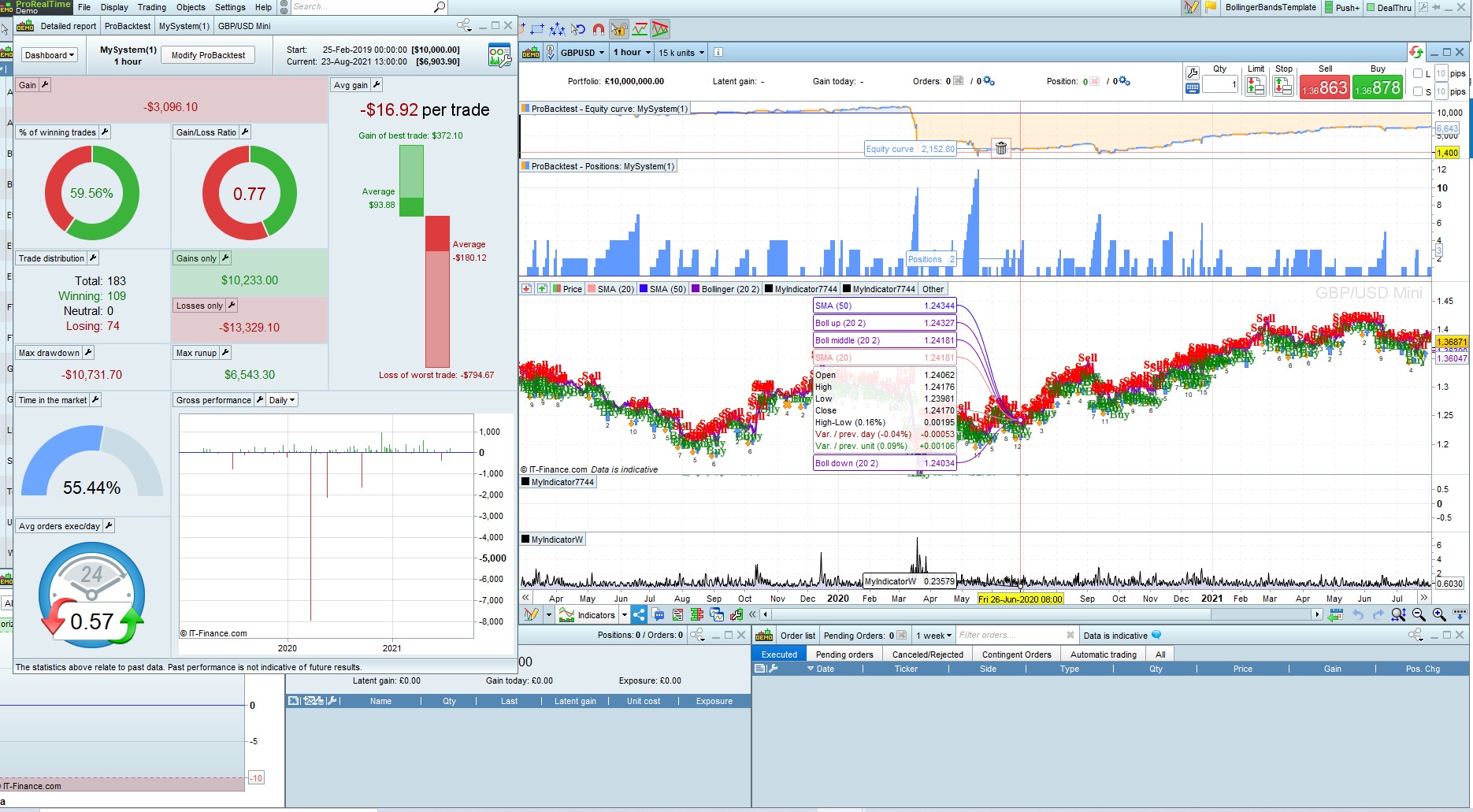

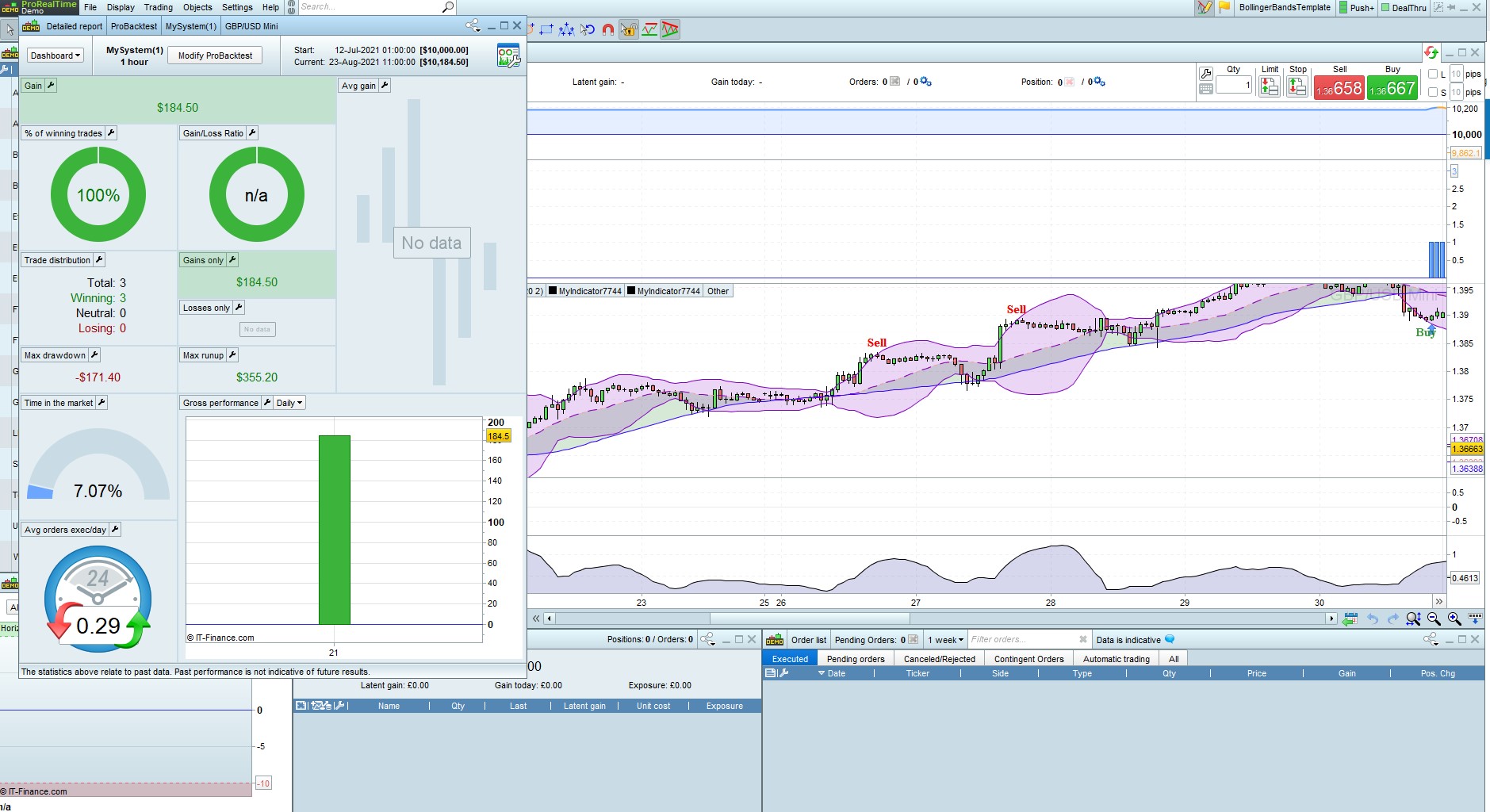

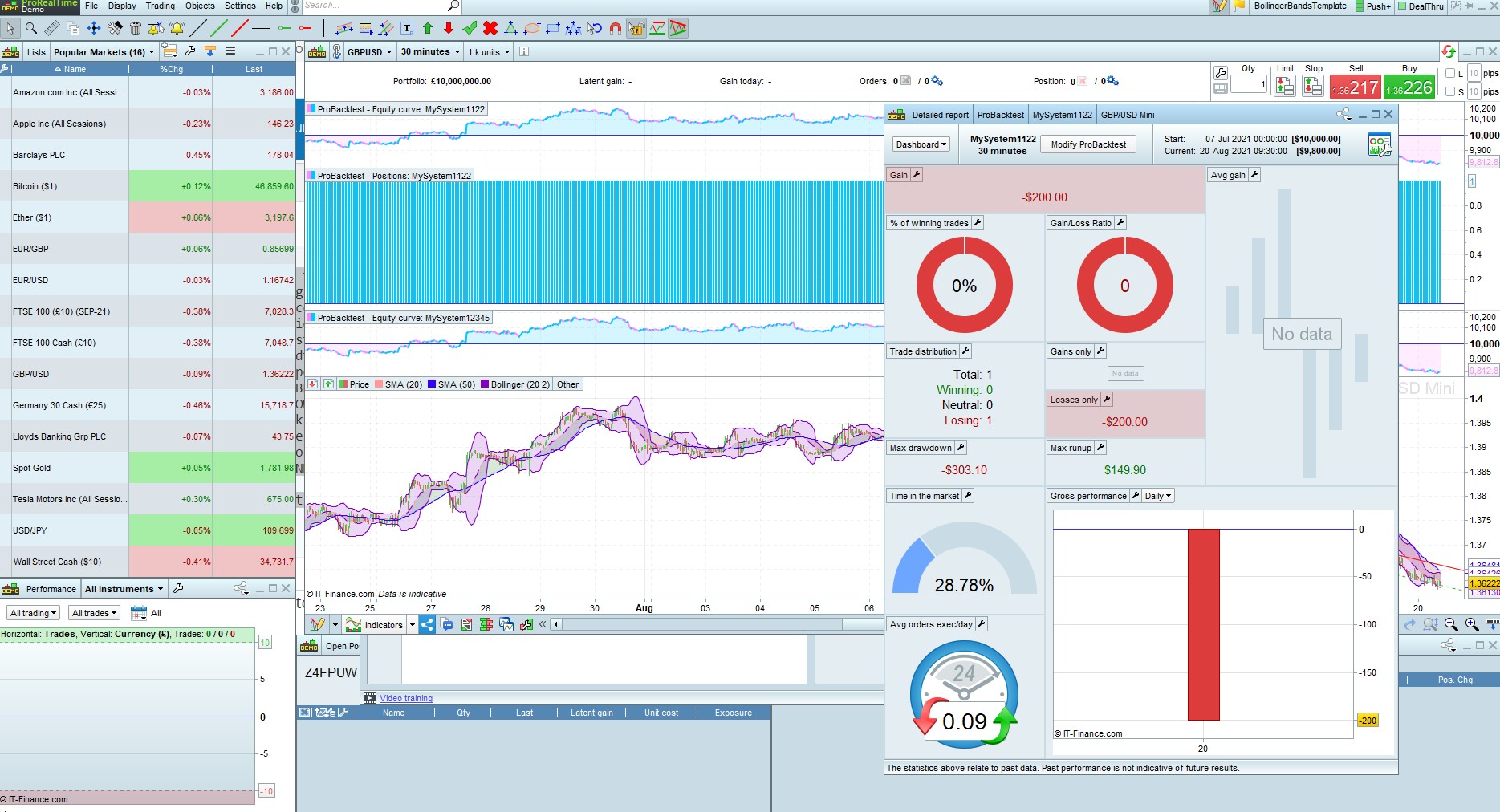

I have made many modifications and got the attached backtest results : 100% results for few data , 56% for bigger data.
Now i want to apply risk management to improve the results, but am not sure whether to add stop loss & take profit at the end of the complete codes or i add it after both Buy statement and Sell statements.
I want to apply risk in percentage , so please i will be glad you provide me with the codes for that
Placing SL & TP at the end of your code or just after the entry doesn’t make any difference, unless you use different values for the two sides.
For position size management you can add this at the beginning of your code (just after DEFPARAMs):
////////////////////////////////////////////////////////////////////////
// DrawDown calculation + LARRY WILLIAMS' formula for size management
//
ONCE Capital = 10000 //set your initial investment
ONCE LotSize = 1 //start with 1
//------------------------------------------
// DrawDown calculation
ONCE MinPoint = Capital
ONCE MaxPoint = 0
ONCE MaxRU = 0
ONCE MaxDD = 0
IF StrategyProfit <> 0 THEN
Equity = Capital + StrategyProfit
TempProfit = PositionPerf * PositionPrice / PipSize
TempEquity = Equity + TempProfit
MaxPoint = max(MaxPoint,TempEquity)
DD = MaxPoint - TempEquity
MaxDD = max(MaxDD,DD)
//------------------------------------------
// LARRY WILLIAMS' formula (+margin)
MinSize = 0.5 //Minimum lot size allowed
Margin = high / 100 * 0.5 //Margin required 0.5%
Risk = 5 //Risk per trade 2%
TempLotSize = max(MinSize,(Equity * Risk / 100) / (MaxDD + Margin))
LotSize = round((TempLotSize * 10) - 0.5) / 10 //only 1 decimal digit allowed
ENDIF
//
////////////////////////////////////////////////////////////////////////
then use LotSize to trade the calculated lots.
Make sure in your code you are not using any of the above variable names.
am sorry , i dont understand a bit of these codes, i dont know what they represent in relation to my questions
YOU asked about the SL & TO and I replied
YOU asked me to provide the code for risk management and I posted the code.
Was tour account hacked and you never posted it?
Thank you for the codes, Roberto. It is useful for the rest of the PRT community. Have a great weekend ahead.
Hello, you will notice from my correspondence that am not an expert in the probuilder language, so am relying on the the lessons under this Prorealtime:
The terms “Money management” and “Risk management” usually refer to rules for:
A well planned money management strategy should allow you to maximize your gains while limiting your risk. Depending on your money management technique, a given strategy may be winning or losing for a given set of historical data.
The questions below may give you some ideas about the type of money management you may want to use:
Leverage is calculated as follows: 1 / [available cash / position value]
To limit leverage, you can either limit position size or increase portfolio value.
Note that the maximum number of orders can be set via the “Trading Options” menu.
can you please add stop loss and profit target calculations or setup in your codes to make it more complete.
Also the Probacktest engine already comes with Drawdown calculations displayed in the backtest results so why are you recalulating them in your codes making it look confusing?
Sorry if i may have shown some ignorance, but i really need education.
Topic moved from ProBuilder to ProOrder support.
DrawDown calculated by ProBackTest can’t be known from within a trading system, it’s reported on your screen so that you can take note of it only, so it needs to be calculated by the TS itself if you plan to manage position sizing and risk management on it.
As to SL and TP, well… that dipends on your likings, it can be fixed (number of pips) or dynamic (according to bars recently formed), or based on ATR (Average True Range) or other indicators.
TP, Target (or Take) Profit, is often calculated multiplying SL by a factor (1, 1.5, 2, etc…).
Fixed SL (valid for both Long and Short trades):
SET STOP PLOSS 50 //SL = fixed number of Pips
SET TARGET PPROFIT 150 //TP = 3 times SL
SL calculated on the lowest Low (for Long trades) and highest High (for Short trades) in the last N bars:
N = 5 //5-bar LookBack period
Factor = 2.5 //TP factor (multiplier)
LongSL = lowest[N](low)
ShortSL = highest[N](high)
LongTP = LongSL * Factor
ShortTP = ShortSL * Factor
SL calculated on the ATR (valid for both Long and Short trades):
Atr = AverageTrueRange[14](Close)
SET STOP LOSS Atr
SET TARGET PROFIT Atr * 1.8
As you can see, PROFIT and LOSS both require a difference (or range) expressed in price when SET. They can also be preceded by P if you prefer to set them using Pips, % if you prefer to use a percentage of the price or $ if you prefer to use a fixed amount of currency.
