1. Introduction

The Volume Accelerated Directional Energy Ratio is an advanced technical indicator (developed by RedKtrader) that merges price direction with volume-derived energy. Its purpose is to clearly and visually represent the intensity of directional price movement, weighted by volume behavior, helping traders identify imbalances and potential entry or exit points.

2. Indicator Fundamentals

This indicator is based on the concept of normalized directional energy: a measure that considers both the relative price change and the strength behind it, as dictated by volume.

Unlike traditional indicators such as RSI or MACD, which focus solely on price, this one adds a critical layer of information through volume, enabling traders to distinguish between strong and weak moves.

Additionally, it includes a sentiment histogram that reflects whether buying or selling pressure is accelerating or fading.

3. Calculations and Components

Key components of the indicator include:

• Adjusted Volume (vola): Calculated in three modes based on the vcalc parameter:
  • 0 = no volume usage
  • 1 = relative volume (normalized within its recent range)
  • 2 = raw volume
• Normalized Direction (rsr): Derived from the ratio of price change (close - close[1]) to the average range.
• Directional Energy (c): Product of normalized direction and adjusted volume.
• Positive and Negative Components (cplus, cminus): Separation of energy into bullish and bearish pressure.
• Demand and Supply Lines (adp, asp): Smoothed energy components.
• Net Energy (anps): Smoothed difference between demand and supply, this is the main line of the indicator.
• Sentiment (vsenti): A histogram representing acceleration or deceleration of energy imbalance.

4. Indicator Settings

This indicator includes several configurable parameters for fine-tuning:

• length: Lookback period for volume and averages (default: 10)
• deravg: Smoothing factor for net energy differential (default: 5)
• matype: Type of moving average (0: simple, 1: exponential, etc.)
• smooth: Final smoothing applied to the main line (default: 3)
• senti: Period for sentiment calculation (default: 20)
• vcalc: Volume calculation method (0: none, 1: relative, 2: full volume)
• showsenti: Display sentiment histogram (1: show, 0: hide)

These options allow the indicator to be used across different trading styles and timeframes.

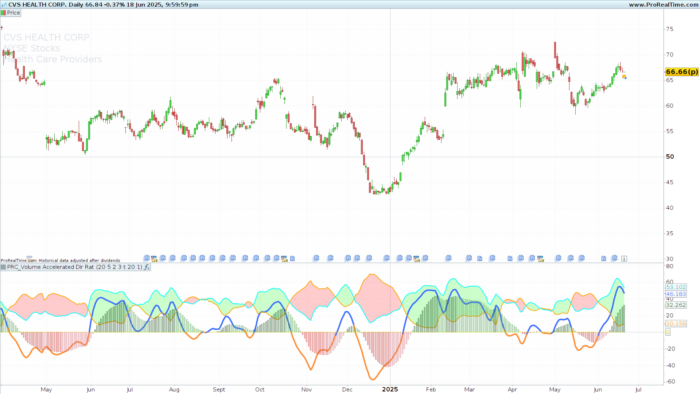

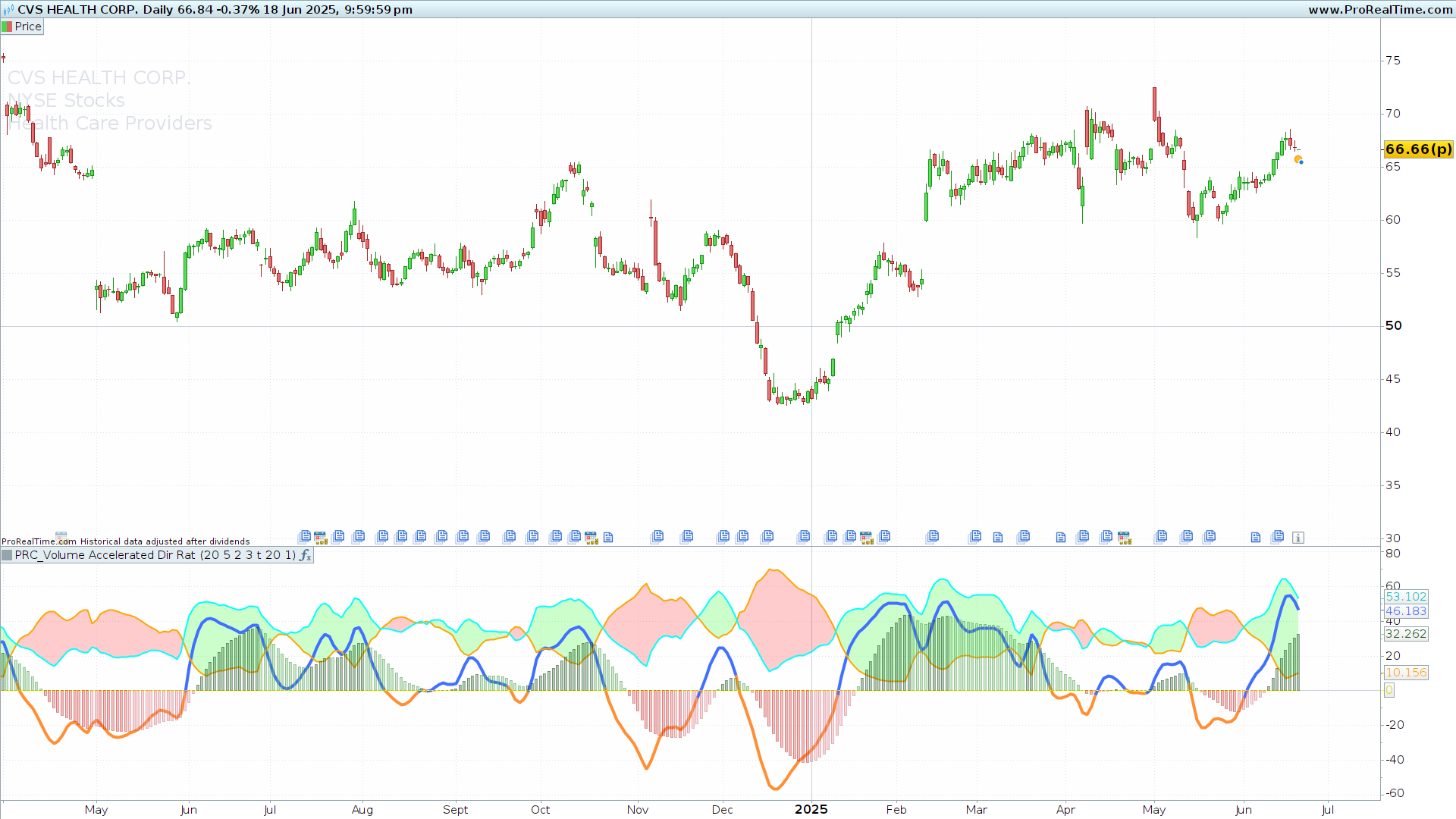

5. How to Read It

The indicator displays several visual components:

• Main Line (anps): Reflects net directional energy. Positive values imply dominance of demand, while negative ones indicate supply.
• Demand and Supply Lines (adp, asp): Displayed in aqua and orange for easy visual distinction.
• Colored Area between adp and asp: Highlights prevailing directional bias.
• Sentiment Histogram (vsenti): Provides an extra layer of insight into whether directional force is increasing or weakening. The color changes dynamically with momentum and direction.

Together, these signals can help identify exhaustion, trend acceleration, or early warnings of potential reversals.

6. Indicator Code

//--------------------------------------------//
//PRC_Volume Accelerated Directional Energy Ratio
//version = 0
//15.04.25
//Iván González @ www.prorealcode.com
//Sharing ProRealTime knowledge
//--------------------------------------------//
// Inputs
//--------------------------------------------//
src=close
length=10
deravg=5
matype=2
smooth=3
showsenti=1
senti=20
vcalc=1 //1=Relative, 2=full, 0=none
//--------------------------------------------//
// Calculations
//--------------------------------------------//
v=volume
if vcalc=0 then
vola=1
elsif vcalc=1 then
vola=(v-lowest[length](v))/(highest[length](v)-lowest[length](v))
else
vola=v
endif
r=(highest[2](high)-lowest[2](low))/2
sr=(src-src[1])/r
rsr=max(min(sr,1),-1)
c=rsr*vola
cplus=max(c,0)
cminus=-min(c,0)

avgvola=average[length,matype](vola)
dem=average[length,matype](cplus)/avgvola
sup=average[length,matype](cminus)/avgvola

adp=100*average[deravg,2](dem)
asp=100*average[deravg,2](sup)
anp=adp-asp
anps=average[smooth,2](anp)

sadp=100*average[senti,2](dem)
sasp=100*average[senti,2](sup)
vsenti=average[smooth,2](sadp-sasp)
//--------------------------------------------//
// Colors and plot
//--------------------------------------------//
if vsenti>=0 then
if abs(vsenti)>=abs(vsenti[1]) then
red=27
green=94
blue=32
alpha=100
else
red=107
green=187
blue=106
alpha=100
endif
else
if abs(vsenti)>=abs(vsenti[1]) then
red=220
green=76
blue=74
alpha=100
else
red=239
green=142
blue=152
alpha=100
endif
endif
if showsenti then
plotsenti=vsenti
else
plotsenti=undefined
endif

if asp>adp then
r1=255
g1=0
b1=0
else
r1=0
g1=255
b1=0
endif
colorbetween(asp,adp,r1,g1,b1,50)

if anps>0 then
r3=64
g3=112
b3=255

else
r3=255
g3=143
b3=53

endif
//--------------------------------------------//
return anps coloured(r3,g3,b3)style(line,4),asp coloured("orange")style(line,2),adp coloured("aqua")style(line,2),0 as "Zero" coloured("yellow"), plotsenti as "Sentiment" style(histogram)coloured(red,green,blue,alpha)
