1. Introduction

This indicator is a ProBuilder adaptation of the “RSI Liquidity Sweep Confluence Engine [PhenLabs]” pinescript. It fuses three ideas that usually live in separate tools into a single price overlay that only speaks up when they all agree.

Instead of reading the RSI in its own sub-window, the engine turns it into a source of dynamic support and resistance on price, watches for liquidity sweeps at swing pools, and fires a signal only when a sweep lands on an RSI-derived level and volume confirms. The result is a low-noise overlay: two smoothed S/R lines with a channel fill, plus clean BULL/BEAR markers at full-confluence bars.

2. How It Works

RSI turned into price levels. Pivots are detected on the RSI series (not on price). Each time the RSI prints a pivot high, the high of that pivot bar is stored as a resistance level; each RSI pivot low stores the low as a support level. Only the most recent keepLevels levels per side are kept, in a rolling FIFO buffer.

Nearest active level. On every bar the engine scans the buffers for the resistance closest above the close and the support closest below it. These two values are persistent: when no level sits on the right side of price, the last known one is retained, so the lines never flicker to nothing.

Liquidity pools and sweeps. The swing high and low over sweepLookback bars (excluding the current bar, to avoid lookahead) define the liquidity pools. A bullish sweep is a wick below the low pool; a bearish sweep is a wick above the high pool. With sweepCloseBack enabled, the candle must also close back inside the pool — the classic stop-hunt reversal footprint.

Confluence gating. A raw sweep is not a signal. It becomes one only when:

1. the swept extreme sits within levelTol × ATR of an RSI-derived S/R level, and
2. volume exceeds volMult × its moving average.

Both filters are individually switchable (set the parameter to 0 to disable). Only when sweep + level + volume align does a BULL or BEAR signal print — on closed bars, with no repaint.

Display. The nearest resistance and support are smoothed with a short WMA and drawn as two lines with a soft channel fill between them. Each signal drops a label and a dotted segment across the swept pool.

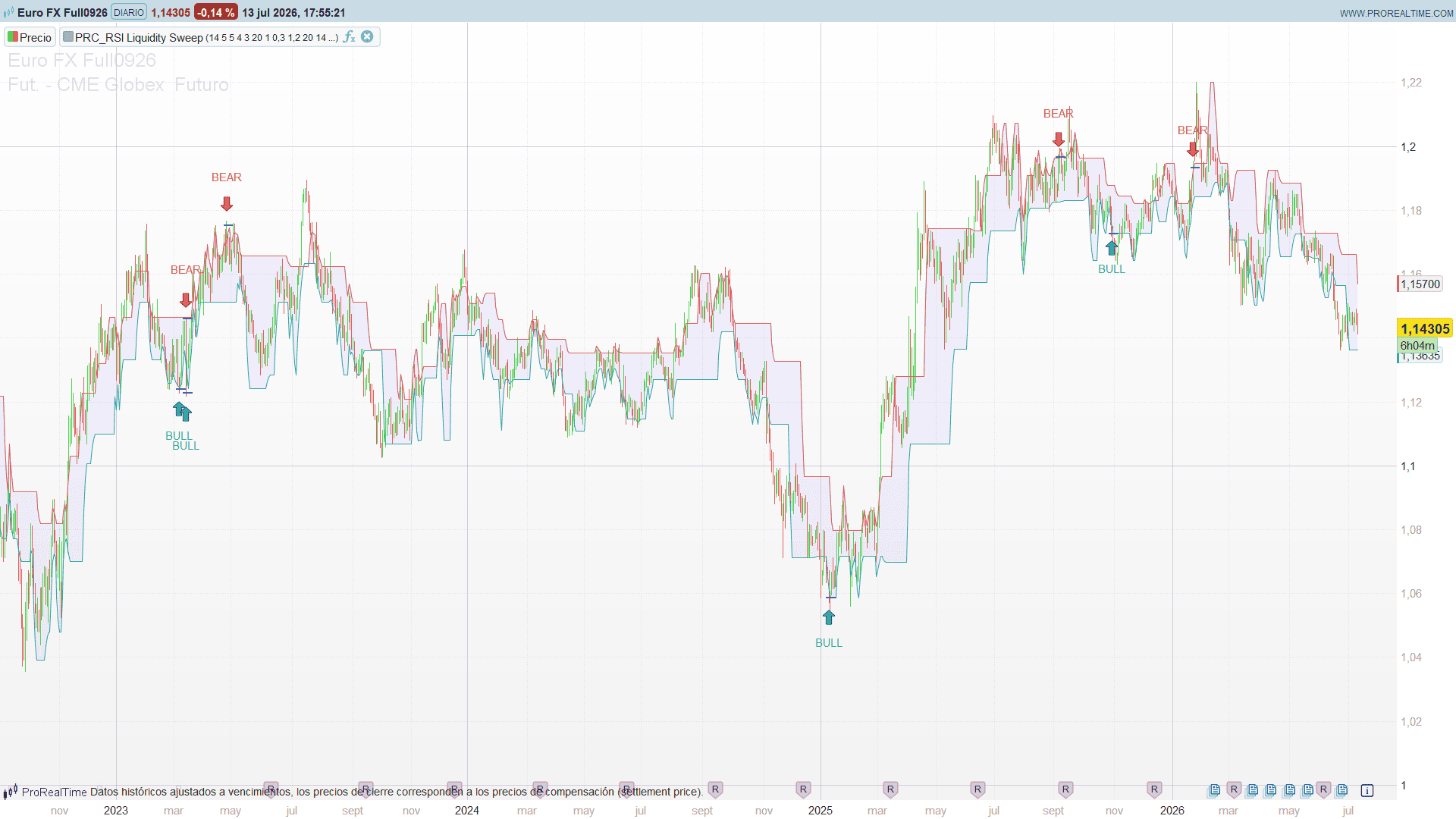

3. Reading the Indicator

• Red line: smoothed RSI-derived resistance (nearest level above price).
• Green line: smoothed RSI-derived support (nearest level below price).
• Shaded channel: the band between both levels — the current structural corridor.
• “BULL” label + dotted segment (below bar): full bullish confluence — support pool swept, back inside, on confirming volume.
• “BEAR” label + dotted segment (above bar): full bearish confluence — resistance pool swept, rejected, on confirming volume.

4. Trading Applications

• Reversal entries: the BULL/BEAR markers flag stop-hunt reversals that are backed by an RSI structural level and volume — a stricter filter than a bare sweep.
• Context from the channel: price inside the channel is in balance; the lines act as dynamic S/R to lean on or to target.
• Tuning strictness: widen levelTol (more ATR) or lower volMult for more signals; tighten them for only the cleanest confluences. Set either to 0 to drop that confluence entirely.
• Timeframe: works on any timeframe. On very low timeframes the volume filter helps cut noise.

5. Parameters

• rsiLen (default 14): RSI length used to derive the S/R levels.
• pivotLeft / pivotRight (5 / 5): bars on each side confirming an RSI pivot.
• keepLevels (4): most-recent RSI S/R levels kept active per side.
• smoothLen (3): WMA length applied to the displayed S/R lines.
• sweepLookback (20): bars defining the swing high/low liquidity pools.
• sweepCloseBack (1): require price to close back inside the swept pool.
• levelTol (0.30): distance, in ATR multiples, within which a sweep counts as touching an RSI level. 0 disables the level confluence.
• volMult (1.20): volume must exceed this multiple of its SMA. 0 disables the volume confluence.
• volLen (20): volume SMA length.
• atrLen (14): ATR length for the tolerance band.
• showChannel (1): draw the channel fill between the S/R lines.

6. RSI Liquidity Sweep Confluence Engine Code

//--------------------------------------------------------//
// PRC_RSI Liquidity Sweep Confluence Engine (by PhenLabs)
// version = 0
// 13.07.2026
// Ivan Gonzalez @ www.prorealcode.com
// Sharing ProRealTime knowledge
//--------------------------------------------------------//
// Overlay on the price chart.
// Fuses RSI-derived dynamic S/R levels + liquidity sweep + volume
// confluence gating. Signals fire ONLY on full confluence (closed bars).

// ===== Inputs =====
rsiLen = 14           // RSI length for dynamic S/R
pivotLeft = 5         // RSI pivot left bars
pivotRight = 5        // RSI pivot right bars
keepLevels = 4        // active RSI S/R levels kept (max 10)
smoothLen = 3         // level smoothing (WMA)
sweepLookback = 20    // liquidity pool lookback
sweepCloseBack = 1    // require close-back inside swept level (1/0)
levelTol = 0.30       // RSI level tolerance (ATR multiple; 0 disables)
volMult = 1.20        // volume multiplier (0 disables)
volLen = 20           // volume SMA length
atrLen = 14           // ATR length
showChannel = 1       // show S/R channel fill (1/0)

// ===== Colors (R,G,B) =====
bullR = 38
bullG = 166
bullB = 154
bearR = 239
bearG = 83
bearB = 80
chanR = 155
chanG = 140
chanB = 247
poolR = 50
poolG = 50
poolB = 222

// ===== Core calculation =====
rsiV = rsi[rsiLen](close)
atrV = averagetruerange[atrLen](close)
volSma = average[volLen](volume)
IF volMult <= 0 THEN
   volOk = 1
ELSIF volSma <= 0 THEN
   volOk = 0
ELSIF volume >= volSma * volMult THEN
   volOk = 1
ELSE
   volOk = 0
ENDIF

// ===== State init =====
IF barindex = 0 THEN
   nRes = 0
   nSup = 0
   haveRes = 0
   haveSup = 0
   nearestRes = undefined
   nearestSup = undefined
ENDIF

// ===== RSI pivots -> price S/R levels (FIFO, keep newest keepLevels) =====
win = pivotLeft + pivotRight + 1
IF barindex >= pivotLeft + pivotRight THEN
   // pivot high on RSI => resistance anchored at high[pivotRight]
   IF rsiV[pivotRight] = highest[win](rsiV) THEN
      IF nRes >= keepLevels THEN
         FOR i = 1 TO nRes - 1 DO
            $resLvl[i] = $resLvl[i+1]
         NEXT
         nRes = nRes - 1
      ENDIF
      nRes = nRes + 1
      $resLvl[nRes] = high[pivotRight]
   ENDIF
   // pivot low on RSI => support anchored at low[pivotRight]
   IF rsiV[pivotRight] = lowest[win](rsiV) THEN
      IF nSup >= keepLevels THEN
         FOR i = 1 TO nSup - 1 DO
            $supLvl[i] = $supLvl[i+1]
         NEXT
         nSup = nSup - 1
      ENDIF
      nSup = nSup + 1
      $supLvl[nSup] = low[pivotRight]
   ENDIF
ENDIF

// ===== Nearest RSI resistance above close / support below close (persistent) =====
haveFreshR = 0
freshRes = 0
IF nRes > 0 THEN
   FOR i = 1 TO nRes DO
      lvlR = $resLvl[i]
      IF lvlR >= close THEN
         IF haveFreshR = 0 THEN
            freshRes = lvlR
            haveFreshR = 1
         ELSIF abs(lvlR - close) < abs(freshRes - close) THEN
            freshRes = lvlR
         ENDIF
      ENDIF
   NEXT
ENDIF
IF haveFreshR = 1 THEN
   nearestRes = freshRes
   haveRes = 1
ENDIF

haveFreshS = 0
freshSup = 0
IF nSup > 0 THEN
   FOR i = 1 TO nSup DO
      lvlS = $supLvl[i]
      IF lvlS <= close THEN
         IF haveFreshS = 0 THEN
            freshSup = lvlS
            haveFreshS = 1
         ELSIF abs(lvlS - close) < abs(freshSup - close) THEN
            freshSup = lvlS
         ENDIF
      ENDIF
   NEXT
ENDIF
IF haveFreshS = 1 THEN
   nearestSup = freshSup
   haveSup = 1
ENDIF

// ===== Liquidity pools (swing high/low over lookback, exclude current bar) =====
swHigh = highest[sweepLookback](high)[1]
swLow = lowest[sweepLookback](low)[1]

// ===== Sweep detection: wick beyond pool then (optionally) close back inside =====
bullSweep = 0
IF low < swLow THEN
   IF sweepCloseBack = 0 OR close > swLow THEN
      bullSweep = 1
   ENDIF
ENDIF
bearSweep = 0
IF high > swHigh THEN
   IF sweepCloseBack = 0 OR close < swHigh THEN
      bearSweep = 1
   ENDIF
ENDIF

// ===== Confluence with RSI S/R level (tolerance in ATR units) =====
tol = atrV * levelTol
supConf = 0
IF haveSup = 1 THEN
   IF levelTol <= 0 OR abs(low - nearestSup) <= tol THEN
      supConf = 1
   ENDIF
ENDIF
resConf = 0
IF haveRes = 1 THEN
   IF levelTol <= 0 OR abs(high - nearestRes) <= tol THEN
      resConf = 1
   ENDIF
ENDIF

// ===== Full confluence signals =====
bullSignal = 0
IF bullSweep = 1 AND supConf = 1 AND volOk = 1 THEN
   bullSignal = 1
ENDIF
bearSignal = 0
IF bearSweep = 1 AND resConf = 1 AND volOk = 1 THEN
   bearSignal = 1
ENDIF

// ===== Smoothed display levels (WMA) =====
IF haveRes = 1 THEN
   smR = average[smoothLen,2](nearestRes)
ELSE
   smR = undefined
ENDIF
IF haveSup = 1 THEN
   smS = average[smoothLen,2](nearestSup)
ELSE
   smS = undefined
ENDIF

// ===== Channel fill between smoothed S/R lines =====
IF showChannel = 1 THEN
   colorbetween(smR, smS, chanR, chanG, chanB, 30)
ENDIF

// ===== Signal markers (fixed-X on the event bar, like arrows) =====
IF bullSignal = 1 THEN
   drawtext("BULL", barindex, low - atrV * 1.6) coloured(bullR, bullG, bullB)
   drawarrowup(barindex, low - atrV * 0.6) coloured(bullR, bullG, bullB)
   drawsegment(barindex - 2, swLow, barindex + 5, swLow) coloured(poolR, poolG, poolB, 200) STYLE(dottedline2,2)
ENDIF
IF bearSignal = 1 THEN
   drawtext("BEAR", barindex, high + atrV * 1.6) coloured(bearR, bearG, bearB)
   drawarrowdown(barindex, high + atrV * 0.6) coloured(bearR, bearG, bearB)
   drawsegment(barindex - 2, swHigh, barindex + 5, swHigh) coloured(poolR, poolG, poolB, 200) STYLE(dottedline2,2)
ENDIF

RETURN smR COLOURED(bearR, bearG, bearB) STYLE(line, 1) AS "RSI Res", smS COLOURED(bullR, bullG, bullB) STYLE(line, 1) AS "RSI Sup"
