1. Introduction

The RSI Divergence Detector is a technical indicator that automatically identifies divergences between price and the Relative Strength Index (RSI). Divergences are valuable signals in technical analysis, as they can anticipate potential trend reversals before they occur.

This indicator is especially useful for both trend-following traders and those looking to detect market turning points. Thanks to its visual implementation with color bands and dynamic alerts, it becomes an ideal tool for strategies involving RSI behavior.

2. Indicator Foundation

Divergences between price and an oscillator like RSI are early warning signs of a possible change in trend direction.

Bullish Divergence

Occurs when price prints a lower low, but the RSI shows a higher low. This suggests that despite the price drop, bearish momentum is weakening and an upward reversal could be near.

Bearish Divergence

Occurs when price makes a higher high, while the RSI shows a lower high. This indicates that although price is rising, bullish strength is fading, hinting at a possible retracement or correction.

The indicator automates the detection of these patterns on the chart, eliminating the need for manual comparison and enabling a more systematic, objective signal detection.

3. Code Logic

The code is divided into two main blocks: detection of bullish and bearish divergences, both based on comparing the average price and the RSI.

RSI and Average Price Calculation

RSI is calculated using the average price (open + high + low + close) / 4, which smooths volatility and reduces noise. The RSI period is adjustable (default: 14).

src=(open+high+low+close)/4
rv=rsi[rsiprd](src)

Bullish Divergence Detection

It looks for a recent lower low in price, and simultaneously a higher low in RSI. Key conditions include:

• srcLL: current price is above its recent lowest point, and that low is lower than an older one.
• rsiHL: current RSI is higher than its recent low, that low is above an older low, and it’s under the oversold level (30).

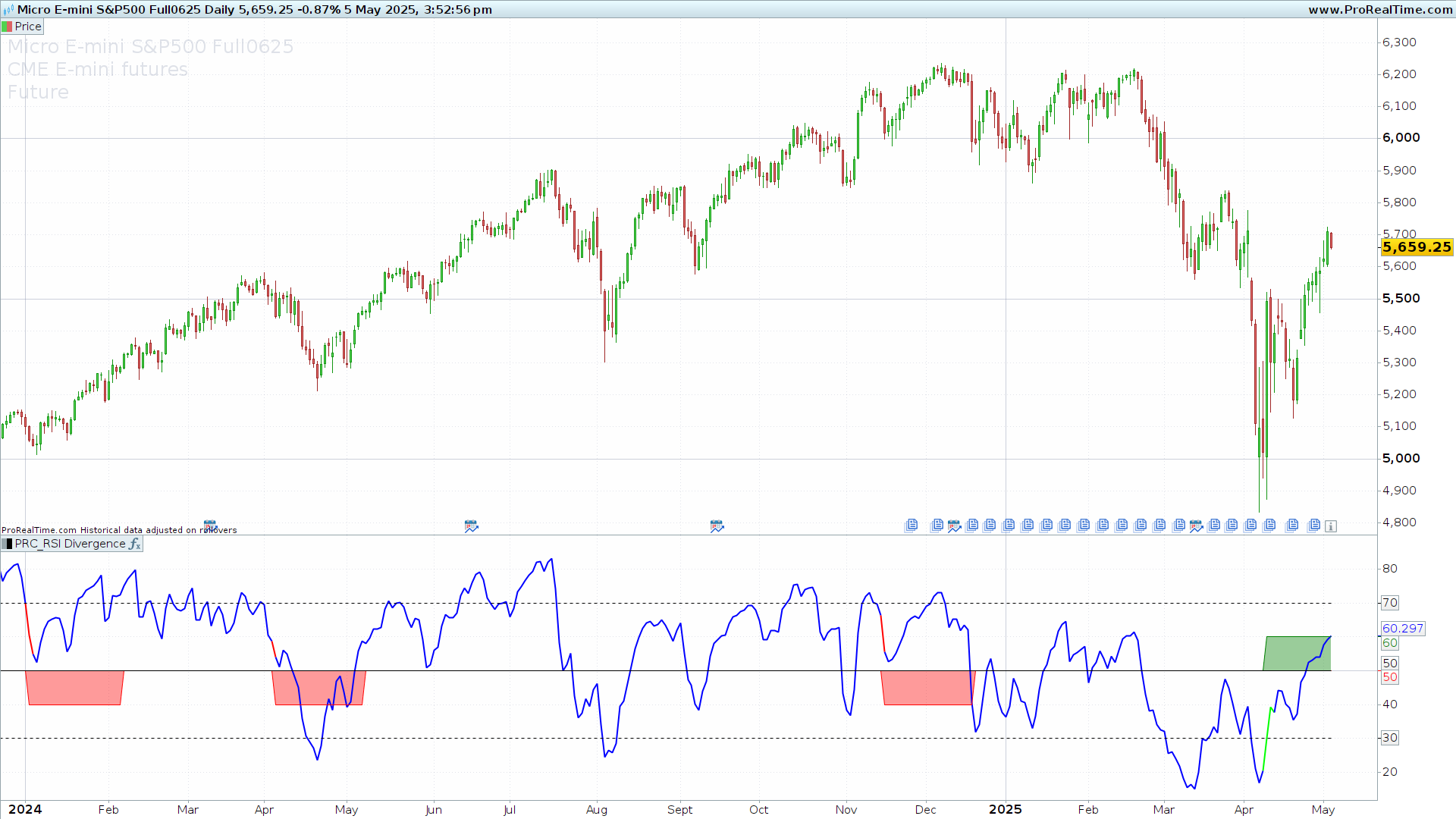

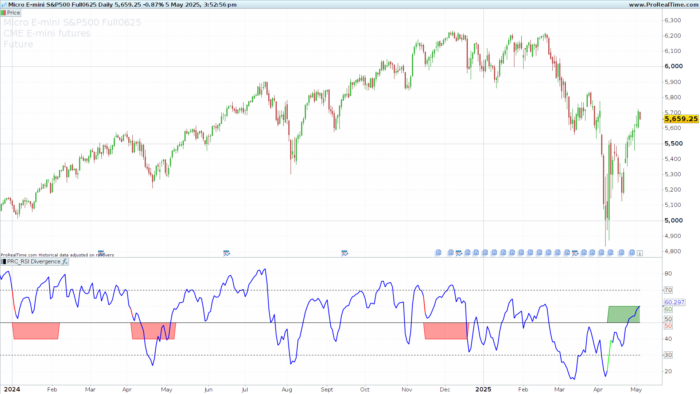

When both conditions are met, a green area is drawn under the RSI graph.

Bearish Divergence Detection

The inverse logic applies:

• srcHH: current price is below its recent highest point, and that high is above an older one.
• rsiLH: current RSI is lower than its recent high, that high is below an older high, and above the overbought level (70).

A red band is drawn above the RSI to signal potential downward reversal.

Alert System

Both divergence signals use counters to measure the number of bars since the last signal.

The ialert parameter defines the minimum how many bars a divergence remains visually highlighted. if a divergence occurred less than ialert bars ago, a colored band (green or red) is drawn on the RSI. Otherwise, the band is not displayed.

In addition, the RSI line changes color dynamically:

• Green when there’s a bullish divergence.
• Red when there’s a bearish divergence.
• Blue in all other cases.

4. Indicator Settings

The indicator includes customizable parameters that allow it to be adapted to different trading styles and timeframes:

Adjustment Recommendations

• For lower timeframes (1–15 min), reduce x and z for faster signals.
• For higher timeframes (4h, daily), increase x, z, and ialert to filter stronger signals.
• Adjust revpct for sensitivity tuning: higher values reduce noise, but may miss early entries.

5. Practical Use

The RSI Divergence Detector is versatile and works across multiple timeframes. Its effectiveness improves when used in trending contexts or around key support/resistance zones.

Recommended Timeframes

• Intraday (5min–1h): Suitable for scalping or short-term strategies. Use lower x and z.
• Swing trading (4h–Daily): Better for identifying significant reversals. Default or higher values work well.

Indicator Combinations

This divergence detector can be used alongside:

• Moving averages: For trend confirmation.
• Support/resistance levels: Divergence near these areas carries more weight.
• Volume indicators: Validate divergence strength, especially on longer timeframes.

Limitations

While divergences are powerful, they should not be used in isolation. It is recommended to wait for price action confirmation or additional signals before trading.

6. Indicator Code

The final section contains the full ProRealTime code (ProBuilder language) for implementing the RSI Divergence Detector.

//-----------------------------------------------//
//PRC_RSI Divergence
//version = 0
//05.05.2025
//Iván González @ www.prorealcode.com
//Sharing ProRealTime knowledge
//-----------------------------------------------//
// inputs
//-----------------------------------------------//
src=(open+high+low+close)/4
x=5
z=25
revpct=0.01
ialert=25
rsiprd=14
ob=70
os=30
//-----------------------------------------------//
// RSI calculation
//-----------------------------------------------//
rv=rsi[rsiprd](src)
//-----------------------------------------------//
// Bullish Divergence
//-----------------------------------------------//
//--- Define lower low in price
llvx=lowest[x](src)
llvz=lowest[z](src)
srcLL=src>llvx*(1+revpct) and llvx<llvz[x]
//--- Define higher low in RSI
llvrsix=lowest[x](rv)
llvrsiz=lowest[z](rv)
rsiHL=rv>llvrsix and llvrsix>llvrsiz[x] and llvrsix<os

bullishDiv=srcLL and rsiHL

if bullishDiv then
count=1
else
count=1+count
endif

if count<ialert then
bullishDivAlert=10+50
else
bullishDivAlert=50
endif
colorbetween(bullishDivAlert,50,"green",100)
//-----------------------------------------------//
// Bearish Divergence
//-----------------------------------------------//
//--- define higher high in price
hhvx=highest[x](src)
hhvz=highest[z](src)
srcHH=src<hhvx*(1-revpct) and hhvx>hhvz[x]

//--- define lower high in rsi
hhvrsix=highest[x](rv)
hhvrsiz=highest[z](rv)
rsiLH=rv<hhvrsix and hhvrsix<hhvrsiz[x] and hhvrsix>ob

bearishDiv=srcHH and rsiLH
if bearishDiv then
countbear=1
else
countbear=1+countbear
endif

if countbear<ialert then
bearishDivAlert=50-10
else
bearishDivAlert=50
endif
colorbetween(bearishDivAlert,50,"red",100)
//-----------------------------------------------//
if bullishdiv then
red=0
green=255
blue=0
elsif bearishdiv then
red=255
green=0
blue=0
else
red=0
green=0
blue=255
endif
//-----------------------------------------------//
return rv as "RSI" coloured(red,green,blue)style(line,2), bullishDivAlert coloured("green"), bearishDivAlert coloured("red"), ob style(dottedline), os style(dottedline), 50 as "midline"
