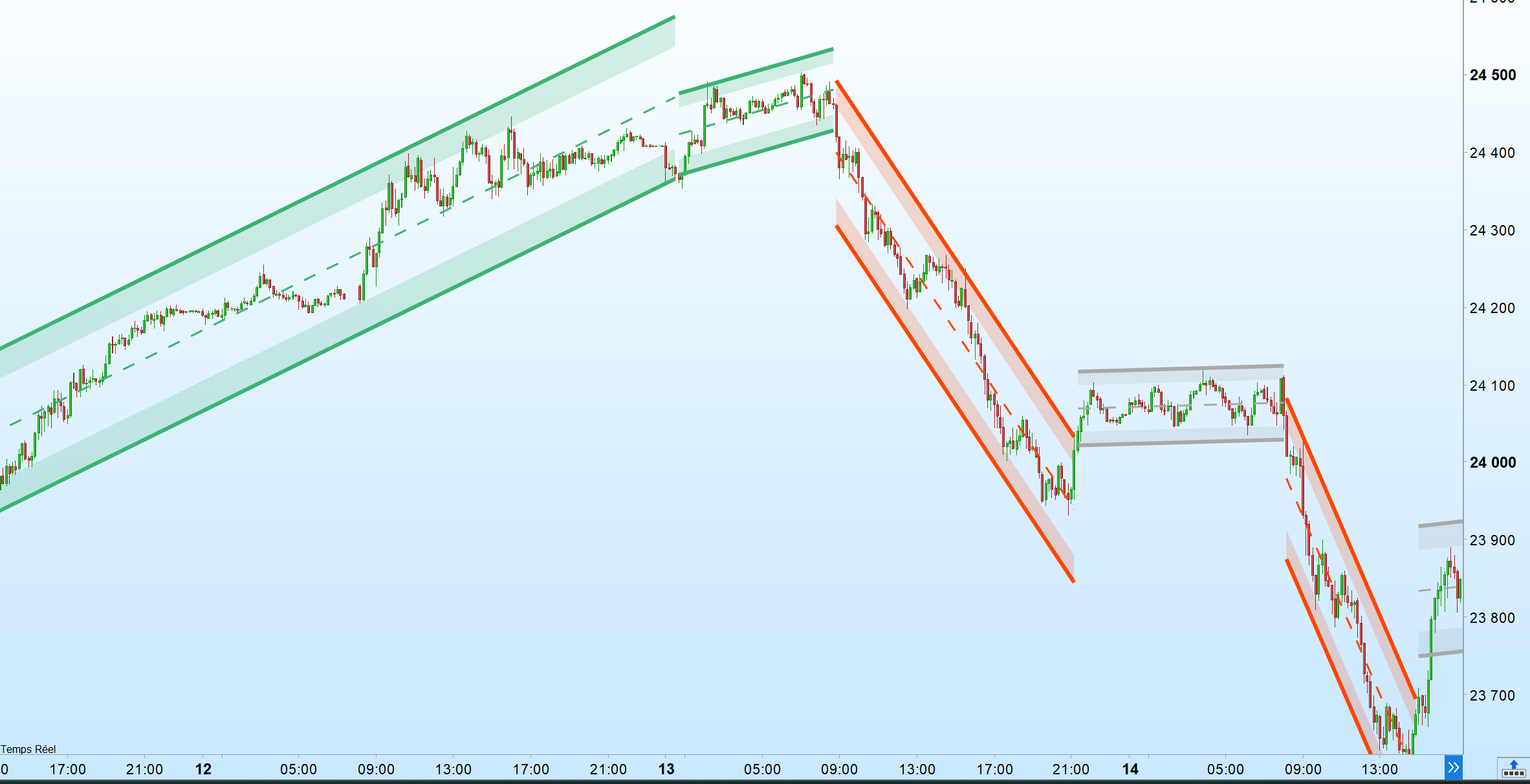

This ProRealTime indicator builds linear regression channels from the last segmentation point to the current bar, then stores completed channel segments whenever price closes outside the current channel. Each segment is drawn with a dotted midline and solid upper/lower bands, and the channel color changes depending on the slope speed (percent change per hour): green for rising, red for falling, gray for neutral.

Inputs: MultInput controls the channel width multiplier for both upper and lower bands. The script uses DrawOnLastBarOnly = true and keeps past channel segments plotted from stored arrays.

DefParam DrawOnLastBarOnly = true


ColorGreenR = 60
ColorGreenG = 179
ColorGreenB = 113  // Green color
ColorRedR = 255
ColorRedG = 69
ColorRedB = 0  // Red color
ColorGrayR = 169
ColorGrayG = 169
ColorGrayB = 169  // Gray color


UpperMultInput = MultInput
LowerMultInput = MultInput




// Initialize variables for calculations
once ChannelsIndex = 0
once StartIndex = 1
LengthInput = barindex - StartIndex + 1


SumX = 0
SumY = 0
SumXSqr = 0
SumXY = 0


FOR i = 0 TO LengthInput - 1 DO
Val = close[i]
Per = i + 1
SumX = SumX + Per
SumY = SumY + Val
SumXSqr = SumXSqr + Per * Per
SumXY = SumXY + Val * Per
NEXT


IF LengthInput * SumXSqr - SumX * SumX <> 0 THEN
Slope = (LengthInput * SumXY - SumX * SumY) / (LengthInput * SumXSqr - SumX * SumX)
ELSE
Slope = 0
ENDIF


AvgVal = SumY / LengthInput
Intercept = AvgVal - Slope * SumX / LengthInput + Slope


StartPrc = Intercept + Slope * (LengthInput - 1)
EndPrc = Intercept


// Calculation for Deviation
UpDev = 0
DnDev = 0
StdDevAcc = 0
Dsxx = 0
Dsyy = 0
Dsxy = 0
Periods = LengthInput - 3
DayValue = Intercept + Slope * Periods / 2
Val = Intercept


FOR j = 0 TO Periods DO
Prc = high[j] - Val
IF Prc > UpDev THEN
UpDev = Prc
ENDIF
Prc = Val - low[j]
IF Prc > DnDev THEN
DnDev = Prc
ENDIF
Prc = close[j]
Dxt = Prc - AvgVal
Dyt = Val - DayValue
Prc = Prc - Val
StdDevAcc = StdDevAcc + Prc * Prc
Dsxx = Dsxx + Dxt * Dxt
Dsyy = Dsyy + Dyt * Dyt
Dsxy = Dsxy + Dxt * Dyt
Val = Val + Slope
NEXT


IF Periods = 0 THEN
StdDev = SQRT(StdDevAcc)
ELSE
StdDev = SQRT(StdDevAcc / Periods)
ENDIF


IF Dsxx = 0 OR Dsyy = 0 THEN
PearsonR = 0
ELSE
PearsonR = Dsxy / SQRT(Dsxx * Dsyy)
ENDIF


UpperStartPrc = StartPrc + UpperMultInput * StdDev
UpperEndPrc = EndPrc + UpperMultInput * StdDev
LowerStartPrc = StartPrc - LowerMultInput * StdDev
LowerEndPrc = EndPrc - LowerMultInput * StdDev




/*IF (high > UpperEndPrc OR low < LowerEndPrc) THEN
If high > UpperEndPrc then
Drawarrowdown(barindex,high+5)coloured("red",255)
else
Drawarrowup(barindex,low-5)coloured("green",255)
Endif
Endif
*/


IF (close > UpperEndPrc OR close < LowerEndPrc) THEN


$channelsX1[ChannelsIndex] = barindex - LengthInput + 1
$channelsY1[ChannelsIndex] = StartPrc
$channelsX2[ChannelsIndex] = barindex - 1
$channelsY2[ChannelsIndex] = EndPrc
$channelsWidth[ChannelsIndex] = StdDev
ChannelsIndex = ChannelsIndex + 1


StartIndex = barindex




ELSIF islastbarupdate THEN


j = (close > UpperEndPrc OR close < LowerEndPrc)
MidPrc = (EndPrc+StartPrc[j])/2
PercentPrcChg = 100*(EndPrc-StartPrc[j]) / MidPrc
TF = GetTimeFrame
CandlePercentPrcChg = PercentPrcChg / (LengthInput-j)
a = CandlePercentPrcChg * 3600 / TF  // PercentPrcChg per Hour = Speed of change


If a>0.02 then
R = ColorGreenR
G = ColorGreenG
B = ColorGreenB
elsif a<-0.02 then
R = ColorRedR
G = ColorRedG
B = ColorRedB
else
R = ColorGrayR
G = ColorGrayG
B = ColorGrayB
endif


DRAWSEGMENT(barindex - LengthInput + 1, StartPrc[j], barindex - j, EndPrc[j]) style(dottedline2,2) COLOURED(R,G,B,200)
DRAWSEGMENT(barindex - LengthInput + 1, UpperStartPrc[j], barindex - j, UpperEndPrc[j])style(line,4) COLOURED(R,G,B,100)
DRAWSEGMENT(barindex - LengthInput + 1, LowerStartPrc[j], barindex - j, LowerEndPrc[j])style(line,4)COLOURED(R,G,B,100)


DrawTriangle(barindex - LengthInput + 1, UpperStartPrc[j], barindex - j, UpperEndPrc[j], barindex - LengthInput + 1, UpperStartPrc[j] - StdDev) bordercolor(R,G,B,0) coloured(R,G,B,50)
DrawTriangle(barindex - LengthInput + 1, UpperStartPrc[j] - StdDev, barindex - j, UpperEndPrc[j], barindex - j, UpperEndPrc[j] - StdDev) bordercolor(R,G,B,0) coloured(R,G,B,50)


DrawTriangle(barindex - LengthInput + 1, LowerStartPrc[j], barindex - j, LowerEndPrc[j], barindex - LengthInput + 1, LowerStartPrc[j] + StdDev) bordercolor(R,G,B,0) coloured(R,G,B,50)
DrawTriangle(barindex - LengthInput + 1, LowerStartPrc[j] + StdDev, barindex - j, LowerEndPrc[j], barindex - j, LowerEndPrc[j] + StdDev) bordercolor(R,G,B,0) coloured(R,G,B,50)


ENDIF


If ChannelsIndex>0 then
FOR k = 0 TO ChannelsIndex-1 DO


MidPrc = ($channelsY2[k]+$channelsY1[k])/2
PercentPrcChg = 100*($channelsY2[k]-$channelsY1[k]) / MidPrc
TF = GetTimeFrame
CandlePercentPrcChg = PercentPrcChg / ($channelsX2[k]-$channelsX1[k])
a = CandlePercentPrcChg * 3600 / TF  // PercentPrcChg per Hour = Speed of change


If a>0.02 then
R = ColorGreenR
G = ColorGreenG
B = ColorGreenB
elsif a<-0.02 then
R = ColorRedR
G = ColorRedG
B = ColorRedB
else
R = ColorGrayR
G = ColorGrayG
B = ColorGrayB
endif
DRAWSEGMENT($channelsX1[k], $channelsY1[k], $channelsX2[k], $channelsY2[k]) style(dottedline2,2) COLOURED(R,G,B,255)
DRAWSEGMENT($channelsX1[k], $channelsY1[k] + UpperMultInput * $channelsWidth[k], $channelsX2[k], $channelsY2[k] + UpperMultInput * $channelsWidth[k]) style(line,4) COLOURED(R,G,B,255)
DRAWSEGMENT($channelsX1[k], $channelsY1[k] - LowerMultInput * $channelsWidth[k], $channelsX2[k], $channelsY2[k] - LowerMultInput * $channelsWidth[k]) style(line,4) COLOURED(R,G,B,255)


DrawTriangle($channelsX1[k], $channelsY1[k] + UpperMultInput * $channelsWidth[k], $channelsX2[k], $channelsY2[k] + UpperMultInput * $channelsWidth[k], $channelsX1[k], $channelsY1[k] + (UpperMultInput-1) * $channelsWidth[k]) bordercolor(R,G,B,0) coloured(R,G,B,50)
DrawTriangle($channelsX1[k], $channelsY1[k] + (UpperMultInput-1) * $channelsWidth[k], $channelsX2[k], $channelsY2[k] + UpperMultInput * $channelsWidth[k], $channelsX2[k], $channelsY2[k] + (UpperMultInput-1) * $channelsWidth[k]) bordercolor(R,G,B,0) coloured(R,G,B,50)


DrawTriangle($channelsX1[k], $channelsY1[k] - LowerMultInput * $channelsWidth[k], $channelsX2[k], $channelsY2[k] - LowerMultInput * $channelsWidth[k], $channelsX1[k], $channelsY1[k] - (LowerMultInput-1) * $channelsWidth[k]) bordercolor(R,G,B,0) coloured(R,G,B,50)
DrawTriangle($channelsX1[k], $channelsY1[k] - (LowerMultInput-1) * $channelsWidth[k], $channelsX2[k], $channelsY2[k] - LowerMultInput * $channelsWidth[k], $channelsX2[k], $channelsY2[k] - (LowerMultInput-1) * $channelsWidth[k]) bordercolor(R,G,B,0) coloured(R,G,B,50)


NEXT


Endif


RETURN
