Introduction

This indicator brings the classic family of harmonic patterns to ProRealTime in a single, self-contained ProBuilder script. It detects six well-known XABCD figures — Bat, Gartley, Crab, Butterfly, AB=CD and Three Drives — directly on the chart, drawing each pattern as four connected segments labelled with its name and direction.

The original code was published in 2018 by Mario Jemic on FXCodeBase. This version cames with one important twist: the Carney ratios that drive the pattern classifier have been rebuilt from canonical references rather than copied verbatim, since the original Lua contains a few well-known bugs in the Bat detection block.

Theory Behind the Indicator

Pivot detection

Harmonic patterns live on swings, not on individual bars. The first half of the indicator is therefore a complete style ZigZag built from scratch around three parameters:

• depth — the symmetric window around each pivot (default 12 bars).
• deviation — the minimum percentage retracement between consecutive pivots (default 5%).
• backstep — the minimum number of bars between two pivots (default 3).

Each new pivot is appended to a parallel-array structure ($pivIdx, $pivPrc, $pivTyp) and confirmed depth bars after its actual occurrence. When two pivots of the same type appear in sequence, the more extreme one replaces the previous; only true alternations (high → low → high → …) advance the pivot count.

XABCD evaluation

Every time a new pivot is confirmed, the indicator takes the last five pivots (X-A-B-C-D) and computes the four canonical ratios used by Scott Carney’s Harmonic Trading:

rAB = AB / XA

rBC = BC / AB

rCD = CD / BC

rAD = AD / XA

Each pattern is then a set of bounded ranges over these ratios. For example:

| Pattern | rAB | rBC | rCD | rAD |
|---|---|---|---|---|
| **Bat** | 0.382-0.500 | 0.382-0.886 | 1.618-2.618 | 0.886 |
| **Gartley** | 0.618 | 0.382-0.886 | 1.272-1.618 | 0.786 |
| **Crab** | 0.382-0.618 | 0.382-0.886 | 2.618-3.618 | 1.618 |
| **Butterfly** | 0.786 | 0.382-0.886 | 1.618-2.618 | 1.272 |
| **AB=CD** | — | 0.618-0.786 | rCD/rAB ≈ 1 | — |
| **Three Drives** | — | — | XB/XA ≈ XD/XB ∈ 1.272-1.618 | — |

A single tolerance parameter — correction (in %) — widens every range symmetrically. The default of 25% is permissive enough to catch most real-market figures; lowering it to 10-15% produces stricter, less frequent matches.

The direction of the pattern is determined by the type of the D pivot: bullish if D is a low, bearish if D is a high. Detected patterns are stored in a separate parallel-array stack, so historical patterns remain visible as new ones appear.

How to Read the Indicator

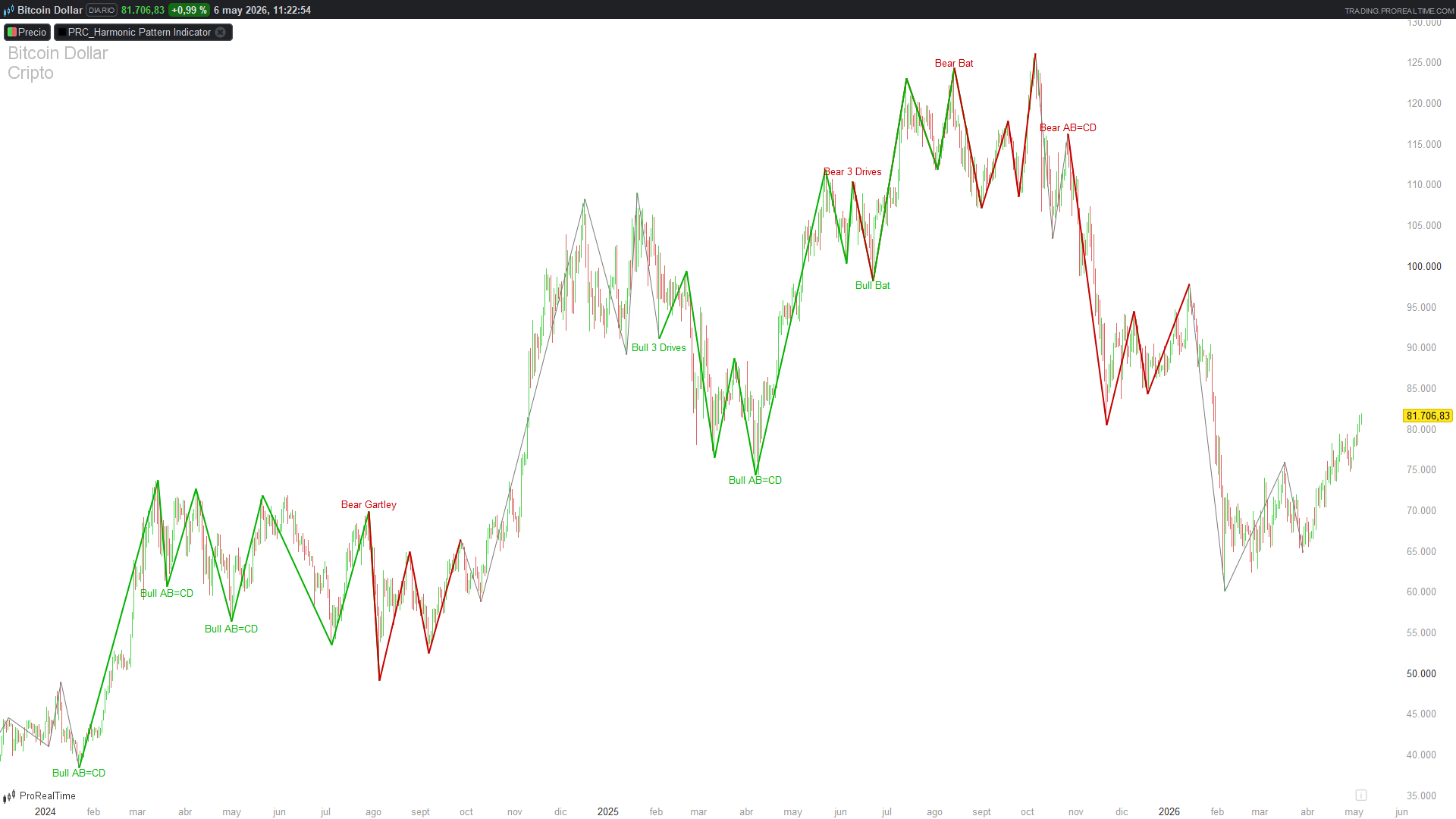

Each detected pattern is drawn as four segments — green for bullish (long bias at D) and red for bearish (short bias at D) — with a text label at the X point indicating the pattern name and direction.

The indicator does not generate entry/exit signals: it is a structural detector. Typical workflows are:

• Use the D point as a potential reversal level — entries on confirmation (e.g. an engulfing candle in the opposite direction).
• Place stops just beyond the X point — the level at which the pattern is structurally invalidated.
• Use the optional target lines (showTargets = 1) projected at 0.886·XA and 1.272·AD from D as initial profit zones.

Indicator Configuration

| Parameter | Default | Description |
|---|---|---|
| `depth` | 12 | ZigZag pivot window (bars on each side) |
| `deviation` | 5 | Minimum % retracement between consecutive pivots |
| `backstep` | 3 | Minimum bars between consecutive pivots |
| `correction` | 25 | Tolerance (%) on the Fibonacci ratios |
| `showBat` / `showGartley` / `showCrab` / `showButterfly` / `showABCD` / `showThreeDrives` | 1 | Toggle each pattern individually (0/1) |
| `showZigzag` | 1 | Plot the underlying ZigZag for visual debugging |
| `showTargets` | 0 | Plot target lines from D at 0.886·XA and 1.272·AD |

A practical first session: load the indicator on the daily timeframe of any liquid instrument with showZigzag = 1 to validate that the pivots match what your eye sees, then disable individual patterns one by one to inspect the classifier in isolation.

Implementation Notes

A few decisions worth flagging for anyone reading the source:

1. Bug-fixed Bat formula — the Lua original encodes the Bat with two >= conditions (no upper bound on AD) and tests a CD multiple of XA that makes the pattern impossible to trigger. The ProBuilder version uses the canonical Carney ratios as published in Harmonic Trading.
2. DEFPARAM DRAWONLASTBARONLY = TRUE — drawings are emitted only on the last update of the last bar. This keeps performance flat even on 5,000-bar charts and avoids primitive accumulation.
3. Parallel arrays everywhere — Lua’s associative tables LAST[“HighOne/Two/Three/Four”] are replaced with index-based arrays ($pivIdx[], $pivPrc[], $pivTyp[]) and a manual counter n, since ProBuilder has no associative-array primitive.
4. Strings cannot be variables in PRT — the twelve label combinations (6 patterns × bull/bear) are hard-coded as separate DRAWTEXT literals, not parameterised.
5. Three Drives is detected on the same XABCD window as the rest, mirroring the original. A stricter implementation would scan three same-type pivots in non-consecutive positions; the simpler version is kept here for parity.

Code

// ==========================================================
// PRC_FXC Harmonic Pattern (Indicador)
// Traducción del original Lua/Indicore de Mario Jemic (FXCodeBase 2018)
// ZigZag MT-style + detector XABCD + clasificador 6 patrones armónicos
// version = 0
// 06.05.2026
// Iván González @ www.prorealcode.com
// Sharing ProRealTime knowledge
// ==========================================================
DEFPARAM DRAWONLASTBARONLY = TRUE

// ==========================================================
// === Inputs ===
// ==========================================================
depth = 12              // ZigZag: ventana simétrica del pivot (mín. barras a cada lado)
deviation = 5           // ZigZag: % mínimo de retracement entre pivots
backstep = 3            // ZigZag: barras mínimas entre pivots consecutivos
correction = 25         // Tolerancia (%) sobre los ratios Fibonacci

showBat = 1             // 0/1 — mostrar Bull/Bear Bat
showGartley = 1         // 0/1 — mostrar Bull/Bear Gartley
showCrab = 1            // 0/1 — mostrar Bull/Bear Crab
showButterfly = 1       // 0/1 — mostrar Bull/Bear Butterfly
showABCD = 1            // 0/1 — mostrar Bull/Bear AB=CD
showThreeDrives = 1     // 0/1 — mostrar Bull/Bear 3 Drives

showZigzag = 1          // 0/1 — dibujar la línea ZigZag entre pivots
showTargets = 0         // 0/1 — dibujar líneas de target (0.886·XA y 1.272·AD desde D)

// ==========================================================
// === 1. INICIALIZACIÓN ===
// ==========================================================
ONCE n = 0           // contador de pivots ZigZag
ONCE p = 0           // contador de patrones detectados

// Ventana del pivot (simétrica)
prd = depth

// Tolerancia: convertimos correction (%) a fracción
corrFrac = correction / 100

// ==========================================================
// === 2. DETECCIÓN DE PIVOTS (ZigZag MT-style) ===
// ==========================================================
// El pivot se confirma 'prd' barras después de su ocurrencia real.
// Filtros aplicados:
//   - Symmetric depth: el pivot es máximo (o mínimo) en ventana 2*prd+1
//   - Backstep: distancia mínima al pivot anterior
//   - Deviation: % mínimo de retracement contra el pivot anterior del tipo opuesto

IF barindex >= 2*prd+1 THEN

   pivBar = barindex - prd
   isPivH = high[prd] >= highest[2*prd+1](high)
   isPivL = low[prd]  <= lowest[2*prd+1](low)

   // === Procesar candidato HIGH ===
   IF isPivH THEN
      candPrc = high[prd]
      // Cargar último pivot (escalares; no accedemos a array dentro de AND)
      lastIdxH = 0
      lastPrcH = 0
      lastTypH = 0
      IF n > 0 THEN
         lastIdxH = $pivIdx[n-1]
         lastPrcH = $pivPrc[n-1]
         lastTypH = $pivTyp[n-1]
      ENDIF

      okH = 1
      // Backstep
      IF n > 0 THEN
         IF (pivBar - lastIdxH) < backstep THEN
            okH = 0
         ENDIF
      ENDIF
      // Deviation (solo contra pivot opuesto)
      IF okH = 1 THEN
         IF n > 0 THEN
            IF lastTypH = -1 THEN
               devPctH = abs(candPrc - lastPrcH) / lastPrcH * 100
               IF devPctH < deviation THEN
                  okH = 0
               ENDIF
            ENDIF
         ENDIF
      ENDIF

      IF okH = 1 THEN
         IF n = 0 THEN
            $pivIdx[0] = pivBar
            $pivPrc[0] = candPrc
            $pivTyp[0] = 1
            n = 1
         ELSE
            IF lastTypH = 1 THEN
               // Mismo tipo consecutivo: nos quedamos con el más alto
               IF candPrc > lastPrcH THEN
                  $pivIdx[n-1] = pivBar
                  $pivPrc[n-1] = candPrc
               ENDIF
            ELSE
               // Alternancia válida: añadimos
               $pivIdx[n] = pivBar
               $pivPrc[n] = candPrc
               $pivTyp[n] = 1
               n = n + 1
            ENDIF
         ENDIF
      ENDIF
   ENDIF

   // === Procesar candidato LOW ===
   IF isPivL THEN
      candPrc = low[prd]
      lastIdxL = 0
      lastPrcL = 0
      lastTypL = 0
      IF n > 0 THEN
         lastIdxL = $pivIdx[n-1]
         lastPrcL = $pivPrc[n-1]
         lastTypL = $pivTyp[n-1]
      ENDIF

      okL = 1
      IF n > 0 THEN
         IF (pivBar - lastIdxL) < backstep THEN
            okL = 0
         ENDIF
      ENDIF
      IF okL = 1 THEN
         IF n > 0 THEN
            IF lastTypL = 1 THEN
               devPctL = abs(candPrc - lastPrcL) / lastPrcL * 100
               IF devPctL < deviation THEN
                  okL = 0
               ENDIF
            ENDIF
         ENDIF
      ENDIF

      IF okL = 1 THEN
         IF n = 0 THEN
            $pivIdx[0] = pivBar
            $pivPrc[0] = candPrc
            $pivTyp[0] = -1
            n = 1
         ELSE
            IF lastTypL = -1 THEN
               // Mismo tipo consecutivo: nos quedamos con el más bajo
               IF candPrc < lastPrcL THEN
                  $pivIdx[n-1] = pivBar
                  $pivPrc[n-1] = candPrc
               ENDIF
            ELSE
               $pivIdx[n] = pivBar
               $pivPrc[n] = candPrc
               $pivTyp[n] = -1
               n = n + 1
            ENDIF
         ENDIF
      ENDIF
   ENDIF

ENDIF


// ==========================================================
// === 3. EVALUACIÓN DE PATRÓN XABCD (sobre los 5 últimos pivots) ===
// ==========================================================
// Solo evaluamos cuando tenemos al menos 5 pivots Y el último cambió en esta barra.

evalPattern = 0
IF n >= 5 THEN
   IF n <> n[1] THEN
      evalPattern = 1
   ENDIF
ENDIF

IF evalPattern = 1 THEN
   xIdx = $pivIdx[n-5]
   aIdx = $pivIdx[n-4]
   bIdx = $pivIdx[n-3]
   cIdx = $pivIdx[n-2]
   dIdx = $pivIdx[n-1]
   xPrc = $pivPrc[n-5]
   aPrc = $pivPrc[n-4]
   bPrc = $pivPrc[n-3]
   cPrc = $pivPrc[n-2]
   dPrc = $pivPrc[n-1]
   dTyp = $pivTyp[n-1]

   // Bull si D es low (-1), Bear si D es high (1)
   isBull = 0
   IF dTyp = -1 THEN
      isBull = 1
   ENDIF

   // Magnitudes
   xa = abs(xPrc - aPrc)
   ab = abs(aPrc - bPrc)
   bc = abs(bPrc - cPrc)
   cd = abs(cPrc - dPrc)
   ad = abs(aPrc - dPrc)

   // Validar denominadores antes de dividir (learning 028: nada de array dentro de AND)
   ratiosOk = 0
   IF xa > 0 THEN
      IF ab > 0 THEN
         IF bc > 0 THEN
            ratiosOk = 1
         ENDIF
      ENDIF
   ENDIF

   patternFound = 0
   patternId    = 0
   // 1=Bat, 2=Gartley, 3=Crab, 4=Butterfly, 5=ABCD, 6=ThreeDrives

   IF ratiosOk = 1 THEN
      rAB = ab / xa
      rBC = bc / ab
      rCD = cd / bc
      rAD = ad / xa

      // ===== BAT =====
      // AB=0.382-0.500 XA, BC=0.382-0.886 AB, CD=1.618-2.618 BC, AD=0.886 XA
      abOk = 0
      IF rAB >= 0.382 - corrFrac THEN
         IF rAB <= 0.500 + corrFrac THEN
            abOk = 1
         ENDIF
      ENDIF
      bcOk = 0
      IF rBC >= 0.382 - corrFrac THEN
         IF rBC <= 0.886 + corrFrac THEN
            bcOk = 1
         ENDIF
      ENDIF
      cdOk = 0
      IF rCD >= 1.618 - corrFrac THEN
         IF rCD <= 2.618 + corrFrac THEN
            cdOk = 1
         ENDIF
      ENDIF
      adOk = 0
      IF rAD >= 0.886 - corrFrac THEN
         IF rAD <= 0.886 + corrFrac THEN
            adOk = 1
         ENDIF
      ENDIF
      IF abOk = 1 THEN
         IF bcOk = 1 THEN
            IF cdOk = 1 THEN
               IF adOk = 1 THEN
                  IF showBat = 1 THEN
                     patternFound = 1
                     patternId    = 1
                  ENDIF
               ENDIF
            ENDIF
         ENDIF
      ENDIF

      // ===== GARTLEY =====
      // AB=0.618 XA, BC=0.382-0.886 AB, CD=1.272-1.618 BC, AD=0.786 XA
      IF patternFound = 0 THEN
         abOk = 0
         IF rAB >= 0.618 - corrFrac THEN
            IF rAB <= 0.618 + corrFrac THEN
               abOk = 1
            ENDIF
         ENDIF
         bcOk = 0
         IF rBC >= 0.382 - corrFrac THEN
            IF rBC <= 0.886 + corrFrac THEN
               bcOk = 1
            ENDIF
         ENDIF
         cdOk = 0
         IF rCD >= 1.272 - corrFrac THEN
            IF rCD <= 1.618 + corrFrac THEN
               cdOk = 1
            ENDIF
         ENDIF
         adOk = 0
         IF rAD >= 0.786 - corrFrac THEN
            IF rAD <= 0.786 + corrFrac THEN
               adOk = 1
            ENDIF
         ENDIF
         IF abOk = 1 THEN
            IF bcOk = 1 THEN
               IF cdOk = 1 THEN
                  IF adOk = 1 THEN
                     IF showGartley = 1 THEN
                        patternFound = 1
                        patternId    = 2
                     ENDIF
                  ENDIF
               ENDIF
            ENDIF
         ENDIF
      ENDIF

      // ===== CRAB =====
      // AB=0.382-0.618 XA, BC=0.382-0.886 AB, CD=2.618-3.618 BC, AD=1.618 XA
      IF patternFound = 0 THEN
         abOk = 0
         IF rAB >= 0.382 - corrFrac THEN
            IF rAB <= 0.618 + corrFrac THEN
               abOk = 1
            ENDIF
         ENDIF
         bcOk = 0
         IF rBC >= 0.382 - corrFrac THEN
            IF rBC <= 0.886 + corrFrac THEN
               bcOk = 1
            ENDIF
         ENDIF
         cdOk = 0
         IF rCD >= 2.618 - corrFrac THEN
            IF rCD <= 3.618 + corrFrac THEN
               cdOk = 1
            ENDIF
         ENDIF
         adOk = 0
         IF rAD >= 1.618 - corrFrac THEN
            IF rAD <= 1.618 + corrFrac THEN
               adOk = 1
            ENDIF
         ENDIF
         IF abOk = 1 THEN
            IF bcOk = 1 THEN
               IF cdOk = 1 THEN
                  IF adOk = 1 THEN
                     IF showCrab = 1 THEN
                        patternFound = 1
                        patternId    = 3
                     ENDIF
                  ENDIF
               ENDIF
            ENDIF
         ENDIF
      ENDIF

      // ===== BUTTERFLY =====
      // AB=0.786 XA, BC=0.382-0.886 AB, CD=1.618-2.618 BC, AD=1.272 XA
      IF patternFound = 0 THEN
         abOk = 0
         IF rAB >= 0.786 - corrFrac THEN
            IF rAB <= 0.786 + corrFrac THEN
               abOk = 1
            ENDIF
         ENDIF
         bcOk = 0
         IF rBC >= 0.382 - corrFrac THEN
            IF rBC <= 0.886 + corrFrac THEN
               bcOk = 1
            ENDIF
         ENDIF
         cdOk = 0
         IF rCD >= 1.618 - corrFrac THEN
            IF rCD <= 2.618 + corrFrac THEN
               cdOk = 1
            ENDIF
         ENDIF
         adOk = 0
         IF rAD >= 1.272 - corrFrac THEN
            IF rAD <= 1.272 + corrFrac THEN
               adOk = 1
            ENDIF
         ENDIF
         IF abOk = 1 THEN
            IF bcOk = 1 THEN
               IF cdOk = 1 THEN
                  IF adOk = 1 THEN
                     IF showButterfly = 1 THEN
                        patternFound = 1
                        patternId    = 4
                     ENDIF
                  ENDIF
               ENDIF
            ENDIF
         ENDIF
      ENDIF

      // ===== AB=CD =====
      // AB ≈ CD en magnitud, BC = 0.618-0.786 retrace de AB
      IF patternFound = 0 THEN
         // ratio AB:CD cercano a 1
         rAcd = 1
         IF ab > 0 THEN
            rAcd = cd / ab
         ENDIF
         abcdOk = 0
         IF rAcd >= 1 - corrFrac THEN
            IF rAcd <= 1 + corrFrac THEN
               abcdOk = 1
            ENDIF
         ENDIF
         bcOk = 0
         IF rBC >= 0.618 - corrFrac THEN
            IF rBC <= 0.786 + corrFrac THEN
               bcOk = 1
            ENDIF
         ENDIF
         IF abcdOk = 1 THEN
            IF bcOk = 1 THEN
               IF showABCD = 1 THEN
                  patternFound = 1
                  patternId    = 5
               ENDIF
            ENDIF
         ENDIF
      ENDIF

      // ===== THREE DRIVES =====
      // 3 extensiones progresivas: B = 1.272-1.618 XA, D = 1.272-1.618 BX (medido sobre XB)
      IF patternFound = 0 THEN
         xb = abs(xPrc - bPrc)
         xd = abs(xPrc - dPrc)
         ir1 = 0
         ir2 = 0
         IF xa > 0 THEN
            ir1 = xb / xa
         ENDIF
         IF xb > 0 THEN
            ir2 = xd / xb
         ENDIF
         ir1Ok = 0
         IF ir1 >= 1.272 - corrFrac THEN
            IF ir1 <= 1.618 + corrFrac THEN
               ir1Ok = 1
            ENDIF
         ENDIF
         ir2Ok = 0
         IF ir2 >= 1.272 - corrFrac THEN
            IF ir2 <= 1.618 + corrFrac THEN
               ir2Ok = 1
            ENDIF
         ENDIF
         IF ir1Ok = 1 THEN
            IF ir2Ok = 1 THEN
               IF showThreeDrives = 1 THEN
                  patternFound = 1
                  patternId    = 6
               ENDIF
            ENDIF
         ENDIF
      ENDIF
   ENDIF

   // Guardar el patrón en arrays paralelos
   IF patternFound = 1 THEN
      $patId[p]     = patternId
      $patBull[p]   = isBull
      $patXIdx[p]   = xIdx
      $patAIdx[p]   = aIdx
      $patBIdx[p]   = bIdx
      $patCIdx[p]   = cIdx
      $patDIdx[p]   = dIdx
      $patXPrc[p]   = xPrc
      $patAPrc[p]   = aPrc
      $patBPrc[p]   = bPrc
      $patCPrc[p]   = cPrc
      $patDPrc[p]   = dPrc
      p = p + 1
   ENDIF
ENDIF


// ==========================================================
// === 4. DIBUJADO ===
// ==========================================================
IF islastbarupdate THEN

   // --- 4a. Línea ZigZag (segmentos pivot a pivot) ---
   IF showZigzag = 1 THEN
      IF n >= 2 THEN
         FOR k = 1 TO n - 1 DO
            bx0 = $pivIdx[k-1]
            py0 = $pivPrc[k-1]
            bx1 = $pivIdx[k]
            py1 = $pivPrc[k]
            DRAWSEGMENT(bx0, py0, bx1, py1) COLOURED(120, 120, 120) STYLE(line, 1)
         NEXT
      ENDIF
   ENDIF

   // --- 4b. Patrones detectados ---
   IF p >= 1 THEN
      FOR k = 0 TO p - 1 DO
         pid    = $patId[k]
         pBull  = $patBull[k]
         xb0    = $patXIdx[k]
         ab0    = $patAIdx[k]
         bb0    = $patBIdx[k]
         cb0    = $patCIdx[k]
         db0    = $patDIdx[k]
         xy0    = $patXPrc[k]
         ay0    = $patAPrc[k]
         by0    = $patBPrc[k]
         cy0    = $patCPrc[k]
         dy0    = $patDPrc[k]

         // Color por dirección
         IF pBull = 1 THEN
            rC = 0
            gC = 180
            bC = 0
         ELSE
            rC = 200
            gC = 0
            bC = 0
         ENDIF

         // Las 4 patas del patrón XABCD
         DRAWSEGMENT(xb0, xy0, ab0, ay0) COLOURED(rC, gC, bC) STYLE(line, 2)
         DRAWSEGMENT(ab0, ay0, bb0, by0) COLOURED(rC, gC, bC) STYLE(line, 2)
         DRAWSEGMENT(bb0, by0, cb0, cy0) COLOURED(rC, gC, bC) STYLE(line, 2)
         DRAWSEGMENT(cb0, cy0, db0, dy0) COLOURED(rC, gC, bC) STYLE(line, 2)

         // Posición de la etiqueta en X (offset según dirección)
         offY = abs(ay0 - by0) * 0.05
         IF pBull = 1 THEN
            posY = xy0 - offY
         ELSE
            posY = xy0 + offY
         ENDIF

         // Etiqueta del patrón
         IF pid = 1 THEN
            IF pBull = 1 THEN
               DRAWTEXT("Bull Bat", xb0, posY) COLOURED(rC, gC, bC)
            ELSE
               DRAWTEXT("Bear Bat", xb0, posY) COLOURED(rC, gC, bC)
            ENDIF
         ENDIF
         IF pid = 2 THEN
            IF pBull = 1 THEN
               DRAWTEXT("Bull Gartley", xb0, posY) COLOURED(rC, gC, bC)
            ELSE
               DRAWTEXT("Bear Gartley", xb0, posY) COLOURED(rC, gC, bC)
            ENDIF
         ENDIF
         IF pid = 3 THEN
            IF pBull = 1 THEN
               DRAWTEXT("Bull Crab", xb0, posY) COLOURED(rC, gC, bC)
            ELSE
               DRAWTEXT("Bear Crab", xb0, posY) COLOURED(rC, gC, bC)
            ENDIF
         ENDIF
         IF pid = 4 THEN
            IF pBull = 1 THEN
               DRAWTEXT("Bull Butterfly", xb0, posY) COLOURED(rC, gC, bC)
            ELSE
               DRAWTEXT("Bear Butterfly", xb0, posY) COLOURED(rC, gC, bC)
            ENDIF
         ENDIF
         IF pid = 5 THEN
            IF pBull = 1 THEN
               DRAWTEXT("Bull AB=CD", xb0, posY) COLOURED(rC, gC, bC)
            ELSE
               DRAWTEXT("Bear AB=CD", xb0, posY) COLOURED(rC, gC, bC)
            ENDIF
         ENDIF
         IF pid = 6 THEN
            IF pBull = 1 THEN
               DRAWTEXT("Bull 3 Drives", xb0, posY) COLOURED(rC, gC, bC)
            ELSE
               DRAWTEXT("Bear 3 Drives", xb0, posY) COLOURED(rC, gC, bC)
            ENDIF
         ENDIF

         // Targets opcionales
         IF showTargets = 1 THEN
            adAbs = abs(ay0 - dy0)
            xaAbs = abs(xy0 - ay0)
            IF pBull = 1 THEN
               tgt1 = dy0 + xaAbs * 0.886
               tgt2 = dy0 + adAbs * 1.272
            ELSE
               tgt1 = dy0 - xaAbs * 0.886
               tgt2 = dy0 - adAbs * 1.272
            ENDIF
            DRAWSEGMENT(db0, tgt1, db0 + (db0 - ab0), tgt1) COLOURED(0, 0, 200) STYLE(dottedline, 1)
            DRAWSEGMENT(db0, tgt2, db0 + (db0 - ab0), tgt2) COLOURED(0, 0, 200) STYLE(dottedline, 1)
         ENDIF
      NEXT
   ENDIF

ENDIF


RETURN
