    Chiedo la traduzione dell’indicatore in oggetto.

    Grazie


    https://it.tradingview.com/script/Prso5Lji-Breakout-and-Retest-Signals-FloAlgo/

    #261279 quote
    Iván González
    Moderator
    Legend

    Ecco qui:

    //--------------------------------------------------------//
    //PRC_Breakout and Retest Signals (by FloAlgo)
    //version = 0
    //18.05.2026
    //Iván González @ www.prorealcode.com
    //Sharing ProRealTime knowledge
    //--------------------------------------------------------//
    // Overlay indicator. Builds demand/supply zones on swing
    // pivots and fires a signal when price sweeps the zone
    // wick (liquidity) and closes back inside the candle body
    // (breakout & retest = liquidity sweep + reclaim).
    //--------------------------------------------------------//
    //-----Inputs---------------------------------------------//
    swingLen   = 10        // pivot length (left = right)
    maxLife    = 400       // max bars a zone stays active
    maxZones   = 5         // max zones per side (1..10)
    showTarget = 1         // 1 = draw measured-move target
    //--------------------------------------------------------//
    MAXZ = 10              // physical slots per side (>= maxZones)
    //--------------------------------------------------------//
    bullSig = 0
    bearSig = 0
    L   = swingLen
    win = 2 * L + 1
    //-----Centred pivot detection (no repaint)---------------//
    isPL = 0
    isPH = 0
    IF barindex >= win THEN
       IF low[L] = LOWEST[win](low) THEN
          isPL = 1
       ENDIF
       IF high[L] = HIGHEST[win](high) THEN
          isPH = 1
       ENDIF
    ENDIF
    pvBar  = barindex[L]
    pvBHi  = MAX(open[L], close[L])
    pvBLo  = MIN(open[L], close[L])
    pvLow  = low[L]
    pvHigh = high[L]
    //--------------------------------------------------------//
    //-----Spawn demand zone (on swing low)-------------------//
    IF isPL = 1 AND pvBHi > pvLow THEN
       isDup = 0
       FOR i = 0 TO MAXZ - 1 DO
          IF $dAct[i] = 1 AND pvLow >= $dExt[i] AND pvLow <= $dBHi[i] THEN
             isDup = 1
          ENDIF
       NEXT
       IF isDup = 0 THEN
          FOR i = 0 TO MAXZ - 1 DO
             IF $sAct[i] = 1 AND pvBHi >= $sBLo[i] AND pvLow <= $sExt[i] THEN
                isDup = 1
             ENDIF
          NEXT
       ENDIF
       IF isDup = 0 THEN
          slot    = -1
          cnt     = 0
          oldIdx  = -1
          oldBorn = 0
          FOR i = 0 TO MAXZ - 1 DO
             IF $dAct[i] = 1 THEN
                cnt = cnt + 1
                IF oldIdx = -1 OR $dBorn[i] < oldBorn THEN
                   oldBorn = $dBorn[i]
                   oldIdx  = i
                ENDIF
             ELSE
                IF slot = -1 THEN
                   slot = i
                ENDIF
             ENDIF
          NEXT
          IF cnt >= maxZones THEN
             slot = oldIdx
          ENDIF
          IF slot = -1 THEN
             slot = oldIdx
          ENDIF
          $dAct[slot]  = 1
          $dExt[slot]  = pvLow
          $dBHi[slot]  = pvBHi
          $dBLo[slot]  = pvBLo
          $dBorn[slot] = pvBar
       ENDIF
    ENDIF
    //-----Spawn supply zone (on swing high)------------------//
    IF isPH = 1 AND pvHigh > pvBLo THEN
       isDup = 0
       FOR i = 0 TO MAXZ - 1 DO
          IF $sAct[i] = 1 AND pvHigh <= $sExt[i] AND pvHigh >= $sBLo[i] THEN
             isDup = 1
          ENDIF
       NEXT
       IF isDup = 0 THEN
          FOR i = 0 TO MAXZ - 1 DO
             IF $dAct[i] = 1 AND pvHigh >= $dExt[i] AND pvBLo <= $dBHi[i] THEN
                isDup = 1
             ENDIF
          NEXT
       ENDIF
       IF isDup = 0 THEN
          slot    = -1
          cnt     = 0
          oldIdx  = -1
          oldBorn = 0
          FOR i = 0 TO MAXZ - 1 DO
             IF $sAct[i] = 1 THEN
                cnt = cnt + 1
                IF oldIdx = -1 OR $sBorn[i] < oldBorn THEN
                   oldBorn = $sBorn[i]
                   oldIdx  = i
                ENDIF
             ELSE
                IF slot = -1 THEN
                   slot = i
                ENDIF
             ENDIF
          NEXT
          IF cnt >= maxZones THEN
             slot = oldIdx
          ENDIF
          IF slot = -1 THEN
             slot = oldIdx
          ENDIF
          $sAct[slot]  = 1
          $sExt[slot]  = pvHigh
          $sBHi[slot]  = pvHigh
          $sBLo[slot]  = pvBLo
          $sBorn[slot] = pvBar
       ENDIF
    ENDIF
    //--------------------------------------------------------//
    //-----Process demand zones-------------------------------//
    FOR i = 0 TO MAXZ - 1 DO
       IF $dAct[i] = 1 THEN
          IF barindex > $dBorn[i] + maxLife THEN
             $dAct[i] = 0
          ELSIF close < $dExt[i] THEN
             $dAct[i] = 0
          ELSIF low < $dExt[i] AND close > $dBHi[i] THEN
             bullSig = 1
             tgtB = close + (close - $dExt[i])
             IF showTarget = 1 THEN
                DRAWSEGMENT(barindex, close, barindex + 40, tgtB) STYLE(dottedline) COLOURED(0, 193, 118)
             ENDIF
             $dAct[i] = 0
          ENDIF
       ENDIF
    NEXT
    //-----Process supply zones-------------------------------//
    FOR i = 0 TO MAXZ - 1 DO
       IF $sAct[i] = 1 THEN
          IF barindex > $sBorn[i] + maxLife THEN
             $sAct[i] = 0
          ELSIF close > $sExt[i] THEN
             $sAct[i] = 0
          ELSIF high > $sExt[i] AND close < $sBLo[i] THEN
             bearSig = 1
             tgtS = close - ($sExt[i] - close)
             IF showTarget = 1 THEN
                DRAWSEGMENT(barindex, close, barindex + 40, tgtS) STYLE(dottedline) COLOURED(255, 61, 61)
             ENDIF
             $sAct[i] = 0
          ENDIF
       ENDIF
    NEXT
    //--------------------------------------------------------//
    //-----Signals (historical, one per event)----------------//
    atr = averagetruerange[14]
    IF bullSig = 1 THEN
       DRAWTEXT("▲", barindex, low - atr * 0.5) COLOURED(0, 193, 118)
    ENDIF
    IF bearSig = 1 THEN
       DRAWTEXT("▼", barindex, high + atr * 0.5) COLOURED(255, 61, 61)
    ENDIF
    //-----Active zones (last bar only)-----------------------//
    IF islastbarupdate THEN
       FOR i = 0 TO MAXZ - 1 DO
          IF $dAct[i] = 1 THEN
             rEndD = MIN(barindex, $dBorn[i] + maxLife)
             DRAWRECTANGLE($dBorn[i], $dBHi[i], rEndD, $dExt[i]) COLOURED(0, 193, 118, 0) FILLCOLOR(0, 193, 118, 45)
             DRAWSEGMENT($dBorn[i], $dExt[i], rEndD, $dExt[i]) COLOURED(0, 193, 118)
          ENDIF
          IF $sAct[i] = 1 THEN
             rEndS = MIN(barindex, $sBorn[i] + maxLife)
             DRAWRECTANGLE($sBorn[i], $sExt[i], rEndS, $sBLo[i]) COLOURED(255, 61, 61, 0) FILLCOLOR(255, 61, 61, 45)
             DRAWSEGMENT($sBorn[i], $sExt[i], rEndS, $sExt[i]) COLOURED(255, 61, 61)
          ENDIF
       NEXT
    ENDIF
    //--------------------------------------------------------//
    RETURN

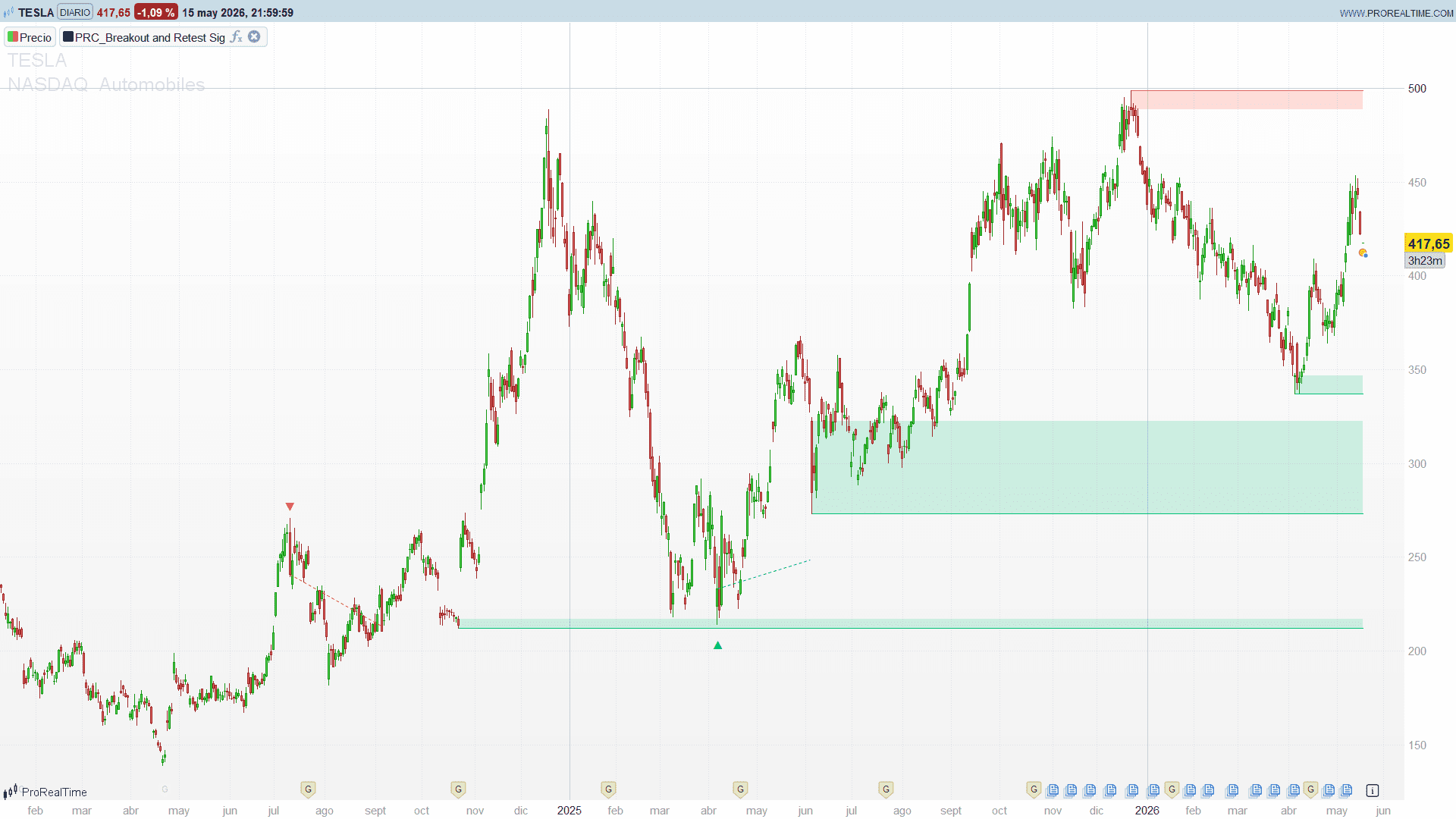

    TSLA-Diario-3.png TSLA-Diario-3.png
