Relative Vigor Index MT4

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • #139961 quote
    KarlBenjaminKarlBenjamin
    Participant
    Average

    Hi i have been recomended this indicator but cannot find it in PRT or anywhere else for that matter.

    I know it is a momentum indicator, but i am not sure how it is calculated I’ll copy the code below but I can only see the code by opening the file with microsoft notepad. i will attach the original file and some screenshots as well. If you could help i would be eternally grateful.

    Thankyou.



    Notepad Code:

    //+——————————————————————+
    //| relative-vigor-index.mq4 |
    //| ©2011 Best-metatrader-indicators.com. All rights reserved |
    //| http://www.best-metatrader-indicators.com |
    //+——————————————————————+
    #property copyright “Copyright © 2011 Best-metatrader-indicators.com.”
    #property link “http://www.best-metatrader-indicators.com”

    //—- indicator settings
    #property indicator_separate_window
    #property indicator_buffers 2
    #property indicator_color1 Green
    #property indicator_color2 Red
    //—- indicator parameters
    extern int ExtRVIPeriod=10;
    //—- indicator buffers
    double ExtRVIBuffer[];
    double ExtRVISignalBuffer[];
    string Copyright=”\xA9 http://WWW.BEST-METATRADER-INDICATORS.COM”;
    string MPrefix=”FI”;
    //+——————————————————————+
    //| Custom indicator initialization function |
    //+——————————————————————+
    int init()
    {
    //—- indicator buffers mapping
    SetIndexBuffer(0,ExtRVIBuffer);
    SetIndexBuffer(1,ExtRVISignalBuffer);
    //—- indicator line
    SetIndexStyle(0,DRAW_LINE);
    SetIndexStyle(1,DRAW_LINE);
    //—- drawing settings
    SetIndexDrawBegin(0,ExtRVIPeriod+3);
    SetIndexDrawBegin(1,ExtRVIPeriod+7);
    //—- name for DataWindow and indicator subwindow label
    IndicatorShortName(“RVI(“+ExtRVIPeriod+”)”);
    SetIndexLabel(0,”RVI”);
    SetIndexLabel(1,”RVIS”);
    //—- initialization done
    DL(“001″, Copyright, 5, 20,Gold,”Arial”,10,0);
    return(0);
    }
    //+——————————————————————+
    //| Custor indicator deinitialization function |
    //+——————————————————————+
    int deinit()
    {
    //—-
    ClearObjects();
    return(0);
    }
    //+——————————————————————+
    //| Custom indicator iteration function |
    //+——————————————————————+
    int start()
    {
    int i,j,nLimit,nCountedBars;
    double dValueUp,dValueDown,dNum,dDeNum;
    //—-
    if(Bars<=ExtRVIPeriod+8) return(0);
    //—-
    nCountedBars=IndicatorCounted();
    //—- check for possible errors
    if(nCountedBars<0) return(-1);
    //—- last counted bar will be recounted
    nLimit=Bars-ExtRVIPeriod-4;
    if(nCountedBars>ExtRVIPeriod+4)
    nLimit=Bars-nCountedBars;
    //—- RVI counted in the 1-st buffer
    for(i=0; i<=nLimit; i++)
    {
    dNum=0.0;
    dDeNum=0.0;
    for(j=i; j<i+ExtRVIPeriod; j++)
    {
    dValueUp=((Close[j]-Open[j])+2*(Close[j+1]-Open[j+1])+2*(Close[j+2]-Open[j+2])+(Close[j+3]-Open[j+3]))/6;
    dValueDown=((High[j]-Low[j])+2*(High[j+1]-Low[j+1])+2*(High[j+2]-Low[j+2])+(High[j+3]-Low[j+3]))/6;
    dNum+=dValueUp;
    dDeNum+=dValueDown;
    }
    if(dDeNum!=0.0)
    ExtRVIBuffer[i]=dNum/dDeNum;
    else
    ExtRVIBuffer[i]=dNum;
    }
    //—- signal line counted in the 2-nd buffer
    nLimit=Bars-ExtRVIPeriod-7;
    if(nCountedBars>ExtRVIPeriod+8)
    nLimit=Bars-nCountedBars+1;
    for(i=0; i<=nLimit; i++)
    ExtRVISignalBuffer[i]=(ExtRVIBuffer[i]+2*ExtRVIBuffer[i+1]+2*ExtRVIBuffer[i+2]+ExtRVIBuffer[i+3])/6;
    //—-
    return(0);
    }
    //+——————————————————————+
    //| DL function |
    //+——————————————————————+
    void DL(string label, string text, int x, int y, color clr, string FontName = “Arial”,int FontSize = 12, int typeCorner = 1)

    {
    string labelIndicator = MPrefix + label;
    if (ObjectFind(labelIndicator) == -1)
    {
    ObjectCreate(labelIndicator, OBJ_LABEL, 0, 0, 0);
    }

    ObjectSet(labelIndicator, OBJPROP_CORNER, typeCorner);
    ObjectSet(labelIndicator, OBJPROP_XDISTANCE, x);
    ObjectSet(labelIndicator, OBJPROP_YDISTANCE, y);
    ObjectSetText(labelIndicator, text, FontSize, FontName, clr);

    }

    //+——————————————————————+
    //| ClearObjects function |
    //+——————————————————————+
    void ClearObjects()
    {
    for(int i=0;i<ObjectsTotal();i++)
    if(StringFind(ObjectName(i),MPrefix)==0) { ObjectDelete(ObjectName(i)); i–; }
    }
    //+——————————————————————+

    relative-vigor-index.mq4
    #139962 quote
    KarlBenjaminKarlBenjamin
    Participant
    Average

    Im just trying to upload the attachments.

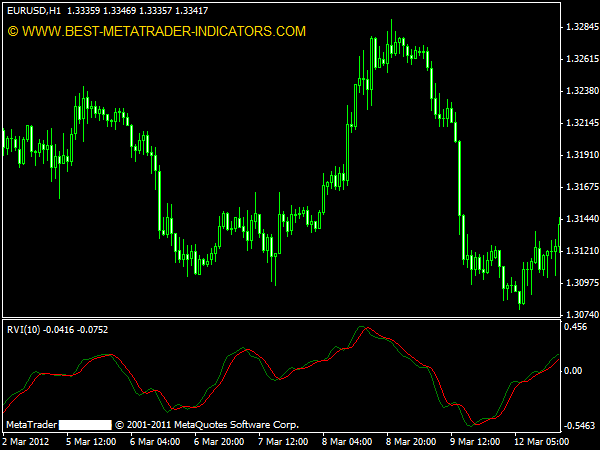

    relative-vigor-index-screenshot.png relative-vigor-index-screenshot.png
    #139969 quote
    NicolasNicolas
    Keymaster
    Legend
    #139982 quote
    KarlBenjaminKarlBenjamin
    Participant
    Average

    Nicolas…you are a diamond!! thankyou!!

Viewing 4 posts - 1 through 4 (of 4 total)
