plus haut plus bas daily “amélioré”

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • #260463 quote
    bertrandpinoy
    Participant
    Veteran

    Bien que ce sujet ait déjà été abordé, je souhaiterais ajouter une fonctionnalité supplémentaire à l’indicateur.

    Sur un graphique en timeframe 1 heure, l’indicateur affiche les plus hauts et plus bas des jours précédents sous forme de segments horizontaux fixes, qui restent affichés de manière permanente sur le graphique.

    Je souhaiterais maintenant ajouter une option dynamique pour la journée en cours :

    Lorsque le prix atteint un niveau Daily (high ou low) provenant d’un jour passé, le segment correspondant apparaît uniquement à ce moment-là sur le graphique, avec une annotation indiquant de combien de jours il date. (30 jours du passé verifié si possible).

    Exemples :

    • Nous sommes le jeudi 23 avril, et le prix atteint le plus haut daily du 5 avril → afficher un segment annoté : “Daily High – 5”
    • Si le prix atteint un plus bas daily datant de 10 jours → afficher : “Daily Low – 10”

    L’objectif est donc d’afficher uniquement les niveaux passés qui sont effectivement testés par le prix en cours de journée, avec une indication claire de leur ancienneté.

    Merci d’avance pour votre aide 🙂

    #260491 quote
    Iván González
    Moderator
    Master

    Cela pourrait ressembler à ceci.

    //-----------------------------------------------------------//
    //PRC_Dynamic Daily Highs & Lows Touch
    //version = 4
    //23.04.2026
    //Ivan Gonzalez @ www.prorealcode.com
    //Sharing ProRealTime knowledge
    //-----------------------------------------------------------//
    // Parametres
    NbDays = 30        // nombre de jours surveilles
    ShowInactive = 0   // 1 = affiche aussi en gris les niveaux non touches ; 0 = uniquement les niveaux touches
    //-----------------------------------------------------------//
    TIMEFRAME(DAILY, updateonclose)
    for iD = 0 to NbDays - 1 do
    $dh[iD] = high[iD+1]
    $dl[iD] = low[iD+1]
    next
    TIMEFRAME(default)
    //-----------------------------------------------------------//
    if barindex > 0 and OpenDay  OpenDay[1] then
    for k = NbDays - 1 downto 1 do
    $db[k] = $db[k-1]
    $touchedH[k] = $touchedH[k-1]
    $touchedL[k] = $touchedL[k-1]
    next
    $db[0] = dayStart[1]
    $touchedH[0] = 0
    $touchedL[0] = 0
    dayStart = barindex
    else
    dayStart = dayStart[1]
    endif
    //-----------------------------------------------------------//
    for i = 0 to NbDays - 1 do
    levH = $dh[i]
    levL = $dl[i]
    origin = $db[i]
    age = i + 1

    if ShowInactive = 1 and islastbarupdate and $touchedH[i] = 0 and levH > 0 and origin > 0 then
    DRAWSEGMENT(origin, levH, barindex, levH) COLOURED(120,120,120,30)
    endif
    if ShowInactive = 1 and islastbarupdate and $touchedL[i] = 0 and levL > 0 and origin > 0 then
    DRAWSEGMENT(origin, levL, barindex, levL) COLOURED(120,120,120,30)
    endif

    if $touchedH[i] = 0 and levH > 0 and origin > 0 and high >= levH and low  0 and origin > 0 and high >= levL and low <= levL then
    DRAWSEGMENT(origin, levL, barindex, levL) COLOURED(200,0,0,220)
    DRAWTEXT("Daily Low - #age#", barindex+2, levL, Dialog, Bold, 10) COLOURED(200,0,0,255)
    $touchedL[i] = 1
    endif
    next


    RETURN




    Nicolas thanked this post
    #260494 quote
    Nicolas
    Keymaster
    Master

    J’ai fait cette version qui affiche la dernière fois ou le daily low ou daily high a été cassé:

    // ================================================================
    // Daily High/Low Dynamic Touch - 30 jours passés
    // ================================================================

    DEFPARAM DrawOnLastBarOnly = true

    // Décalage vertical du texte (esthétique)
    tolerance = 5 * pipsize

    // Largeur visuelle du segment en barres
    segLen = 5

    drawdh=0
    drawdl = 0

    if intradaybarindex >= 0 then

       for d = 30 downto 1 do

          dh = DHigh(d)
          dl = DLow(d)
          if close crosses over dh and drawdh=0 then
             drawdh = dh
             drawdhOffset = d
          endif
          if close crosses under dl and drawdl=0 then
             drawdl = dl
             drawdlOffset = d
          endif
       next

    endif

    // --- Test Daily High ---
    if drawdh>0 then
       drawsegment(barindex - segLen, drawdh, barindex, drawdh) coloured(255,80,0,220)
       drawtext("Daily High - #drawdhOffset#", barindex, drawdh + tolerance) coloured(255,80,0,255)
    endif

    // --- Test Daily Low ---
    if drawdl>0 then
       drawsegment(barindex - segLen, drawdl, barindex, drawdl) coloured(0,100,255,220)
       drawtext("Daily Low - #drawdlOffset#", barindex, drawdl - tolerance) coloured(0,100,255,255)
    endif

    RETURN




    Iván González thanked this post

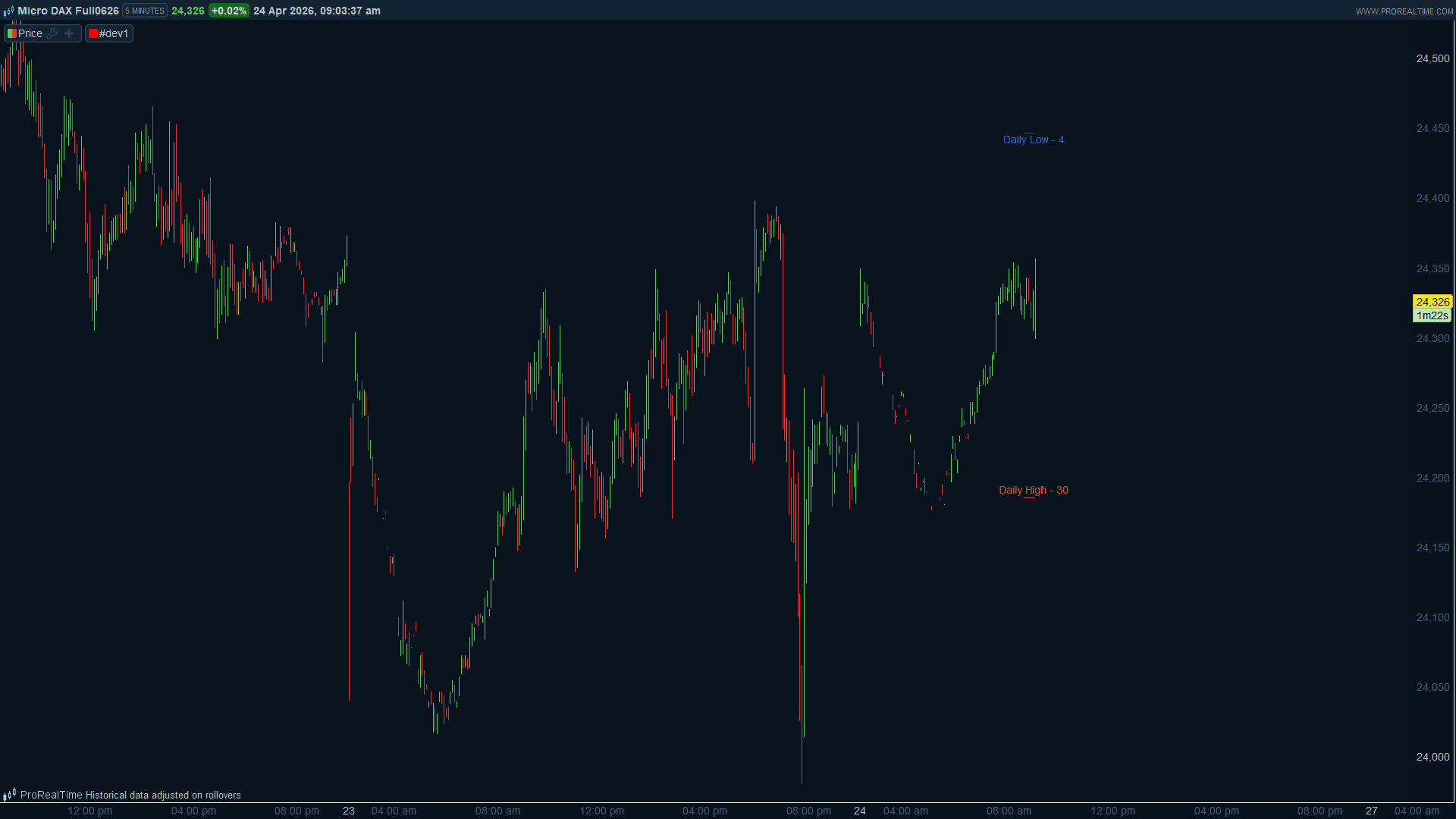

    DXSXXXX-5-minutes.png DXSXXXX-5-minutes.png
    #260570 quote
    bertrandpinoy
    Participant
    Veteran

    Merci, toujours très appréciable de pouvoir compter sur vous.

    Je joins le fichier ITF que j’utilise pour qui apprécie ce type d indicateur.

    Bon dimanche.

    Daily-level-from-past.itf
