Open range code for currencies

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • #141512 quote
    RazzRazz
    Participant
    Master

    Hello, what has to be changed in this code so that it shows low / high and differential values for currencies.
    Many thanks for your help

    // Opening Range EUR with Close and Open.
    // Added some changes and features.
    // - segment for opening price;
    // - segment for yesterday's closing price;
    // - Automatic detection of the timeframe;
    // - Automatic configuration for 1-5-10-15-30min charts.
    // 17.06.2019 (Release 1.1)
    // Thomas Geisler
    // Sharing ProRealTime knowledge (alt+16)
    // Original basis was Pre-Market EUR (Opening Range) | Graph Indicator Ver. 1.0
    // from Swapping

    // --- property settings
    //Info    = 1   // (0=false; 1=true)
    //Delta   = 10  // gap number/rectangle
    //Alpha   = 255 // transparency letter
    //HighLow = 1   // (0=false; 1=true)
    //OpenClose = 1  // (0=false; 1=true)
    // --- end

    DefParam CalculateOnLastBars = 1400 // enough for one day (23h) when using 1min timeframe

    // --- init
    alpha = max(alpha,0)
    alpha = min(alpha,255)
    // --- end

    //Automatic time detection
    once NbBar = 1
    if BarIndex < NbBar+2 then
    MyDay=openday
    dayminutes = 1440*(MyDay-MyDay[1])
    MyHour=openhour
    hourminutes = 60*(MyHour-MyHour[1])
    MyMin=openminute
    barminutes = MyMin - MyMin[1] + hourminutes + dayminutes
    barminutes=abs(barminutes)
    Mybarminutes = lowest[NbBar](barminutes)[1]
    endif

    // Select timeframe between 1 and max 30 minutes to define the parameters for drawing
    if Mybarminutes = 1  then
    Frame = 60
    myStart = 080100
    elsif Mybarminutes = 5 then // 5 minutes
    Frame = 12 // 12 candels
    myStart = 080500 // opening plus 5 min
    elsif Mybarminutes = 10 then
    Frame = 6
    myStart = 081000
    elsif Mybarminutes = 15 then
    Frame = 4
    myStart = 081500
    elsif Mybarminutes = 30 then
    Frame = 2
    myStart = 083000
    endif

    starttime = myStart // 08h00 Depending on the timeframe
    endtime = 090000   // 09h00

    if time = starttime then
    startbar = barindex
    endif
    if time = endtime then
    endbar = barindex
    endif

    if time >= starttime and time <= endtime then
    if high > hh then
    hh = high
    endif
    if low < ll or ll = 0 then
    ll = low
    endif
    endif

    if intradaybarindex = 0 then
    hh = 0
    ll = 0
    endif

    if time = 173000 then //Close Yesterday at time 17:30
    cl = close
    endif

    if date = today and time > endtime then //draw Box OpenRange (OPR) only for today
    DrawRectangle(startbar,hh,endbar,ll) coloured(0,255,255,alpha) // alpha (transparence)
    endif

    if date = today and time = endtime then // High/Low/Opening only for today
    upper = highest[Frame](high)
    lower = lowest[Frame](low)
    op = close
    dif = round(abs(upper-lower))
    info = info // draw the info OPR, High, Low, Using Timeframe as text
    elsif info = 1 then
    DrawText("OPR #dif#pts",startbar+5,upper+(delta+5),SansSerif,Standard,12) coloured(255,0,255,alpha)
    DrawText("#hh#",startbar+5,upper+(delta),SansSerif,Standard,12) coloured(0,255,255,alpha)
    DrawText("#ll#",startbar+5,lower-(delta),SansSerif,Standard,12) coloured(0,255,255,alpha)
    //DrawText("Timeframe #Time1o5o10o15# min.",startbar+5,lower-(delta+5),SansSerif,Standard,12) coloured(255,0,255,alpha)
    endif

    if date = today and time >= endtime and time <= 220000 then
    If HighLow = 1 then// Draw Segment High,Low and Opening from OPR, as Support/Resist, to select time
    DrawSegment(barindex-HighLow,upper,barindex,upper) coloured(0,255,255,alpha) // High OPR
    DrawSegment(barindex-HighLow,lower,barindex,lower) coloured(0,255,255,alpha) // Low OPR
    endif
    If OpenClose = 1 then// Draw Segment High,Low and Opening from OPR, as Support/Resist, to select time
    DrawSegment(barindex-OpenClose,op,barindex,op) coloured(255,0,204,alpha) // Opening
    DrawSegment(barindex-OpenClose,cl,barindex,cl) coloured(255,0,0,alpha)  //Close Yesterday
    endif
    endif



    return

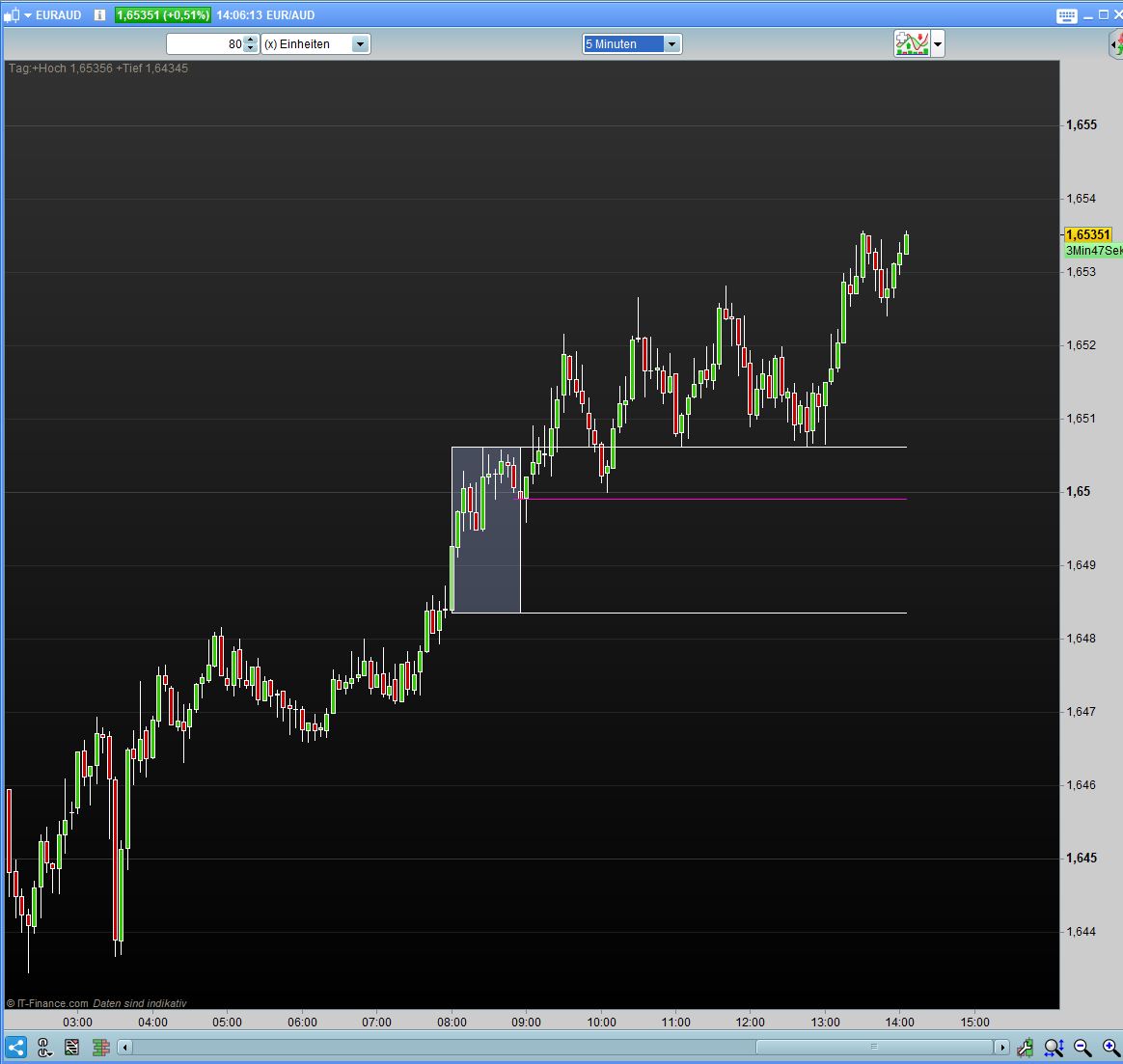

    Open-range-keinw-Werte.jpg Open-range-keinw-Werte.jpg
    #141631 quote
    NicolasNicolas
    Keymaster
    Legend

    Sorry, could you explain exactly what you need to be calculated?

    #141634 quote
    RazzRazz
    Participant
    Master

    Hello Nicolas

    The indicator only works, no low / high and differential values are displayed on the box for currencies. Everything works at Dax / Dow.

    Thank you for your help

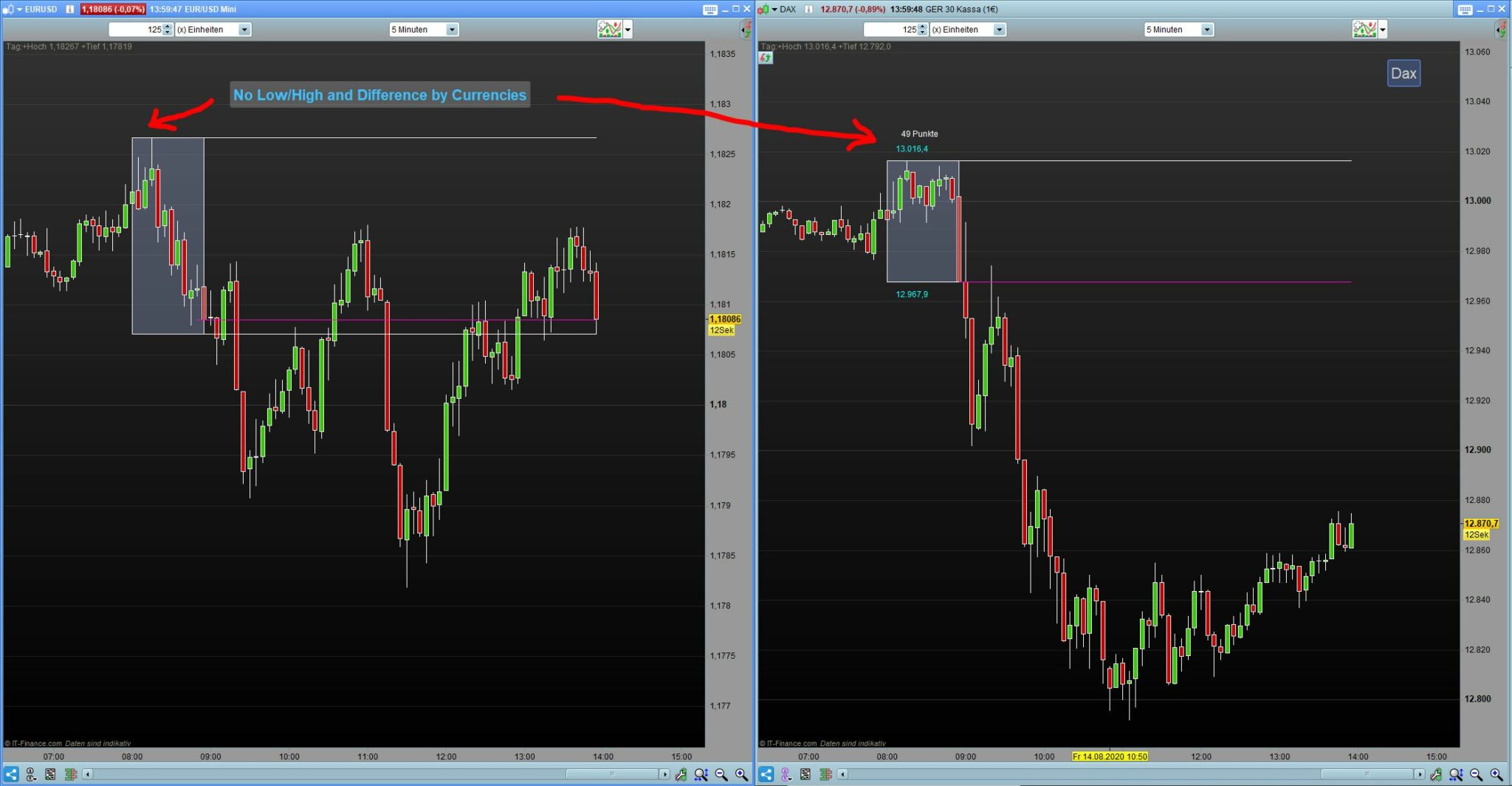

    Open-Range-Currencies.jpg Open-Range-Currencies.jpg
    #142496 quote
    RazzRazz
    Participant
    Master

    Good morning Nicolas
    Do you understand my problem?
    It should be recognizable in the pictures
    For currencies, the display should be in pips

Viewing 4 posts - 1 through 4 (of 4 total)
