last low/ last high

• 05/17/2023 at 3:15 PM #214849
  thebaron

  hello

  i m looking for an indicator showing me the last high and low from an upper time frame

  for or example in a 1 mn timeframe chart to have a line for the last previous 30 mn high and low until the next 30 mn change . for 1 mn bar between 9 am and 9:30 am having a line coresponding at high and low of 8:30am- 9 am
  if i want 30 mn high low, but to have the possibility to select different time frame inside the indicator

  in advance thanks



  thebaron

  Participant

  Topics: 15

  Replies: 47

  Been thanked: 1 time
  05/17/2023 at 4:26 PM #214852
  JS

  Hi @thebaron

  You can try this…



  TFS High Low

  DefParam DrawOnLastBarOnly=True TimeFrame(30 minute, UpdateOnClose) xHigh1=High[1] xLow1=Low[1] TimeFrame(1 minute) DrawHLine(xHigh1)Coloured("Red") DrawText("#xHigh1#",BarIndex+10,xHigh1+2*pipsize)Coloured("Red") DrawHLine(xLow1)Coloured("Green") DrawText("#xLow1#",BarIndex+10,xLow1+2*pipsize)Coloured("Green") Return

  1 2 3 4 5 6 7 8 9 10 11 12

  DefParam DrawOnLastBarOnly=True TimeFrame(30 minute, UpdateOnClose) xHigh1=High[1] xLow1=Low[1]   TimeFrame(1 minute) DrawHLine(xHigh1)Coloured("Red") DrawText("#xHigh1#",BarIndex+10,xHigh1+2*pipsize)Coloured("Red") DrawHLine(xLow1)Coloured("Green") DrawText("#xLow1#",BarIndex+10,xLow1+2*pipsize)Coloured("Green")   Return



  JS

  Participant

  Topics: 22

  Replies: 1411

  Been thanked: 554 times
  05/17/2023 at 7:19 PM #214858
  thebaron

  thks but it did not work ?



  thebaron

  Participant

  Topics: 15

  Replies: 47

  Been thanked: 1 time
  05/17/2023 at 7:48 PM #214859
  JS

  Hi @thebaron

  Did you add the indicator to the “price”…?

  What was the time frame of your open chart…?



  JS

  Participant

  Topics: 22

  Replies: 1411

  Been thanked: 554 times
  05/17/2023 at 7:52 PM #214860
  thebaron

  yes

  on esxxx 1 mn



  thebaron

  Participant

  Topics: 15

  Replies: 47

  Been thanked: 1 time
  05/17/2023 at 8:04 PM #214863
  JS

  Hi @thebaron

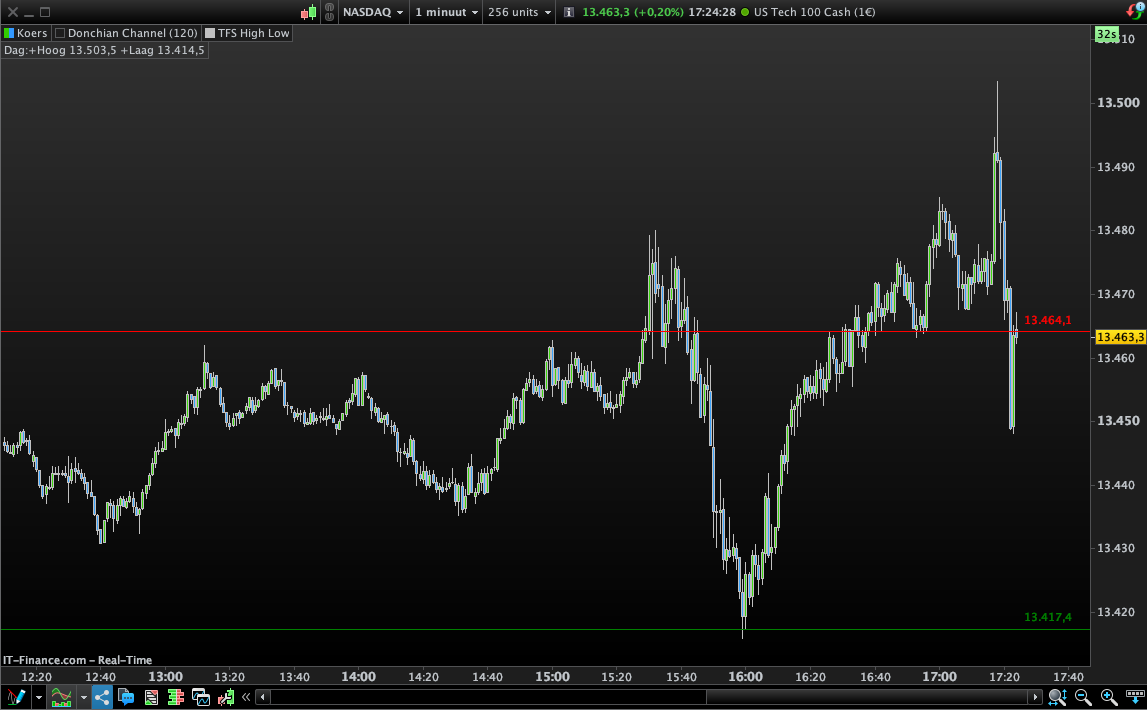

  Strange… It works for me…

  What market is “esxxx”…?



  JS

  Participant

  Topics: 22

  Replies: 1411

  Been thanked: 554 times
  05/17/2023 at 8:22 PM #214864
  thebaron

  futur sp500



  thebaron

  Participant

  Topics: 15

  Replies: 47

  Been thanked: 1 time
  05/17/2023 at 8:53 PM #214865
  JS

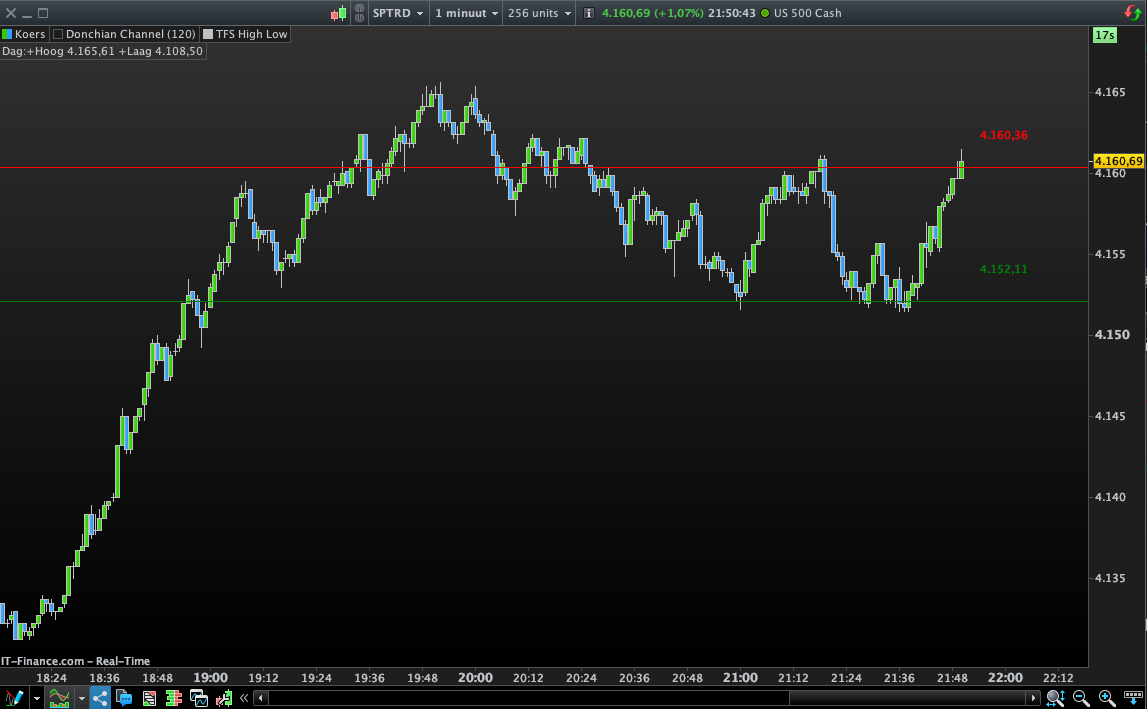

  Here’s what I see on the SP500…

  What version of ProRealTime are you using…?



  JS

  Participant

  Topics: 22

  Replies: 1411

  Been thanked: 554 times
  05/18/2023 at 9:17 AM #214870
  thebaron

  pro 11

  but the value on your chart are the same between 18h-22h, i want the previous half hour high/low on 1 mn chart

  “or 1 mn bar between 9 am and 9:30 am having a line coresponding at high and low of 8:30am- 9 am”



  thebaron

  Participant

  Topics: 15

  Replies: 47

  Been thanked: 1 time
  05/18/2023 at 9:35 AM #214871
  JS

  The indicator can be improved but does it work for you now…?

  Do you see the lines and the text…?



  JS

  Participant

  Topics: 22

  Replies: 1411

  Been thanked: 554 times
  05/18/2023 at 9:47 AM #214872
  thebaron

  when i test yesterday i did not increase the view, i have it on the chart





  thebaron

  Participant

  Topics: 15

  Replies: 47

  Been thanked: 1 time
  05/18/2023 at 10:59 AM #214877
  JS

  Hi @thebaron

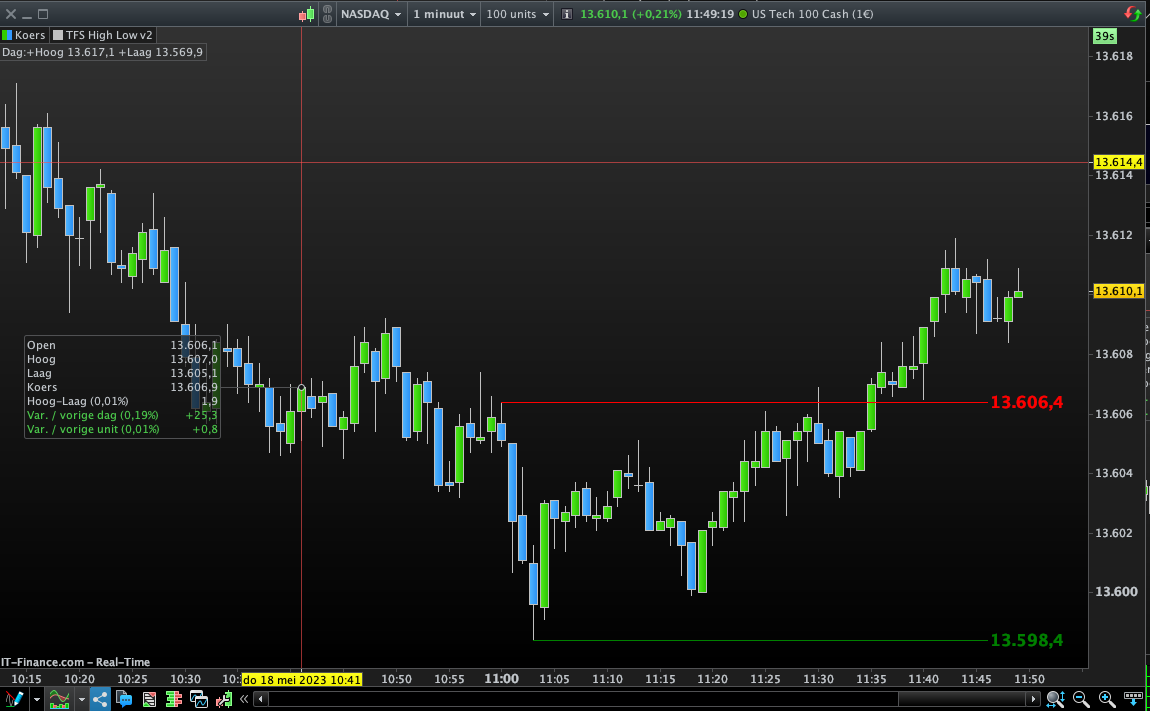

  Here is the adjusted indicator…

  (You can adjust the time frames)





  TFS High Low v2

  DefParam DrawOnLastBarOnly=True TimeFrame(30 minute, UpdateOnClose) HTF=GetTimeFrame xHigh1=High xLow1=Low TimeFrame(1 minute) LTF=GetTimeFrame Period=HTF/LTF For i=0 to Period-1 If High[i]=xHigh1 then x1=BarIndex[i] EndIf Next DrawSegment(x1,xHigh1,BarIndex-3,xHigh1)Coloured("Red") DrawText("#xHigh1#",BarIndex+1,xHigh1,SansSerif,Bold,16)Coloured("Red") For i=0 to Period-1 If Low[i]=xLow1 then x2=BarIndex[i] EndIf Next DrawSegment(x2,xLow1,BarIndex-3,xLow1)Coloured("Green") DrawText("#xLow1#",BarIndex+1,xLow1,SansSerif,Bold,16)Coloured("Green") Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

  DefParam DrawOnLastBarOnly=True TimeFrame(30 minute, UpdateOnClose) HTF=GetTimeFrame xHigh1=High xLow1=Low   TimeFrame(1 minute) LTF=GetTimeFrame Period=HTF/LTF   For i=0 to Period-1 If High[i]=xHigh1 then x1=BarIndex[i] EndIf Next   DrawSegment(x1,xHigh1,BarIndex-3,xHigh1)Coloured("Red") DrawText("#xHigh1#",BarIndex+1,xHigh1,SansSerif,Bold,16)Coloured("Red")   For i=0 to Period-1 If Low[i]=xLow1 then x2=BarIndex[i] EndIf Next   DrawSegment(x2,xLow1,BarIndex-3,xLow1)Coloured("Green") DrawText("#xLow1#",BarIndex+1,xLow1,SansSerif,Bold,16)Coloured("Green")   Return



  JS

  Participant

  Topics: 22

  Replies: 1411

  Been thanked: 554 times
  05/18/2023 at 11:46 AM #214880
  thebaron

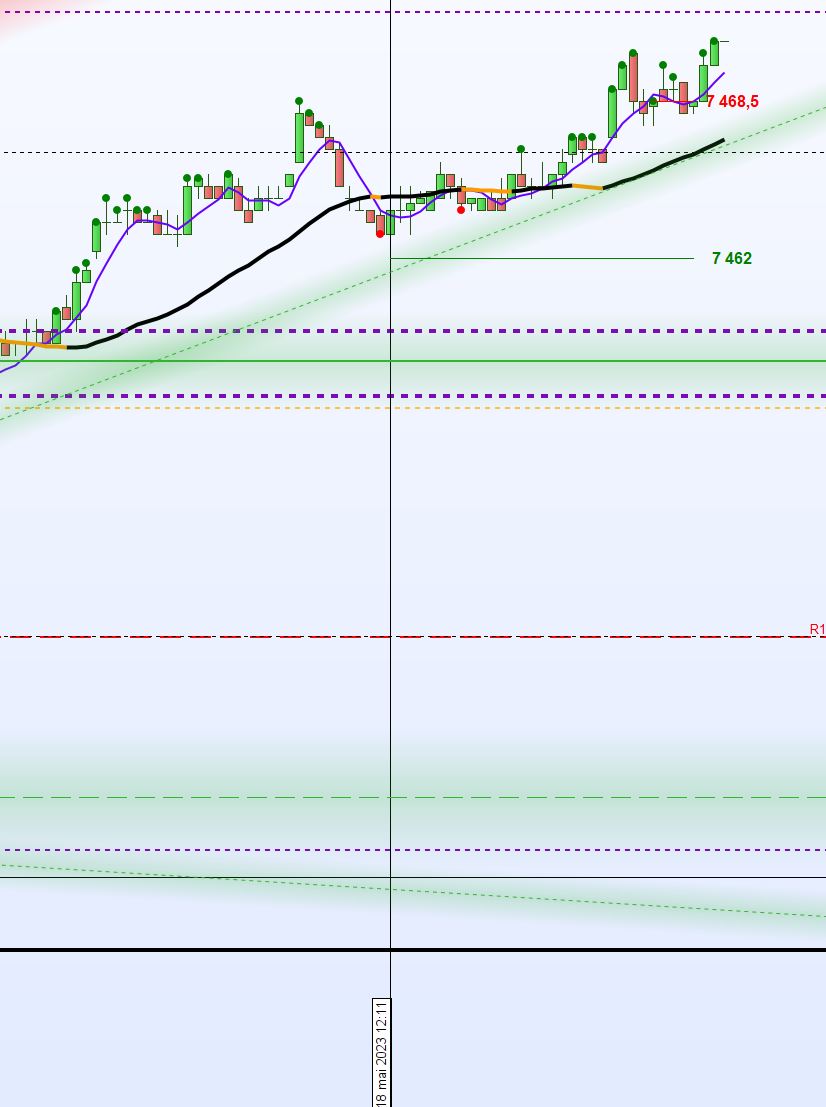

  at the start i have h an l l and after no more h line  and look at the start its 12h11 and not 12h





  thebaron

  Participant

  Topics: 15

  Replies: 47

  Been thanked: 1 time
  05/18/2023 at 11:59 AM #214883
  JS

  The line(s) start at the “High” or “Low” of the previous period (30 min)…



  JS

  Participant

  Topics: 22

  Replies: 1411

  Been thanked: 554 times
