Indicatore Fibonacci Structure Engine di TradingView in ProRealTime

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • #259347 quote
    Ciccarelli FrancoCiccarelli Franco
    Participant
    Senior

    Chiedo gentilmente che venga tradotto l’indicatore di seguito riportato.


    Grazie


    https://it.tradingview.com/script/d7i2KmxR-Fibonacci-Structure-Engine-WillyAlgoTrader/

    #259368 quote
    Iván GonzálezIván González
    Moderator
    Legend

    Ciao. Me ne occuperò subito.

    Per future richieste di traduzione, vi prego di utilizzare questo gruppo, creato appositamente per questo scopo.

    #259420 quote
    Iván GonzálezIván González
    Moderator
    Legend

    ecco qui:

    //----------------------------------------------------------
    // PRC_FIBONACCI STRUCTURE ENGINE
    // Original: WillyAlgoTrader (PineScript v6)
    // version = 1
    // 25.03.2026
    // Iván González @ www.prorealcode.com
    // Sharing ProRealTime knowledge
    //----------------------------------------------------------
    defparam drawonlastbaronly = true
    // ═══════════════════════════════════════
    // SETTINGS
    // ═══════════════════════════════════════
    // ── Main ──
    swingLen = 10       // Swing Detection Length (3-50)
    useATRFilt = 1      // ATR Swing Filter: 1=ON, 0=OFF
    atrMult = 0.5       // ATR Filter Multiplier (0.1-3.0)
    cooldownBars = 5    // Signal Cooldown in bars (1-50)
    // ── Fibonacci Levels (1=Show, 0=Hide) ──
    showFib = 1         // Master toggle Fibonacci
    fibExtBars = 20     // Extension bars to the right (5-100)
    showFib236 = 0      // 0.236 level
    showFib382 = 1      // 0.382 level
    showFib500 = 1      // 0.500 level
    showFib618 = 1      // 0.618 level
    showFib786 = 1      // 0.786 level
    showFibTgt = 1      // Target (-0.618)
    showFibT50 = 1      // -0.5 level
    confTol = 0.3       // Confluence ATR Tolerance (0.05-1.0)
    // ── Structure & Display (1=ON, 0=OFF) ──
    showStruct = 1      // Show BOS / CHoCH
    showSwings = 1      // Show Swing Labels (HH/HL/LH/LL)
    showEngulf = 1      // Show Engulfing Signals
    showSignals = 0     // Show Buy/Sell Signals
    showDash = 1        // Show Dashboard
    // ═══════════════════════════════════════
    // INITIALIZATION
    // ═══════════════════════════════════════
    once swHigh1 = 0
    once swHigh1X = -1
    once swHigh2 = 0
    once swHigh2X = -1
    once swLow1 = 0
    once swLow1X = -1
    once swLow2 = 0
    once swLow2X = -1

    once structBias = 0
    once lastBrkHigh = -1
    once lastBrkLow = -1

    once fibHigh = 0
    once fibHighX = -1
    once fibLow = 0
    once fibLowX = -1
    once fibHighLive = 0
    once fibLowLive = 0

    once barsSinceBuy = 999
    once barsSinceSell = 999

    // Buffer counters
    once swLblCnt = 0
    once bosCnt = 0
    once engCnt = 0
    once sigBuyCnt = 0
    once sigSellCnt = 0

    maxSwLbl = 10
    maxBos = 5
    maxEng = 5
    maxSig = 3

    // ═══════════════════════════════════════
    // CORE CALCULATIONS
    // ═══════════════════════════════════════
    atrLen = 14
    atrVal = averagetruerange[atrLen]
    warmupBars = max(swingLen * 3, 50)
    prdWin = 2 * swingLen + 1

    // ═══════════════════════════════════════
    // PIVOT DETECTION (ATR-filtered)
    // ═══════════════════════════════════════
    newSwHigh = 0
    newSwLow = 0

    if barindex >= prdWin then
       // ── Pivot High ──
       if high[swingLen] = highest[prdWin](high) then
          ph = high[swingLen]
          phx = barindex - swingLen
          if useATRFilt = 1 then
             minSzH = atrVal * atrMult
          else
             minSzH = 0
          endif
          if swLow1X = -1 then
             passH = 1
          else
             if ph - swLow1 >= minSzH then
                passH = 1
             else
                passH = 0
             endif
          endif
          if passH = 1 then
             swHigh2 = swHigh1
             swHigh2X = swHigh1X
             swHigh1 = ph
             swHigh1X = phx
             newSwHigh = 1
          endif
       endif
       // ── Pivot Low ──
       if low[swingLen] = lowest[prdWin](low) then
          pl = low[swingLen]
          plx = barindex - swingLen
          if useATRFilt = 1 then
             minSzL = atrVal * atrMult
          else
             minSzL = 0
          endif
          if swHigh1X = -1 then
             passL = 1
          else
             if swHigh1 - pl >= minSzL then
                passL = 1
             else
                passL = 0
             endif
          endif
          if passL = 1 then
             swLow2 = swLow1
             swLow2X = swLow1X
             swLow1 = pl
             swLow1X = plx
             newSwLow = 1
          endif
       endif
    endif

    // ═══════════════════════════════════════
    // SWING LABEL CLASSIFICATION & BUFFER
    // ═══════════════════════════════════════
    // Swing highs: HH (type=1) or LH (type=3)
    if newSwHigh = 1 and swHigh2X > -1 and barindex >= warmupBars then
       if swHigh1 > swHigh2 then
          swT = 1
       else
          swT = 3
       endif
       if swLblCnt < maxSwLbl then
          $swLblX[swLblCnt] = swHigh1X
          $swLblY[swLblCnt] = swHigh1
          $swLblT[swLblCnt] = swT
          swLblCnt = swLblCnt + 1
       else
          for si = 0 to maxSwLbl - 2 do
             $swLblX[si] = $swLblX[si + 1]
             $swLblY[si] = $swLblY[si + 1]
             $swLblT[si] = $swLblT[si + 1]
          next
          $swLblX[maxSwLbl - 1] = swHigh1X
          $swLblY[maxSwLbl - 1] = swHigh1
          $swLblT[maxSwLbl - 1] = swT
       endif
    endif

    // Swing lows: HL (type=2) or LL (type=4)
    if newSwLow = 1 and swLow2X > -1 and barindex >= warmupBars then
       if swLow1 > swLow2 then
          swT = 2
       else
          swT = 4
       endif
       if swLblCnt < maxSwLbl then
          $swLblX[swLblCnt] = swLow1X
          $swLblY[swLblCnt] = swLow1
          $swLblT[swLblCnt] = swT
          swLblCnt = swLblCnt + 1
       else
          for si = 0 to maxSwLbl - 2 do
             $swLblX[si] = $swLblX[si + 1]
             $swLblY[si] = $swLblY[si + 1]
             $swLblT[si] = $swLblT[si + 1]
          next
          $swLblX[maxSwLbl - 1] = swLow1X
          $swLblY[maxSwLbl - 1] = swLow1
          $swLblT[maxSwLbl - 1] = swT
       endif
    endif

    // ═══════════════════════════════════════
    // STRUCTURE DETECTION (BOS / CHoCH)
    // ═══════════════════════════════════════
    isBOS = 0
    isCHoCH = 0
    isBullBrk = 0
    isBearBrk = 0

    // ── Bullish break: close > swHigh1 ──
    if swHigh1X > -1 and barindex >= warmupBars then
       if close > swHigh1 then
          brkNewH = 0
          if lastBrkHigh = -1 then
             brkNewH = 1
          elsif swHigh1 <> lastBrkHigh then
             brkNewH = 1
          endif
          if brkNewH = 1 then
             if structBias <= 0 then
                isCHoCH = 1
             else
                isBOS = 1
             endif
             structBias = 1
             isBullBrk = 1
             lastBrkHigh = swHigh1
          endif
       endif
    endif

    // ── Bearish break: close < swLow1 ──
    if swLow1X > -1 and barindex >= warmupBars then
       if close < swLow1 then
          brkNewL = 0
          if lastBrkLow = -1 then
             brkNewL = 1
          elsif swLow1 <> lastBrkLow then
             brkNewL = 1
          endif
          if brkNewL = 1 then
             if structBias >= 0 then
                isCHoCH = 1
             else
                isBOS = 1
             endif
             structBias = -1
             isBearBrk = 1
             lastBrkLow = swLow1
          endif
       endif
    endif

    // ── Store BOS/CHoCH in buffer ──
    if isBOS = 1 or isCHoCH = 1 then
       if isBullBrk = 1 then
          brkPrice = swHigh1
          brkStartX = swHigh1X
       else
          brkPrice = swLow1
          brkStartX = swLow1X
       endif
       brkEndX = barindex
       if isCHoCH = 1 then
          brkType = 2
       else
          brkType = 1
       endif
       if isBullBrk = 1 then
          brkDir = 1
       else
          brkDir = -1
       endif
       if bosCnt < maxBos then
          $bosStartX[bosCnt] = brkStartX
          $bosEndX[bosCnt] = brkEndX
          $bosPrice[bosCnt] = brkPrice
          $bosType[bosCnt] = brkType
          $bosDir[bosCnt] = brkDir
          bosCnt = bosCnt + 1
       else
          for si = 0 to maxBos - 2 do
             $bosStartX[si] = $bosStartX[si + 1]
             $bosEndX[si] = $bosEndX[si + 1]
             $bosPrice[si] = $bosPrice[si + 1]
             $bosType[si] = $bosType[si + 1]
             $bosDir[si] = $bosDir[si + 1]
          next
          $bosStartX[maxBos - 1] = brkStartX
          $bosEndX[maxBos - 1] = brkEndX
          $bosPrice[maxBos - 1] = brkPrice
          $bosType[maxBos - 1] = brkType
          $bosDir[maxBos - 1] = brkDir
       endif
    endif

    // ═══════════════════════════════════════
    // FIBONACCI ANCHORS
    // ═══════════════════════════════════════
    // On bullish break: top = current high (live trail), bottom = swLow1 (locked)
    if isBullBrk = 1 then
       fibHigh = high
       fibHighX = barindex
       fibLow = swLow1
       fibLowX = swLow1X
       fibHighLive = 1
       fibLowLive = 0
    endif

    // On bearish break: bottom = current low (live trail), top = swHigh1 (locked)
    if isBearBrk = 1 then
       fibLow = low
       fibLowX = barindex
       fibHigh = swHigh1
       fibHighX = swHigh1X
       fibLowLive = 1
       fibHighLive = 0
    endif

    // Trail live edge as price extends
    if isBullBrk = 0 and isBearBrk = 0 then
       if fibHighLive = 1 and fibHighX > -1 then
          if high > fibHigh then
             fibHigh = high
             fibHighX = barindex
          endif
       endif
       if fibLowLive = 1 and fibLowX > -1 then
          if low < fibLow then
             fibLow = low
             fibLowX = barindex
          endif
       endif
    endif

    // Lock live edge on confirmed pivot (not on break bar)
    if isBullBrk = 0 and isBearBrk = 0 then
       if newSwHigh = 1 and fibHighLive = 1 and swHigh1X > -1 then
          fibHigh = swHigh1
          fibHighX = swHigh1X
          fibHighLive = 0
       endif
       if newSwLow = 1 and fibLowLive = 1 and swLow1X > -1 then
          fibLow = swLow1
          fibLowX = swLow1X
          fibLowLive = 0
       endif
       // Update locked anchors on new confirmed swings
       if newSwHigh = 1 and fibHighLive = 0 and fibHighX > -1 then
          if swHigh1 <> fibHigh then
             fibHigh = swHigh1
             fibHighX = swHigh1X
          endif
       endif
       if newSwLow = 1 and fibLowLive = 0 and fibLowX > -1 then
          if swLow1 <> fibLow then
             fibLow = swLow1
             fibLowX = swLow1X
          endif
       endif
    endif

    // ═══════════════════════════════════════
    // FIBONACCI PRICE LEVELS
    // ═══════════════════════════════════════
    fibValid = 0
    fib236 = 0
    fib382 = 0
    fib500 = 0
    fib618 = 0
    fib786 = 0
    fibTgt50 = 0
    fibTgt618 = 0

    if fibHighX > -1 and fibLowX > -1 and fibHigh > fibLow then
       fibValid = 1
       fibRng = fibHigh - fibLow
       fib236 = fibHigh - fibRng * 0.236
       fib382 = fibHigh - fibRng * 0.382
       fib500 = fibHigh - fibRng * 0.500
       fib618 = fibHigh - fibRng * 0.618
       fib786 = fibHigh - fibRng * 0.786
       // Extensions: direction depends on structure bias
       if structBias >= 0 then
          // Bullish: targets above fibHigh
          fibTgt50 = fibHigh + fibRng * 0.5
          fibTgt618 = fibHigh + fibRng * 0.618
       else
          // Bearish: targets below fibLow
          fibTgt50 = fibLow - fibRng * 0.5
          fibTgt618 = fibLow - fibRng * 0.618
       endif
    endif

    // ═══════════════════════════════════════
    // PREMIUM / DISCOUNT
    // ═══════════════════════════════════════
    inPremium = 0
    inDiscount = 0
    if fibValid = 1 then
       if close > fib500 then
          inPremium = 1
       else
          inDiscount = 1
       endif
    endif

    // ═══════════════════════════════════════
    // CONFLUENCE SCORING (weighted)
    // ═══════════════════════════════════════
    if atrVal > 0 then
       confDist = atrVal * confTol
    else
       confDist = 0.001
    endif

    confWeight = 0.0
    if fibValid = 1 then
       if showFib236 = 1 and abs(close - fib236) <= confDist then
          confWeight = confWeight + 1.0
       endif
       if abs(close - fib382) <= confDist then
          confWeight = confWeight + 1.5
       endif
       if abs(close - fib500) <= confDist then
          confWeight = confWeight + 2.0
       endif
       if abs(close - fib618) <= confDist then
          confWeight = confWeight + 2.5
       endif
       if abs(close - fib786) <= confDist then
          confWeight = confWeight + 1.5
       endif
    endif
    // Swing level confluence
    if swHigh1X > -1 and abs(close - swHigh1) <= confDist then
       confWeight = confWeight + 1.0
    endif
    if swLow1X > -1 and abs(close - swLow1) <= confDist then
       confWeight = confWeight + 1.0
    endif

    confScore = min(confWeight * 10, 100)

    // ═══════════════════════════════════════
    // ENGULFING PATTERN DETECTION
    // ═══════════════════════════════════════
    bodySize = max(close, open) - min(close, open)
    bodyAvg = average[14, 1](bodySize)

    bearEngulf = 0
    if close < open then
       if bodySize > bodyAvg then
          if close[1] > open[1] then
             if bodySize[1] < bodyAvg[1] then
                if close <= open[1] and open >= close[1] then
                   if close < open[1] or open > close[1] then
                      bearEngulf = 1
                   endif
                endif
             endif
          endif
       endif
    endif

    bullEngulf = 0
    if close > open then
       if bodySize > bodyAvg then
          if close[1] < open[1] then
             if bodySize[1] < bodyAvg[1] then
                if close >= open[1] and open <= close[1] then
                   if close > open[1] or open < close[1] then
                      bullEngulf = 1
                   endif
                endif
             endif
          endif
       endif
    endif

    // Context filter: premium/discount or confluence
    bearEngCtx = 0
    if bearEngulf = 1 and barindex >= warmupBars then
       if inPremium = 1 or confWeight >= 1.5 then
          bearEngCtx = 1
       endif
    endif

    bullEngCtx = 0
    if bullEngulf = 1 and barindex >= warmupBars then
       if inDiscount = 1 or confWeight >= 1.5 then
          bullEngCtx = 1
       endif
    endif

    // ── Store engulfing in buffer ──
    if bearEngCtx = 1 then
       if engCnt < maxEng then
          $engX[engCnt] = barindex
          $engY[engCnt] = high
          $engDir[engCnt] = -1
          engCnt = engCnt + 1
       else
          for si = 0 to maxEng - 2 do
             $engX[si] = $engX[si + 1]
             $engY[si] = $engY[si + 1]
             $engDir[si] = $engDir[si + 1]
          next
          $engX[maxEng - 1] = barindex
          $engY[maxEng - 1] = high
          $engDir[maxEng - 1] = -1
       endif
    endif

    if bullEngCtx = 1 then
       if engCnt < maxEng then
          $engX[engCnt] = barindex
          $engY[engCnt] = low
          $engDir[engCnt] = 1
          engCnt = engCnt + 1
       else
          for si = 0 to maxEng - 2 do
             $engX[si] = $engX[si + 1]
             $engY[si] = $engY[si + 1]
             $engDir[si] = $engDir[si + 1]
          next
          $engX[maxEng - 1] = barindex
          $engY[maxEng - 1] = low
          $engDir[maxEng - 1] = 1
       endif
    endif

    // ═══════════════════════════════════════
    // SIGNAL LOGIC (with cooldown)
    // ═══════════════════════════════════════
    barsSinceBuy = barsSinceBuy + 1
    barsSinceSell = barsSinceSell + 1

    buyRaw = 0
    sellRaw = 0

    // Buy: bullish engulfing + bias + confluence, OR bullish CHoCH
    if bullEngCtx = 1 and structBias = 1 and confWeight >= 1.5 then
       buyRaw = 1
    endif
    if isCHoCH = 1 and isBullBrk = 1 then
       buyRaw = 1
    endif

    // Sell: bearish engulfing + bias + confluence, OR bearish CHoCH
    if bearEngCtx = 1 and structBias = -1 and confWeight >= 1.5 then
       sellRaw = 1
    endif
    if isCHoCH = 1 and isBearBrk = 1 then
       sellRaw = 1
    endif

    // Apply cooldown
    confBuy = 0
    confSell = 0
    if buyRaw = 1 and barsSinceBuy >= cooldownBars then
       confBuy = 1
       barsSinceBuy = 0
    endif
    if sellRaw = 1 and barsSinceSell >= cooldownBars then
       confSell = 1
       barsSinceSell = 0
    endif

    // ── Store signals in buffer ──
    if confBuy = 1 then
       if sigBuyCnt < maxSig then
          $sigBuyX[sigBuyCnt] = barindex
          $sigBuyY[sigBuyCnt] = low
          sigBuyCnt = sigBuyCnt + 1
       else
          for si = 0 to maxSig - 2 do
             $sigBuyX[si] = $sigBuyX[si + 1]
             $sigBuyY[si] = $sigBuyY[si + 1]
          next
          $sigBuyX[maxSig - 1] = barindex
          $sigBuyY[maxSig - 1] = low
       endif
    endif

    if confSell = 1 then
       if sigSellCnt < maxSig then
          $sigSellX[sigSellCnt] = barindex
          $sigSellY[sigSellCnt] = high
          sigSellCnt = sigSellCnt + 1
       else
          for si = 0 to maxSig - 2 do
             $sigSellX[si] = $sigSellX[si + 1]
             $sigSellY[si] = $sigSellY[si + 1]
          next
          $sigSellX[maxSig - 1] = barindex
          $sigSellY[maxSig - 1] = high
       endif
    endif

    // ═══════════════════════════════════════════════════
    // DRAWING (all inside islastbarupdate)
    // ═══════════════════════════════════════════════════
    if islastbarupdate then
       atrOff = atrVal * 0.3

       // ── SWING LABELS (HH/HL/LH/LL) ──
       if showSwings = 1 and swLblCnt > 0 then
          for i = 0 to swLblCnt - 1 do
             if $swLblT[i] = 1 then
                drawtext("HH", $swLblX[i], $swLblY[i] + atrOff) coloured(0, 230, 118)
             elsif $swLblT[i] = 2 then
                drawtext("HL", $swLblX[i], $swLblY[i] - atrOff) coloured(0, 230, 118)
             elsif $swLblT[i] = 3 then
                drawtext("LH", $swLblX[i], $swLblY[i] + atrOff) coloured(255, 82, 82)
             elsif $swLblT[i] = 4 then
                drawtext("LL", $swLblX[i], $swLblY[i] - atrOff) coloured(255, 82, 82)
             endif
          next
       endif

       // ── BOS / CHoCH LINES & LABELS ──
       if showStruct = 1 and bosCnt > 0 then
          for i = 0 to bosCnt - 1 do
             if $bosDir[i] = 1 then
                bR = 0
                bG = 230
                bB = 118
             else
                bR = 255
                bG = 82
                bB = 82
             endif
             drawsegment($bosStartX[i], $bosPrice[i], $bosEndX[i], $bosPrice[i]) coloured(bR, bG, bB) style(dottedline, 2)
             midX = round(($bosStartX[i] + $bosEndX[i]) / 2)
             if $bosDir[i] = 1 then
                lblOff = $bosPrice[i] + atrOff * 0.5
             else
                lblOff = $bosPrice[i] - atrOff * 0.5
             endif
             if $bosType[i] = 2 then
                drawtext("CHoCH", midX, lblOff) coloured(bR, bG, bB)
             else
                drawtext("BOS", midX, lblOff) coloured(bR, bG, bB)
             endif
          next
       endif

       // ── FIBONACCI LEVELS ──
       if showFib = 1 and fibValid = 1 then
          rightEdge = barindex + fibExtBars

          // Reference line (diagonal from swing low to swing high)
          drawsegment(fibLowX, fibLow, fibHighX, fibHigh) coloured(100, 150, 200) style(dottedline, 1)

          // Golden zone box (0.500 – 0.786)
          drawrectangle(barindex, fib500, rightEdge, fib786) coloured(255, 214, 0) fillcolor(255, 214, 0, 30)

          // Individual levels
          if showFib236 = 1 then
             drawsegment(barindex, fib236, rightEdge, fib236) coloured(100, 160, 220) style(dottedline, 1)
             drawtext("0.236", rightEdge, fib236) coloured(66, 165, 245)
          endif
          if showFib382 = 1 then
             drawsegment(barindex, fib382, rightEdge, fib382) coloured(80, 150, 220) style(dottedline, 1)
             drawtext("0.382", rightEdge, fib382) coloured(66, 165, 245)
          endif
          if showFib500 = 1 then
             drawsegment(barindex, fib500, rightEdge, fib500) coloured(66, 165, 245) style(dottedline, 2)
             drawtext("0.500", rightEdge, fib500) coloured(66, 165, 245)
          endif
          if showFib618 = 1 then
             drawsegment(barindex, fib618, rightEdge, fib618) coloured(66, 165, 245) style(line, 2)
             drawtext("0.618", rightEdge, fib618) coloured(66, 165, 245)
          endif
          if showFib786 = 1 then
             drawsegment(barindex, fib786, rightEdge, fib786) coloured(80, 150, 220) style(dottedline, 1)
             drawtext("0.786", rightEdge, fib786) coloured(66, 165, 245)
          endif

          // Target levels (direction-aware)
          if structBias >= 0 then
             tgtR = 0
             tgtG = 230
             tgtB = 118
             tgtR2 = 0
             tgtG2 = 180
             tgtB2 = 100
          else
             tgtR = 255
             tgtG = 82
             tgtB = 82
             tgtR2 = 200
             tgtG2 = 60
             tgtB2 = 60
          endif
          if showFibTgt = 1 then
             drawsegment(barindex, fibTgt618, rightEdge, fibTgt618) coloured(tgtR, tgtG, tgtB) style(dottedline, 2)
             drawtext("Target", rightEdge, fibTgt618) coloured(tgtR, tgtG, tgtB)
          endif
          if showFibT50 = 1 then
             drawsegment(barindex, fibTgt50, rightEdge, fibTgt50) coloured(tgtR2, tgtG2, tgtB2) style(dottedline, 1)
             drawtext("-0.5", rightEdge, fibTgt50) coloured(tgtR2, tgtG2, tgtB2)
          endif

          // Target zone box
          if showFibTgt = 1 or showFibT50 = 1 then
             drawrectangle(barindex, fibTgt50, rightEdge, fibTgt618) coloured(255, 214, 0) fillcolor(255, 214, 0, 30)
          endif
       endif

       // ── ENGULFING MARKERS ──
       if showEngulf = 1 and engCnt > 0 then
          for i = 0 to engCnt - 1 do
             if $engDir[i] = 1 then
                drawtext("▲", $engX[i], $engY[i] - atrOff) coloured(0, 230, 118)
             else
                drawtext("▼", $engX[i], $engY[i] + atrOff) coloured(255, 82, 82)
             endif
          next
       endif

       // ── BUY / SELL SIGNALS ──
       if showSignals = 1 then
          if sigBuyCnt > 0 then
             for i = 0 to sigBuyCnt - 1 do
                drawtext("BUY", $sigBuyX[i], $sigBuyY[i] - atrOff * 1.5) coloured(0, 230, 118)
             next
          endif
          if sigSellCnt > 0 then
             for i = 0 to sigSellCnt - 1 do
                drawtext("SELL", $sigSellX[i], $sigSellY[i] + atrOff * 1.5) coloured(255, 82, 82)
             next
          endif
       endif

       // ── DASHBOARD (simplified panel) ──
       if showDash = 1 then
          // Title
          drawtext("═ FibStructure ═", -200, -10) anchor(topright, xshift, yshift) coloured(200, 200, 200)

          // Trend
          if structBias > 0 then
             drawtext("Trend: Bullish", -200, -25) anchor(topright, xshift, yshift) coloured(0, 230, 118)
          elsif structBias < 0 then
             drawtext("Trend: Bearish", -200, -25) anchor(topright, xshift, yshift) coloured(255, 82, 82)
          else
             drawtext("Trend: Neutral", -200, -25) anchor(topright, xshift, yshift) coloured(150, 150, 150)
          endif

          // Signal
          if confBuy = 1 then
             drawtext("Signal: BUY", -200, -40) anchor(topright, xshift, yshift) coloured(0, 230, 118)
          elsif confSell = 1 then
             drawtext("Signal: SELL", -200, -40) anchor(topright, xshift, yshift) coloured(255, 82, 82)
          else
             drawtext("Signal: —", -200, -40) anchor(topright, xshift, yshift) coloured(150, 150, 150)
          endif

          // Confluence
          if confScore >= 60 then
             drawtext("Conf: Strong #confScore#", -200, -55) anchor(topright, xshift, yshift) coloured(0, 230, 118)
          elsif confScore >= 30 then
             drawtext("Conf: Moderate #confScore#", -200, -55) anchor(topright, xshift, yshift) coloured(255, 214, 0)
          elsif confScore > 0 then
             drawtext("Conf: Weak #confScore#", -200, -55) anchor(topright, xshift, yshift) coloured(200, 180, 80)
          else
             drawtext("Conf: None", -200, -55) anchor(topright, xshift, yshift) coloured(150, 150, 150)
          endif

          // Zone
          if inPremium = 1 then
             drawtext("Zone: Premium", -200, -70) anchor(topright, xshift, yshift) coloured(255, 82, 82)
          elsif inDiscount = 1 then
             drawtext("Zone: Discount", -200, -70) anchor(topright, xshift, yshift) coloured(0, 230, 118)
          else
             drawtext("Zone: —", -200, -70) anchor(topright, xshift, yshift) coloured(150, 150, 150)
          endif

          // Fib .618 value
          if fibValid = 1 then
             drawtext("Fib .618: #fib618#", -200, -85) anchor(topright, xshift, yshift) coloured(66, 165, 245)
          endif
       endif
    endif

    // ═══════════════════════════════════════
    // RETURN — boolean outputs for alerts
    // ═══════════════════════════════════════
    return //confBuy as "Buy Signal", confSell as "Sell Signal", isBOS as "BOS", isCHoCH as "CHoCH"





    #259501 quote
    Ciccarelli FrancoCiccarelli Franco
    Participant
    Senior

    Il pattern deve essere abilitato per vederlo?

    Grazie

    #259516 quote
    robertogozzirobertogozzi
    Moderator
    Legend

    I dati da stampare mi sembra siano già abilitati, in ogni caso nella tabella allegata puoi vedere le variabili che iniziano con SHOW che ho messo a 0 per non avere nessun dato visibile.

    Se tu le metti ad 1, una per volta, vedrai quali sono i dati che ti possono interessare o meno.

    Spero di avere interpretato correttamente la tua richiesta.

    x.jpg x.jpg
    #259618 quote
    Ciccarelli FrancoCiccarelli Franco
    Participant
    Senior

    Ho provato, ed è cosi per i vari indicatori, ma il pattern non si vede. Per pattern intendo la freccia che va verso il target.


    Grazie

    #259621 quote
    robertogozzirobertogozzi
    Moderator
    Legend

    Occorre attendere la risposta di Ivan, non so perché manca quella freccia.


    Iván González thanked this post
    #259651 quote
    Iván GonzálezIván González
    Moderator
    Legend

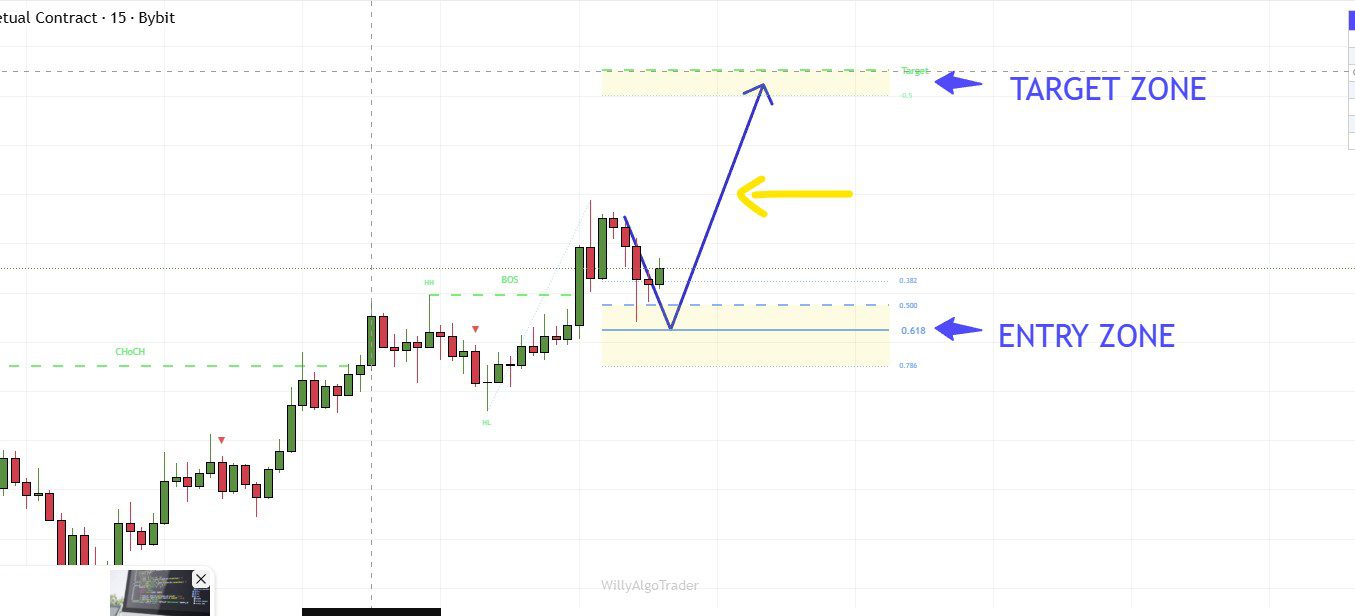

    Salve. Non sono sicuro che si riferisca a questa freccia (vedi screenshot). In tal caso, non compare nel codice originale; credo che l’autore dell’indicatore la utilizzi per illustrarne la funzionalità.

    robertogozzi thanked this post
    Captura-de-pantalla-2026-03-30-090709-1.jpg Captura-de-pantalla-2026-03-30-090709-1.jpg
Viewing 8 posts - 1 through 8 (of 8 total)
  • You must be logged in to reply to this topic.
ProRealAI ProRealAI New

Stuck on this ProBuilder code?

Describe what this topic is trying to build, in plain English, and ProRealAI writes the ProRealTime™ indicator, screener or system for you.

Available in 7 languages
Try ProRealAI

TradingView to ProRealTime Translation Center

New Reply
Summary

This topic contains 7 replies,
has 3 voices, and was last updated by Iván GonzálezIván González
5 months, 3 weeks ago.

Topic Details
Forum: TradingView to ProRealTime Translation Center Forum
Started: 03/23/2026
Status: Active
Attachments: 2 files
ProRealCode ProRealCode
Loading...
