Drawsegment 5 bars forward

Sprattelgubbe · 2022-02-26T12:36:14+00:00

Hi, I would like to draw a segment at the 5 min bar 12:00 – 12:05 at the high +2 and at the low -2 and I would like it to be 5 bars forward in time and a horisontell line

Viewing 4 posts - 1 through 4 (of 4 total)

Author

Posts
02/26/2022 at 1:36 PM #188901 quote

Sprattelgubbe
Participant

Junior

Hi,

I would like to draw a segment at the 5 min bar 12:00 – 12:05 at the high +2 and at the low -2

and I would like it to be 5 bars forward in time and a horisontell line

02/26/2022 at 1:43 PM #188903 quote

PeterSt
Participant

Master

I would say that this is drawing at BarIndex+5.
But you then also would need to set the right margin of the chart to 5 bars (this is by default set at 2).

If you need more help, just ask (others will be able to help too).

Sprattelgubbe thanked this post

02/27/2022 at 8:25 AM #188930 quote
JS
Participant

Master

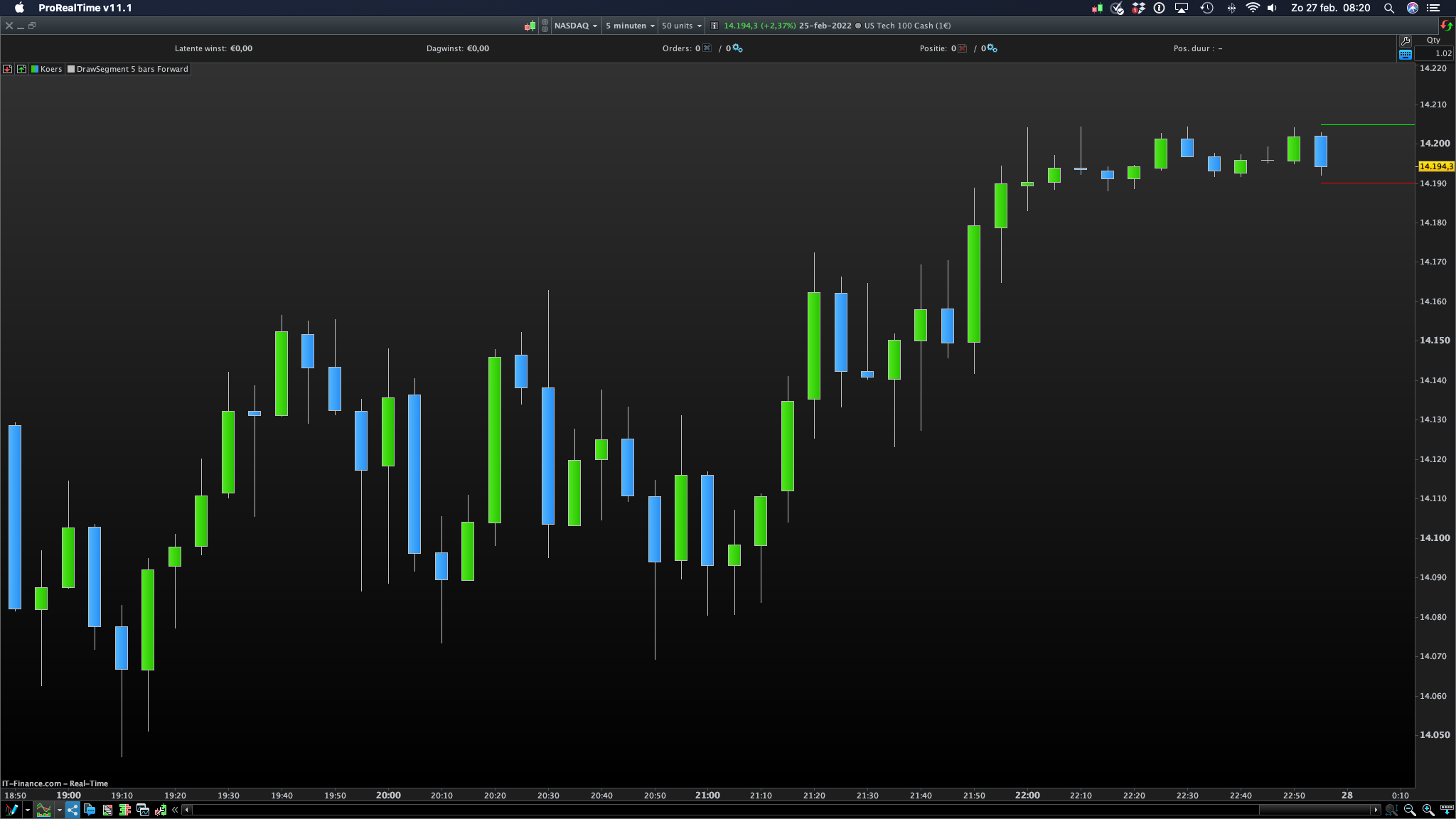

Hi @Sprattelgubbe,
```
DefParam DrawOnLastBarOnly = True
DrawSegment(BarIndex,High+2,BarIndex+5,High+2)Coloured(0,255,0)
Drawsegment(BarIndex,Low-2,BarIndex+5,Low-2)Coloured(255,0,0)
Return
```
Sprattelgubbe thanked this post

02/27/2022 at 11:35 AM #188951 quote

Sprattelgubbe
Participant

Junior

Thank you both for your answers, now it works as I wanted it to do.

I was pretty close in the code I had done, but you nailed it.
