conversion indicateur super ichi
Viewing 13 posts - 1 through 13 (of 13 total)
-
5 est la taille maximale des points avec l’instruction DRAWPOINT ou le style POINT.
L’astuce consiste à utiliser un DRAWTEXT avec un ● , la taille est de 30 à modifier à convenance.

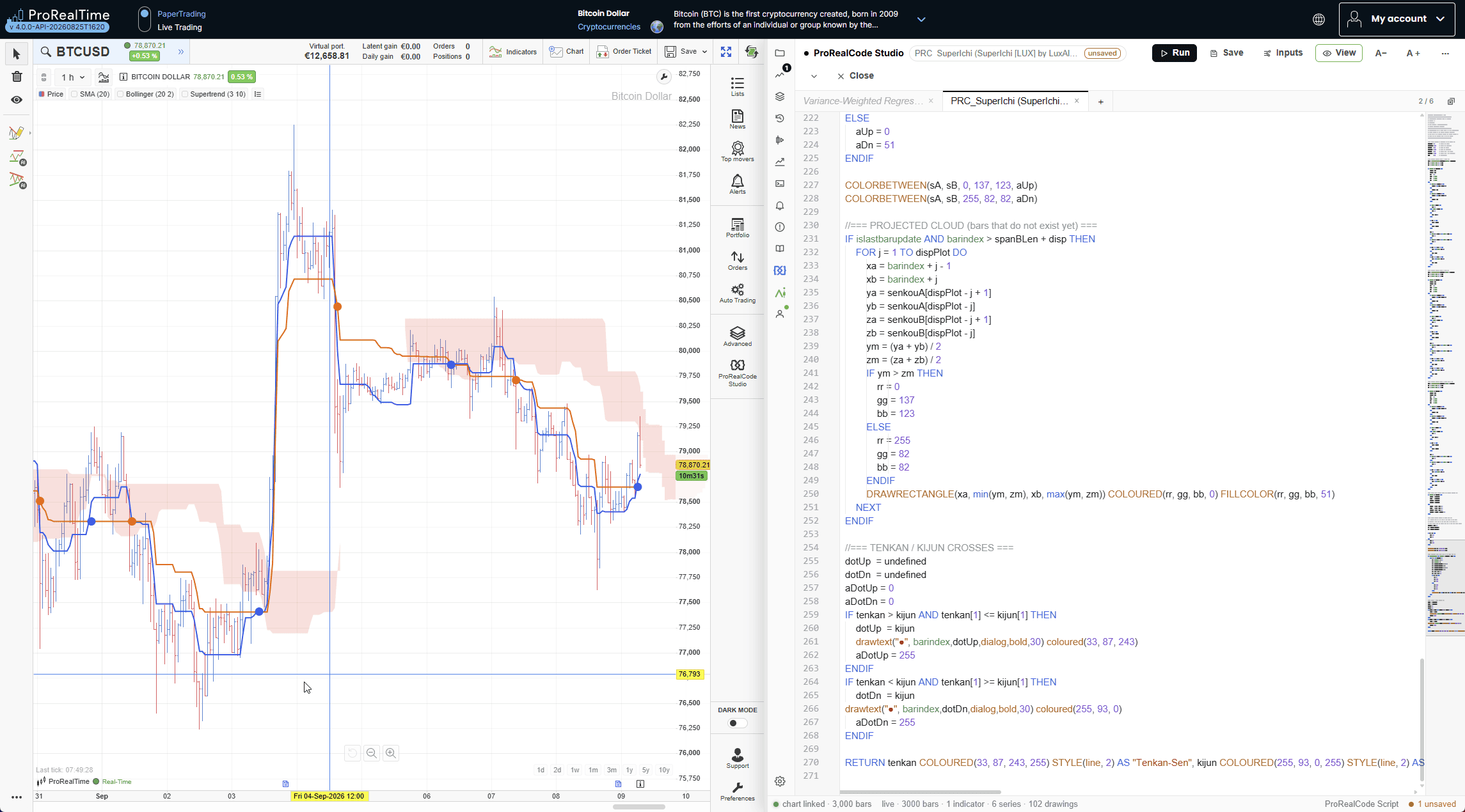

Voici le code modifié: (lignes 261 et 266)
//@ProRealCodeScript@version=0.2.0@ //DEFPARAM DRAWONLASTBARONLY = TRUE //-------------------------------------------- // PRC_SuperIchi (SuperIchi [LUX] by LuxAlgo) // version = 0 // 04.09.2026 // Ivan Gonzalez @ www.prorealcode.com // Sharing ProRealTime knowledge //-------------------------------------------- // Ichimoku-style set of lines built on an ATR trailing-stop // engine instead of the classic Donchian midpoints. // Each line is the midpoint between the extreme reached by // price and the trailing stop of its own regime. //-------------------------------------------- //=== INPUTS (declare as Variables in the editor) === tenkanLen = 9 // Tenkan ATR length tenkanMult = 2.0 // Tenkan ATR multiplier kijunLen = 26 // Kijun ATR length kijunMult = 4.0 // Kijun ATR multiplier spanBLen = 52 // Senkou Span B ATR length spanBMult = 6.0 // Senkou Span B ATR multiplier disp = 26 // Displacement //=== ADAPTIVE MIDLINE ENGINE - TENKAN === atrT = averagetruerange[tenkanLen](close) * tenkanMult upT = (high + low) / 2 + atrT dnT = (high + low) / 2 - atrT IF barindex <= tenkanLen THEN upperT = upT lowerT = dnT osT = 0 sptT = close mxT = close mnT = close ELSE IF close[1] < upperT[1] THEN upperT = min(upT, upperT[1]) ELSE upperT = upT ENDIF IF close[1] > lowerT[1] THEN lowerT = max(dnT, lowerT[1]) ELSE lowerT = dnT ENDIF IF close > upperT THEN osT = 1 ELSIF close < lowerT THEN osT = 0 ELSE osT = osT[1] ENDIF IF osT = 1 THEN sptT = lowerT ELSE sptT = upperT ENDIF crT = 0 IF close[1] < sptT[1] AND close > sptT THEN crT = 1 ENDIF IF close[1] > sptT[1] AND close < sptT THEN crT = 1 ENDIF IF crT = 1 OR osT = 1 THEN mxT = max(close, mxT[1]) ELSE mxT = sptT ENDIF IF crT = 1 OR osT = 0 THEN mnT = min(close, mnT[1]) ELSE mnT = sptT ENDIF ENDIF //=== ADAPTIVE MIDLINE ENGINE - KIJUN === atrK = averagetruerange[kijunLen](close) * kijunMult upK = (high + low) / 2 + atrK dnK = (high + low) / 2 - atrK IF barindex <= kijunLen THEN upperK = upK lowerK = dnK osK = 0 sptK = close mxK = close mnK = close ELSE IF close[1] < upperK[1] THEN upperK = min(upK, upperK[1]) ELSE upperK = upK ENDIF IF close[1] > lowerK[1] THEN lowerK = max(dnK, lowerK[1]) ELSE lowerK = dnK ENDIF IF close > upperK THEN osK = 1 ELSIF close < lowerK THEN osK = 0 ELSE osK = osK[1] ENDIF IF osK = 1 THEN sptK = lowerK ELSE sptK = upperK ENDIF crK = 0 IF close[1] < sptK[1] AND close > sptK THEN crK = 1 ENDIF IF close[1] > sptK[1] AND close < sptK THEN crK = 1 ENDIF IF crK = 1 OR osK = 1 THEN mxK = max(close, mxK[1]) ELSE mxK = sptK ENDIF IF crK = 1 OR osK = 0 THEN mnK = min(close, mnK[1]) ELSE mnK = sptK ENDIF ENDIF //=== ADAPTIVE MIDLINE ENGINE - SENKOU SPAN B === atrS = averagetruerange[spanBLen](close) * spanBMult upS = (high + low) / 2 + atrS dnS = (high + low) / 2 - atrS IF barindex <= spanBLen THEN upperS = upS lowerS = dnS osS = 0 sptS = close mxS = close mnS = close ELSE IF close[1] < upperS[1] THEN upperS = min(upS, upperS[1]) ELSE upperS = upS ENDIF IF close[1] > lowerS[1] THEN lowerS = max(dnS, lowerS[1]) ELSE lowerS = dnS ENDIF IF close > upperS THEN osS = 1 ELSIF close < lowerS THEN osS = 0 ELSE osS = osS[1] ENDIF IF osS = 1 THEN sptS = lowerS ELSE sptS = upperS ENDIF crS = 0 IF close[1] < sptS[1] AND close > sptS THEN crS = 1 ENDIF IF close[1] > sptS[1] AND close < sptS THEN crS = 1 ENDIF IF crS = 1 OR osS = 1 THEN mxS = max(close, mxS[1]) ELSE mxS = sptS ENDIF IF crS = 1 OR osS = 0 THEN mnS = min(close, mnS[1]) ELSE mnS = sptS ENDIF ENDIF //=== OUTPUT LINES (masked during the longest warm-up) === IF barindex <= spanBLen THEN tenkan = undefined kijun = undefined senkouA = undefined senkouB = undefined ELSE tenkan = (mxT + mnT) / 2 kijun = (mxK + mnK) / 2 senkouB = (mxS + mnS) / 2 senkouA = (kijun + tenkan) / 2 ENDIF //=== CLOUD, SHIFTED FORWARD BY disp-1 BARS === // A forward plot at +N is read on the chart as the value // computed N bars ago, so the past half of the cloud is a // plain series lag. The future half has no bars yet: drawn below. dispPlot = disp - 1 sA = senkouA[dispPlot] sB = senkouB[dispPlot] IF sA > sB THEN aUp = 51 aDn = 0 ELSE aUp = 0 aDn = 51 ENDIF COLORBETWEEN(sA, sB, 0, 137, 123, aUp) COLORBETWEEN(sA, sB, 255, 82, 82, aDn) //=== PROJECTED CLOUD (bars that do not exist yet) === IF islastbarupdate AND barindex > spanBLen + disp THEN FOR j = 1 TO dispPlot DO xa = barindex + j - 1 xb = barindex + j ya = senkouA[dispPlot - j + 1] yb = senkouA[dispPlot - j] za = senkouB[dispPlot - j + 1] zb = senkouB[dispPlot - j] ym = (ya + yb) / 2 zm = (za + zb) / 2 IF ym > zm THEN rr = 0 gg = 137 bb = 123 ELSE rr = 255 gg = 82 bb = 82 ENDIF DRAWRECTANGLE(xa, min(ym, zm), xb, max(ym, zm)) COLOURED(rr, gg, bb, 0) FILLCOLOR(rr, gg, bb, 51) NEXT ENDIF //=== TENKAN / KIJUN CROSSES === dotUp = undefined dotDn = undefined aDotUp = 0 aDotDn = 0 IF tenkan > kijun AND tenkan[1] <= kijun[1] THEN dotUp = kijun drawtext("●", barindex,dotUp,dialog,bold,30) coloured(33, 87, 243) aDotUp = 255 ENDIF IF tenkan < kijun AND tenkan[1] >= kijun[1] THEN dotDn = kijun drawtext("●", barindex,dotDn,dialog,bold,30) coloured(255, 93, 0) aDotDn = 255 ENDIF RETURN tenkan COLOURED(33, 87, 243, 255) STYLE(line, 2) AS "Tenkan-Sen", kijun COLOURED(255, 93, 0, 255) STYLE(line, 2) AS "Kijun-Sen", dotUp COLOURED(33, 87, 243, aDotUp) STYLE(point, 3) AS "Crossover", dotDn COLOURED(255, 93, 0, aDotDn) STYLE(point, 3) AS "Crossunder", sA COLOURED(0, 137, 123, 0) STYLE(line, 1) AS "Senkou Span A", sB COLOURED(255, 82, 82, 0) STYLE(line, 1) AS "Senkou Span B"Iván González thanked this post
