Can I draw OsMA ( or MACD, etc) as -100~+100%?

• 01/23/2022 at 6:06 PM #186372
  lashanta92

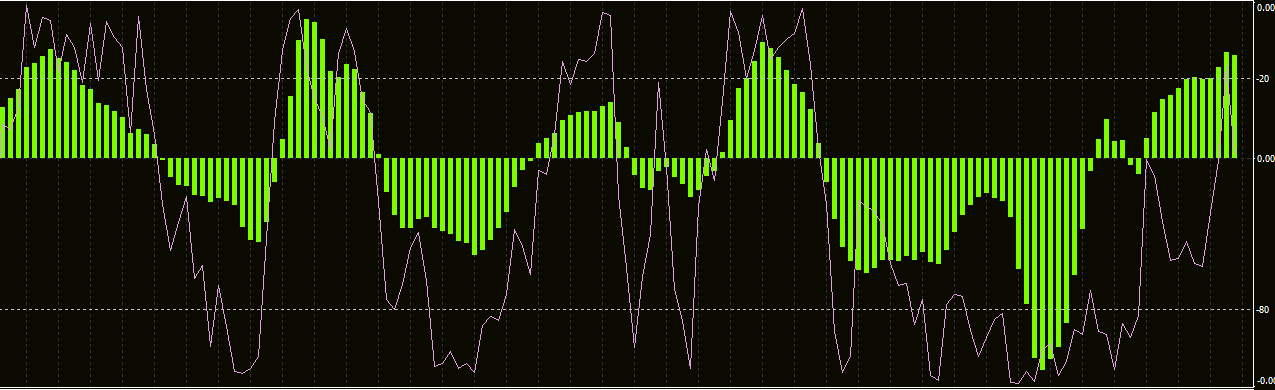

  I have a question. I want to reconstruct my MT4 platform (attached img) W%R and OsMA are drawn just as 2 independent layers. But on PRT, they return quite different digit values in the panel.

  So I tried to make indicator that always returns highest value of last~200 OsMA For the purpose of multiplying OsMA indicator to be within -/+100 range. but it does not work correctly.

  relatedly I need screening condition that tells whether MACD value is near zero(~10%) or not.

  Show me a hint please…



  lashanta92

  Participant

  Topics: 1

  Replies: 8

  Been thanked: 0 times
  01/24/2022 at 4:03 PM #186468
  robertogozzi

  I can’t understand what you mean, do you have any code to post as an example?

  And what does the code do? and what would you like it to do?





  robertogozzi

  Moderator

  Topics: 69

  Replies: 16466

  Been thanked: 3641 times
  01/24/2022 at 5:29 PM #186489
  lashanta92

  Thank you and sorry for reading my post.

  I want to make OsMA indicator return values just within -/+100  for the purpose of display it with W%R indicator on the same panel.

  Then I tried to get  highest or lowest value of OsMA to enlarge it. (for example, OsMA’s last 200 highest value is 0.5 ->  I’ll multiply entire OsMA’s value by 200.)

  I made another indicator just  gauge it and I called it in my OsMA indicator. Now I understand It’s meaningless.

  Now I wrote it.

  var1 = ExponentialAverage[12](close) – ExponentialAverage[26](close)
  var2 = average[9](var1)
  mao = var1 – var2
  var4 = max(abs(highest[200](mao)),abs(lowest[200](mao)))return mao * (100 / var4)

  Not worse but little shape changed from original line.

  Thanks



  lashanta92

  Participant

  Topics: 1

  Replies: 8

  Been thanked: 0 times
  01/25/2022 at 8:52 AM #186540
  robertogozzi

  Your code seems to work, it ranges -100 to +100:

  var1 = ExponentialAverage[12](close) - ExponentialAverage[26](close) var2 = average[9](var1) mao = var1 - var2 var4 = max(abs(highest[200](mao)),abs(lowest[200](mao))) return mao * (100 / var4) AS "mao",+100 AS "+100",-100 AS "-100"

  1 2 3 4 5

  var1 = ExponentialAverage[12](close) - ExponentialAverage[26](close) var2 = average[9](var1) mao = var1 - var2 var4 = max(abs(highest[200](mao)),abs(lowest[200](mao))) return mao * (100 / var4) AS "mao",+100 AS "+100",-100 AS "-100"





  robertogozzi

  Moderator

  Topics: 69

  Replies: 16466

  Been thanked: 3641 times
  01/26/2022 at 1:09 AM #186633
  lashanta92

  Thank you replying.

  I remade it using DrawOnLastBarOnly and drawsegment

  It’s a little heavy.

  DEFPARAM DRAWONLASTBARONLY = true DEFPARAM calculateonlastbars = 300 var1 = ExponentialAverage[short](close) - ExponentialAverage[long](close) var2 = Average[sma](var1) mao = var1 - var2 maxabs100 = max(abs(highest[100](mao)), abs(lowest[100](mao))) for i = 0 to bars-1 do DRAWRECTANGLE(barindex-i, 0, barindex-i-1, mao[i] * 100 / maxabs100) coloured(0,255,255,255) next return -100,100, (Williams[14](close)+50) * 2 , -60, 60

  1 2 3 4 5 6 7 8 9 10

  DEFPARAM DRAWONLASTBARONLY = true DEFPARAM calculateonlastbars = 300 var1 = ExponentialAverage[short](close) - ExponentialAverage[long](close) var2 = Average[sma](var1) mao = var1 - var2 maxabs100 = max(abs(highest[100](mao)), abs(lowest[100](mao))) for i = 0 to bars-1 do DRAWRECTANGLE(barindex-i, 0, barindex-i-1, mao[i] * 100 / maxabs100) coloured(0,255,255,255) next return -100,100, (Williams[14](close)+50) * 2 , -60, 60



  lashanta92

  Participant

  Topics: 1

  Replies: 8

  Been thanked: 0 times
  01/31/2022 at 12:36 PM #187119
  lashanta92

  Sorry for a basic question.
  Is “IF IsLastBarUpdate…” means “load only when new candle is made”?
  they seem to move tick by tick when I put in line.8 of previous code in it.



  lashanta92

  Participant

  Topics: 1

  Replies: 8

  Been thanked: 0 times
  01/31/2022 at 1:13 PM #187121
  robertogozzi

  This the official explanation https://www.prorealcode.com/documentation/islastbarupdate/.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 16466

  Been thanked: 3641 times
  01/31/2022 at 2:10 PM #187122
  lashanta92

  Thank you for your replying.
  “, 1 time when the indicator is applied on the chart and anytime the last bar on the chart is updated, ”
  If it doesn’t mean “when new candle is stood”, what differs from normal way?
  There’s no meaning i=1 but not 0 in the sample code?



  lashanta92

  Participant

  Topics: 1

  Replies: 8

  Been thanked: 0 times
  01/31/2022 at 2:30 PM #187123
  robertogozzi

  Try this indicator:

  Return IsLastBarUpdate

  1	Return IsLastBarUpdate





  robertogozzi

  Moderator

  Topics: 69

  Replies: 16466

  Been thanked: 3641 times
  01/31/2022 at 2:38 PM #187124
  lashanta92

  OK I’m understanding it
  It may be useful for my indicator.
  Thank you.



  lashanta92

  Participant

  Topics: 1

  Replies: 8

  Been thanked: 0 times
