ABC Pattern
Viewing 5 posts - 1 through 5 (of 5 total)
-
buenos días. Aquí tienes el indicador:

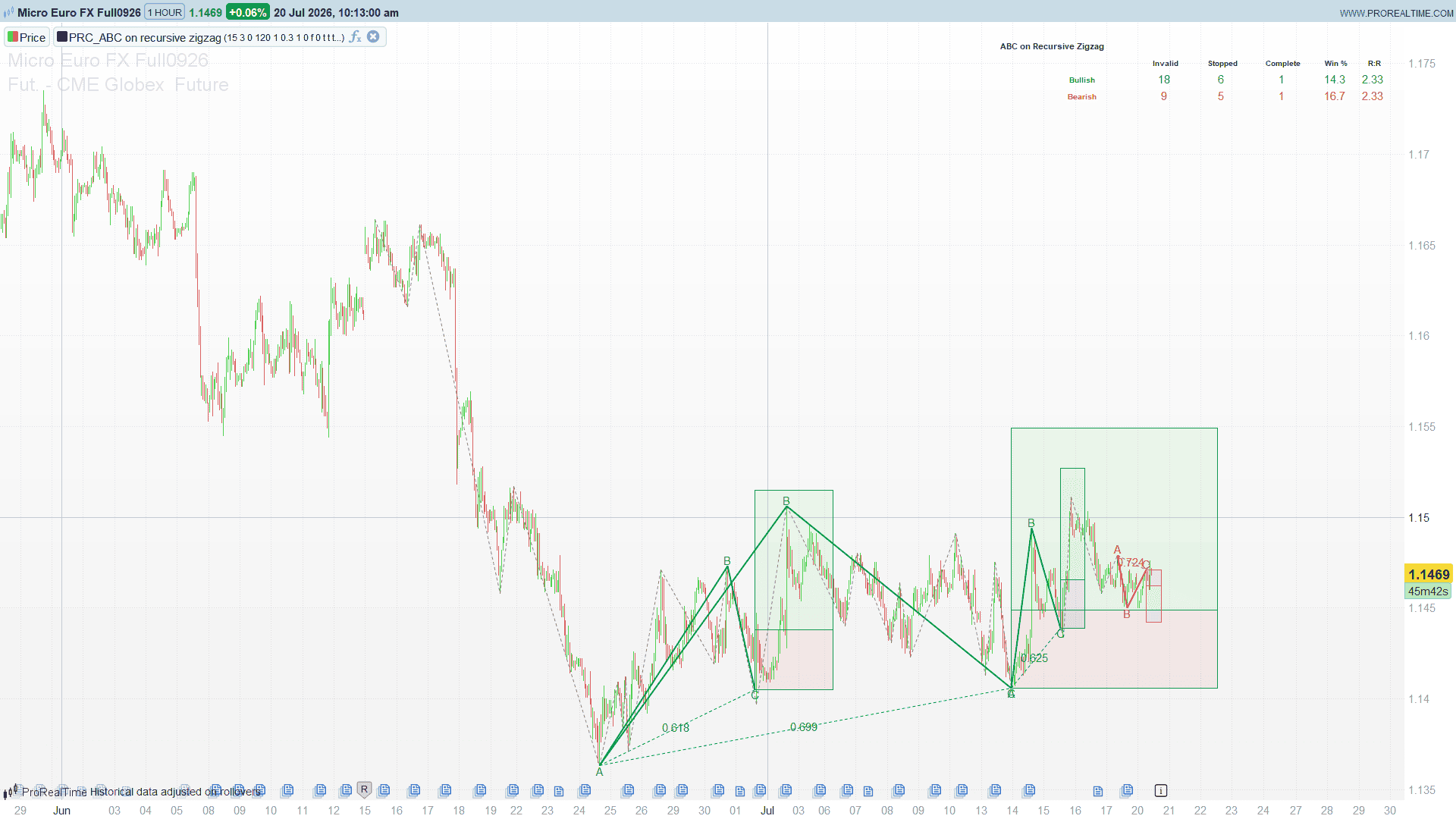

//-----------------------------------------------------------// //PRC_ABC on Recursive Zigzag (by Trendoscope) //version = 0 //20.07.26 //Ivan Gonzalez @ www.prorealcode.com //Sharing ProRealTime knowledge //-----------------------------------------------------------// // Detecta patrones ABC sobre un zigzag recursivo multinivel. // C debe retroceder entre el 61.8% y el 78.6% de la pata AB. // Proyecta entrada / stop / objetivo y sigue el estado de cada // patron hasta su cierre, con panel de estadisticas. // APLICAR SOBRE EL GRAFICO DE PRECIO (overlay). //-----------------------------------------------------------// defparam drawonlastbaronly = true //-----Inputs (parametros configurables)---------------------// zigzagLength = 13 //Longitud del zigzag de nivel 0 maxLevel = 3 //Nivel maximo de zigzag recursivo (0 = solo base) minLevel = 0 //Nivel minimo a escanear maxPivots = 120 //Pivotes de nivel 0 usados en el escaneo baseMode = 1 //1 = ABC Extension, 2 = BC Retracement entryRatio = 0.3 //Ratio de entrada targetRatio = 1.0 //Ratio de objetivo stopRatio = 0.0 //Ratio de stop (<= 0) useLogScale = 0 //1 = calcular ratios en escala logaritmica tradeCondition = 0 //0 any, 1 trend, 2 reverse, 3 contracting, 4 expanding useCloseEntry = 1 //Usar cierre para detectar la entrada useCloseTarget = 1 //Usar cierre para detectar el objetivo useCloseStop = 1 //Usar cierre para detectar el stop maxPatterns = 10 //Patrones activos simultaneos showClosed = 1 //1 = mantener en gris los ultimos patrones cerrados maxClosed = 6 //Cuantos patrones cerrados se conservan en pantalla showZigzag = 0 //1 = dibujar el zigzag de nivel 0 showBoxes = 1 //1 = dibujar las cajas de riesgo/objetivo showStats = 1 //1 = mostrar el panel de estadisticas //-----------------------------------------------------------// //-----Colores (RGB)-----------------------------------------// rBull = 0 //alcista gBull = 150 bBull = 80 rBear = 200 //bajista gBear = 50 bBear = 50 //-----------------------------------------------------------// //-----NIVEL 0: deteccion de pivotes-------------------------// // ZigzagLite marca pivote cuando el extremo de la ventana cae // en la barra actual (highestbars / lowestbars = 0). newPivot = 0 IF barindex >= zigzagLength THEN hb = highestbars[zigzagLength](high) lb = lowestbars[zigzagLength](low) IF hb = 0 AND lb <> 0 THEN pvDir = 1 pvVal = high ELSIF lb = 0 AND hb <> 0 THEN pvDir = -1 pvVal = low ELSIF hb = 0 AND lb = 0 THEN pvDir = prevDir IF pvDir = 1 THEN pvVal = high ELSE pvVal = low ENDIF ELSE pvDir = 0 pvVal = 0 ENDIF IF pvDir <> 0 THEN IF pvDir = 1 THEN isHi = 1 ELSE isHi = 0 ENDIF // Primer pivote: sembrar sin filtro (learning 155) IF npv = 0 THEN $zI[0] = barindex $zP[0] = pvVal $zH[0] = isHi npv = 1 newPivot = 1 ELSE lastH = $zH[npv-1] IF lastH = isHi THEN // Misma direccion: extender el pivote vigente si mejora lastP = $zP[npv-1] IF isHi = 1 THEN IF pvVal > lastP THEN $zI[npv-1] = barindex $zP[npv-1] = pvVal newPivot = 1 ENDIF ELSE IF pvVal < lastP THEN $zI[npv-1] = barindex $zP[npv-1] = pvVal newPivot = 1 ENDIF ENDIF ELSE // Cambio de direccion: nuevo pivote $zI[npv] = barindex $zP[npv] = pvVal $zH[npv] = isHi npv = npv + 1 newPivot = 1 ENDIF ENDIF prevDir = pvDir ENDIF ENDIF //-----------------------------------------------------------// //-----ESCANEO MULTINIVEL (solo cuando hay pivote nuevo)-----// IF newPivot = 1 AND npv >= 4 THEN // Cargar la ventana de trabajo desde la capa de acumulacion startK = npv - maxPivots IF startK < 0 THEN startK = 0 ENDIF nw = 0 FOR k = startK TO npv - 1 DO $wI[nw] = $zI[k] $wP[nw] = $zP[k] $wH[nw] = $zH[k] nw = nw + 1 NEXT FOR lev = 0 TO maxLevel DO IF nw >= 4 THEN // --- dir de cada pivote: +-1 retroceso, +-2 superacion --- FOR k = 0 TO nw - 1 DO IF $wH[k] = 1 THEN $wD[k] = 1 ELSE $wD[k] = -1 ENDIF IF k >= 2 THEN prevSame = $wP[k-2] IF $wH[k] = 1 THEN IF $wP[k] > prevSame THEN $wD[k] = 2 ENDIF ELSE IF $wP[k] < prevSame THEN $wD[k] = -2 ENDIF ENDIF ENDIF NEXT // --- Candidato ABC: los tres ultimos pivotes --- IF lev >= minLevel THEN cK = nw - 1 bK = nw - 2 aK = nw - 3 pA = $wP[aK] pB = $wP[bK] pC = $wP[cK] iA = $wI[aK] iB = $wI[bK] iC = $wI[cK] legAB = abs(pB - pA) legBC = abs(pC - pB) abcRatio = 0 IF legAB > 0 THEN abcRatio = legBC / legAB ENDIF // Filtro de retroceso 0.618 - 0.786 ratioOk = 0 IF abcRatio >= 0.618 AND abcRatio <= 0.786 THEN ratioOk = 1 ENDIF // Filtro de condicion sobre |dir| de A y B aDir = abs($wD[aK]) bDir = abs($wD[bK]) condOk = 0 IF tradeCondition = 0 THEN condOk = 1 ELSIF tradeCondition = 1 AND aDir = 1 AND bDir = 2 THEN condOk = 1 ELSIF tradeCondition = 2 AND aDir = 2 AND bDir = 1 THEN condOk = 1 ELSIF tradeCondition = 3 AND aDir = 1 AND bDir = 1 THEN condOk = 1 ELSIF tradeCondition = 4 AND aDir = 2 AND bDir = 2 THEN condOk = 1 ENDIF IF ratioOk = 1 AND condOk = 1 THEN // Ya registrado? (mismo A y mismo B) dup = 0 IF npt > 0 THEN FOR q = 0 TO npt - 1 DO IF $ptPA[q] = pA AND $ptPB[q] = pB THEN dup = 1 ENDIF NEXT ENDIF IF dup = 0 THEN // Direccion: C por debajo de B = patron alcista IF pB > pC THEN pDirn = 1 ELSE pDirn = -1 ENDIF // --- Niveles de entrada / objetivo / stop --- IF useLogScale = 1 AND pA > 0 AND pB > 0 AND pC > 0 THEN lA = log(pA) lB = log(pB) lC = log(pC) IF baseMode = 1 THEN spanL = lB - lA eLvl = exp(lC + spanL * entryRatio) tLvl = exp(lC + spanL * targetRatio) sLvl = exp(lC + spanL * stopRatio) ELSE spanL = lB - lC eLvl = exp(lC + spanL * entryRatio) tLvl = exp(lC + spanL * targetRatio) sLvl = exp(lC + spanL * stopRatio) ENDIF ELSE IF baseMode = 1 THEN spanP = pB - pA ELSE spanP = pB - pC ENDIF eLvl = pC + spanP * entryRatio tLvl = pC + spanP * targetRatio sLvl = pC + spanP * stopRatio ENDIF // Solo se registra si el precio aun no alcanzo la entrada inEntry = 0 IF close * pDirn < eLvl * pDirn THEN inEntry = 1 ENDIF IF inEntry = 1 THEN // FIFO: si esta lleno, descartar el mas antiguo IF npt >= maxPatterns AND npt > 0 THEN FOR q = 0 TO npt - 2 DO $ptIA[q] = $ptIA[q+1] $ptPA[q] = $ptPA[q+1] $ptIB[q] = $ptIB[q+1] $ptPB[q] = $ptPB[q+1] $ptIC[q] = $ptIC[q+1] $ptPC[q] = $ptPC[q+1] $ptDir[q] = $ptDir[q+1] $ptEn[q] = $ptEn[q+1] $ptSt[q] = $ptSt[q+1] $ptTg[q] = $ptTg[q+1] $ptStat[q] = $ptStat[q+1] $ptRt[q] = $ptRt[q+1] NEXT npt = npt - 1 ENDIF $ptIA[npt] = iA $ptPA[npt] = pA $ptIB[npt] = iB $ptPB[npt] = pB $ptIC[npt] = iC $ptPC[npt] = pC $ptDir[npt] = pDirn $ptEn[npt] = eLvl $ptSt[npt] = sLvl $ptTg[npt] = tLvl $ptStat[npt] = 0 $ptRt[npt] = abcRatio npt = npt + 1 ENDIF ENDIF ENDIF ENDIF // --- Construir el zigzag del nivel siguiente --- // Se conservan los pivotes que son extremo respecto a su // homologo anterior y posterior; los consecutivos del mismo // tipo se colapsan quedandose con el mas extremo. IF lev < maxLevel THEN nv = 0 FOR k = 0 TO nw - 1 DO keep = 1 IF k < nw - 1 THEN IF k >= 2 THEN prevSame = $wP[k-2] IF $wH[k] = 1 THEN IF $wP[k] < prevSame THEN keep = 0 ENDIF ELSE IF $wP[k] > prevSame THEN keep = 0 ENDIF ENDIF ENDIF IF k + 2 <= nw - 1 THEN nextSame = $wP[k+2] IF $wH[k] = 1 THEN IF $wP[k] < nextSame THEN keep = 0 ENDIF ELSE IF $wP[k] > nextSame THEN keep = 0 ENDIF ENDIF ENDIF ENDIF IF keep = 1 THEN doPush = 1 IF nv > 0 THEN prevH = $vH[nv-1] IF prevH = $wH[k] THEN doPush = 0 prevP = $vP[nv-1] IF $wH[k] = 1 THEN IF $wP[k] > prevP THEN $vP[nv-1] = $wP[k] $vI[nv-1] = $wI[k] ENDIF ELSE IF $wP[k] < prevP THEN $vP[nv-1] = $wP[k] $vI[nv-1] = $wI[k] ENDIF ENDIF ENDIF ENDIF IF doPush = 1 THEN $vI[nv] = $wI[k] $vP[nv] = $wP[k] $vH[nv] = $wH[k] nv = nv + 1 ENDIF ENDIF NEXT // Volcar el nivel construido a la ventana de trabajo FOR k = 0 TO nv - 1 DO $wI[k] = $vI[k] $wP[k] = $vP[k] $wH[k] = $vH[k] NEXT nw = nv ENDIF ENDIF NEXT ENDIF //-----------------------------------------------------------// //-----SEGUIMIENTO DE PATRONES ACTIVOS (cada barra)----------// IF npt > 0 THEN nAlive = 0 FOR k = 0 TO npt - 1 DO pdr = $ptDir[k] stt = $ptStat[k] IF useCloseTarget = 1 THEN vTarget = close ELSIF pdr > 0 THEN vTarget = high ELSE vTarget = low ENDIF IF useCloseStop = 1 THEN vStop = close ELSIF pdr > 0 THEN vStop = low ELSE vStop = high ENDIF IF useCloseEntry = 1 THEN vEntry = close ELSIF pdr > 0 THEN vEntry = high ELSE vEntry = low ENDIF // Estado: 0 pendiente, 1 entrada alcanzada, 2 objetivo alcanzado newStat = stt IF vEntry * pdr >= $ptEn[k] * pdr THEN newStat = 1 ENDIF IF vTarget * pdr >= $ptTg[k] * pdr THEN newStat = 2 ENDIF IF newStat < stt THEN newStat = stt ENDIF // Cierre: stop tocado tras entrar, invalidacion antes de entrar, // u objetivo ya alcanzado closed = 0 IF newStat > 0 AND vStop * pdr <= $ptSt[k] * pdr THEN closed = 1 ENDIF IF newStat = 0 AND close * pdr <= $ptSt[k] * pdr THEN closed = 1 ENDIF IF stt = 2 THEN closed = 1 ENDIF $ptStat[k] = newStat IF closed = 1 THEN // Conservar el patron cerrado para seguir mostrandolo en gris. // No altera deteccion ni estadisticas: solo evita que el grafico // quede vacio cuando no hay ningun patron activo. IF showClosed = 1 AND maxClosed > 0 THEN IF nhs >= maxClosed THEN FOR q = 0 TO nhs - 2 DO $hsIA[q] = $hsIA[q+1] $hsPA[q] = $hsPA[q+1] $hsIB[q] = $hsIB[q+1] $hsPB[q] = $hsPB[q+1] $hsIC[q] = $hsIC[q+1] $hsPC[q] = $hsPC[q+1] $hsRt[q] = $hsRt[q+1] NEXT nhs = nhs - 1 ENDIF $hsIA[nhs] = $ptIA[k] $hsPA[nhs] = $ptPA[k] $hsIB[nhs] = $ptIB[k] $hsPB[nhs] = $ptPB[k] $hsIC[nhs] = $ptIC[k] $hsPC[nhs] = $ptPC[k] $hsRt[nhs] = $ptRt[k] nhs = nhs + 1 ENDIF // Registrar en el contador correspondiente IF pdr > 0 THEN IF newStat = 0 THEN bullInvalid = bullInvalid + 1 ELSIF newStat = 1 THEN bullStopped = bullStopped + 1 ELSE bullDone = bullDone + 1 ENDIF ELSE IF newStat = 0 THEN bearInvalid = bearInvalid + 1 ELSIF newStat = 1 THEN bearStopped = bearStopped + 1 ELSE bearDone = bearDone + 1 ENDIF ENDIF ELSE // Compactar: los vivos se reubican al principio del array $ptIA[nAlive] = $ptIA[k] $ptPA[nAlive] = $ptPA[k] $ptIB[nAlive] = $ptIB[k] $ptPB[nAlive] = $ptPB[k] $ptIC[nAlive] = $ptIC[k] $ptPC[nAlive] = $ptPC[k] $ptDir[nAlive] = $ptDir[k] $ptEn[nAlive] = $ptEn[k] $ptSt[nAlive] = $ptSt[k] $ptTg[nAlive] = $ptTg[k] $ptStat[nAlive] = $ptStat[k] $ptRt[nAlive] = $ptRt[k] nAlive = nAlive + 1 ENDIF NEXT npt = nAlive ENDIF //-----------------------------------------------------------// //-----DIBUJO (solo en la ultima barra)----------------------// IF islastbarupdate THEN atrv = averagetruerange[14] // --- Zigzag de nivel 0 --- IF showZigzag = 1 AND npv >= 2 THEN firstK = npv - 30 IF firstK < 1 THEN firstK = 1 ENDIF FOR k = firstK TO npv - 1 DO drawsegment($zI[k-1], $zP[k-1], $zI[k], $zP[k]) coloured(130, 130, 130) style(dottedline, 1) NEXT ENDIF // --- Patrones ya cerrados (contexto historico, en gris) --- IF showClosed = 1 AND nhs > 0 THEN FOR k = 0 TO nhs - 1 DO drawsegment($hsIA[k], $hsPA[k], $hsIB[k], $hsPB[k]) coloured(150, 150, 150) style(dottedline, 1) drawsegment($hsIB[k], $hsPB[k], $hsIC[k], $hsPC[k]) coloured(150, 150, 150) style(dottedline, 1) drawtext("A", $hsIA[k], $hsPA[k]) coloured(150, 150, 150) drawtext("B", $hsIB[k], $hsPB[k]) coloured(150, 150, 150) drawtext("C", $hsIC[k], $hsPC[k]) coloured(150, 150, 150) NEXT ENDIF // --- Patrones activos --- IF npt > 0 THEN FOR k = 0 TO npt - 1 DO IF $ptDir[k] > 0 THEN pr = rBull pg = gBull pb = bBull ELSE pr = rBear pg = gBear pb = bBear ENDIF xA = $ptIA[k] yA = $ptPA[k] xB = $ptIB[k] yB = $ptPB[k] xC = $ptIC[k] yC = $ptPC[k] // Estructura A-B-C y linea guia A-C drawsegment(xA, yA, xB, yB) coloured(pr, pg, pb) style(line, 2) drawsegment(xB, yB, xC, yC) coloured(pr, pg, pb) style(line, 2) drawsegment(xA, yA, xC, yC) coloured(pr, pg, pb) style(dottedline, 1) // Etiquetas de los pivotes, desplazadas fuera de la vela IF yA < yB THEN offA = 0 - atrv * 0.4 offB = atrv * 0.4 ELSE offA = atrv * 0.4 offB = 0 - atrv * 0.4 ENDIF drawtext("A", xA, yA + offA) coloured(pr, pg, pb) drawtext("B", xB, yB + offB) coloured(pr, pg, pb) drawtext("C", xC, yC + offA) coloured(pr, pg, pb) // Ratio de retroceso en el punto medio de A-C midX = (xA + xC) / 2 midY = (yA + yC) / 2 rtx = round($ptRt[k] * 1000) / 1000 drawtext("#rtx#", midX, midY) coloured(pr, pg, pb) // Cajas de riesgo y objetivo IF showBoxes = 1 THEN barDiff = min((xC - xA) / 2, 490) IF barDiff < 5 THEN barDiff = 5 ENDIF xEnd = xC + barDiff drawrectangle(xC, $ptEn[k], xEnd, $ptSt[k]) coloured(pr, pg, pb) fillcolor(200, 60, 60, 20) drawrectangle(xC, $ptEn[k], xEnd, $ptTg[k]) coloured(pr, pg, pb) fillcolor(60, 200, 60, 20) ENDIF NEXT ENDIF // --- Panel de estadisticas --- IF showStats = 1 THEN bullClosed = bullDone + bullStopped IF bullClosed > 0 THEN bullWin = bullDone * 100 / bullClosed ELSE bullWin = 0 ENDIF bearClosed = bearDone + bearStopped IF bearClosed > 0 THEN bearWin = bearDone * 100 / bearClosed ELSE bearWin = 0 ENDIF riskSpan = entryRatio - stopRatio IF riskSpan > 0 THEN rrv = round((targetRatio - entryRatio) / riskSpan * 100) / 100 ELSE rrv = 0 ENDIF bwin = round(bullWin * 10) / 10 swin = round(bearWin * 10) / 10 pX = -530 pY = -30 drawtext("ABC on Recursive Zigzag", pX, pY, sansserif, bold, 11) coloured(60, 60, 60) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("Invalid", pX + 150, pY - 22, sansserif, bold, 10) coloured(60, 60, 60) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("Stopped", pX + 225, pY - 22, sansserif, bold, 10) coloured(60, 60, 60) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("Complete", pX + 305, pY - 22, sansserif, bold, 10) coloured(60, 60, 60) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("Win %", pX + 375, pY - 22, sansserif, bold, 10) coloured(60, 60, 60) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("R:R", pX + 425, pY - 22, sansserif, bold, 10) coloured(60, 60, 60) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("Bullish", pX + 40, pY - 44, sansserif, bold, 10) coloured(rBull, gBull, bBull) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#bullInvalid#", pX + 150, pY - 44) coloured(rBull, gBull, bBull) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#bullStopped#", pX + 225, pY - 44) coloured(rBull, gBull, bBull) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#bullDone#", pX + 305, pY - 44) coloured(rBull, gBull, bBull) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#bwin#", pX + 375, pY - 44) coloured(rBull, gBull, bBull) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#rrv#", pX + 425, pY - 44) coloured(rBull, gBull, bBull) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("Bearish", pX + 40, pY - 66, sansserif, bold, 10) coloured(rBear, gBear, bBear) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#bearInvalid#", pX + 150, pY - 66) coloured(rBear, gBear, bBear) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#bearStopped#", pX + 225, pY - 66) coloured(rBear, gBear, bBear) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#bearDone#", pX + 305, pY - 66) coloured(rBear, gBear, bBear) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#swin#", pX + 375, pY - 66) coloured(rBear, gBear, bBear) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) drawtext("#rrv#", pX + 425, pY - 66) coloured(rBear, gBear, bBear) ANCHOR(TOPRIGHT, XSHIFT, YSHIFT) ENDIF ENDIF //-----------------------------------------------------------// return
